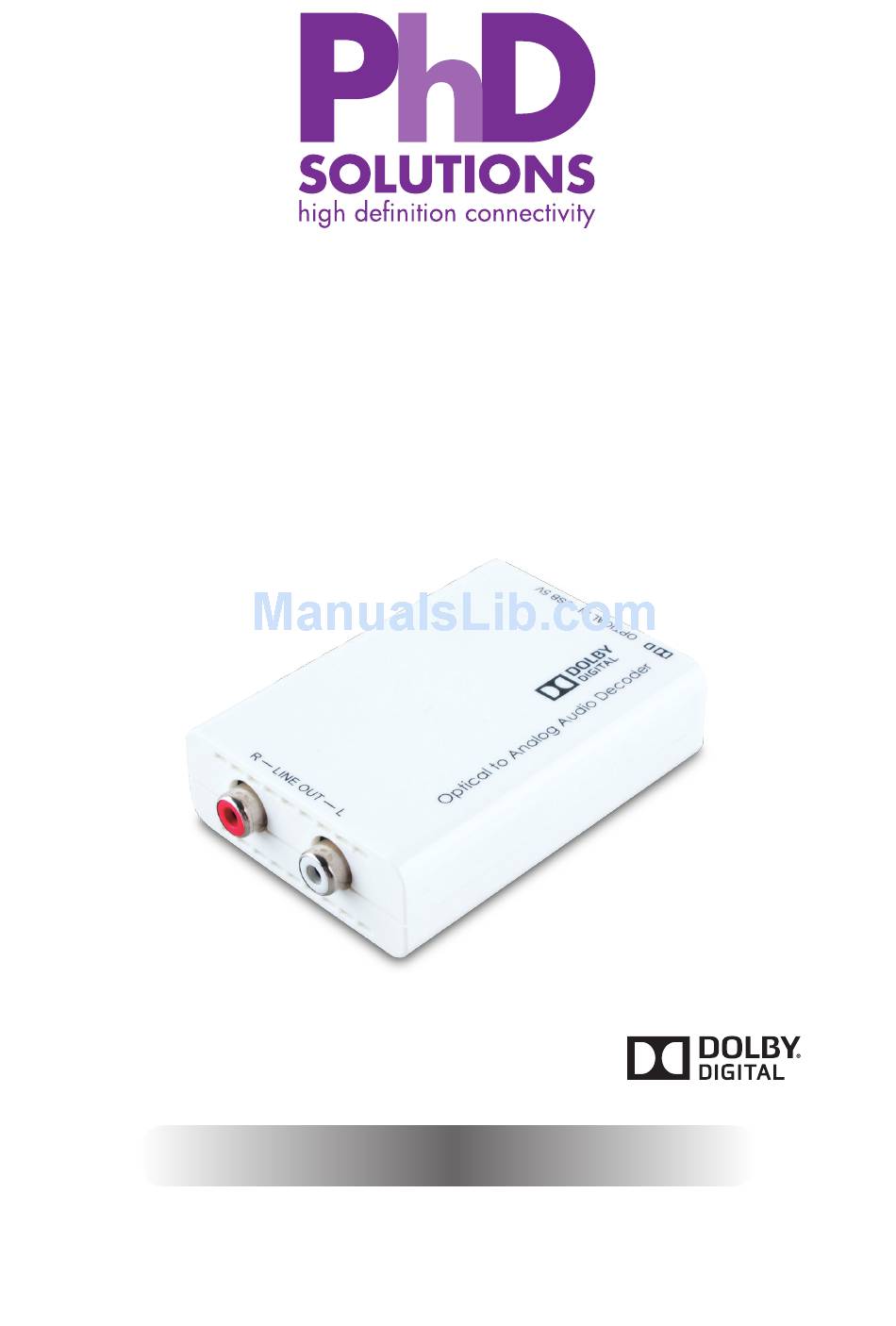

- Page 1 PHD-DCT-1D DCT-1D Optical to Analog Audio Converter with Dolby Digital Decoder ® Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 4: Introduction
1. INTRODUCTION ® The Optical to Analog Audio Converter (DAC) with Dolby Digital Decoder provides the ideal solution for converting an optical digital audio signal to analog stereo audio. With audio sampling rate support up to 48 kHz (Dolby Digital)/96 kHz (LPCM) and I/O data rate support up to 24-bit, it provides high quality sound conversion. -
Page 5: Features
5. FEATURES • Supports optical digital audio signal input and conversion into analog audio signal L/R output • Supports uncompressed digital LPCM stereo or Dolby Digital 5.1CH audio inputs • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz) •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN USB 5V Dolby/PCM LED Indicator: When the source audio is encoded with Dolby Digital the LED will illuminate. OPTICAL IN: Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. USB 5V: Connect the USB power port to any powered USB with a Mini-USB cable or Mini-USB to AC adaptor. -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analog Audio Output Power Digital Optical Power Supply Input Analog Stereo Output Amplifi er (with a spare analog input) -
Page 8: Specifi Cations
8. SPECIFICATIONS Input Port 1×Optical Output Port 1×L/R (2×RCA) Power Supply Powered by USB bus Output Level 1Vrms ± 10% THD+N <0.018% Frequency Response ±1 dB >80 dB Crosstalk <-80 dB Dimensions 55 mm (W)×82 mm (D)×22.5 mm (H) Weight 46 g Chassis Material Plastic... - Page 9 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 10 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
