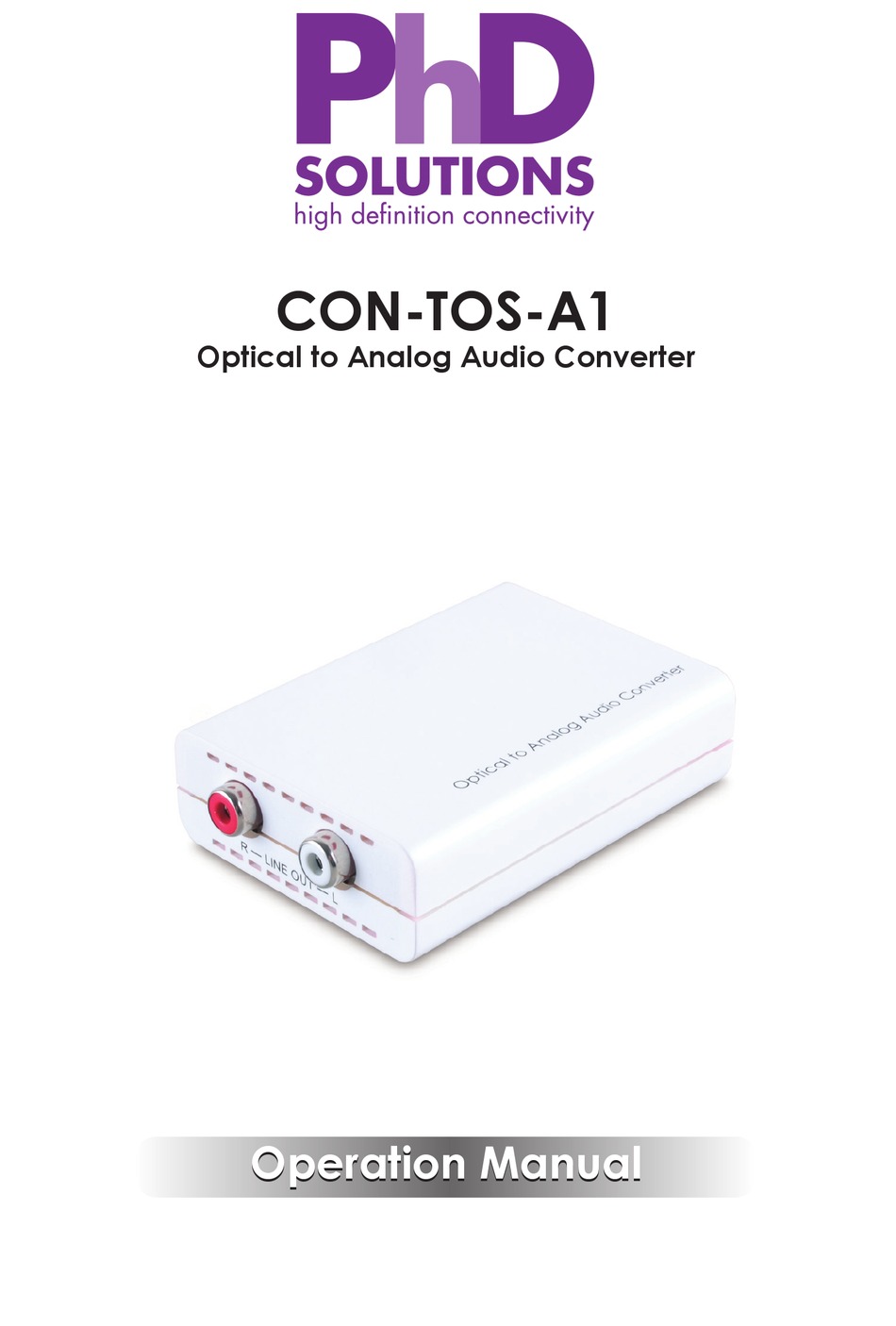

- Page 1 CON-TOS-A1 DCT-1 Optical to Analog Audio Converter Operation Manual Operation Manual...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons. -
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 4: Introduction
1. INTRODUCTION The Optical to Analog Audio Converter (DAC) provides the ideal solution for converting an Optical digital audio signal to analog stereo audio. With support for audio sampling rates up to 192 kHz/24-bit, it provides high quality sound conversion. This unit is perfect for use in, computer audio systems or digital mixing consoles and can be powered from any spare USB port allowing it to be used with USB equipped HDTVs, Blu-ray players or computers... -
Page 5: Features
5. FEATURES • Supports optical digital audio signal input and conversion into analog stereo audio output • Supports uncompressed digital LPCM stereo audio input • Supports LPCM 2CH audio sampling rates up to 192 kHz • Supports S/PDIF bitstream 24-bit of data for the left and right channels •... -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN USB 5V OPTICAL IN: Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. USB 5V: Connect the USB power port to any powered USB port with a Mini-USB cable or Mini-USB to AC adaptor. -
Page 7: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analog Audio Output Power Digital Optical Power Supply Input Analog Stereo Output Amplifi er (with a spare analog input) -
Page 8: Specifi Cations
8. SPECIFICATIONS Input Port 1×Optical Output Port 1×L/R (2×RCA) Power Supply Powered by USB bus Output Level 2 Vrms +/-10% THD+N < 0.01 % Frequency Response <+/-1 dB > 80 dB Crosstalk <-80 dB Dimensions 55 mm (W)×80.5 mm (D)×22.5 mm (H) Weight 40 g Chassis Material... - Page 9 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 10 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
- Page 11 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
