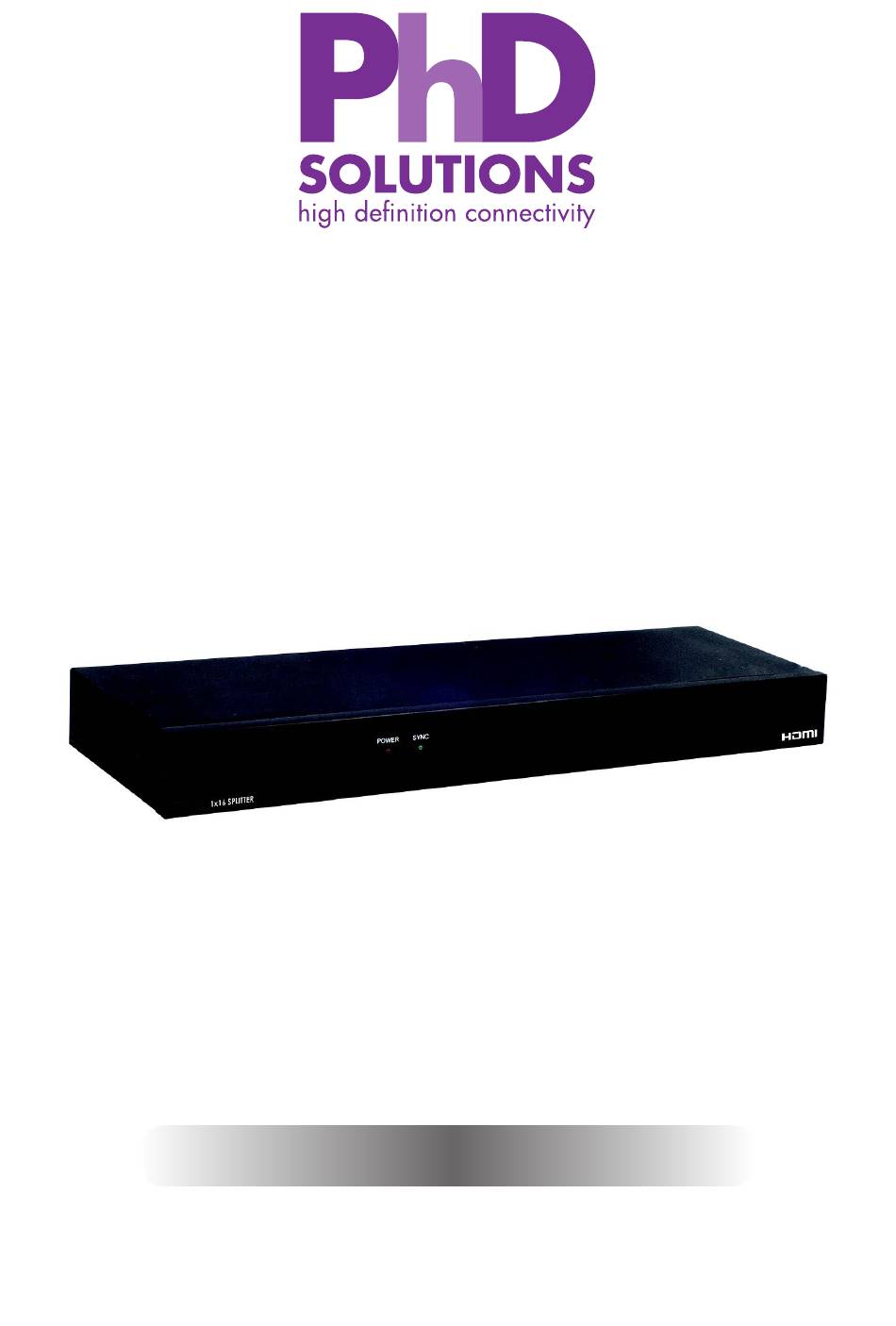

- Page 1 SP-1x2-HD3D/SP-1X4-HD3D/ CLUX-2/4/8/16EN SP-1X8-HD3D HDMI 1 by 2 /1 by 4/ 1 by 8/ 1 by 16 Splitter HDMI 1 by 2 /1 by 4/ 1 by 8/ 1 by 16 Splitter Operation Manual Operation Manual...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Connection and Installation ....4 8. -
Page 4: Introduction
1. INTRODUCTION The HDMI splitter series which sends a Hi-Def A/V source to up to 2/4/8/16 HDTV displays simultaneously without any quality or resolution loss. It support, 3D, 3Gbps bandwidth, 12-bit Deep Color, Hi-Def lossless audio and other features defi ned by HDMI specifi cations. 2. -
Page 5: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS The following sections describe the hardware components of the unit. 6.1 Front Panel POWER SYNC CLUX-16EN 1x16 SPLITTER POWER LED The power LED will illuminate when power on. SYNC LED The LED will illuminate when the HDMI source signal is connected to the input port. -
Page 6: Rear Panel
6.2 Rear Panel INPUT OUTPUT DC 5V EDID SERVICE 1 2 3 EDID STD/TV Default factory setting is TV, leave as it is if the display is properly. Switch to STD to use build-in EDID if the display has problems. When the EDID control switch in TV selection, the unit will detect the fi... -
Page 7: Connection And Installation
7. CONNECTION AND INSTALLATION Blu-ray or PS3 Player HDMI INPUT OUTPUT DC 5V EDID SERVICE HDMI 3D TV/Display... -
Page 8: Specifi Cations
8. SPECIFICATIONS Video Bandwidth 225MHz/6.75Gbps Input Port 1x HDMI (Female type) 1xUSB (Service only) Output Port 2 /4/8/16 x HDMI (Female type) Output Resolution 480i ~1080p 50/60, 1080p24/50/60, VGA~WUXGA ESD Protection Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) Dimensions (mm) 103 mm(W) x 155 mm(D) x 25 mm(H)/2EN 141 mm(W) x 99 mm(D) x 93 mm(H)/4EN... -
Page 9: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Defi nition Multimedia Interface HDTV High-Defi nition Television... - Page 10 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 11 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
