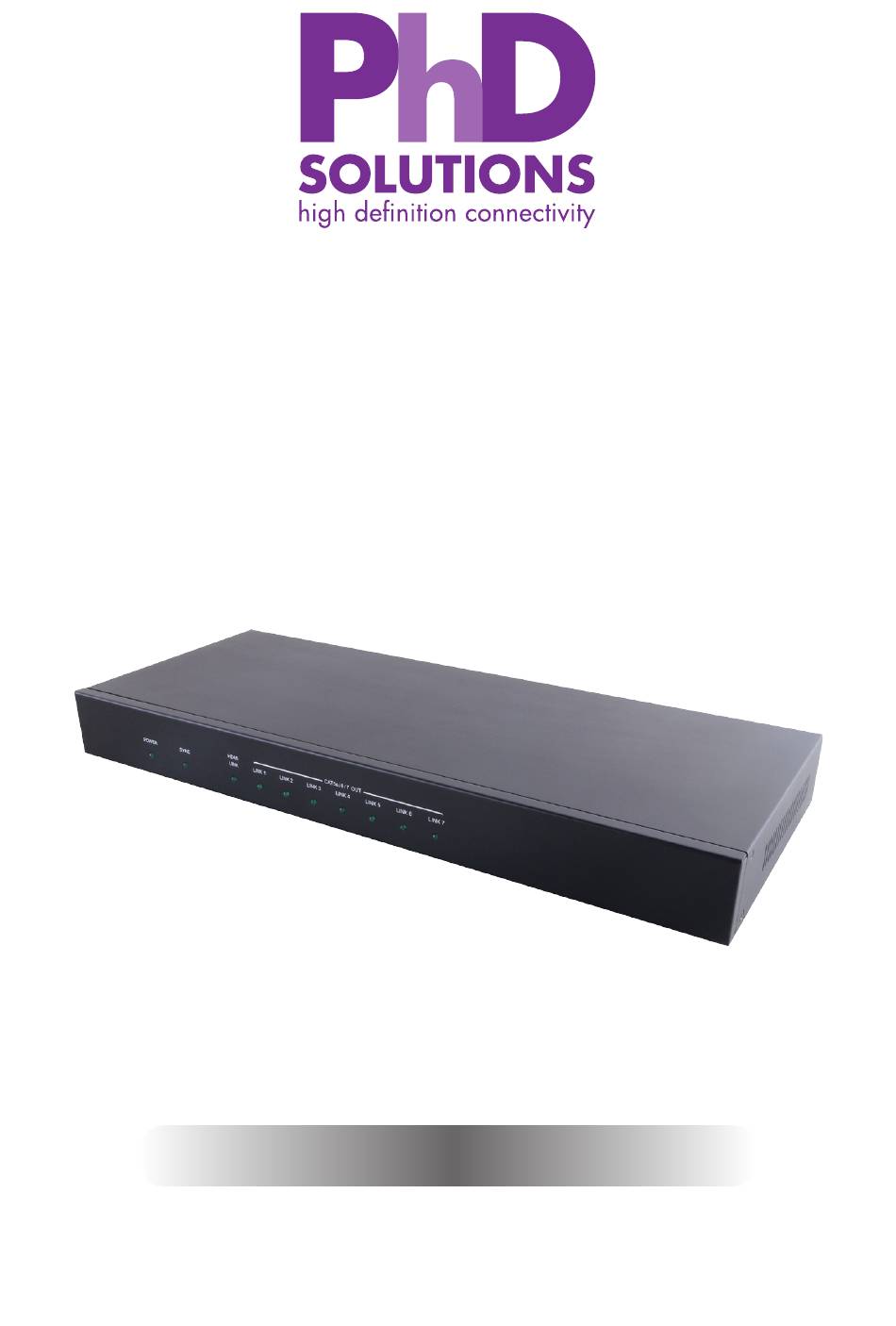

- Page 1 SPC-7C1H-HDTL CHDBT-1H7CL 1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter Operation Manual Operation Manual...
- Page 2 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fi re, electrical shock and injury to persons.
-
Page 3: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........3 6.3 IR Cable Pin Assignment....5 7. -
Page 4: Introduction
1. INTRODUCTION The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel digital audio formats (such as LPCM 7.1CH, Dol-by TrueHD, Dolby Digital Plus and DTS-HD). -
Page 5: Features
5. FEATURES • HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant • Simultaneous HDMI and CAT5e/6/7 outputs • Supports one HDTV and seven CAT5e/6/7 outputs • Supports data rate from 250Mbps up to 3Gbps • Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@24/25/30Hz and 4096x2160@24Hz). -
Page 6: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel CAT5e / 6 / 7 OUT HDMI POWER SYNC LINK LINK 1 LINK 2 LINK 3 LINK 4 LINK 5 LINK 6 LINK 7 POWER LED: Once the power supply is connected the LED will illuminate. - Page 7 EDID STD/TV: The default factory setting is on TV, leave as it is when the display is properly. The unit will detect the 1 CAT5e/6/7 output’s EDID when it obtain a 4Kx2K EDID and send out the signal accordingly to other output ports. If the 1 CAT5e/6/7 output is without a 4Kx2K's EDID the unit will detect all output's EDID and send out the signal that all outputs can accept.
-
Page 8: Ir Cable Pin Assignment
6.3 IR Cable Pin Assignment IR Blaster Power 3.3 V IR Blaster Signal IR Extender IR Signal Power 3.3 V Grounding... -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM Blu-ray or PS3 Player HDMI CAT5e / 6 / 7 OUT HDMI IN HDMI OUT IR IN IR OUT DC 24V EDID SERVICE 1.5m 60° HDMI IR BLASTER IR2 Blaster Power 60° IR1 Extender HDMI Receiver IR RECEIVER 3D TV/Display 3D TV/Display... -
Page 10: Specifications
8. SPECIFICATIONS Video Bandwidth 340Mbps/10.2Gbps Input ports 1 x HDMI, 1 x IR IN, 1 x USB (Service only) Output ports 1 x HDMI, 1 x IR OUT, 7 x CAT5e/6/7 Resolution Up to 4Kx2K (3840x2160@24/25/30Hz/4096x 2160@24Hz) HDMI Input & Output Up to 10m@1080p 8/12-bit Cable Distance CAT5e/6/7 Output... -
Page 11: Cat5E/6/7 Cable Specifi Cation
8.1 CAT5e/6/7 Cable Specifi cation Cable Range Pixel clock Video Data Supported Video Type rate Rate CAT5e/6/7 60 m <=225 MHz <=5.3 Gbps Up to 1080p, 60 Hz, 36 (HD Video) bits, 3D (data rates lower than 5.3 Gbps or below 225MHz TMDS clock) 40 m >225 MHz... - Page 12 PhD Solutions Product Warranty Should you feel your product does not function adequately due to defects in materials or workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the period indicated below: Repair the product with new or refurbished parts.
- Page 13 Return to Supplier When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging) with a tracking number and adequate insurance. Please include a document or letter detailing the reason for return and include a daytime telephone number and/or email address where you can be contacted. If repair is required during the limited warranty period, the purchaser will be required to provide a sales receipt or other proof of purchase, indicating date and location of purchase as well as the price paid for the product.
- Page 14 Premium High Definition Solutions Home page: http://www.phdsolutions.co...
