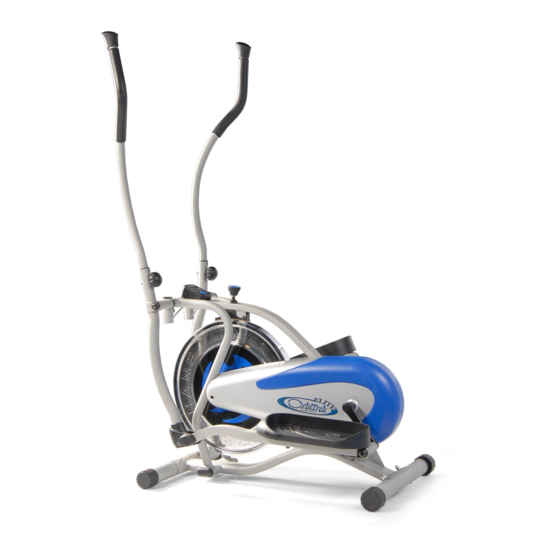

Thane Fitness ORBITREK Elite BE-205A Owner's Manual
  1. Manuals
  2. Brands
  3. Thane Fitness Manuals
  4. Fitness Equipment
  5. ORBITREK Elite BE-205A
  6. Owner's manual

Thane Fitness ORBITREK Elite BE-205A Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
THANE Fitness
™
Distributed by:
Thane Canada Inc.
Mississauga ON L4W 5M6, Canada
www.thane.ca
Thane USA, Inc.
Canton OH 44718, U.S.A.
www.thane.com
Thane Direct UK Limited
Thanet House 231-232 Strand, London WC2R 1DA
www.thane.tv
Danoz Direct Pty Ltd.
Bondi Junction, NSW, 2022, Australia
www.danoz.com.au
OPERADORA AINOA SAPI DE CV
Av. Magnocentro No. 5 Piso 1 Centro Urbano Interlomas,
Municipio Huixquilucan de Degollado, Estado de México. C.P: 52760
www.mejorcompratv.com
TVNS Scandinavia AB
SE-211 74 Malmö, Sweden
www.tvins.com
© 2020 Thane IP Limited.
"Thane", "Orbitrek™ Elite" and related logos and variations are trademarks or
registered trademarks, in Canada and/or other countries, of Thane IP Limited
and/or its affiliated companies.
MADE IN CHINA
Elite
Orbitrek Elite BE-205A MNL ENG R1 201203
OWNER'S MANUAL
MODEL# BE-205A
Please read all instructions carefully before using this product. Retain this manual for future reference.
Elite
Safety Notice ................................................................2
Assembly & Usage ................................................ 3-9
Exploded View ............................................................10
Parts List ................................................................. 11-12
Exercise Computer ............................................. 13-15
IMPORTANT!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ORBITREK Elite BE-205A and is the answer not in the manual?

Questions and answers

Related Manuals for Thane Fitness ORBITREK Elite BE-205A

Summary of Contents for Thane Fitness ORBITREK Elite BE-205A

  • Page 1 Canada and/or other countries, of Thane IP Limited and/or its affiliated companies. IMPORTANT! MADE IN CHINA Orbitrek Elite BE-205A MNL ENG R1 201203 Please read all instructions carefully before using this product. Retain this manual for future reference.

  • Page 2: Important Safety Notice

    IMPORTANT SAFETY NOTICE ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN Note the following precaution before assembling or operating the machine. 1. THE MAXIMUM WEIGHT CAPACITY OF THE ORBITREK™ ELITE is 220 lb (100 kg). Persons 1. Locate a comfortable work site. Assemble your Orbitrek™ Elite in an open space with adequate whose body weight exceeds this limit should NOT use this machine.

  • Page 3: Identify Your Hardware

    IDENTIFY YOUR HARDWARE: Step 1: Attaching front and rear stabilizers Organize your bolts and nuts before assembly. Nuts are identified by the diameter of the cavities. For more information, refer to exploded view diagram and parts list on pages 8-10 of this manual. Attach the Front Stabilizer (No.
  • Page 4 Step 3: Tightening the Lock Nuts and Attaching the Pedals Step 2: Attaching the Spindle Bar Insert the Spindle Bar (No. 38) through the Right Connecting Tube (No. 55) into the main frame, Tighten the both sides of Lock Nuts 26 20 into Left Connecting Tube (No.

  • Page 5: Step 4: Attaching The Handlebars

    Step 4: Attaching the Handlebars Step 5: Connecting the sensor Connect the sensor B1 & B2 as shown in Fig. 5, then install the computer (No. 37) into the support tube of You can easily switch your Right the main frame (No. 36). and Left Handlebars (No.

  • Page 6: Exploded View And Parts List

    EXPLODED VIEW & PARTS LIST PART NO. PART NAME QUANTITY SPEC LEFT HINGE BOLT φ28* 16*16 BUSHING I LOCK NUT φ28* 14*10 STEEL BUSHING CONNECTING TUBE SPRING WASHER 1/2" LEFT LOCK NUT 1/2" ADJUSTABLE END CAP CARRIAGE BOLT M8X60 φ50*1.5 REAR STABILIZER ARC WASHER DOMED NUT...

  • Page 7: Battery Disposal

    PART NO. PART NAME QUANTITY SPEC EXERCISE COMPUTER LEFT CHAIN COVER FIXING NUT M10*1.0 FIXING BOLT M6*55 SPECIFICATIONS: TENSION KNOB TIME (TMR) ........00:00-99:59 M10*1 FLYWHEEL SPEED (SPD) ........0.0-99.9KM/HorML/H FLYWHEEL SHAFT DISTANCE (DST) ......0.00-999.9KM LITTLE CHAIN WHEEL CALORIES (CAL) ......0-9999KCAL RIGHT CHAIN COVER 7/8”...

  • Page 8: Muscle Toning

    This is the stage where you put the effort in. After regular use, the muscles in your legs will become Using your Orbitrek™ Elite will provide you with several benefits. It will improve your physical fitness, more flexible. Work at your own pace and be sure to maintain a steady tempo throughout. The rate tone your muscles and in conjunction with a calorie controlled diet, help you lose weight.

Table of Contents
