Summary of Contents for Jumper JPD-FR409
- Page 1 JPD-FR409 0482 Infrared Thermometer Instruction Manual Shenzhen Jumper Medical Equipment Co., Ltd Manual Version: 1.1 Date of Issue: 2018/09/13...
- Page 3 No part of this document may be changed, excerpted, copied, reproduced, or imitated in any form or by any means without the prior consent of Shenzhen Jumper Medical Equipment Co., Ltd.
-
Page 4: Table Of Contents
Contents Unpacking Check ..................1 Package Contents ..................1 Safety Precautions ..................2 Warning ....................4 Symbols ....................5 Body Temperature Basics................6 Product Description .................. 7 Features..................... 8 Product structure ..................9 Display description ................... 9 Sounds and backlight instructions ............10 Display and Operating Instructions ............ -
Page 5: Unpacking Check
In case of any damage or operation problem, please contact the dealer or contact Jumper directly. You will need the following information when making your claim: device model, serial number, purchase date, and your contact information and address. -
Page 6: Safety Precautions
Safety Precautions Read the following precautions carefully before using the thermometer. Attention ◆ Take care of the temperature probe lens, which is fragile. ◆ Dispose used batteries with care. To protect the environment, you are recommended to send the used batteries to a designated collection point. - Page 7 Process" chapter and carefully operate the thermometer when measuring children's temperature. ◆ Do not immerse the thermometer in water or other liquid, as it is not waterproof. Clean and disinfect the thermometer as described in the "Cleaning and Disinfection" chapter. ◆...
-
Page 8: Warning
Warning Warning ⚫ Do not force the temperature probe of the thermometer into an ear canal. Otherwise, the ear canal may get injured. ⚫ Keep the thermometer out of the reach of children. ⚫ The result may be inaccurate if you use the overdue thermometer. ⚫... -
Page 9: Symbols
Do not use the thermometer in an environment where flammable anesthetic mixture with air or with oxygen or nitrous oxide is available. Symbols Symbol Description Type BF applied part. Attention must be paid. The action is prohibited. Information about the manufacturer. Date of manufacture. -
Page 10: Body Temperature Basics
Body Temperature Basics Generally, you can take a body temperature on the forehead, in the ear canal, under the armpit, in the mouth, or in the anus. The temperature measured at different parts of the body may differ slightly. Body Part Normal Temperature Range Forehead 36.1°C–37.5°C / 97.0°F–99.5°F... -
Page 11: Product Description
Intended use The JPD-FR409 Dual Mode Digital Infrared Thermometer is intended for the measurement of human body temperatures. The forehead mode is indicated for use by people of all ages and the eardrum mode is indicated... -
Page 12: Features
Contraindications Do not use the thermometer if the ear is infected with otitis or suppuration. Features Good safety ● Passive infrared receiving technology. Easy operation ● Ergonomic design ● One button measurement Quick measurement ● 1-second measurement High accuracy ● Advanced infrared temperature sensor, with high sensitivity ●... -
Page 13: Product Structure

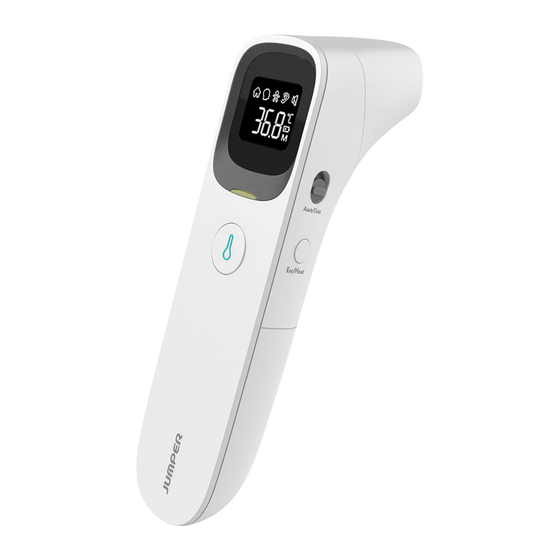

Product structure (1) LCD display screen (2) Indicator (3) Power button / Measure button (4) Adult mode / Child mode (5) Mode button (Forehead / Ear / Object) (6) Probe (take off the cover when measuring the ear temperature) (7) Unit switch button(℃/℉) (8) Probe cover (put the cover on when measuring the forehead temperature) (9) Memory button / Sound switch... -
Page 14: Sounds And Backlight Instructions
Sounds and indicator color instructions Indicator Range Sounds color Forehead temperature (Adult / Child) 35.0℃-37.5℃/95.0℉-99.5℉ A long beep Green 37.6℃-42.2℃/99.6℉-108.0℉ 3 short double beeps Ear temperature (Adult / Child) 35.0℃-37.5℃/95.0℉-99.5℉ A long beep Green 37.6℃-42.0℃/99.6℉-107.6℉ 3 short double beeps Object temperature 0℃-100℃/32.0℉-212℉... -
Page 15: Display And Operating Instructions
Display and Operating Instructions Operating Instructions Sound and Screen Display Indicator color Displayed State Measuring Ear temperature (Adult / Child) Take off the probe cover, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Ear mode. - Page 16 Operating Instructions Sound and Screen Display Indicator color Displayed State Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Forehead mode. The “Head” symbol is displayed on the screen.
- Page 17 Operating Instructions Sound and Screen Display Indicator color Displayed State Press and release the Power button for 1 second to power on the thermometer. Then press the Mode See the table in the button. The thermometer enters the “Sounds and Object mode.
- Page 18 Operating Instructions Sound and Screen Display Indicator color Displayed State In a power-on state, press the Memory button enter the memory mode. When the Memory button is released, 1 will be shown, followed by the recorded reading. Press the Memory button again for the next recorded data.
- Page 19 Operating Instructions Sound and Screen Display Indicator color Displayed State When the memory data is queried, when there is no memory data When the power is under the current serial number, the turned back on, a display is as shown. long beep, the indicator light is Remove 2 dry batteries and re-...
- Page 20 Operating Instructions Sound and Screen Display Indicator color Displayed State Press the Mode button to switch between object temperature and body temperature. Silent, the indicator light is green. Body temperature contains the Forehead temperature and Ear temperature. Switching between ºF/ºC In the power off state, remove the battery cover, and toggle the °C/°F unit in the battery...
-
Page 21: Measuring Ear Temperature
Operating Instructions Sound and Screen Display Indicator color Displayed State Error information & low battery The ambient temperature is higher A long beeps,the than 40.0ºC (104.0ºF) or lower than indicator light is 10.0ºC (50.0ºF). red. An error occurs when data is being A long beeps,the read from or written to the memory, indicator light is... - Page 22 2. Take the probe cover off from the thermometer before measuring the ear temperature. 3. Press the Power button to power on the thermometer. 4. Press the Mode button, the thermometer enters the Ear mode. The “Ear” symbol is displayed on the screen. 5.
-
Page 23: Measuring Forehead Temperature
Do not force the thermometer into the ear canal. Otherwise, the ear canal may get injured. When taking the temperature on an adult, gently pull the ear up and back to make sure the ear canal is straight, so that the temperature probe can receive an infrared ray from the eardrum. -
Page 24: Measuring Object Temperature
Press and release the Measure button for 1 second. The temperature reading will be displayed on the screen instantly. If no activity is detected, the thermometer will power off automatically in 10 seconds. Measuring Object Temperature Put the cover on the probe of thermometer. Press the Power button to power on the thermometer. - Page 25 After a measurement (1) After each measurement, you can enter the recall mode and query earlier temperature readings. For more details, see "Recall 20 memories" in the preceding table. (2) After each measurement, clean the temperature probe with a soft cloth, and put the thermometer in a dry and well-ventilated place.
-
Page 26: Replacing Batteries
(4) Make sure the sense head is free of foreign matters before use; (5) Make sure the forehead has no sweat and no hairs covered before measure the forehead temperature; otherwise, the result could be incorrect; (6) No intense emotion or strenuous exercises before measuring; (7) After measuring the data once, you should wait for the indicator to turn off and measure the next data. -
Page 27: Cleaning And Disinfection
cover, then remove the insulating piece. Cleaning and Disinfection Cleaning Recommended detergents: ＊ Medical detergents; ＊ Home use mild detergents; Cleaning steps: (1) Take the batteries out before cleaning. (2) Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab. -
Page 28: Maintenance
＊ Sodium hypochlorite solution (concentration: 3%) Disinfecting steps: 1) Wet the clean soft cloth with a small quantity of disinfectant, wipe the thermometer and quickly dry it. 2) Disinfect the thermometer body and the area around the temperature probe with a cloth slightly moistened with 75% medical alcohol. Do not use hot steam or ultraviolet radiation for disinfection. -
Page 29: Troubleshooting
4) Check regularly whether safety risks exist. 5) Remove the batteries if the thermometer will not be used for more than two months. Troubleshooting Problem Possible Cause Solution Low battery Change the batteries. Polarities of the Make sure that the batteries thermometer batteries are reversed. -
Page 30: Specifications
Specifications Product Name Infrared Thermometer Product Model JPD-FR409 Power Supply Mode Internal power supply Operating Voltage DC 3V Battery Model AAA x 2 Battery Life Alkaline dry battery for around 20,000 measurements Operating Mode Continuous operating Display... -
Page 31: Security Class
Environment Humidity: 15%–95% RH, non-condensing Atmospheric pressure: 86–106 kPa The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 96.8°F to102.2°F (36°C-39°C) for ear canal IR thermometers is ±0.4°F (±0.2°C). -
Page 32: Emc Information-Guidance And Manufacture's Declaration
DOCUMENTS. ● Portable and mobile RF communications equipment can affect Infrared Thermometer JPD-FR409. ● The Infrared Thermometer JPD-FR409 should not be used adjacent to or stacked with other equipment. Guidance and manufacturer´s declaration – Electromagnetic emission –for all equipment and systems Guidance and manufacturer´s declaration –... - Page 33 Guidance and manufacturer´s declaration – Electromagnetic immunity The Infrared Thermometer JPD-FR409 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPD-FR409 should assure that it is used in such an environment. Immunity test...
- Page 34 Guidance and manufacturer´s declaration – Electromagnetic immunity The Infrared Thermometer JPD-FR409 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPD-FR409 should assure that it is used in such an environment. Immunity test...
- Page 35 separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).
- Page 36 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JPD-FR409 is used exceeds the applicable RF compliance level above, the JPD-FR409 should be observed to verify normal operation.
- Page 37 RF communications equipment (transmitters) and the Infrared Thermometer JPD-FR409 as recommended below, according to the maximum output power of the communications equipment. Rated Separation distance according to frequency of transmitter maximum output 80 MHz to 800 MHz...
-
Page 38: Warranty And After-Sale Service
Warranty and After-Sale Service The device is under warranty for one year from the date of purchase. The batteries, the packaging, and any damage caused by improper use are not covered by the warranty. Excluding the following user-caused failures: 1. Failure resulting from unauthorized disassembly and modification. 2. - Page 40 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel:+86-755-26696279 Fax:+86-755-26852025 Website: http://www.jumper-medical.com...
