JPD-FR410
0482
Infrared Thermometer
Instruction Manual
Shenzhen Jumper Medical Equipment Co., Ltd
Manual Version: 1.0
Date of Issue: 2018/08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JPD-FR410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jumper JPD-FR410

  • Page 1 JPD-FR410 0482 Infrared Thermometer Instruction Manual Shenzhen Jumper Medical Equipment Co., Ltd Manual Version: 1.0 Date of Issue: 2018/08...
  • Page 2 No part of this document may be changed, excerpted, copied, reproduced, or imitated in any form or by any means without the prior consent of Shenzhen Jumper Medical Equipment Co., Ltd.
  • Page 3: Table Of Contents

    Contents Unpacking Check.................... 1 Package Contents.................... 1 Safety Precautions...................1 Warning......................3 Symbols......................4 Body Temperature Basics................6 Product Description..................7 Features......................8 Product structure..................... 9 Display description..................9 Sounds and backlight instructions..............10 Display and Operating Instructions..............11 Measuring Ear Temperature................. 17 Measuring Forehead Temperature..............19 Measuring Object Temperature..............20 Replacing Batteries..................
  • Page 4: Unpacking Check

    In case of any damage or operation problem, please contact the dealer or contact Jumper directly. You will need the following information when making your claim:
 device model, serial number, purchase date, and your contact information and address.
  • Page 5 you are recommended to send the used batteries to a designated collection point. Remove the batteries if the thermometer will not be used for  more than two months. Do not immerse the thermometer in water or expose it to direct ...
  • Page 6: Warning

    Keep the temperature probe clean to make sure accurate  readings. Before measuring the temperature from the ear canal, clean the  earwax, if any. The ambient temperature must not be extremely high or low. To  make sure accurate readings, keep the thermometer under room temperature for more than 30 minutes before use.
  • Page 7: Symbols

     The thermometer is not intended to diagnose or treat any health problem or disease. The measurement results are for reference only.  It is dangerous to make a self-diagnosis or self-treatment based on the obtained measurement results. For such purposes, please consult a doctor.
  • Page 8 Symbol Description Attention must be paid. The action is prohibited. Information about the manufacturer. Date of manufacture. Consult the instructions for use. This product complies with the MDD93/42/EEC requirements. Waste electrical materials should be sent to a dedicated collection point for recycling. IPX0 Degree of protection against the Ingress of water.
  • Page 9: Body Temperature Basics

    Body Temperature Basics Generally, you can take a body temperature on the forehead, in the ear canal, under the armpit, in the mouth, or in the anus. The temperature measured at different parts of the body may differ slightly. Body Part Normal Temperature Range Forehead 36.1°C–37.5°C / 97.0°F–99.5°F...
  • Page 10: Product Description

    Intended use The JPD-FR410 Dual Mode Digital Infrared Thermometer is intended for the measurement of human body temperatures. The forehead mode is indicated for use by people of all ages and the eardrum mode is indicated...
  • Page 11: Features

    Contraindications Do not use the thermometer if the ear is infected with otitis or suppuration. Features Good safety ● Passive infrared receiving technology. Easy operation ● Ergonomic design ● One button measurement Quick measurement ● 1-second measurement High accuracy ● Advanced infrared temperature sensor, with high sensitivity ●...
  • Page 12: Product Structure

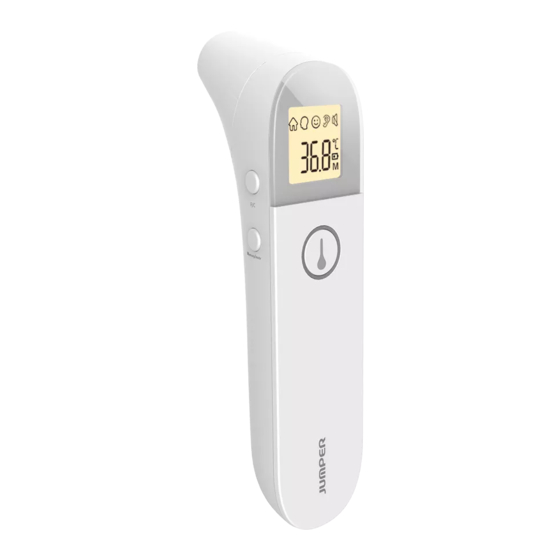

    Product structure (1) LCD display screen (2) Power button / Measure button (3) Adult mode / Child mode (4) Mode button (Forehead / Ear / Object) (5) Probe (take off the cover when measuring the ear temperature) (6) Probe cover (put the cover on when measuring the forehead temperature) (7) Unit switch button(℃/℉) (8) Memory button / Sound switch...
  • Page 13: Sounds And Backlight Instructions

    7. Low battery 8. Memory recall 9.Temperature value Sounds and backlight color instructions Range Sounds Backlight Forehead temperature (Adult / Child) A long beep Orange 35.0℃-37.5℃/95.0℉-99.5℉ 3 short double beeps 37.6℃-42.2℃/99.6℉-108.0℉ Ear temperature (Adult / Child) A long beep Orange 35.0℃-37.5℃/95.0℉-99.5℉...
  • Page 14: Display And Operating Instructions

    Display and Operating Instructions Operating Instructions Sound and Screen Display backlight color Displayed State Measuring Ear temperature (Adult / Child) Take off the probe cover, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Ear mode.
  • Page 15 Operating Instructions Sound and Screen Display backlight color Displayed State Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Forehead mode. The “Head” symbol is displayed on the See the table in the...
  • Page 16 Operating Instructions Sound and Screen Display backlight color Displayed State Press and release the Power button for 1 second to power on the thermometer. Then press the Mode See the table in the button. The thermometer enters the “Sounds and Object mode.
  • Page 17 Operating Instructions Sound and Screen Display backlight color Displayed State In a power-on state, press the Memory button enter the memory mode. When the Memory button is released, 1 will be shown, followed by the recorded reading. Press the Memory button again for the next recorded data.
  • Page 18 Operating Instructions Sound and Screen Display backlight color Displayed State When the memory data is queried, When the power is when there is no memory data turned back on, a under the current serial number, the long beep, the display is as shown. backlight is Remove 2 dry batteries and orange, then turn...
  • Page 19 Operating Instructions Sound and Screen Display backlight color Displayed State Press the Mode button to switch between object temperature and Silent, the body temperature. backlight is Body temperature contains the orange. Forehead temperature and Ear temperature. Switching between ºF/ºC In the power off state, remove the battery cover, and toggle the °C/°F unit in the battery compartment to switch the toggle device.
  • Page 20: Measuring Ear Temperature

    Operating Instructions Sound and Screen Display backlight color Displayed State Error information & low battery The ambient temperature is higher A long beeps,the than 40.0ºC (104.0ºF) or lower than backlight is red. 10.0ºC (50.0ºF). An error occurs when data is being read from or written to the memory, A long beeps,the or the temperature correction is not...
  • Page 21 ear temperature. 3. Press the Power button to power on the thermometer. 4. Press the Mode button, the thermometer enters the Ear mode. The “Ear” symbol is displayed on the screen. 5. When measuring an adult, place the switching device in the "adult" mode.
  • Page 22: Measuring Forehead Temperature

    When taking the temperature on an adult, gently pull the ear up and back to make sure the ear canal is straight, so that the temperature probe can receive an infrared ray from the eardrum. Be careful when taking temperature on a child, whose ear canal is small.
  • Page 23: Measuring Object Temperature

    Measuring Object Temperature Put the cover on the probe of thermometer. Press the Power button to power on the thermometer. Press the Mode button, the thermometer enters the Object mode. The “House” symbol is displayed on the screen. Point the thermometer probe to the center of the object, about “...
  • Page 24: Replacing Batteries

    obtained measurement results. For such purposes, please consult a doctor. Notes: (1) The thermometer is suitable for an indoor environment without strong air convection (for example, winds from a fan, an air-conditioner, or a heater) between the thermometer and the person. (2) Make sure that the ear canal is clean and dry before starting a measurement.
  • Page 25: Cleaning And Disinfection

    If the low-battery symbol is displayed on the screen, replace the batteries. Batteries of a same type should be used. Dispose the used batteries in accordance with the local environmental policies. The thermometer is shipped with batteries. First open the battery cover, then remove the insulating piece.
  • Page 26: Maintenance

    or allow liquid to penetrate the thermometer. Disinfection Recommended disinfectants: * Isopropyl alcohol solution (concentration: 70%) * Medicinal alcohol (concentration: 75%) * Sodium hypochlorite solution (concentration: 3%) Disinfecting steps: Wet the clean soft cloth with a small quantity of disinfectant, wipe the thermometer and quickly dry it.
  • Page 27: Troubleshooting

    that the storage and transportation environments meet the requirements. Check regularly whether safety risks exist. Remove the batteries if the thermometer will not be used for more than two months. Troubleshooting Problem Possible Cause Solution Low battery Change the batteries. Polarities of the Make sure that the The thermometer...
  • Page 28: Specifications

    Specifications Product Name Infrared Thermometer Product Model JPD-FR410 Power Supply Internal power supply Mode Operating Voltage DC 3V Battery Model AAA x 2 Operating Mode Continuous operating Display...
  • Page 29: Security Class

    Outer dimensions 149.3×38.1×43.4mm (mm) Weight (g) Thermometer (with batteries): 86.7 g Temperature: 10°C~ 40°C (50°F–104°F) Operating Humidity: 15%–95% RH, non-condensing Environment Atmospheric pressure: 86–106 kPa The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 96.8°F to102.2°F (36°C-39°C) for ear canal IR thermometers is ±0.4°F (±0.2°C).
  • Page 30: Emc Information-Guidance And Manufacture's Declaration

    ● Portable and mobile RF communications equipment can affect Infrared Thermometer JPD-FR410. ● The Infrared Thermometer JPD-FR410 should not be used adjacent to or stacked with other equipment. Guidance and manufacturer´s declaration – Electromagnetic emission –for all equipment and systems Guidance and manufacturer´s declaration –...
  • Page 31 Guidance and manufacturer´s declaration – Electromagnetic immunity The Infrared Thermometer JPD-FR410 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPD-FR410 should assure that it is used in such an environment. Immunity...
  • Page 32 Guidance and manufacturer´s declaration – Electromagnetic immunity The Infrared Thermometer JPD-FR410 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer JPD-FR410 should assure that it is used in such an environment. Immunity...
  • Page 33 according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed transmitters, determined by an Electromagnetic site survey,a should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol:...
  • Page 34 If the measured field strength in the location in which the JPD-FR410 is used exceeds the applicable RF compliance level above, the JPD-FR410 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the JPD-FR410.
  • Page 35: Warranty And After-Sale Service

    0.01 0.12 0.23 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
  • Page 36 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel:+86-755-26696279 Fax:+86-755-26852025 Website: http://www.jumper-medical.com...
