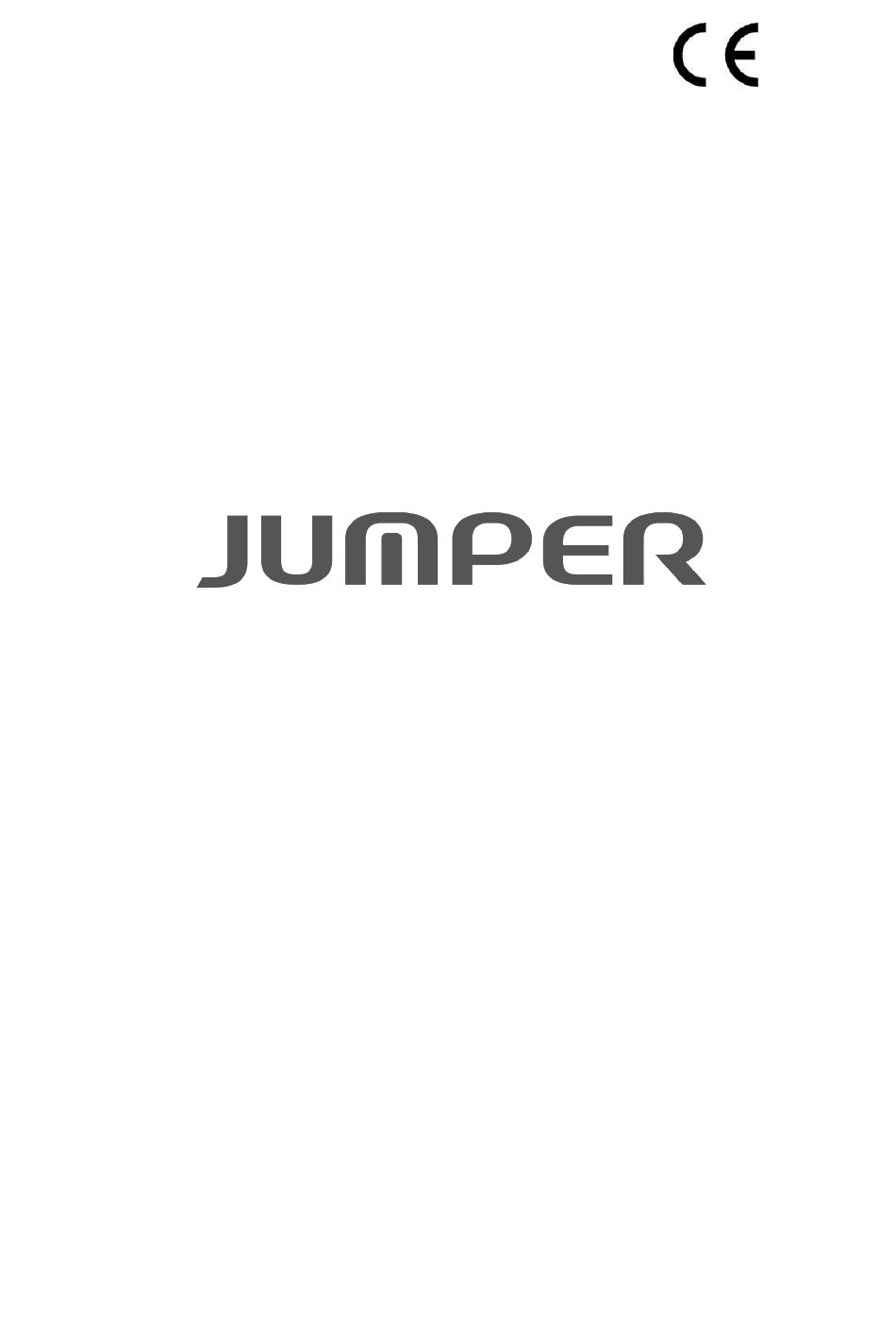

- Page 1 JPD-FR409-BT 0482 Infrared Thermometer Instruction Manual Shenzhen Jumper Medical Equipment Co., Ltd Manual Version: 1.0 Date of Issue: 2019.8...
- Page 2 No part of this document may be changed, excerpted, copied, reproduced, or imitated in any form or by any means without the prior consent of Shenzhen Jumper Medical Equipment Co., Ltd.
-
Page 3: Table Of Contents
Contents FCC Statement....................1 Unpacking Check.................... 2 Package Contents.................... 2 Safety Precautions...................2 Warning......................4 Symbols......................5 Body Temperature Basics................6 Product Description..................8 Features......................9 Product structure................... 10 Display description..................10 Sounds and indicator color instructions............11 Display and Operating Instructions..............11 Measuring Ear Temperature................. 18 Measuring Forehead Temperature..............20 Measuring Object Temperature.............. -
Page 4: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 5: Unpacking Check
In case of any damage or operation problem, please contact the dealer or contact Jumper directly. You will need the following information when making your claim: device model, serial number, purchase date, and your contact information and address. - Page 6 Remove the batteries if the thermometer will not be used for more than two months. Do not immerse the thermometer in water or expose it to direct sunlight. Do not subject the thermometer to vibration or impact. The normal body temperature varies from person to person.
-
Page 7: Warning
earwax, if any. The ambient temperature must not be extremely high or low. To make sure accurate readings, keep the thermometer under room temperature for more than 30 minutes before use. Do not use the thermometer under an ambient temperature higher ... -
Page 8: Symbols
It is dangerous to make a self-diagnosis or self-treatment based on the obtained measurement results. For such purposes, please consult a doctor. Do not charge an alkaline dry-cell battery or throw it in fire. Otherwise, the battery may explode. Do not disassemble the thermometer or attempt to repair it. -
Page 9: Body Temperature Basics
Symbol Description Information about the manufacturer. Date of manufacture. Consult the instructions for use. This product complies with the MDD93/42/EEC requirements. Waste electrical materials should be sent to a dedicated collection point for recycling. A personal injury or damage to the thermometer may Warning occur if the thermometer is not used correctly. - Page 10 To determine if an individual is experiencing an elevated body temperature and/or having a fever, it is critical to know the individual’s normal body temperature when he/she is well. Take multiple readings to obtain the normal body temperature range and note the specific body site measured, for example: forehead or eardrum temperature.
-
Page 11: Product Description

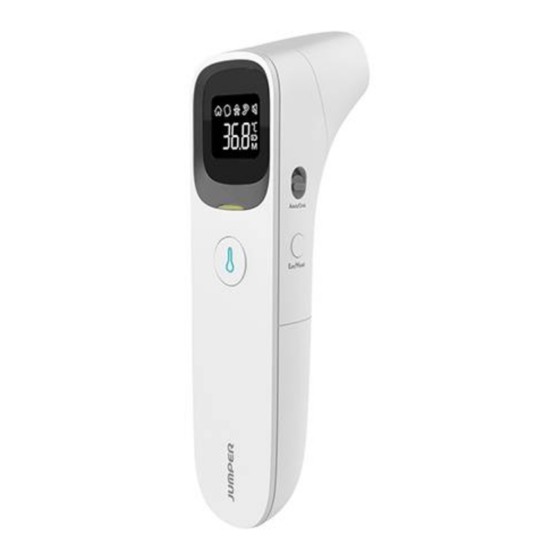

Product Description Overview Infrared Thermometer JPD-FR409-BT measures the body temperature based on the infrared energy emitted from the eardrum or the forehead. Users can quickly get measurement results after positioning properly the temperature probe in the ear canal or on the forehead. Structure The thermometer consists of a shell, an LCD, a measure button, a beeper, an infrared temperature sensor, and a Microprocessor. -
Page 12: Features
Do not use the thermometer if the ear is infected with otitis or suppuration. Features Good safety ● Passive infrared receiving technology. Easy operation ● Ergonomic design ● One button measurement Quick measurement ● 1-second measurement High accuracy ● Advanced infrared temperature sensor, with high sensitivity ●... -
Page 13: Product Structure
Product structure (1) LCD display screen (2) Indicator (3) Power button / Measure button (4) Adult mode / Child mode (5) Mode button (Forehead / Ear / Object) (6) Probe (take off the cover when measuring the ear temperature) (7) Unit switch button(℃/℉) (8) Probe cover (put the cover on when measuring the forehead temperature) (9) Memory button / Sound switch... -
Page 14: Sounds And Indicator Color Instructions
Sounds and indicator color instructions Indicator Range Sounds Color Forehead temperature (Adult / Child) 35.0℃-37.5℃/95.0℉-99.5℉ A long beep Green 37.6℃-42.2℃/99.6℉-108.0℉ 3 short double beeps Ear temperature (Adult / Child) 35.0℃-37.5℃/95.0℉-99.5℉ A long beep Green 37.6℃-42.0℃/99.6℉-107.6℉ 3 short double beeps Object temperature 0℃-100℃/32.0℉-212℉... - Page 15 Operating Instructions Sound and Screen Display Indicator Color Displayed State Take off the probe cover, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Ear mode. The symbol “Ear” is See the table in the displayed on the screen.
- Page 16 Operating Instructions Sound and Screen Display Indicator Color Displayed State Put the cover on the probe, press and release the Power button for 1 second to power on the thermometer. Press the Mode button, the thermometer enters the Forehead mode. The “Head” symbol is displayed on the screen.
- Page 17 Operating Instructions Sound and Screen Display Indicator Color Displayed State Press and release the Power button for 1 second to power on the thermometer. Then press the Mode See the table in the button. The thermometer enters the “Sounds and Object mode.
- Page 18 Operating Instructions Sound and Screen Display Indicator Color Displayed State In a power-on state, press the Memory button enter the memory mode. When the Memory button is released, 01 will be shown, followed by the recorded reading. Press the Memory button again for the next recorded data.
- Page 19 Operating Instructions Sound and Screen Display Indicator Color Displayed State The display is as shown , when With a long beep, there is no more data checked while the green indicator recalling memories. Remove 2 dry light shows up and batteries and after 10 seconds turn red, when re-install the power to clear all...
- Page 20 Operating Instructions Sound and Screen Display Indicator Color Displayed State Press the Mode button to switch between object temperature and The silent green body temperature. indicator light Body temperature contains the Forehead temperature and Ear temperature. Switching between ºF/ºC In the power off state, remove the battery cover, and toggle the °C/°F unit in the battery compartment to switch the toggle...
-
Page 21: Measuring Ear Temperature
Operating Instructions Sound and Screen Display Indicator Color Displayed State Error information & low battery A long beep with The ambient temperature is higher the red indicator than 40.0ºC (104.0ºF) or lower than light. 10.0ºC (50.0ºF). An error occurs when data is being A long beep with read from or written to the memory, the red indicator... - Page 22 2. Take the probe cover off from the thermometer before measuring the ear temperature. 3. Press the Power button to power on the thermometer. 4. Press the Mode button, the thermometer enters the Ear mode. The “ ” symbol is displayed on the screen. 5.
-
Page 23: Measuring Forehead Temperature
Do not force the thermometer into the ear canal. Otherwise, the ear canal may get injured. When taking the temperature on an adult, gently pull the ear up and back to make sure the ear canal is straight, so that the temperature probe can receive an infrared ray from the eardrum. -
Page 24: Measuring Object Temperature
Press and release the Measure button for 1 second. The temperature reading will be displayed on the screen instantly. If no measurement is conducted, the thermometer will be powered off automatically in 10 seconds. Measuring Object Temperature Put the cover on the probe of thermometer. Press the Power button to power on the thermometer. -
Page 25: Connecting The Thermometer To An App Application Of A Mobile Phone
and put the thermometer in a dry and well-ventilated place. It is dangerous to make a self-diagnosis or self-treatment based on the obtained measurement results. For such purposes, please consult a doctor. Notes: (1) The thermometer is suitable for an indoor environment without strong air convection (for example, winds from a fan, an air-conditioner, or a heater) between the thermometer and the person. -
Page 26: Replacing Batteries
APP "JUMPER HEALTH". The software automatically saves the measurement data and draws a temperature curve graph, which helps view the temperature change status in real time.For a method for connecting the thermometer to the smart phone,see Operation Instruction. -
Page 27: Cleaning And Disinfection
Cleaning and Disinfection Cleaning Recommended detergents: ＊ Medical detergents; ＊ Home use mild detergents; Cleaning steps: (1) Take the batteries out before cleaning. (2) Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab. (3) Wipe the thermometer body with a slightly damp soft cloth. -
Page 28: Maintenance
Disinfecting steps: Wet the clean soft cloth with a small quantity of disinfectant, wipe the thermometer and quickly dry it. Disinfect the thermometer body and the area around the temperature probe with a cloth slightly moistened with 75% medical alcohol. Do not use hot steam or ultraviolet radiation for disinfection. -
Page 29: Troubleshooting
than two months. Troubleshooting Problem Possible Cause Solution Low battery Change the batteries. Polarities of the Make sure that the batteries thermometer batteries are reversed. are installed correctly. fails to power The thermometer is Contact the manufacturer. damaged. The ambient Take a measurement under temperature is lower an ambient temperature... -
Page 30: Specifications
Specifications Product Name Infrared Thermometer Product Model JPD-FR409-BT Power Supply Mode Internal power supply Operating Voltage DC 3V Battery Model AAA x 2 Battery Life Alkaline dry battery for around 20,000 measurements Operating Mode Continuous operating Display Segment LCD Measure time About 1 second Latency Time About 3 seconds... -
Page 31: Security Class
The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 96.8°F to102.2°F (36°C-39°C) for ear canal IR thermometers is ±0.4°F (±0.2°C). Note that for mercury-in-glass and electronic thermometers, the requirement per ASTM Standards E667-86 and E1112-86 is ±0.2°F (±0.1°C). -
Page 32: Emc Information-Guidance And Manufacture's Declaration
EMC Information-Guidance and Manufacture’s Declaration CAUTION: ● The Infrared Thermometer JPD-FR409-BT needs special precautions regarding EMC and needs to be installed and put into service according to information provided the ACCOMPANYING DOCUMENTS. ● Portable and mobile RF communications equipment can affect Infrared Thermometer JPD-FR409-BT. - Page 33 equipment. The Infrared Thermometer JPD-FR409-BT is suitable for use in all establishments, including domestic establishments and RF emissions Class B those directly connected to the public CISPR 11 low-voltage power supply network that supplies buildings used for domestic purposes. Guidance manufacturer's declaration –...
- Page 34 frequency fields should be at levels (50/60 Hz) characteristic of a typical magnetic location in a typical field commercial or hospital IEC 61000-4-8 environment. Guidance manufacturer´s declaration – Electromagnetic immunity –for equipment and systems that are not life-supporting Guidance and manufacturer´s declaration – Electromagnetic immunity The Infrared Thermometer JPD-FR409-BT is intended for use in the electromagnetic environment specified below.
- Page 35 Recommended separation distance where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from fixed transmitters, determined by an Electromagnetic site survey,a should be less than...
- Page 36 NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy.
-
Page 37: Warranty And After-Sale Service
the maximum output power of the communications equipment. Rated Separation distance according to frequency of transmitter maximum output 80 MHz to 800 MHz 800 MHz to 2.5 GHz power transmitter 0.01 0.12 0.23 0.38 0.73 For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter... - Page 38 The batteries, the packaging, and any damage caused by improper use are not covered by the warranty. Excluding the following user-caused failures: 1.Failure resulting from unauthorized disassembly and modification. 2.Failure resulting from an unexpected dropping during application or transportation. 3.Failure resulting from not following the instructions in the user’s manual Authorized European Representative: Wellkang Ltd Suite B, 29 Harley Street, London W1G 9QR, UK...
- Page 40 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan, Shenzhen, Guangdong, China Tel:+86-755-26696279 Fax:+86-755-26852025 Website: http://www.jumper-medical.com...
