Page 1: Power Supply

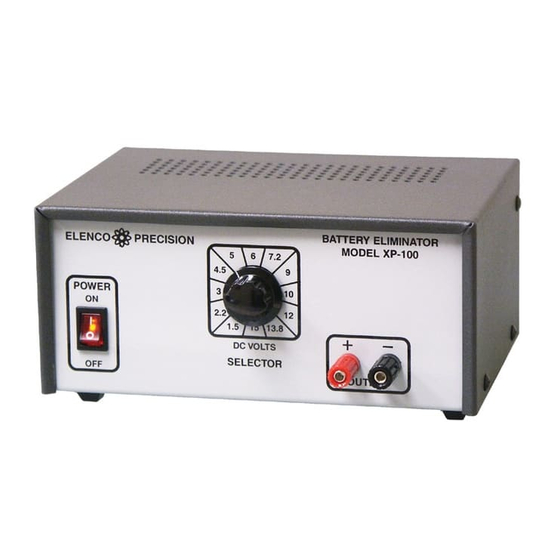

Battery Eliminator Power Supply Instruction Manual Model XP-100 Elenco Electronics, Inc. 150 W. Carpenter Avenue Wheeling, IL 60090 (847) 541-3800 http://www.elenco.com e-mail: elenco@elenco.com Revised 2001 REV-B 753264... - Page 2 INTRODUCTION The XP-100 is a solid state DC power supply designed to give the most popular battery voltages. Voltages are precisely set by using 1% resistors. A special IC circuit keeps the output voltage within .2V of setting when going from no load to one ampere. The output is fully protected from short circuits and overloads.
