Summary of Contents for Elenco Electronics XP-770

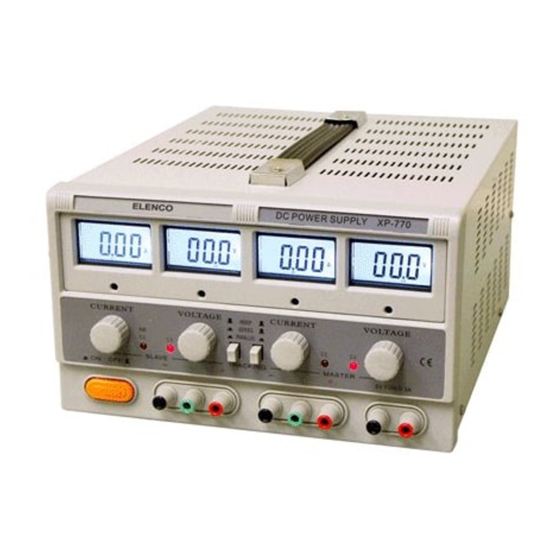

- Page 1 All manuals and user guides at all-guides.com Triple-output Regulated DC Power Supply Instruction Manual Model XP-770...
- Page 2 All manuals and user guides at all-guides.com COMPONENT OVERVIEW...
- Page 3 All manuals and user guides at all-guides.com 1. Voltage and current indication for master output 2. Voltage and current indication for slave output 3. Voltage adjustment of master output 4. Current adjustment of master output 5. Voltage adjustment of slave output 6.
- Page 4 High voltage may appear at unexpected points in defective equipment. The XP-770 is equipped with a three-wire line cord which grounds the chassis to power line ground. Do not cut off or disable the ground plug.
- Page 5 All manuals and user guides at all-guides.com 5. Check that the voltage rating of the equipment does not exceed the power supply’s rating. Dual Power Supply Used in Independent Mode Set the tracking switches 11 & 12 to the OUT position. Constant Voltage Mode 1.
- Page 6 All manuals and user guides at all-guides.com Dual Power Supply Used in Series Mode 1. Set the tracking switch 12 to the IN position and tracking switch 11 to the OUT position. Adjust the master and slave output current adjustment control knobs (4 & 6) clockwise to the maximum position. Adjust controls 3 and 5 to the desired output voltage.
- Page 7 Contacting the heat sink when it is hot could result in skin burns or damage to the equipment in contact with them. • Never move or pull the power supply using the power cord or output lead. • The XP-770 is designed for INDOOR USE ONLY. SPECIFICATIONS Line Regulation Load Regulation Ripple &...
- Page 8 All manuals and user guides at all-guides.com MAINTENANCE Cleaning – Using a soft moistened cloth, remove any dirt on the outside of the case. The power supply should be used in a normal working environment. Servicing – If the unit becomes inoperative or damage, Elenco ®...
