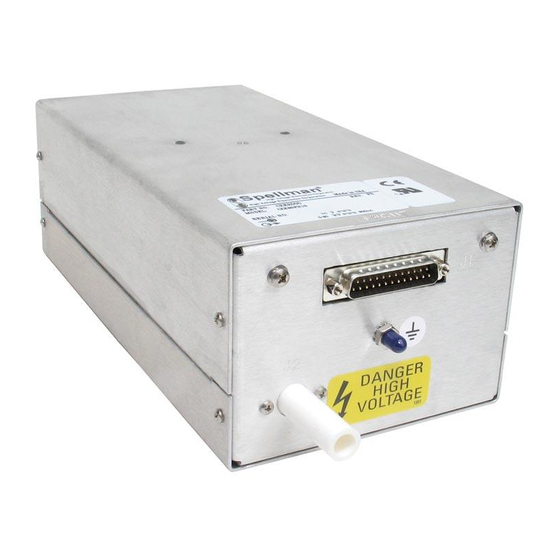

Spellman CZE Series Instruction Manual

High voltage power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
High Voltage Power Supply
SPELLMAN
HIGH VOLTAGE ELECTRONICS
CORPORATION
475 Wireless Blvd.
Hauppauge, New York, 11788
+1(631) 630-3000*FAX: +1(631) 435-1620*
E-mail:
sales@spellmanhv.com
Website: www.spellmanhv.com
CZE MANUAL
CZE SERIES
MODEL :
SERIAL# :
DATE :
R
118031-001 Rev D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CZE Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spellman CZE Series

Summary of Contents for Spellman CZE Series

  • Page 1 CZE SERIES High Voltage Power Supply MODEL : SERIAL# : DATE : SPELLMAN HIGH VOLTAGE ELECTRONICS CORPORATION 475 Wireless Blvd. Hauppauge, New York, 11788 +1(631) 630-3000*FAX: +1(631) 435-1620* E-mail: sales@spellmanhv.com Website: www.spellmanhv.com CZE MANUAL 118031-001 Rev D...
  • Page 2 CAUTION notes in the text indicate procedures to be followed to avoid possible damage to equipment. Copyright © 2000, Spellman High Voltage Electronics Corporation. All Rights Reserved. This information contained in this publication is derived in part from proprietary and patent data. This information has...
  • Page 3 WICHTIGE SICHERHEITSHINWEISE SICHERHEIT DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT LEBENSGEFÄHRLICHE HOCHSPANNUNG. SEIN SIE SEHR VORSICHTIG BEI DER ARBEIT MIT DIESEM GERÄT. Das Hochspannungsnetzteil muß immer geerdet sein. Berühren Sie die Stecker des Netzteiles nur, wenn das Gerät ausgeschaltet ist und die elektrischen Kapazitäten des Netzteiles und der angeschlossenen Last entladen sind. Die internen Kapazitäten des Hochspannungsnetzteiles benötigen ca.
  • Page 4 PRECAUTIONS IMPORTANTES POUR VOTRE SECURITE CONSIGNES DE SÉCURITÉ ETTE ALIMENTATION GÉNÈRE DES TENSIONS QUI SONT DANGEUREUSES ET PEUVENT ÊTRE FATALES OYEZ EXTRÊMENT VIGILANTS LORSQUE VOUS UTILISEZ CET ÉQUIPEMENT Les alimentations haute tension doivent toujours être mises à la masse. Ne touchez pas les connectiques sans que l’équipement soit éteint et que la capacité à la fois de la charge et de l’alimentation soient déchargées.
  • Page 5 IMPORTANTI PRECAUZIONI DI SICUREZZA SICUREZZA QUESTO ALIMENTATORE GENERA TENSIONI CHE SONO PERICOLOSE E POTREBBERO ESSERE MORTALI. PONI ESTREMA CAUTELA QUANDO OPERI CON QUESO APPARECCHIO. Gli alimentatori ad alta tensione devono sempre essere collegati ad un impianto di terra. Non toccare le connessioni a meno che l’apparecchio sia stato spento e la capacità interna del carico e dell’alimentatore stesso siano scariche.
  • Page 6 SICHERHEIT DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT LABENSGEFÄHRLICHE HOCHSPANNUNG. SEIEN SIE SEHR VORSICHTIG BEI DER ARBEIT MIT DIESEM GERÄT Das Hochspannungsnetzteil muB inner geerdet sein. Berühren Sei die Stecker des Netzteiles nur wenn das Gerät ausgeschaltet ist und die elektrischen Kapazitäten des Netzteiles und der angeschlossenen Last entladen sind. Die internen Kapazitäten des Hochspannungsnetzteiles benötigen ca.

  • Page 7: Table Of Contents

    Table of Contents PAGE 1. INTRODUCTION Description of the CZE Series ................1 CZE Specifications ....................1 Standard Features ....................2 Options .........................2 Interpreting the Model Number ................3 2. INSPECTION & INSTALLATION Initial Inspection ....................4 Mechanical Installation ..................4 3. OPERATING INSTRUCTIONS Operation......................7 Standard Features ....................7 4.
  • Page 8 Replacement Parts ....................20 Correspondence and Ordering Spare Parts ............20 8. FACTORY SERVICE Warranty Repairs ....................21 Factory Service Procedures ..................21 Ordering Options and Modifications ..............21 Shipping Instructions ...................21 APPENDIX Specification Controls (Custom Models Only) Schematics LIST OF FIGURES CZE1000 Dimensions & Connector Interface .............5 CZE2000 Dimensions &...

  • Page 9: Introduction

    The CZE series operates from 24VDC Temperature Coefficient: • ±10%. (User should specify the input voltage at the time of ordering). The CZE series operates at 9W continuous. 100 ppm per °C. The series does not require forced air cooling. •...

  • Page 10: Standard Features

    1.3 Standard Features Remote Monitor: Allows remote monitoring of the output voltage and current. The CZE series incorporates several standard features High Voltage Enable/Disable: Allows remote ON/OFF designed to optimize user operation. control of the high voltage. Slow Start: Provides a gradual increase in high voltage +10VDC Reference: A +10VDC reference is provided output until the maximum set point is reached.

  • Page 11: Interpreting The Model Number

    1.5 Interpreting the Model CZE 30 P/N 1000/2000 / FG / X# Number: The model number of the power supply Custom describes its capabilities. After the series name Series "X" Number Option Name Series of Maximum Voltage The maximum voltage in kilovolts. Polarity Reversible P/N indicated reversibility.

  • Page 12: Inspection & Installation

    2.2 Mechanical Installation procedures are recommended. For safe The CZE series module power supplies are operation, please follow the step-by-step designed for installation into existing or newly procedures described in Chapter 3, Operating developed OEM equipment. The power supply Instructions.
  • Page 13 Remote Programming: FUNCTION Permits remote adjustment of the output voltage Chassis Ground & 24Vdc Return and current via an external voltage source. By +24Vdc Input adjusting the voltage source from 0V to 10V the desired output may be selected. High Voltage Enable/Inhibit Remote Monitor: Voltage Test Point: 10V±2% = 0 to Rated Output...

  • Page 14: Cze1000 Dimensions & Connector Interface

    Figure 2.1 CZE1000 Dimensions & Connector Interface 118030-001 REV F CZE MANUAL...
  • Page 15 Remote Programming: FUNCTION Permits remote adjustment of the output voltage and 1,2,3 Chassis Ground & 24Vdc Return current via an external voltage source. By adjusting the High Voltage Enable/Inhibit voltage source from 0V to 10V the desired output may be selected.

  • Page 16: Cze2000 Dimensions & Connector Interface

    Figure 2.2 CZE2000 Dimensions & Connector Interface 118030-001 REV F CZE MANUAL...

  • Page 17: Operating Instructions

    VOLTAGE EQUIPMENT IS ESSENTIAL. operate on 28Vdc unless ordered with a different input voltage option. External fusing is recommended for the DC input power. For the CZE series a 2 AMPHERE WARNUNG SLO-BLO type fuse must be used. DIESES GERÄT ERZEUGT PROPER GROUNDING TECHNIQUE: The LEBENSGEFÄHRLICHE HOCHSPANNUNG.

  • Page 18: Standard Features

    Spellman Die elektrische Kapazität der Last kann durch application engineers are available to assist in interface einen Kurzschluß zur Erde entladen werden.
  • Page 19 power supply input current will increase by the amount of WARNING current drawn by the incandescent bulb (maximum current is 50mA). If it is desired to drive an LED instead It is extremely dangerous to use this of an incandescent bulb, simply add a 3.3k 1/4W resistor circuit to inhibit high voltage generation in series with the output and the LED.
  • Page 20 Figure 3.1 CZE1000 Typical Operating Set Up Figure 3.2 CZE2000 Typical Operating Set up 118030-001 REV F CZE MANUAL...
  • Page 21 Figure 3.3A CZE Remote Programming Via Voltage Source ____________________________________________________________________________________ Figure 3.3B CZE Remote Programming Via External Resistance 118030-001 REV F CZE MANUAL...
  • Page 22 Figure 3.4 CZE Remote Monitoring ____________________________________________________________________________________ 118030-001 REV F CZE MANUAL...
  • Page 23 Figure 3.5 CZE HV ON/OFF Control 118030-001 REV F CZE MANUAL...
  • Page 24 Figure 3.6 CZE Polarity Control ____________________________________________________________________________________ Figure 3.7 CZE Polarity Indicators 118030-001 REV F CZE MANUAL...
  • Page 25 Figure 3.8 CZE Mode Indicators ____________________________________________________________________________________ Figure 3.9 GFI and Load Return 118030-001 REV F CZE MANUAL...

  • Page 26: Principles Of Operation

    Advanced analog and power conversion techniques Hochspannungsnetzteil angeschlossen sind, zu berühren. are used in the CZE series. The intention of the Principles Vergewissern Sie sich, daß alle Restladungen, die vor of Operation is to introduce the basic function blocks of oder nacj dem Betreib des Hochspannungsnetzteils the CZE series power supply.

  • Page 27: High Voltage Circuits

    Due to the variations of models and options provided in The high voltage rectifier output is connected to an R-C the CZE series, details of actual circuits used may differ type filter to reduce high frequency ripple components. slightly from above descriptions.

  • Page 28: Options

    5.2 Input Voltage CZE power supplies with different input voltage options Spellman welcomes the opportunity to tailor its units to fit will operate from the input voltage specified plus or your requirements or to develop new products for your minus a tolerance, typically ±10%.
  • Page 29 Figure 5.1 Floating Ground Interface Circuit 118030-001 REV F CZE MANUAL...

  • Page 30: Maintenance

    Copies can be obtained from the Spellman Customer Service Department. Test equipment, WARNUNG including an oscilloscope, a high impedance voltmeter, and a high voltage divider such as the Spellman HVD-100 DIESES HOCHSPANNUNGSNETZTEIL ERZEUGT or HVD-200, is needed for performance tests. All test LEBENSGEFÄHRLICHE HOCHSPANNUNG! components must be rated for operating voltage.

  • Page 31: Replacement Parts

    Chapter 7 EPLACEMENT ARTS 7.1 Replacement Parts 7.2 Correspondence and Ordering Spare Parts Pellman provides parts and assemblies for its high voltage power supplies but recommends that only Each power supply has an identification label on the rear qualified personnel perform the repair. High voltage of the chassis that bears its model and serial number.

  • Page 32: Factory Service

    Spellman personnel. See the Warranty received at the Spellman Repair Center. In the event that in the rear of this manual for more information. Follow repair work is extensive, Spellman will call to seek the return procedures described in Section 8.2.
  • Page 33 To obtain information on Spellman’s product warranty please visit our website at: http://www.spellmanhv.com/en/About/Warranty.aspx...
