3.3 Replacing a CompactFlash or CFast
Memory Card
The following is needed:
A new CompactFlash or CFast memory card.
•
A TX10 Torx screwdriver
•
Note:
Make sure to use adequate ESD protection.
Follow the steps below to replace a memory card:
1. Power off the operator panel.
2. Follow the instructions in chapter
remove the front frame assembly.

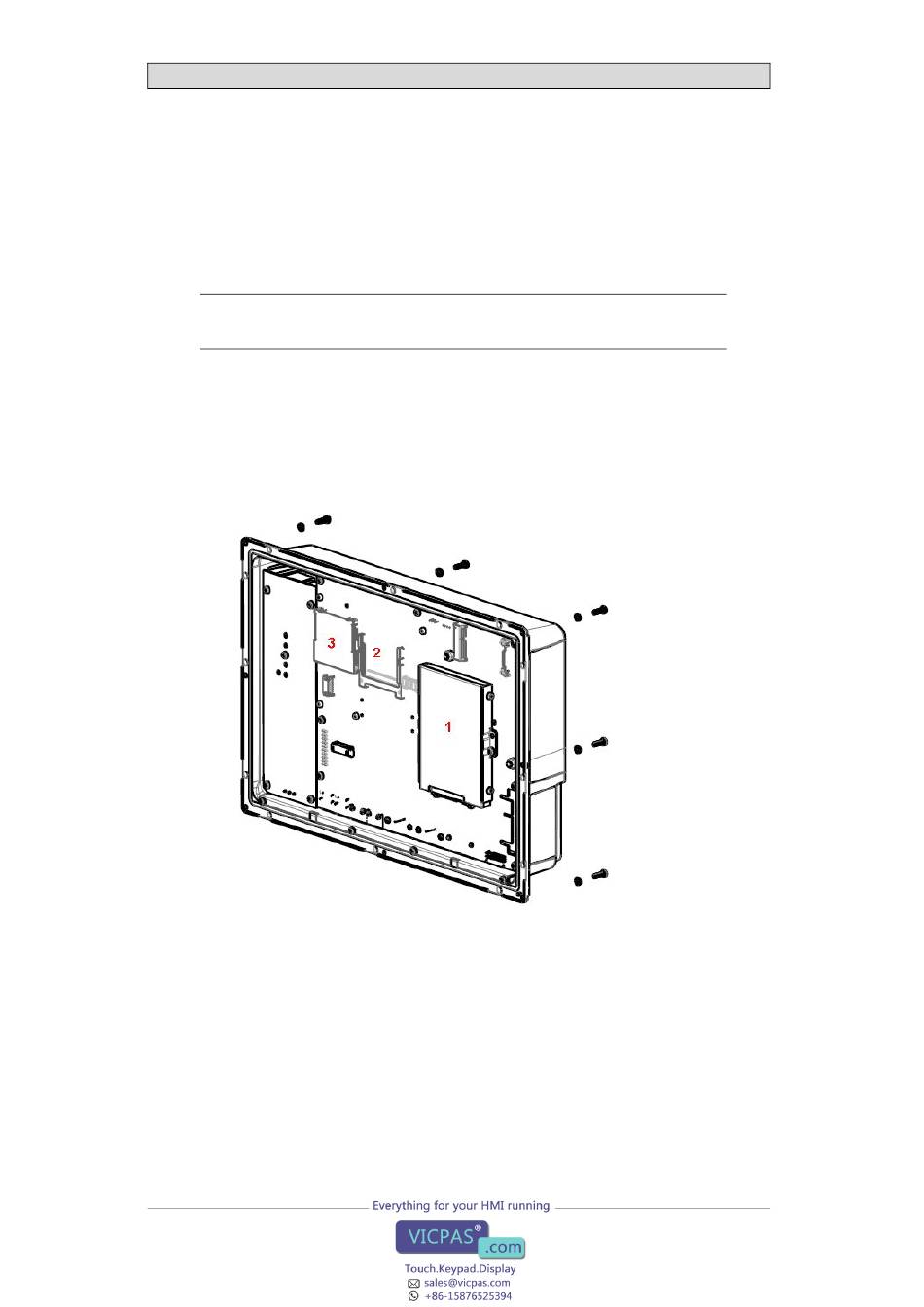

3. Install the new memory card in its intended slot illustrated in figure below.
1. 2.5" SATA mass storage
2. CompactFlash slot
3. CFast slot
4. Reassemble in reverse order.
