- Page 1 T15C Installation Manual English MAEN083A, 2012-04...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, including all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Autoflex EB ............20 6 Operator Panel Drawings ..........21 Connectors ............21 Communication Ports ........... 21 T15C Outline ............ 22 7 Additional Installation Tips ..........23 Grounding the Operator Panel ......... 23 Ethernet Connection in the Operator Panel ....24 To Achieve Better EMC Protection ...... -
Page 4: Safety Precautions
Only qualified personnel may install the operator panel. • Separate the high voltage, signal and supply cables. • Make sure that the voltage and polarity of the power source is correct before connecting the product to the power outlet. Beijer Electronics, MAEN083A... -
Page 5: During Use
Replacing the battery incorrectly may result in explosion. Only use batteries recommended by the supplier. During the warranty period, the battery needs to be replaced by an authorized Beijer Electronics service center. • The unit can be reset by using the reset switch located behind the fan. -
Page 6: Installation
Space requirements when installing the operator panel: 100 mm 100 mm 50 mm 50 mm 100 mm 410 mm Note: The dimensions on the drawing are not proportional. Caution: The openings on the enclosure are for air convection. Do not cover these openings. Beijer Electronics, MAEN083A... -
Page 7: Installation Process
2. Use the cut out dimensions that are included on the outline drawing to cut a correct opening in the cabinet. A separate cut out drawing is available for download from the Beijer Electronics web site. 3. Secure the operator panel in position by screwing the M4 torx screw, allowing the built-in bracket to tighten against the panel: M4 x 20.7... - Page 8 2.5 mm Connect cable C. – Connect cable D. The recommended cross-section of the cable is 2.5 – 5. Carefully remove the laminated film over the operator panel display, to avoid static electricity that could damage the panel. Beijer Electronics, MAEN083A...
-
Page 9: Connections To The Controller
file for the driver in question. 2.2.2 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN083A... -
Page 10: Hardware Replacement
Make sure to use adequate ESD protection. Follow the steps below to replace the fan and fan filter: 1. Power off the operator panel. 2. Remove the fan lid by removing the two M3x6 torx screws. 3. Remove the fan filter. Beijer Electronics, MAEN083A... - Page 11 Hardware Replacement 4. Remove the fan by removing the two M4x35 torx screws. 5. Reassemble with new fan and filter in reverse order. Use a maximum torque of 0.4 Nm when fastening the fan scews. Beijer Electronics, MAEN083A...
-
Page 12: Replacing The 2.5" Sata Mass Storage
3. Remove the four M3x4 torx screws on the two hard drive brackets. Remove the two hard drive brackets. 4. Remove the two M3x6 torx screws that are securing the brackets to the CPU board. Beijer Electronics, MAEN083A... - Page 13 5. Remove the hard disk drive from the hard drive connection on the CPU board. 6. Reassemble with the new hard disk drive in reverse order. 1. 2.5” SATA mass storage 2. CompactFlash slot 3. CFast slot Beijer Electronics, MAEN083A...
-
Page 14: Replacing A Compactflash Or Cfast Memory Card
Replacing the 2.5” SATA Mass Storage remove the front frame assembly. 3. Install the new memory card in its intended slot illustrated in figure below. 1. 2.5” SATA mass storage 2. CompactFlash slot 3. CFast slot 4. Reassemble in reverse order. Beijer Electronics, MAEN083A... -
Page 15: Replacing The Battery
Follow the steps below to replace the battery: 1. Power off the operator panel. 2. Follow the instructions in chapter Replacing the Fan and Filter to remove the fan and access the battery. 3. Replace the battery. 4. Reassemble in reverse order. Beijer Electronics, MAEN083A... -
Page 16: Technical Data
DC input range: 18-32 V DC (140W) ATX standard CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class II power supplies. Beijer Electronics, MAEN083A... - Page 17 0° C to +50 ° C temperature Storage temperature -20 ° to +70 °C Relative humidity <85 % non-condensed Approvals and Information is available on the web site certifications www.beijerelectronics.com * See section Chemical Resistance for more information. Beijer Electronics, MAEN083A...
-
Page 18: Chemical Resistance
The powder paint shows little or no resistance to the following chemicals at room temperature: Acetic acid, conc. Methyl-ethyl ketone Toluene Acetone Nitric acid 30% Trichlorethylene Ammonia 5% Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octan unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octan leaded petrol Beijer Electronics, MAEN083A... -
Page 19: Touch Screen And Overlay
Autotex withstands DIN 42 115 Part 2 exposure of up to 1 hour duration to glacial acetic acid without visible change. Autotex is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Beijer Electronics, MAEN083A... -
Page 20: Touch Screen Surface
5.2.3 Autoflex EB It is recommended to use the Autoflex EB touch display protection film, that can be ordered from Beijer Electronics. Solvent Resistance Autoflex EB withstands exposure to the same chemicals as Autotex F157 or F207 according to section Autotex F157/207. -
Page 21: Operator Panel Drawings
RS485 TX-/RX- RS232 RTS RS422 RTS+ RS232 CTS RS422 RTS- RS422 RX- RS422 RX- Note: RS422 Interface is not available yet. Note: Drawing for external cable CAB109 (drawing # Z7100-029E) is available on the web site: www.beijerelectronics.com Beijer Electronics, MAEN083A... -

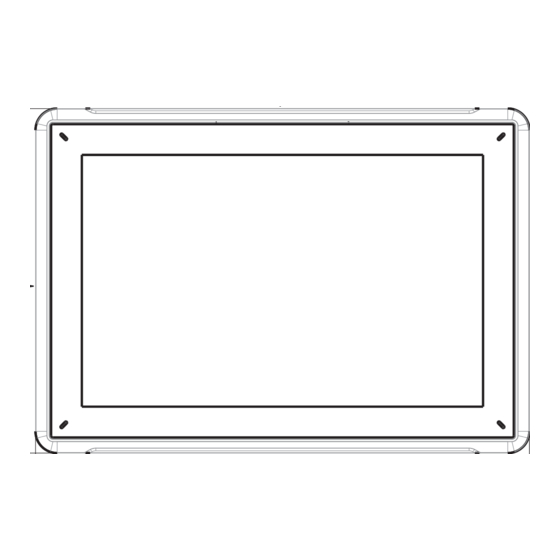

Page 22: T15C Outline
Operator Panel Drawings T15C Outline Note: A Step CAD file is available on the web site www.beijerelectronics.com Beijer Electronics, MAEN083A... -
Page 23: Additional Installation Tips
Multi-wire conductors are better than single wire conductors with the same area. A braided conductor wire with the same area is even better. The best is a short, thick grounding braid. Beijer Electronics, MAEN083A... -
Page 24: Ethernet Connection In The Operator Panel
A more elegant method is to expand the shielded Ethernet cabling with a piece of unshielded Ethernet cable, see 4 in drawing above. You can ground the shield via an external 0.1 uF/250 V plastic capacitor, see 5 in drawing above. This will connect the HF transients to the ground. Beijer Electronics, MAEN083A... -
Page 25: To Achieve Better Emc Protection
Additional Installation Tips To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Use shielded cables for RS232 communication. • Use twisted pair and shielded cabling for RS422 and RS485. • Use the cabling intended for the bus type; Ethernet, Profibus, CC-Link, CAN, Device Net etc. -
Page 26: Ambient Temperature
If the fan is mounted at the top and sucks air upwards, the fan’s ambient temperature will be higher = shorter lifespan. The operator panel’s loss effect = supply voltage x current. Virtually no power goes to external users and no loss effects due to inputs. Beijer Electronics, MAEN083A... -
Page 27: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This is not unusual since there is high static electricity. Beijer Electronics, MAEN083A... -
Page 28: Cable And Bus Termination Rs485
Depending on the recipients’ design, the bus wires may be on the same level or require pull-up or pull-down to ensure that no faulty signals are detected when the bus is in resting mode (all transmitters are disconnected). Beijer Electronics, MAEN083A... -
Page 29: Boot Priority
Change the system configuration (new installed hardware). • Setup boot devices and sequences. • Setup or change user options, for example passwords. • Read the installed memory and environmental parameters, for example CPU heat. For more information, refer to the Bios manual. Beijer Electronics, MAEN083A... -
Page 30: Reset Switch
Additional Installation Tips Reset Switch A reset switch is located under the fan lid. Follow the instructions in chapter Replacing the Fan and Filter on how to remove the fan lid to access the reset switch. Beijer Electronics, MAEN083A... - Page 31 Head office Beijer Electronics AB Box 426 201 24 Malmö, Sweden www.beijerelectronics.com / +46 40 358600...
