High Performance Modular Broadband/Banded mmWave Vector Network
Analyzer (VNA) Measurement System, 70 kHz to 125 GHz
This guide provides quick setup instructions for theVectorStar™ ME7838A/AX Broadband/Banded mmWave
VNA System assembly. For additional safety and compliance information, and for more details about the
assembly, configuration, setup, and initial testing of the equipment, refer to the VectorStar ME7838A/AX
Series Broadband Vector Network Analyzers Installation Guide – 10410-00293.
This and all other documentation that supports the ME7838A/AX is available on the ME7838x web page:
http://www.anritsu.com/test-measurement/products/me7838
On this web page, you can select various tabs for more information about your instrument. Included is a Library
tab which contains links to all the latest technical documentation related to this instrument.
ME7838A/AX Broadband System Main Components
The ME7838A/AX Multiport Broadband system consists of the following components:
• MS4647A or MS4647B VNA with Option 007 (Receiver Offset) and Option 08x (Modular Broadband
Connection Capability)
• 3739B/C Broadband Test Set
• Two 3743A/AX mmWave Modules
• Front and rear panel cables
ME7838A/AX Banded System Main Components
The ME7838A/AX Multiport Banded system consists of the following components:
• MS464xA/B VNA with Option 08x
• 3739B/C Broadband Test Set
• Two 3744A-EE, 3744A-EW, or two OML/VDI mmWave Modules
• Front and rear panel cables

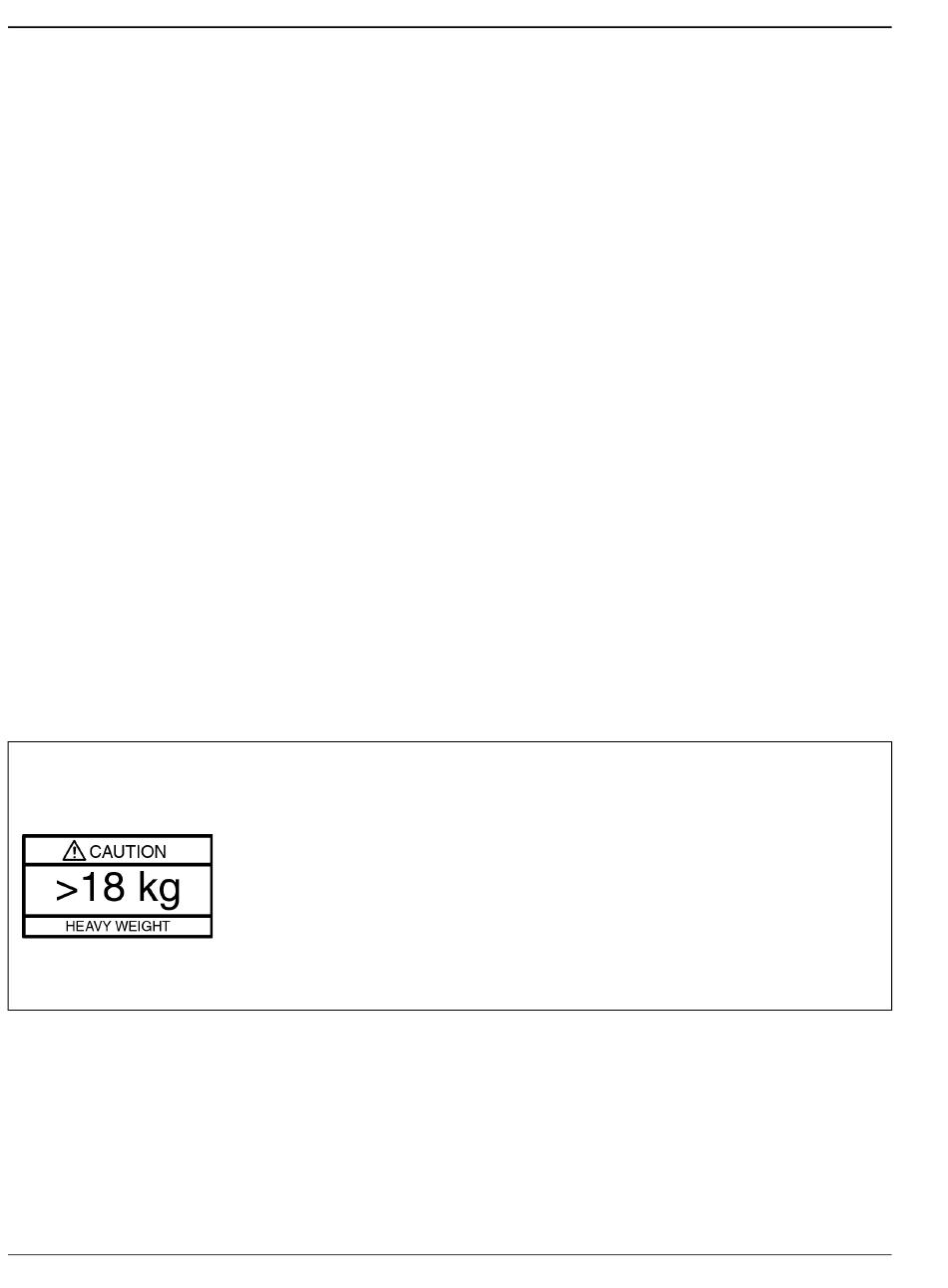

Caution
QSG-2
A MS464xA/B VNA unit is heavy. To avoid personal injury, it must be lifted and
maneuvered by at least two people during installation.
If mounting on a workbench surface, first position the 3739B/C Broadband Test Set
with access to its front and rear panels. Stack the remaining test sets on top of one
another, then finally the VNA.
If mounting into rack or console, make sure the Test Sets have been installed, and
that the rack/console is carefully positioned on a flat and level surface. If equipped,
make sure any casters are locked. Use two people to lift the VNA unit and two to
guide it into its shelf rails.
The test loops on the front and rear panels of the VNA are delicate. Be careful not to
bump or bend the test loops.
