EtherWAN EX75000 Installation Manual

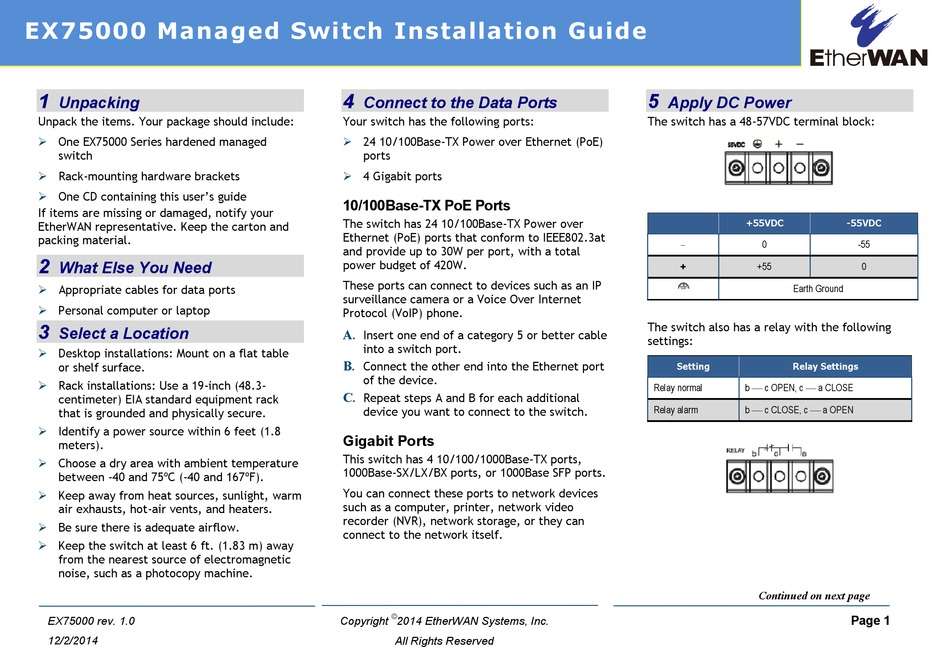

EX75000 Managed Switch Installation Guide
1
Unpacking
Unpack the items. Your package should include:

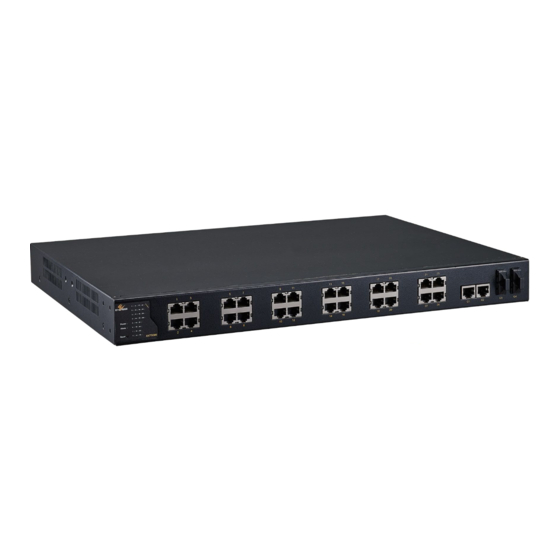

One EX75000 Series hardened managed

switch
 Rack-mounting hardware brackets
One CD containing this user's guide

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2
What Else You Need
Appropriate cables for data ports

 Personal computer or laptop
3
Select a Location
 Desktop installations: Mount on a flat table
or shelf surface.
 Rack installations: Use a 19-inch (48.3-
centimeter) EIA standard equipment rack
that is grounded and physically secure.
 Identify a power source within 6 feet (1.8
meters).
 Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
 Be sure there is adequate airflow.
Keep the switch at least 6 ft. (1.83 m) away

from the nearest source of electromagnetic
noise, such as a photocopy machine.
EX75000 rev. 1.0
12/2/2014
4
Connect to the Data Ports
Your switch has the following ports:
24 10/100Base-TX Power over Ethernet (PoE)

ports
 4 Gigabit ports
10/100Base-TX PoE Ports
The switch has 24 10/100Base-TX Power over
Ethernet (PoE) ports that conform to IEEE802.3at
and provide up to 30W per port, with a total
power budget of 420W.
These ports can connect to devices such as an IP
surveillance camera or a Voice Over Internet
Protocol (VoIP) phone.
A.
Insert one end of a category 5 or better cable
into a switch port.
B.
Connect the other end into the Ethernet port
of the device.
C.
Repeat steps A and B for each additional
device you want to connect to the switch.
Gigabit Ports
This switch has 4 10/100/1000Base-TX ports,
1000Base-SX/LX/BX ports, or 1000Base SFP ports.
You can connect these ports to network devices
such as a computer, printer, network video
recorder (NVR), network storage, or they can
connect to the network itself.
©
Copyright 2014 EtherWAN Systems, Inc.
All Rights Reserved
5
Apply DC Power
The switch has a 48-57VDC terminal block:
+55VDC
0
−
+55
+
Earth Ground
The switch also has a relay with the following
settings:
Setting Relay Settings
Relay normal b  c OPEN, c  a CLOSE
Relay alarm b  c CLOSE, c  a OPEN
Continued on next page
-55VDC
-55
0
Page 1
