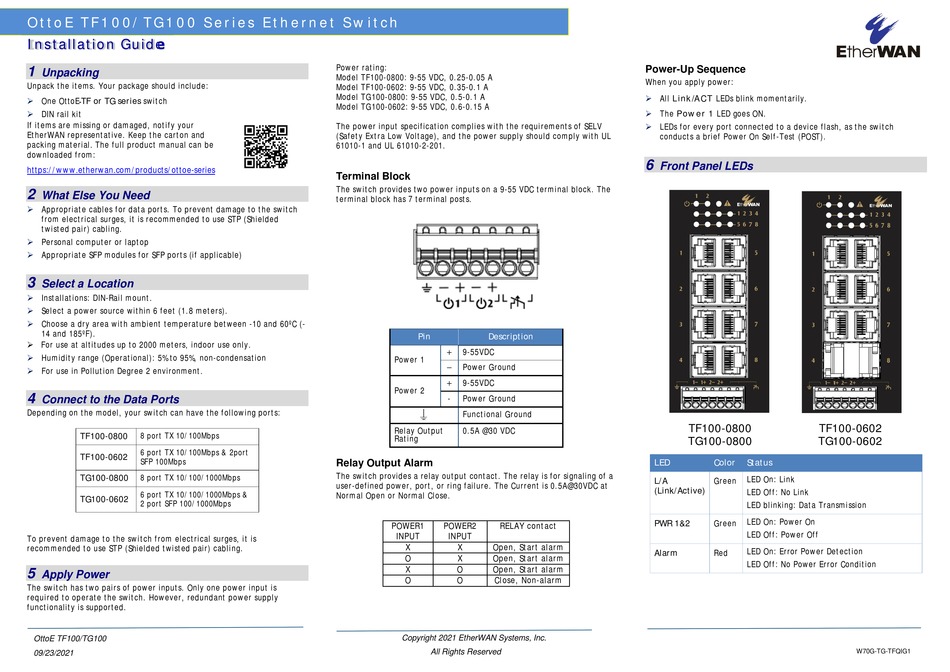

EtherWAN OttoE TF100 Sereis Installation Manual

OttoE TF100/TG100 Series Ethernet Switch
Installation Guide
1
Unpacking
Unpack the items. Your package should include:
One OttoE TF or TG series switch

DIN rail kit

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material. The full product manual can be
downloaded from:
https://www.etherwan.com/products/ottoe-series
2
What Else You Need
Appropriate cables for data ports. To prevent damage to the switch

from electrical surges, it is recommended to use STP (Shielded
twisted pair) cabling.
 Personal computer or laptop
 Appropriate SFP modules for SFP ports (if applicable)
3
Select a Location
Installations: DIN-Rail mount.

Select a power source within 6 feet (1.8 meters).

Choose a dry area with ambient temperature between -10 and 60ºC (-

14 and 185ºF).
 For use at altitudes up to 2000 meters, indoor use only.
Humidity range (Operational): 5% to 95%, non-condensation

For use in Pollution Degree 2 environment.

4
Connect to the Data Ports

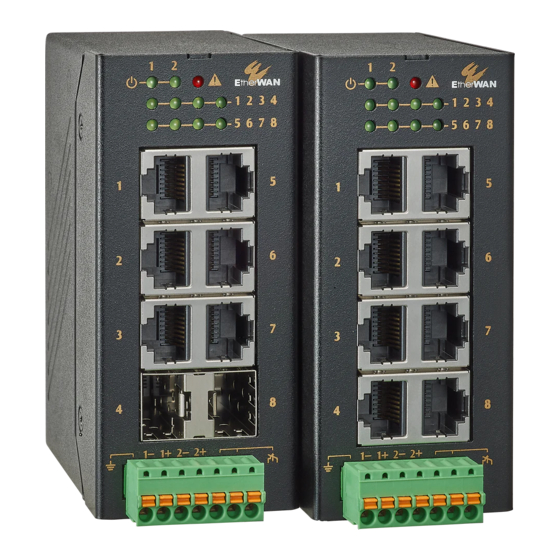

Depending on the model, your switch can have the following ports:
TF100-0800 8 port TX 10/100Mbps
6 port TX 10/100Mbps & 2port
TF100-0602
SFP 100Mbps
TG100-0800 8 port TX 10/100/1000Mbps
6 port TX 10/100/1000Mbps &
TG100-0602
2 port SFP 100/1000Mbps
To prevent damage to the switch from electrical surges, it is
recommended to use STP (Shielded twisted pair) cabling.
5
Apply Power
The switch has two pairs of power inputs. Only one power input is
required to operate the switch. However, redundant power supply
functionality is supported.
OttoE TF100/TG100
09/23/2021
Power rating:
Model TF100-0800: 9-55 VDC, 0.25-0.05 A
Model TF100-0602: 9-55 VDC, 0.35-0.1 A
Model TG100-0800: 9-55 VDC, 0.5-0.1 A
Model TG100-0602: 9-55 VDC, 0.6-0.15 A
The power input specification complies with the requirements of SELV
(Safety Extra Low Voltage), and the power supply should comply with UL
61010-1 and UL 61010-2-201.
Terminal Block
The switch provides two power inputs on a 9-55 VDC terminal block. The
terminal block has 7 terminal posts.
Pin Description
 9-55VDC
Power 1

Power Ground
 9-55VDC
Power 2
- Power Ground
Functional Ground
Relay Output 0.5A @30 VDC
Rating
Relay Output Alarm
The switch provides a relay output contact. The relay is for signaling of a
user-defined power, port, or ring failure. The Current is 0.5A@30VDC at
Normal Open or Normal Close.
POWER1 POWER2 RELAY contact
INPUT INPUT
X X Open, Start alarm
O X Open, Start alarm
X O Open, Start alarm
O O Close, Non-alarm
Copyright 2021 EtherWAN Systems, Inc.
All Rights Reserved
Power-Up Sequence
When you apply power:
All Link/ACT LEDs blink momentarily.

The Power 1 LED goes ON.

 LEDs for every port connected to a device flash, as the switch
conducts a brief Power On Self-Test (POST).
6
Front Panel LEDs
TF100-0800 TF100-0602
TG100-0800 TG100-0602
LED Color Status
LED On: Link
L/A Green
(Link/Active)
LED Off: No Link
LED blinking: Data Transmission
LED On: Power On
PWR 1&2 Green
LED Off: Power Off
LED On: Error Power Detection
Alarm Red
LED Off: No Power Error Condition
W70G-TG-TFQIG1
