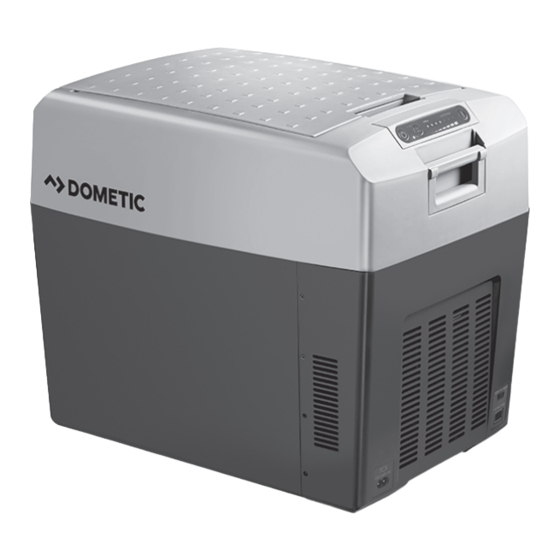

- Page 1 MOBILE COOLING TCX SERIES TCX14, TCX21, TCX35 Thermoelectric cooler Operating manual ..... 5...
- Page 2 TCX14, TCX21, TCX35...
- Page 3 TCX14, TCX21, TCX35 12/24 Vg...
- Page 4 TCX14, TCX21, TCX35 TCX14 1,5/2 L TCX21 TCX35...
-
Page 5: Table Of Contents
TCX14, TCX21, TCX35 Explanation of symbols Please read this manual carefully before starting the device. Keep it in a safe place for future reference. If the device is passed on to another person, this manual must be handed over to the user along with it. The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation. -
Page 6: Safety Notes
Safety notes TCX14, TCX21, TCX35 NOTE Supplementary information for operating the product. Safety notes General safety WARNING! Failure to obey these warnings could result in death or serious injury. Electrocution hazard • Do not operate the cooling device if it is visibly damaged. •... - Page 7 TCX14, TCX21, TCX35 Safety notes CAUTION! Failure to obey these cautions could result in minor or moderate injury. Electrocution hazard • Disconnect the cooling device from the power supply – before each cleaning and maintenance – after every use Health hazard •...
- Page 8 Safety notes TCX14, TCX21, TCX35 Health hazard • Opening the door for long periods can cause significant increase of the temperature in the compartments of the device. • Clean regularly surfaces that can come in contact with food and accessible drainage systems. •...
-
Page 9: Scope Of Delivery
TCX14, TCX21, TCX35 Scope of delivery Scope of delivery No. in Quantity Description fig. 1, page 2 Thermoelectric cooler Connection cable for AC connection Connection cable for DC connection – Instruction manual Check before starting up the device that all parts are available belonging to the scope of delivery. -
Page 10: Operation
Operation TCX14, TCX21, TCX35 Operation NOTE Before you put the new cooling device into operation, you should clean it inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and servicing” on page 13). Tips to save energy NOTE A ventilator in the interior space of the cooling device provides for the circulation of the cold air within the box. - Page 11 TCX14, TCX21, TCX35 Operation Using the battery monitor The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply. If the cooler is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level.
- Page 12 Operation TCX14, TCX21, TCX35 Switch on the cooling box NOTICE! Take care that there are only objects or goods in the cooling device which may be cooled or heated to the selected temperature. ➤ Place the cooling device on a stable base. ➤...
-
Page 13: Cleaning And Servicing
TCX14, TCX21, TCX35 Cleaning and servicing NOTE The following temperature indications are subject to tolerances and are dependent on the measuring position. Interior space centre temperature at approx. 25 °C ambient temperature: Status display Interior temperature (fig. 3 5, page 2) 7 illuminated LEDs approx 1 °C (TCX14) approx 3 °C (TCX21, TCX35) -
Page 14: Disposal
Disposal TCX14, TCX21, TCX35 ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged. Disposal ➤ Place the packaging material in the appropriate recycling waste bins wherever possible. -
Page 15: Technical Data
TCX14, TCX21, TCX35 Technical data Fault Possible cause Suggestion Your cooling device The ventilator motor is The repair can be executed only by an does not cool satisfac- defective. authorized customer service. torily and the fan impel- ler at the outside does not rotate. - Page 16 Technical data TCX14, TCX21, TCX35 Energy consumption: 74 kWh/annum 77 kWh/annum Gross capacity: 14 l 21 l 35 l Usable capacity: 13.5 l 20 l 33 l Climate class: Ambient temperature: +16 °C to +43 °C Noise emission: 41 dB(A) Weight: 5.8 kg 7.3 kg...
