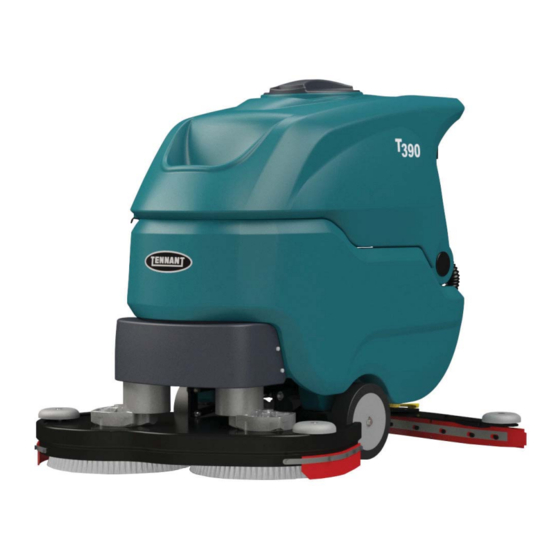

Tennant T390 Technical & Service Manual
  1. Manuals
  2. Brands
  3. Tennant Manuals
  4. Scrubber
  5. T390
  6. Technical & service manual

Tennant T390 Technical & Service Manual

Hide thumbs Also See for T390:

Advertisement

Quick Links

Download this manual
PLDC04453
REVISION DATE
December 23, 2019
DATE
December 23, 2020
TECHNICAL OFFICE
Stavale
T390
T
S
M
ECHNICAL
ERVICE
ANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the T390 and is the answer not in the manual?

Questions and answers

Related Manuals for Tennant T390

Summary of Contents for Tennant T390

  • Page 1 PLDC04453 REVISION DATE December 23, 2019 DATE December 23, 2020 TECHNICAL OFFICE Stavale T390 ECHNICAL ERVICE ANUAL...
  • Page 3 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale WARNINGS ! DANGER! Indicates the need for attention in order to avoid a series of consequences which could cause death or damage to the health of the operator. WARNING! Indicates the need for attention in order to avoid a series of consequences which could cause damage to the machine or work environment or financial loss.
  • Page 4 Checking brush motor current imput, Replacing the carbon brushes Brush head Replacing the brush motor Measuring current draw and replacing the carbon brushes Replacing the suction motor Tanks / Suction Assembly Adjusting and replacing the squeegee Checking and replacing the float Instrument panel board Drive assembly...
  • Page 5 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale INDEX Page Subject BRUSH HEAD BRUSH MOTOR A1.1 Cheking brush motor current input A1.2 Replacing the brush motor carbon brushes A1.3 Replacing the brush motor SUCTION UNIT - TANKS SUCTION MOTOR B1.1 Checking the suction motor current input B1.2 Replacing the suction motor carbon brushes B1.3 Replacing the suction motor SQUEEGEE UNIT...
  • Page 6 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale INDEX Page Subject ERROR CODES - TROUBLESHOOTING ERROR CODES E1.1 Alarm messages on the instrument panel board display TROUBLESHOOTING E2.1 Troubleshooting Information on the revision numbers...

  • Page 7: Brush Head

    PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale BRUSH HEAD WARNING Go to the designated draining area and empty the solution and dirty water tanks using the drain plugs and the hose provided. Move the machine onto flat ground. If necessary, place chocks under the wheels.
  • Page 8 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale A1 BRUSH MOTOR Fig. 1 2 of 73...
  • Page 9 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale A1.1 Checking current input Empty the solution tank and the dirty water tank. Bring to zero the amount of water dispensed. Move the machine onto flat dry and smooth flooring. Press the emergency switch to switch off all the functions. Make sure that the batteries on the machine are charged.
  • Page 10 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale CHECKING THE LEFT MOTOR (*) A - Disconnect the right motor B - Check the left motor Fig. 4 CHECKING THE RIGHT MOTOR (*) A - Disconnect the right motor C - Connect the black wire to the right motor B - Disconnect the black wire from the left motor D - Check the right motor Fig.
  • Page 11 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale A1.2 Replacing the brush motor carbon brushes Dismantling Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. Move the machine onto flat and dry flooring. Press the emergency switch to switch off all the functions.
  • Page 12 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Identify the four carbon brushes (for each individual motor), arranged 90° degrees apart. Remove and check or replace the brush carbon brushes. Using long-nosed pliers remove the fast-on B from its socket. Use a hook to lift the spring C, and pull the carbon brush D outwards.
  • Page 13 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Blow the inside of the motor clean with a jet of compressed air, paying particular attention to the area around the carbon brushes and to the part of the rotor F with which the carbon brushes come into sliding contact. Check the rotor M for wear, paying particular attention to the area of contact with the carbon brushes.
  • Page 14 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale A1.3 Replacing the brush motor Dismantling Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. Move the water delivery control to zero Move the machine onto flat and dry flooring. Press the emergency switch.
  • Page 15 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Lift the machine on the right side. Unscrew the metal clamp D from the solution hose E, and remove the latter from the distributor. Unscrew the 4 bolts F and G that fasten the head, checking the positions of the bushings. Pull the machine backwards, so as to release the head.
  • Page 16 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Disconnect the two motors electrically between each other, both the power supply and the thermals. Fig. 17 Tip over the head and dismantle drive disk/disks O. Unscrew the bolt P that fastens the drive to the shaft. Lift the drive O, with the help of a hammer plastic or a puller.
  • Page 17 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Fig. 20 Reassembly To assemble the new reduction drive/drives, perform the dismantling operations in reverse. Warning, tighten the seven bolts R to a maximum torque of 7.5 Nm ~ 66,4 lbf in, and always place the Grover washers between the plate and the bolts.

  • Page 18: Suction Unit

    PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale SUCTION UNIT WARNING Go to the designated draining area and empty the solution and dirty water tanks using the drain plugs and the hose provided. Move the machine onto flat ground. If necessary, place chocks under the wheels.
  • Page 19 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale SUCTION MOTOR Fig. 21 13 of 73...
  • Page 20 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B1.1 Checking the suction motor current input Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Make sure that the batteries on the machine are charged. Use a clamp-on ammeter with an end scale reading of at least 200 amperes, as shown in Figure 16.
  • Page 21 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B1.2 Replacing the suction motor carbon brushes Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Lift and turn the top dirty water tank. Isolate and disconnect the power connector A to the suction motor, see Figure 19.
  • Page 22 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Unscrew the two screw E that fasten the carbon brush support F. Take care when handling the carbon brush support F, as it contains the spring that presses the carbon brush against the rotor, which may propel out the carbon brush Fig.
  • Page 23 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B1.3 Replacing the suction motor Dismantling Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Lift and turn the top dirty water tank. Isolate and disconnect the power connector A to the suction motor, see Figure 23.
  • Page 24 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Check that all the parts of the suction unit are in good condition: D suction motor gasket, E nylon flange, F sound absorbing sponge, G suction motor air exhaust pipe. Fig. 31 When replacing the motor, also replace the suction motor gasket D purchased separately.
  • Page 25 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B2 SQUEEGEE UNIT Fig. 33 19 of 73...
  • Page 26 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B2.1 Adjusting the squeegee Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Start a washing cycle in normal operation. Travel a few metres (forwards) with the machine. Check that the blade is in even contact with the floor, with suitable deflection across the width, Figure 28.
  • Page 27 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Screwing the screw A, the squeegee support lowers the edges of the squeegee, increasing the deflection (compression) on the blade at the sides of the squeegee, taking deflection off the centre. Fig. 35 Unscrewing the bolt A, the squeegee support rais the edges of the squeegee, decreasing the deflection on the blade at the sides of the squeegee and it increasing deflection on the centre.
  • Page 28 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Adjust the deflection of the blade by means of the screw D. By screwing the screw D, the squeegee rises, decreasing the deflection on the blade. By unscrewing screw D, the squeegee is lowered, increasing the deflection on the blade. Once having found the right deflection, when the blades are slanted correctly with respect to the floor, hold screw D in place lock the position with the nut E.
  • Page 29 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B2.2 Replacing the squeegee blades Dismantling Remove the suction hose A from the squeegee. Remove the squeegee from the dedicated support, unscrewing the knobs B Open the levers that lock the blade pressing devices, front C and rear D, once released slide them outwards.
  • Page 30 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Reassemble the front and rear blade by fixing the ends using the white nylon straps H, as shown in the photos below. Fig. 42 Reassemble the blade pressing devices, front and rear. Reposition the squeegee on the support, and reassemble the suction hose.
  • Page 31 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B3 CHECKING AND REPLACING THE FLOATS CLIC Fig. 44 25 of 73...
  • Page 32 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B3.1 Checking operation of the solution tank float Use a tester set to read resistance in or check the diodes, see Figure 41. Move the machine to the tank draining area, and completely empty the solution tank. Move the machine onto flat and dry flooring.
  • Page 33 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B3.2 Replacing the solution tank float Dismantling Move the machine to the tank draining area, and completely empty the solution tank. Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Identify the point where the float is fitted, see paragraph B 3.1.
  • Page 34 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B3.3 Checking operation of the dirty water tank float Use a tester set to read resistance in or check the diodes, see Figure 50. Move the machine to the tank draining area, and completely empty the dirty water tank. Move the machine onto flat and dry flooring.
  • Page 35 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale B3.4 Replacing the dirty water tank float Dismantling Move the machine to the tank draining area, and completely empty the dirty water tank. Move the machine onto flat and dry flooring. Press the emergency switch (Traction) or switches into position "0" (Pad Assist). Identify where the float is fitted on the dirty water tank, proceed as described in paragraph B3.3.

  • Page 36: Drive Unit

    PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale DRIVE UNIT WARNING Go to the designated draining area and empty the solution and dirty water tanks using the drain plugs and the hose provided. Move the machine onto flat ground. If necessary, place chocks under the wheels.
  • Page 37 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C1 INSTRUMENT PANEL ELECTRONIC BOARD On the “Traction” version, the board also comprises the circuits that deliver power the drive motor. TRACTION VERSION Fig. 66 31 of 73...
  • Page 38 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C1.1 Instrument panel board, setting the type of batteries and EcoMode Set the instrument panel board according to the type of batteries (Acid or Gel) fitted or to be fitted, for best performance. The discharge voltage threshold for ACID batteries is 20.5 V.
  • Page 39 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Use the button C to select the type of battery, between GEL and ACID. Fig. 69 Setting EcoMode on "Traction" versions with drive Using the button B, choose whether to modify the setting of the type of batteries, or the water/solution metering mode.
  • Page 40 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Pressing the button C, select whether to meter the water/solution manually, or automatically (EcoMode). Fig. 71 The EcoMode function delivers water/solution in proportion to machine travel speed and one of the five programs selected on the instrument panel. In this way, when machine speed changes, there is no need to constantly and manually adjust the quantity of water delivered.
  • Page 41 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Setting on "Pad Assist" versions without drive Switch the machine on using the brush button B. Fig. 73 Press and hold the brush button B and the suction motor button C together for around 5 seconds, and in any case until the display shows the type of batteries set.
  • Page 42 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale To save the new setting, press the brush button B and the suction motor button C together for 5 seconds, or wait around 10 seconds, until the display shows the machine operating hours. Fig.
  • Page 43 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C1.2 Dismantling the instrument panel board Disassembly Switch the machine off by pressing the emergency button A fully in. Disconnect the batteries that power the machine, to avoid dangerous short circuits. Unscrew the three screws B that fasten the instrument panel to the dirty water tank. Lift the board and turn it over with care.
  • Page 44 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale To remove the contact E from the "mushroom" head or emergency button, use a flat-head screwdriver to slightly lift the tab until it detaches from the support. Being an ON/OFF switch, when reassembling, its orientation is not important.
  • Page 45 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2 DRIVE MOTOR, PARALLEL AXLES The CT 70 BT version is fitted with a parallel axle drive reduction unit (the wheel axle is parallel to the motor shaft), with 200 W power at 24VDC. The wheel axle speed increases to 150 rpm, the gear ratio between electric motor shaft and wheel axle speed is 21/1, while ingress protection against solids and liquids is IP44.
  • Page 46 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2.1 Checking the drive motor current draw Make sure that the batteries on the machine are charged. Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. Move the water delivery control to zero.
  • Page 47 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2.2 Checking and replacing the drive motor carbon brushes The 200 W drive unit is identifiable by the position of the electric motor, fitted in line with the transmission shaft, called " parallel axles". Also, the reduction unit and differential are fitted in the same aluminium housing.
  • Page 48 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Checks Measure both carbon brushes B to check wear. The minimum acceptable length is 12 mm / 0,47 inc., if less, replace the carbon brushes with new ones of the same type. Always replace both carbon brushes at the same time.
  • Page 49 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Reassembly To assemble the new carbon brushes, repeat the disassembly operations in reverse order. Take care when inserting the carbon brushes in their seat, and check the spring support. Fig. 90 43 of 73...
  • Page 50 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2.3 Replacing the complete drive unit (motor + reduction unit) Dismantling Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. Move the machine onto flat and dry flooring. Press the emergency key switch until it is held in the bottom position.
  • Page 51 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Unscrew the four nuts C that fasten the drive motor support to the machine’s chassis, taking care not to lose the washers C1. Remove the drive motor, complete with the two half-supports, right D and left E. Fig.
  • Page 52 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Fit the support D to the machine’s chassis, tighten the nuts C manually until reaching the self-locking ring. Assemble the drive motor, inserting the drive shaft into the half-support D. Fig. 95 Tighten the nuts C that fasten the half-support E to the machine’s chassis;...
  • Page 53 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Tighten the screws D1 to a maximum torque of 9.5 Nm ~ 84,1 lbf in. 9.5 Nm ~ 84,1 lbf in Fig. 99 Tighten the nuts C to a maximum torque of of 23 Nm ~ 203,6 lbf in. 23 Nm ~ 203,6 lbf in Fig.
  • Page 54 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2.4 Replacing the drive unit components To keep maintenance costs down, the drive unit has been divided into several spare parts. If repairs are required, only the damaged component needs to be replaced. The following drive unit components can be replaced: the cap A;...
  • Page 55 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale For convenience, position the motor vertically, using one of the two wheels that has been removed. Remove the carbon brushes B from the drive motor, as described in paragraph C2.10. Remove the cap A, unscrewing the two nuts A1. If these are stuck, tap them lightly with a plastic mallet. A1 = 5 Nm ~ 44 lbf in Fig.
  • Page 56 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale To assist reassembly, mark the position of the stator on the reduction unit E. By hand, press the rotor C onto the reduction unit E, and at the same time remove the stator D, removing it from the studs.
  • Page 57 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Remove the plastic joint N splined onto the shaft of the reduction unit-differential. Fig. 108 Check tightness of the oil seal I, the shaft must be dry, without any traces of oil, otherwise replace the seal.
  • Page 58 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale If a lot of oil has leaked from the reduction unit-differential E, check the oil level before assembling the unit on the machine. To check the oil level, remove the reduction unit in two parts. Place it vertically, as shown in Figure 358.
  • Page 59 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Reassembly When the oil level has been checked and topped up if necessary, replace the oil seal or gasket I. To remove the oil seal, push it outwards from its seat on the half-housing E. Make sure that the new oil seal is the same type and size as specified in point 14 Fit the oil seal I on the half-housing E, pushing it fully into its seat.
  • Page 60 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Reassemble the stator D and then the rotor C on the reduction unit E, repeating the dismantling operations in reverse, as described from point 9 to point 12 in the previous paragraph. Observe the mark made on the stator D and the reduction unit E before dismantling.
  • Page 61 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale The drive unit is now ready to be fitted on the machine, however first check its electrical operation, as described in "Testing" To assemble the drive unit on the machine’s chassis, see the instructions in the previous paragraph. Replacing the reduction unit-differential E.
  • Page 62 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C2.5 Replacing the drive wheels Dismantling Move the machine to the tank draining area, and empty the solution tank and the dirty water tank. Move the machine onto flat and dry flooring. Press the emergency key switch until it is held in the bottom position.
  • Page 63 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale C3 RELAY AND DRIVE MOTOR ELECTRICAL CONNECTIONS C3.1 Checking and replacing the drive relay WARNING ONLY MACHINES WITH TRACTION MOTOR The drive relay is fitted to make the machine lighter to push, when the drive cannot be used (no batteries, flat batteries or off).
  • Page 64 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Dismantling Move the machine to the tank draining area, and empty the recovery tank. Move the machine onto flat and dry flooring. Press the emergency key switch until it is held in the bottom position. Disconnect the batteries from the wiring and each other and remove them from the battery compartment.
  • Page 65 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale DRIVE UNIT WARNING Go to the designated draining area and empty the solution and dirty water tanks using the drain plugs and the hose provided. Move the machine onto flat ground. If necessary, place chocks under the wheels.
  • Page 66 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale D1 MACHINE’S MAIN WIRING The machine’s main wiring has been modified, moving the brush contactor to the electronics mounting plate, and eliminating the general one. The board is made using an automated process, with the components or sockets soldered on top, eliminating the interconnection wires.
  • Page 67 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale D1.1 Main wiring board components, “Traction” version Instrument panel board and solenoid valve fuse Main wiring board connector Suction motor relay Contactor brush motor Brush motor fuse Suction motor fuse Drive motor fuse Positive isolator switch Negative isolator switch Fig.
  • Page 68 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale D1.2 Machine’s main wiring connections, “Traction” version MULTI-PIN CONNECTOR ON PANEL BOARD If replacing the machine’s main wiring, or there are electrical problems on the machine, check that the connector is correctly plugged onto the board. Fig.
  • Page 69 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale FAST-ON TERMINAL CONNECTOR FOR IGNITION KEY / EMERGENCY BUTTON White wire with spade lugs to connect to the mushroom-head button with key, carries +24 V signal from the batteries. Orange wire with spade lugs to connect to the mushroom-head button with key, carries +24 V signal to the functions.
  • Page 70 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale SOLENOID VALVE FAST-ON TERMINAL CONNECTOR Solenoid valve fast-on terminal connector. Purple wire and pink wire +24 V. Fig. 135 DRIVE MOTOR, DRIVE MOTOR PROTECTOR AND RELEASE RELAY CONNECTOR Relay coil connector, fast-on terminal orange wire +24 V.
  • Page 71 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale BRUSH MOTOR AND MOTOR PROTECTOR CONNECTOR Brush motor connector. Ø 6 mm cable eyelet, red wire +24 V from the Fig. 138 contactor, black wire +0 V from the negative isolator switch. Brush motor protector fast-on terminal connector.
  • Page 72 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale EXTERNAL BATTERY CHARGER CONNECTOR Connector for recharging the batteries using an external battery charger. Alongside is a microswitch that detects when the recharging connector is plugged in. When activated, the microswitch cuts off the power supply to the electronic board, thus preventing machine operation.
  • Page 73 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale D2 ELECTRICAL WIRING DIAGRAMS D2.1 Wiring diagram Traction version 67 of 73...

  • Page 74: Error Codes - Troubleshooting

    PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale ERROR CODES - TROUBLESHOOTING WARNING Go to the designated draining area and empty the solution and dirty water tanks using the drain plugs and the hose provided. Move the machine onto flat ground. If necessary, place chocks under the wheels.
  • Page 75 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale E1 ERROR CODES E1.1 Alarm messages on the instrument panel board display The instrument panel boards with display include verification of LED operation; turning the key for around 2 seconds, all the LEDs and the display will switch on. Immediately after this, the display will be show, in sequence, the firmware loaded on the electronic board "F05"...
  • Page 76 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale Check the relay, disconnected or power contacts Suction relay control fault stuck in “closed” position. Instrument panel board fault DRIVE LEVER already pressed when starting Release the drive lever and activate it again. or after emergency Check wiring, connection or short-circuit solenoid Anomaly control solenoid valve water...
  • Page 77 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale TROUBLESHOOTING E2.1 Troubleshooting E2.1.1 The machine won’t start If there is voltage, go to point 2 Check battery voltage (B, BT). Recharge the batteries. Check the key contact, “BT” only, see paragraph If OK, go to point 3 If there is no continuity replace the key contact.
  • Page 78 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale E2.1.4 The suction motor isn’t working If shown, check the suction relay C paragraph Check whether the display on the instrument D5.1 and its wiring. panel shows error code "AcA". If not shown go to point 2. Check if the “tank full”...
  • Page 79 PLDC04453 REVISION December 23, 2020 TECHNICAL OFFICE Stavale REVISION No. DATE December 23, 2020 REVISION 00 Drafting of the manual and release date. REVISION 01 73 of 73...
