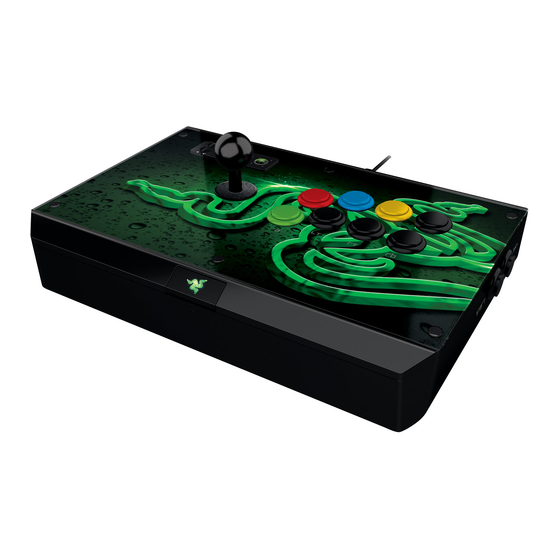

Razer Atrox Manual

Razer Atrox Manual

Arcade stick for xbox 360
Hide thumbs Also See for Atrox:

Advertisement

Quick Links

Arcade gaming has come a long way since its glory days – an era woven into the fabric
of gaming history as one that paved the way for innovation, and also one that brought
us bittersweet nostalgia. Hours spent at the arcade honed the gamer in you; for every
coin you inserted, every combo you executed, every hit you took, and every ultra you
unleashed in return – you became a better player. And this is the approach we took
when designing the Razer Atrox Arcade Stick.
Years upon years of collective gaming experience from pro-gamers and you, the Razer
community, have culminated in the ultimate Arcade Stick for the Xbox 360. Engineered
and refined to perfection through countless prototypes and an extensive beta testing
phase, the Razer Atrox Arcade Stick is crafted to allow advanced modification – With
internals and storage easily accessible at the touch of a button, the joystick, all 10
buttons and the top panel are fully interchangeable for full customizability. And that's
just the beginning.
Featuring genuine Sanwa Denshi™ hardware and an ergonomically authentic arcade
layout, the Razer Atrox represents the pinnacle of precision and reliability and is the
definitive Arcade Stick for tournament-grade gaming.
Forged from the fires of an arcade gaming legacy, the Razer Atrox is, in the most
primeval sense, Bred to Fight.
1 | razer™

Advertisement

loading

Summary of Contents for Razer Atrox

  • Page 1 Razer Atrox represents the pinnacle of precision and reliability and is the definitive Arcade Stick for tournament-grade gaming. Forged from the fires of an arcade gaming legacy, the Razer Atrox is, in the most primeval sense, Bred to Fight.
  • Page 2: Table Of Contents

    1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS ........3 2. REGISTRATION / TECHNICAL SUPPORT ............. 4 3. DEVICE LAYOUT ..................5 4. SETTING UP YOUR RAZER ATROX ............. 7 5. CUSTOMIZING YOUR RAZER ATROX ............11 6. USING YOUR RAZER ATROX ..............29 7.
  • Page 3: Package Contents / System Requirements

    1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS  Razer Atrox Arcade Stick  13 ft. Detachable Cable  Breakaway Cable  Magnetized Flat Tip and Cross Tip Screwdriver  Ball Top Grip  Bat Top Grip  Removable Top Panel SYSTEM REQUIREMENTS ...
  • Page 4: Registration / Technical Support

    2. REGISTRATION / TECHNICAL SUPPORT REGISTRATION Please visit www.razerzone.com/registration for online product registration. Your Product’s serial number can be found here TECHNICAL SUPPORT What you’ll get:  1 year limited manufacturer’s warranty.  Access to manual and free online technical support at www.razersupport.com. 4 | For gamers by gamers™...
  • Page 5: Device Layout

    3. DEVICE LAYOUT A. Ball Top Grip B. Authentic Sanwa Denshi™ Joystick C. Authentic Sanwa Denshi™ Action Buttons D. Removable Top Panel E. Compartment Button F. 2.5mm Headset Port G. Start Button H. Back Button 5 | razer™...
  • Page 6 I. Control Stick Switch J. Lock / Unlock Switch K. Turbo Mode Buttons L. Xbox Guide Button M. 13 ft. Detachable Cable + Breakaway Cable N. Magnetized Flat Tip and Cross Tip Screwdriver O. Bat Top Grip SAFETY STATEMENT IMPORTANT! Before using the Xbox 360® with this product, read the Xbox 360® instruction manual for safety, health, and other information regarding the use of the Xbox 360®.
  • Page 7: Setting Up Your Razer Atrox

    4. SETTING UP YOUR RAZER ATROX 1. Press the Compartment Button to unlock the lid. 2. Lift the lid to access the multipurpose compartment. 7 | razer™...
  • Page 8 3. Take out the Detachable Cable with the attached Breakaway Cable. 4. To close and lock the lid, place both hands on the edge of the lid, and push down. 8 | For gamers by gamers™...
  • Page 9 5. Connect your Xbox 360® Headset* to the 2.5mm Headset Port. (Optional) 6. Ensure that the marking is facing up when inserting the cable. 9 | razer™...
  • Page 10 7. Connect the Detachable Cable to the back of your Razer Atrox. To remove the Detachable Cable, hold the cable grip firmly, and then pull. 10 | For gamers by gamers™...
  • Page 11: Customizing Your Razer Atrox

    5. CUSTOMIZING YOUR RAZER ATROX CAUTION! Please remove the Detachable Cable before opening the multipurpose compartment or doing any modifications to your Razer Atrox. CHANGING THE JOYSTICK GRIP 1. Press the Compartment Button to unlock the lid. 2. Lift the lid to access the multipurpose compartment.
  • Page 12 3. Take the screwdriver and hold its flat tip firmly into the joystick’s screw. 4. Rotate the Ball Top Grip until it is removed from the joystick shaft. 12 | For gamers by gamers™...
  • Page 13 5. Remove the shaft cover from the joystick shaft. 6. Rotate the Bat Top Grip onto the joystick shaft until it is securely fastened. 13 | razer™...
  • Page 14 7. Place the Ball Top Grip inside the compartment and close the lid. 14 | For gamers by gamers™...
  • Page 15 CHANGING THE ACTION BUTTONS 1. Press the Compartment Button to unlock the lid. 2. Lift the lid to access the multipurpose compartment. 15 | razer™...
  • Page 16 3. Carefully remove the cables from the action button. 4. While holding the action button’s fastener, push the action button out. 16 | For gamers by gamers™...
  • Page 17 5. Repeat steps 3 and 4 for all the buttons you want to change. 6. Insert your desired action buttons or the button covers* into the slots. *not included 17 | razer™...
  • Page 18 7. Reattach the cables to the action buttons. 8. Ensure that all the cables are properly connected then close the lid. 18 | For gamers by gamers™...
  • Page 19 CHANGING THE TOP PANEL ARTWORK 1. Press the Compartment Button to unlock the lid. 2. Lift the lid to access the multipurpose compartment. 19 | razer™...
  • Page 20 3. Take the screwdriver and hold its flat tip firmly into the joystick’s screw. 4. Rotate the Ball Top Grip until it is removed from the joystick shaft. 20 | For gamers by gamers™...
  • Page 21 5. Remove the shaft cover and dust washer from the joystick shaft. 6. Carefully remove the cables from the action button. 21 | razer™...
  • Page 22 7. While holding the action button’s fastener, push the action button out. 8. Repeat steps 6 and 7 until all the action buttons are removed. 22 | For gamers by gamers™...
  • Page 23 9. Place your finger on the metal stopper then remove the screw using the cross tip. 10. Repeat step 9 until all screws and metal stoppers are removed. 23 | razer™...
  • Page 24 11. Gently remove the top panel and artwork from the lid. 12. Close and lock the lid. 24 | For gamers by gamers™...
  • Page 25 13. Place your custom artwork design* on top of the lid and ensure that is aligned. *The die-cut pattern is available for download at www.razerzone.com/atrox/template. 14. Return the top panel onto the lid and ensure that it is properly aligned.
  • Page 26 15. Reinsert the action buttons into their respective slots. 16. Press the compartment button then gently lift the lid. 26 | For gamers by gamers™...
  • Page 27 17. Screw the metal stoppers into the lid until all 6 holes are covered. 18. Reinsert the dust washer, shaft cover, and joystick grip to the joystick shaft. 27 | razer™...
  • Page 28 19. Reattach the cables to the action button. 20. Ensure that all the cables are properly connected then close the lid. 28 | For gamers by gamers™...
  • Page 29: Using Your Razer Atrox

    6. USING YOUR RAZER ATROX Control Stick Switch The Control Stick Switch allows you to change the functionality of the joystick to emulate the Left Analog Stick, Right Analog Stick or Directional Pad of the standard controller. Note: To navigate the Xbox 360 Dashboard, set the Control Stick Switch to Directional Pad (DP).
  • Page 30 Turbo Buttons The Turbo Buttons allow you to hold down a button instead of tapping that button repeatedly. There are 2 levels of turbo: Turbo 1: To activate Turbo 1, press the turbo button once. The turbo button will have a steady light to indicate that turbo 1 is activated.
  • Page 31 1. Press and hold Turbo Button 1, Turbo Button 8 and the Start button. 2. Upon activation, Turbo Button 1 will start to blink. 3. While the turbo button is blinking, you can either: Press the action button you wish to assign. Press Start to skip the button assignment. 31 | razer™...
  • Page 32 4. The turbo button will be lit if assigned to an action button or unlit if skipped. 5. Once a turbo button has been assigned, the next turbo button will blink. 6. Repeat step 3 until all the turbo buttons have been assigned or skipped. 7.
  • Page 33: Safety And Maintenance

    Razer Atrox. 1. Position the Razer Atrox directly in front of you and within easy reach. 2. Adjust the height of your chair and/or table so that the Razer Atrox is at or below elbow height.
  • Page 34 6. Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs. 7. If you should experience any physical discomfort while using your Razer Atrox, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.
  • Page 35: Legalese

    LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
  • Page 36 COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.
