Razer SABERTOOTH Master Manual
Razer SABERTOOTH Master Manual

Razer SABERTOOTH Master Manual

Elite gaming controller for xbox 360

Advertisement

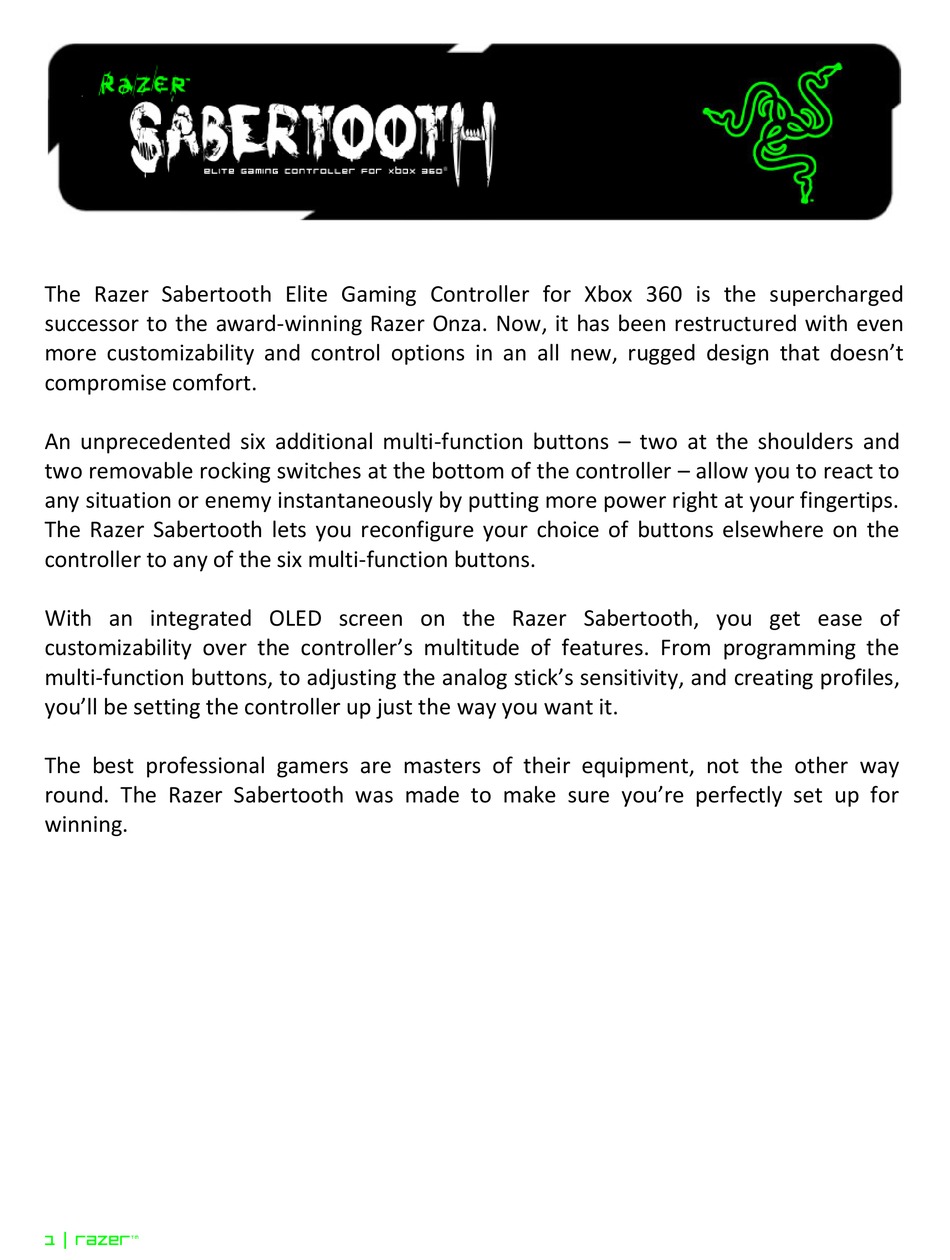

The Razer Sabertooth Elite Gaming Controller for Xbox 360 is the supercharged
successor to the award-winning Razer Onza. Now, it has been restructured with even
more customizability and control options in an all new, rugged design that doesn't
compromise comfort.
An unprecedented six additional multi-function buttons – two at the shoulders and
two removable rocking switches at the bottom of the controller – allow you to react to
any situation or enemy instantaneously by putting more power right at your fingertips.
The Razer Sabertooth lets you reconfigure your choice of buttons elsewhere on the
controller to any of the six multi-function buttons.
With an integrated OLED screen on the Razer Sabertooth, you get ease of
customizability over the controller's multitude of features. From programming the
multi-function buttons, to adjusting the analog stick's sensitivity, and creating profiles,
you'll be setting the controller up just the way you want it.
The best professional gamers are masters of their equipment, not the other way
round. The Razer Sabertooth was made to make sure you're perfectly set up for
winning.
1 | razer™

Advertisement

loading

Summary of Contents for Razer SABERTOOTH

  • Page 1 The best professional gamers are masters of their equipment, not the other way round. The Razer Sabertooth was made to make sure you’re perfectly set up for winning.
  • Page 2: Table Of Contents

    2. REGISTRATION / TECHNICAL SUPPORT ............... 4 3. DEVICE LAYOUT ....................5 4. CONNECTING TO YOUR XBOX 360® ..............7 5. USING YOUR RAZER SABERTOOTH ..............9 6. CONFIGURING YOUR RAZER SABERTOOTH ............11 7. SAFETY AND MAINTENANCE ................25 8.
  • Page 3: Package Contents / System Requirements

    1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS PACKAGE CONTENTS  Razer Sabertooth Elite Gaming Controller for Xbox 360®  Travel Pouch  2 Rubber Covers  Screwdriver  Detachable Braided Fiber Cable  Breakaway Cable  2 Analog Stick Rubber Grip Caps ...
  • Page 4: Registration / Technical Support

    2. REGISTRATION / TECHNICAL SUPPORT REGISTRATION  Please visit www.razerzone.com/registration for online product registration. TECHNICAL SUPPORT What you’ll get:  1 year limited manufacturer’s warranty.  Free online technical support at www.razersupport.com. SAFETY STATEMENT IMPORTANT! Before using the Xbox 360® with this product, read the Xbox 360® instruction manual for safety, health, and other information regarding the use of the Xbox 360®.
  • Page 5: Device Layout

    A. Left Analog Stick B. Back Button C. Guide Button D. Start Button E. Face Buttons F. Directional Pad G. Right Analog Stick H. Profile Button I. LED Display J. Program Button K. 2.5mm Headset Jack L. Breakaway Cable 5 | razer™...
  • Page 6 M. Bumper Buttons (LB / RB) N. Multi-Function Buttons (M1 / M2) O. Trigger Buttons (LT / RT) P. Detachable Cable Port Q. Multi-Function Triggers (Left: M3 / M4 ; Right: M5 / M6) 6 | For gamers by gamers™...
  • Page 7: Connecting To Your Xbox 360

    4. CONNECTING TO YOUR XBOX 360® 1. The Razer Sabertooth comes with a detachable cable for mobility. Ensure the marking is aligned when inserting the cable. 2. Twist the ring to secure it. 7 | razer™...
  • Page 8 3. Plug your Razer Sabertooth into the front USB port of your Xbox 360® or Xbox 360® S. Optional: Attaching The Analog Stick Rubber Grip Caps The rubber grip caps can provide you with better control while protecting the analog sticks from wear and tear.
  • Page 9: Using Your Razer Sabertooth

    5. USING YOUR RAZER SABERTOOTH Your Razer Sabertooth works right out of the box as a standard Xbox 360® controller. For advanced users, you can access various features through the OLED screen, such as configuring the Multi-Function Triggers and Buttons, changing the analog sticks sensitivity, and more.
  • Page 10 Press the Program Button to select your desired profile, and exit profile selection. The selected profile is now active. 10 | For gamers by gamers™...
  • Page 11: Configuring Your Razer Sabertooth

    6. CONFIGURING YOUR RAZER SABERTOOTH Note: Any changes made during configuration will be saved to the active profile. CONFIGURING THE MULTI-FUNCTION TRIGGERS (MFT) AND BUTTONS (MFB) 1. Press the Program Button to enter Program Mode. 2. Press and hold the MFB or MFT you wish to configure.
  • Page 12 B) Press the program button to disable the MFB or MFT. 4. Release the MFB or MFT to save the setting and return to Program Mode. Repeat steps 2 and 3 until configuration is complete. 5. Press the Program Button to end configuration. 12 | For gamers by gamers™...
  • Page 13 Note: Any changes made during configuration will be saved to the active profile. 1. Press the Program Button to enter Program Mode. 2. Press the analog stick you wish to configure. The current sensitivity setting will appear. 3. Press the up or down arrow to adjust the sensitivity. 13 | razer™...
  • Page 14 4. Press the analog stick again to save the setting and return to Program Mode. 5. Press the Program Button to end configuration. 14 | For gamers by gamers™...
  • Page 15 TESTING THE ANALOG STICKS 1. Press the Program Button to enter Program Mode. 2. Press the down arrow once to access the test mode, and press “A” to confirm. Otherwise, press “B” to return to previous menu. 15 | razer™...
  • Page 16 3. Press the up or down arrow to choose the analog stick to test, and press “A” to confirm. Otherwise, press “B” to return to previous menu. 4. Move the selected analog stick to check the axis reading in real time. 16 | For gamers by gamers™...
  • Page 17 5. Press “B” twice to return to the main menu. 6. Press the Program Button to end the test. 17 | razer™...
  • Page 18 DISABLING THE RUMBLE 1. Press the Program Button to enter Program Mode. 2. Press the down arrow twice to access the rumble option, and press “A” to confirm. Otherwise, press “B” to return to the previous menu. 18 | For gamers by gamers™...
  • Page 19 3. Press the up or down arrow to either turn the rumble on or off. 4. Press “A” to confirm or press “B” to cancel. 19 | razer™...
  • Page 20 TURNING THE BACKLIGHT OFF 1. Press the Program Button to enter Program Mode. 2. Press the down arrow thrice to access the “off backlight” option and press “A” to confirm. Otherwise, press “B” to return to the previous menu. 20 | For gamers by gamers™...
  • Page 21 3. Press “A” to confirm or press “B” to cancel. To turn the backlight on again, simply press the Program Button once. 21 | razer™...
  • Page 22 RESETTING A PROFILE TO DEFAULT SETTINGS 1. Hold the Profile Button for 3 seconds, until you see a reset option. 2. Press the up or down arrow to choose the profile you wish to reset. 3. Press “A” to reset or “B” to cancel. 22 | For gamers by gamers™...
  • Page 23 Optional: Removing The Multi-Function Triggers 1. Position the tip of the screwdriver onto the head of the screw. 2. Turn the screwdriver counterclockwise until the screw is loose. 23 | razer™...
  • Page 24 3. Gently remove the screw and the Multi-Function Triggers from the controller. 4. Place the rubber covers to secure the trigger slot. 24 | For gamers by gamers™...
  • Page 25: Safety And Maintenance

    7. SAFETY AND MAINTENANCE SAFETY GUIDELINES In order to achieve maximum safety while using your Razer Sabertooth, we suggest that you adopt the following guidelines: 1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com...
  • Page 26: Legalese

    LIMITATION OF LIABILITY Razer shall in no event be liable for any lost profits, loss of information or data, special, incidental, indirect, punitive or consequential or incidental damages, arising in any way out of distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall Razer’s liability exceed the retail purchase price of the Product.
  • Page 27 COSTS OF PROCUREMENT For the avoidance of doubt, in no event will Razer be liable for any costs of procurement unless it has been advised of the possibility of such damages, and in no case shall Razer be liable for any costs of procurement liability exceeding the retail purchase price of the Product.
