Razer RAIJU MOBILE - Gamepad Manual

INTRODUCTION

The Razer Raiju Mobile is a gaming controller that syncs with your mobile device and packed with full-fledged advanced features to give you the ultimate competitive edge. Wield the same power of our renowned flagship gaming controllers whether you're at home or on the go.

The devastating features that come with the popular Razer Raiju Ultimate is now built into the Razer Raiju Mobile—button actuation at high speed, a soft cushioned touch, and crisp tactile feedback. The Razer Raiju Mobile utilizes our signature Razer Mecha-TactiIe Action Buttons to keep you a move faster than your opponents, as you enjoy a console experience with your mobile game.

PACKAGE CONTENTS

• Razer Raiju Mobile
• USB Type-C to Type-C cable
• USB Type-A to Type-C cable
• Important Product Information Guide

SYSTEM REQUIREMENTS

Product requirements

• Android 6.0 Marshmallow (or higher)
• A free USB-C port or Bluetooth connectivity

Mobile app requirements

• Android mobile device with Bluetooth compatibility
• Internet connection

LET'S GET YOU COVERED

You've got a great device in your hands - now maximize its potential by registering online! You score exclusive Razer benefits, information on your controller's limited 1-year warranty, and more.
Register now at razerid.razer.com/warranty

Got a question? Ask the Razer Support Team at support.razer.com

TECHNICAL SPECIFICATIONS

TECHNICAL SPECIFICATIONS

• 4 multi-function buttons
• Mecha-Tactile action buttons
• Trigger stops for quick-firing action
• Mobile app for Android
• Up to 23 hours battery life on a single charge

APPROXIMATE SIZE & WEIGHT

• Length: 125 mm / 4.92 in
• Width: 159.4 mm / 6.27 in
• Height: 66 mm / 2.60 in
• Weight (without cable): 306 g / 0.67 lbs

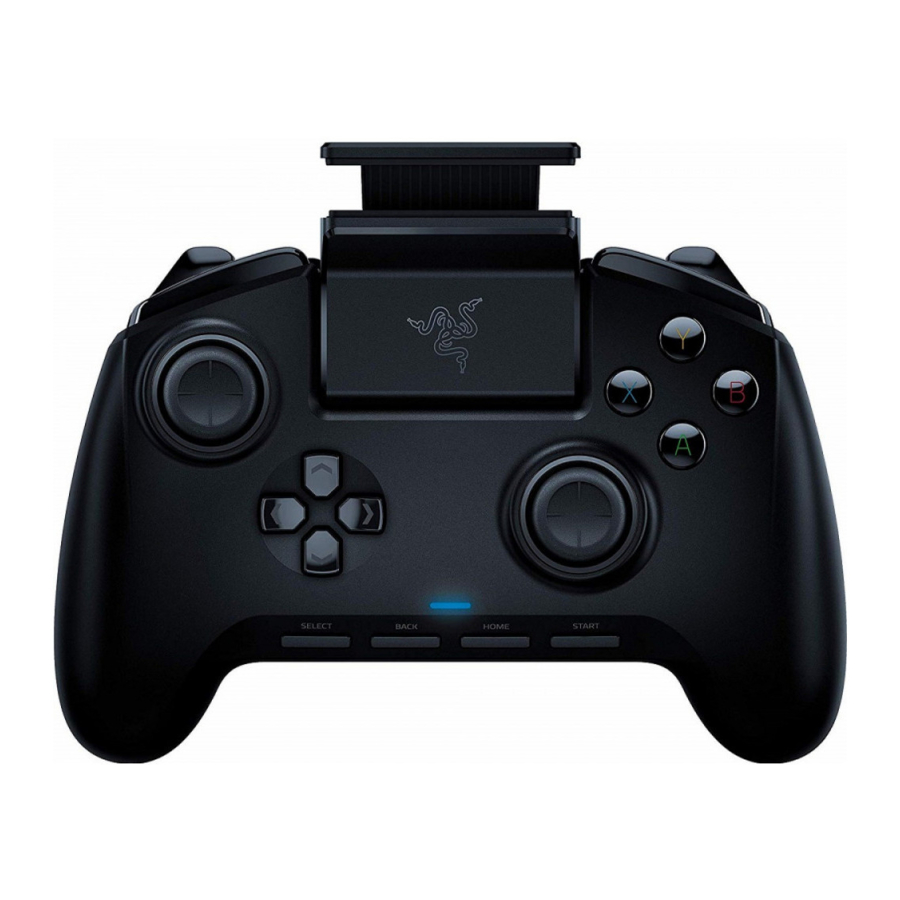

EXPLORING YOUR DEVICE

1. Retractable phone grip
2. Standard thumbsticks (L3/R3 buttons)
3. Directional pad
4. Razer Mecha-Tactile action buttons
5. Status indicator
6. SELECT button
7. BACK button
8. HOME / Power button
9. START button

10. Triggers (L2/R2)
11. Bumpers (L1/R1)
12. Multi-Function buttons (M1-M4)
13. USB-C port
14. Trigger stop switches
15. Mode switch
16. USB Type-C to USB Type-C cable
17. USB Type-A to USB Type-C cable

SETTING UP YOUR DEVICE

CHARGING YOUR UNIT

For first time activation, plug in your controller to a powered USB port using the USB Type-A to USB Type-C cable. It takes approximately 3.5 hours to fully charge your Razer Raiju Mobile.

CONNECTING TO YOUR ANDROID PHONE

Wireless connection

1. Set the Mode switch to either BT1 or BT2.
   Note: The device you will pair to will be registered to the selected BT mode.

2. Power on the controller by pressing the HOME button until the status indicator starts to blink in blue.

3. Press and hold both the HOME and START buttons until the status indicator starts to blink in white to activate pairing mode.

4. On your phone, open its Bluetooth settings, and select Razer Raiju Mobile from the list of available devices.

5. Wait until the status indicator becomes solid blue indicating that the pairing was successful, and the controller is now ready to use.
   Note: Pairing mode will automatically stop if it does not pair with a device after 90 seconds.

6. Pull out the retractable phone grip, place your phone in and adjust the grip and its viewing angle as needed.


Wired connection

Note: Make sure that you have fully charged the controller before proceeding.

1. Set the Mode switch to USB.

2. With your phone placed into the phone grip, connect your phone to the controller using the USB Type-C to USB Type-C cable. The status indicator will turn green indicating that the controller is now ready to use.


USING YOUR DEVICE

UNDERSTANDING THE STATUS INDICATOR

Use the status indicator when checking the connection and power status of the controller in each mode. The indicator may vary on the selected mode and/or connection used.

BT1 / BT2 Mode
Status	Wireless	Powered by USB
	Low battery	Charging	Fully charged
ON
OFF	N/A
Status	Wireless / Powered by USB
	Searching	Pairing	Paired
ON
USB Mode
Status	Charging		Fully charged
Connected to a USB host device
Connected to a USB power adapter*

*Not included

USING THE TRIGGER STOP SWITCHES

The Trigger Stops allows you to activate the Left and Right Triggers faster by shortening their travel distance and reducing their response time (Active Hair Trigger Mode). To enable the Trigger Stops, simply slide the switches outwards; and to disable the Trigger Stops, slide the switches inwards.

POWERING OFF THE UNIT IN ANY BT MODE

In any BT mode, simply press and hold the HOME button until the controller powers off.

CONFIGURING YOUR UNIT

Customize your controller's button functions, mappings, and other features with the Razer Raiju Mobile app. Simply download the mobile app on your mobile device, launch the app, and follow the onscreen instructions

Secure your victory in eachgame!
For in-depth instructions on how to fully use and customize your controller for specific games, visit razer.com/raiju-mobile or simply scan this QR code.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Raiju Mobile, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to for support.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0°C(32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device in order to let the temperature stabilize to an optimal level.

MAINTENANCE AND USE

The Razer Raiju Mobile requires minimum maintenance to keep it in optimum condition. Once a month, we recommend you power off the controller, remove any attached device and/or cable, and gently clean it using a soft cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
