Razer KITSUNE Manual

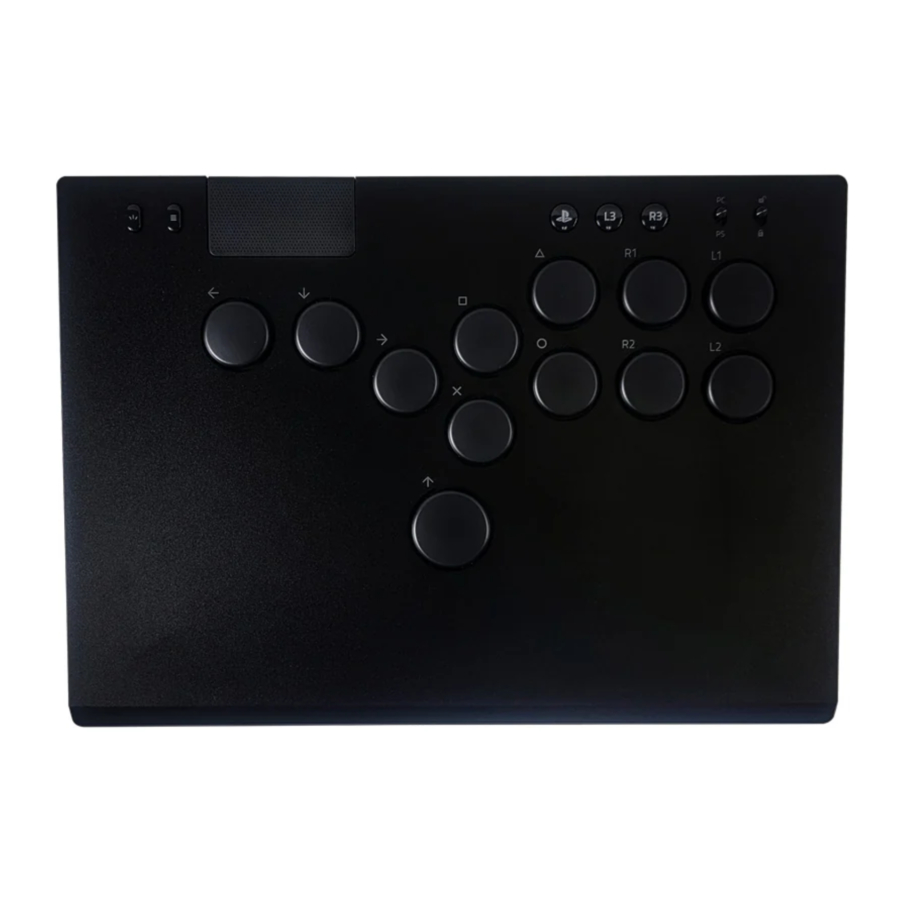

WHAT'S INSIDE

1. Create button
2. Options button
3. Touch pad, Touch pad button
4. USB Type C port
5. Cable security clasp
6. PS button
7. L3 button
8. R3 button
9. Arcade controller mode switch (PC / PS)

10. Tournament lock switch
11. Arcade controller lighting Powered by Razer ChromaTM RGB
12. Razer^TM Low-profile linear optical push buttons
13. Removable aluminum top plate

WHAT'S NEEDED

• PS5TM console or PC(Windows@ 10 64-bit or higher)*
• USB Type A port

*Razer has validated the operation between this arcade controller and the PlayStation@5console. PC compatibility not tested nor endorsed by Sony Interactive Entertainment

TECHNICAL SPECIFICATIONS

• Precise Quad Movement Button Layout
• Razer^TM Low-Profile Linear Optical Switches
• Slim, portable form factor
• Cable lock and lock switch
• Removable aluminum top plate
• USB Type C to USB Type A cable

SETTING UP YOUR RAZER KITSUNE

CONNECTING AND LOCKING THE CABLE

1. Unlock the cable security clasp, and slide it outwards.

2. Lift the security clasp and connect the USB Type C to USB Type A cable to the USB Type C port of the arcade controller.

3. Push down the cable security clasp, slide it inwards, and lock it in place.


CONNECTING THE ARCADE CONTROLLER

1. Set the arcade controller mode according to the intended device.


2. Plug the controller into the PS5TM console or PC using the USB Type A to USB Type C cable.
   For safety purposes and to easily unplug the arcade controller when not in use, it's recommended to plug it into the USB port at the front of the PS5TM console.


3. Press the PS button to begin using the arcade controller.


To switch between colors in Static or Breathing effects:

1. Set the tournament lock switch to the locked () state.

2. With the Static or Breathing effect active, press and hold the Create button and then press the RI or R2 buttons to cycle between the available colors of the active effect.


To shift between animation speeds in Spectrum Cycling, Wave, or Breathing effects:

1. Set the tournament lock switch to the locked () state.


2. With Spectrum cycling, Wave, or Breathing effect active, press and hold the Create button and then press the Ll or L2 buttons to adjust the animation speed of the active effect.


Adjusting the brightness level

1. Set the tournament lock switch to the locked () state.
2. Press and hold the Create button and then press the or buttons to increase or decrease the brightness of the arcade controller's lighting.


USING YOUR PREFERRED CUSTOM TOP PLATE
Custom top plates are not included and/or are sold separately. Only use custom plates made and/or approved bv Razer.

1. Detach the rubber covers and remove the screws at the bottom of the arcade controller using a Philips screwdriver (not included).


2. Remove the aluminum top plate.


3. Place your custom top plate onto the arcade controller.

4. Reattach the bottom screws and rubber covers.


SAFETY AND MAINTENANCE

SAFETY GUIDELINES
To achieve maximum safety while using your Razer Kitsune, we suggest that you adopt the following guidelines:
Unplug the arcade controller and organize its cord when not in use. Make sure to keep the arcade controller and its parts out of the reach of small children to avoid accidents and/or injuries.
Don't place items on top of the arcade controller.
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific temperature range of 0 ºC(32 ºF)to 40º C (104º F).Should the temperature exceed this range, unplug and/or switch off the device to let the temperature stabilize to an optimal level.

COMFORT
Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Kitsune.

1. Position the arcade controller directly in front of you and within easy reach.
2. Adjust the height of your chair and/or table so that the Razer Kitsune is at or below elbow height.
3. Keep your feet well supported, posture straight, and your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend or twist your hands for long periods.
5. Don't sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck and legs.

If you should experience any physical discomfort while using your Razer Kitsune, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE
The Razer Kitsune requires minimum maintenance to keep it in optimum condition. Once a month, we recommend you clean it using a soft cloth or cotton swab to prevent dirt buildup. Don't use soap or harsh cleaning agents.
