Installation Guide
Part No: CHFO7C
(000©000)
Vehicle Compatibility:
For Vehicle Compatibility
visit https://aerpro.com/
CHFO7C
* Note All Dates are guide lines only as specifications of vehicles change

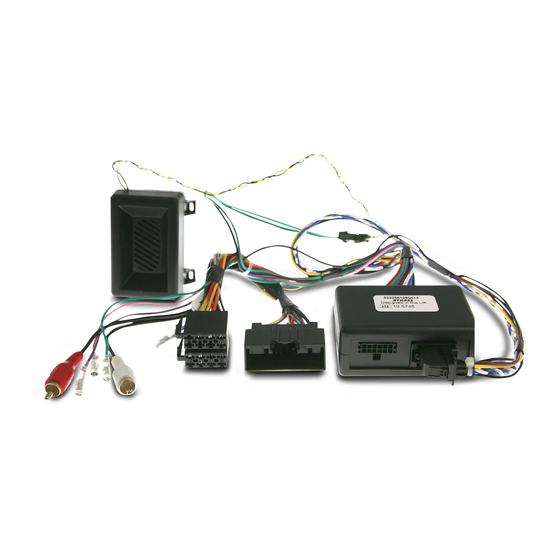

Ford Can-Bus Steering Wheel Control Interface
Pink Wire
- Speed Pulse
Green Wire
- Park Brake
Purple Wire
- Reverse
Blue/White Wire
• Antenna Remote
•where Applicable
Steering Wheel Control Functions
@)@)
@)@)
@)@)
Aux In
Volume+
Seek/Track-
Volume
(000@000)
Seek/Track+
Mute
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aerpro Connects 2 CHFO7C
Summary of Contents for Aerpro Connects 2 CHFO7C
- Page 1 - Reverse (000@000) Blue/White Wire • Antenna Remote •where Applicable Vehicle Compatibility: Steering Wheel Control Functions Volume+ For Vehicle Compatibility visit https://aerpro.com/ CHFO7C Seek/Track+ Seek/Track- Mute Volume * Note All Dates are guide lines only as specifications of vehicles change...
- Page 2 Installation Guide Part No: CHFO7C Ford Can-Bus Steering Wheel Control Interface User uide to chan e the time and date Single Press (Button 1) switches display on Press & Hold Speech Button (button 1) for 2 seconds this will enable menu mode option. Press (Buttons 3/5) Up/down till clock setting is selected.
