4.2.3 Optional Rear Rack Support Kit 4.2.3 Optional Rear Rack Support Kit (C750-284-10)
The optional rear rack support kit provides additional support to the rear of the panel by
mounting to the rear rack posts� An adjustable cable lacing bar is included�

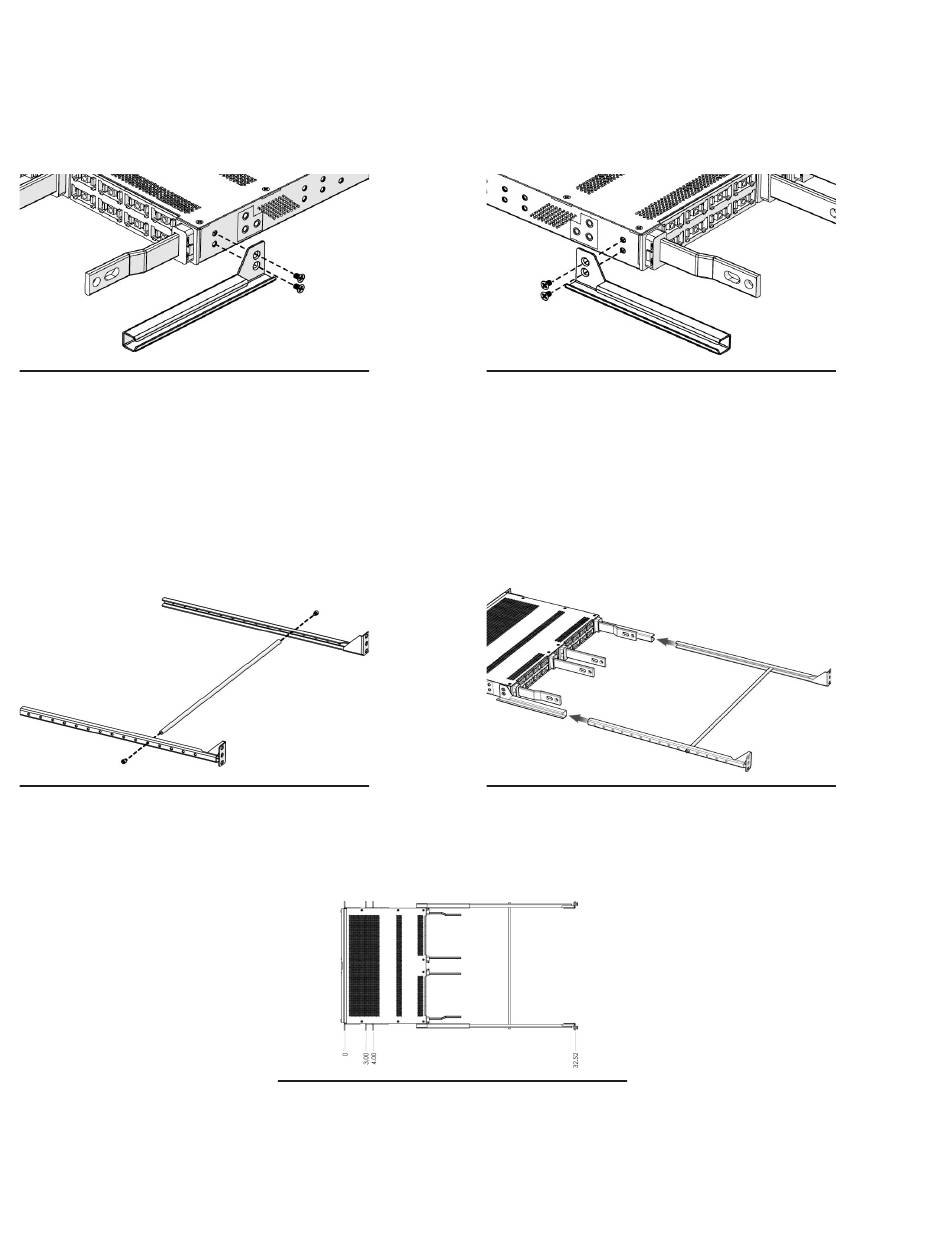

Step 1. Attach the rear rack support brackets to each side of the Matrix C16 using the
included #10-32 hardware as shown in Figure 3 and Figure 4.
Figure 3. A-Side Rear Support Bracket
Step 2. Align each rear support rail as shown in Figure 5� Select a hole position for the
lacing bar and secure to each rear support rail using the included #10-32
hardware, then insert the rear support rail assembly into the rear support brackets
as shown in Figure 6� Secure the ears of the rear rack support assembly to a rack
using the included 1/4"-20 hardware�
Figure 5. Rear Support Rail & Lacing Bar
9
(C750-284-10)
Figure 6. Insert Rear Support Rail & Lacing
Figure 7. Rear Rack Support Kit - Fully
Figure 4. B-Side Rear Support Bracket
Extended
Bar
C048-725-30 Rev. B (01/2020)
