4.5 Rear Plastic Safety Shields 4.5 Rear Plastic Safety Shields
WARNING! ELECTRICAL HAZARD
FAILURE TO INSTALL THE PLASTIC SAFETY SHIELDS
PROPERLY MAY CREATE AN ELECTRICAL HAZARD�
THE PANEL MAY BE ENERGIZED WHEN INSTALLING
THE REAR PLASTIC SAFETY COVERS� USE INSULATED
TOOLS AND APPROPRIATE PERSONAL PROTECTIVE
EQUIPMENT WHEN INSTALLING OR REMOVING THE
REAR PLASTIC SAFETY COVERS� WHEN ALL REAR
ELECTRICAL CONNECTIONS HAVE BEEN COMPLETED,
THE REAR PLASTIC SAFETY COVERS MUST BE
INSTALLED� THE COVERS CAN BE REMOVED LATER TO
SERVICE THE PANEL�
When all input cables have been installed, attach the rear plastic safety
covers that go over each input landing position�
4.5.1 4.5.1 Straight Isolators Straight Isolators
Step 1. Pry the isolator open and place it around the cable� Ensure that it
is in the correct orientation (see Figure 11)�
Step 2. Slide the isolator forward until it covers the bus bars and its
corresponding isolator, against the metal chassis� It is held in
place by friction� Repeat these steps for all of the straight-
mounted input bus bars on the panel�
4.5.2 4.5.2 Optional 90 Degree Isolators Optional 90 Degree Isolators
Step 1. Place the bottom portion of the isolator on the bottom of the input
bus assembly and align with the top portion of the isolator as
shown in Figure 12�
Step 2. Install the two plastic snap-in clips at the top of the isolator
assembly to secure it in place� Repeat these steps for all 90
degree-mounted input bus bars on the panel�
4.6 4.6 Output Connections Output Connections
WARNING! ELECTRICAL HAZARD
ENSURE CIRCUIT BREAKERS ARE IN THE OFF POSITION
BEFORE PLUGGING IN OUTPUT CONNECTIONS�
NOTE: When viewing the connectors from the rear of the panel, ensure
that each RTN cable is oriented on the left position of each connector�
Step 1. Locate the connectorized output cable whips that were shipped
with your C16 panel�
Step 2. Insert the connector into the desired output position until it clicks
(see Figure 13)� The connector is keyed to prevent reverse
polarity� Refer to the output circuit map label for output circuit
mapping information�
Step 3. Lace the output cable to the previously installed lacing bar�
Repeat these steps for all desired output circuits to be installed�
12

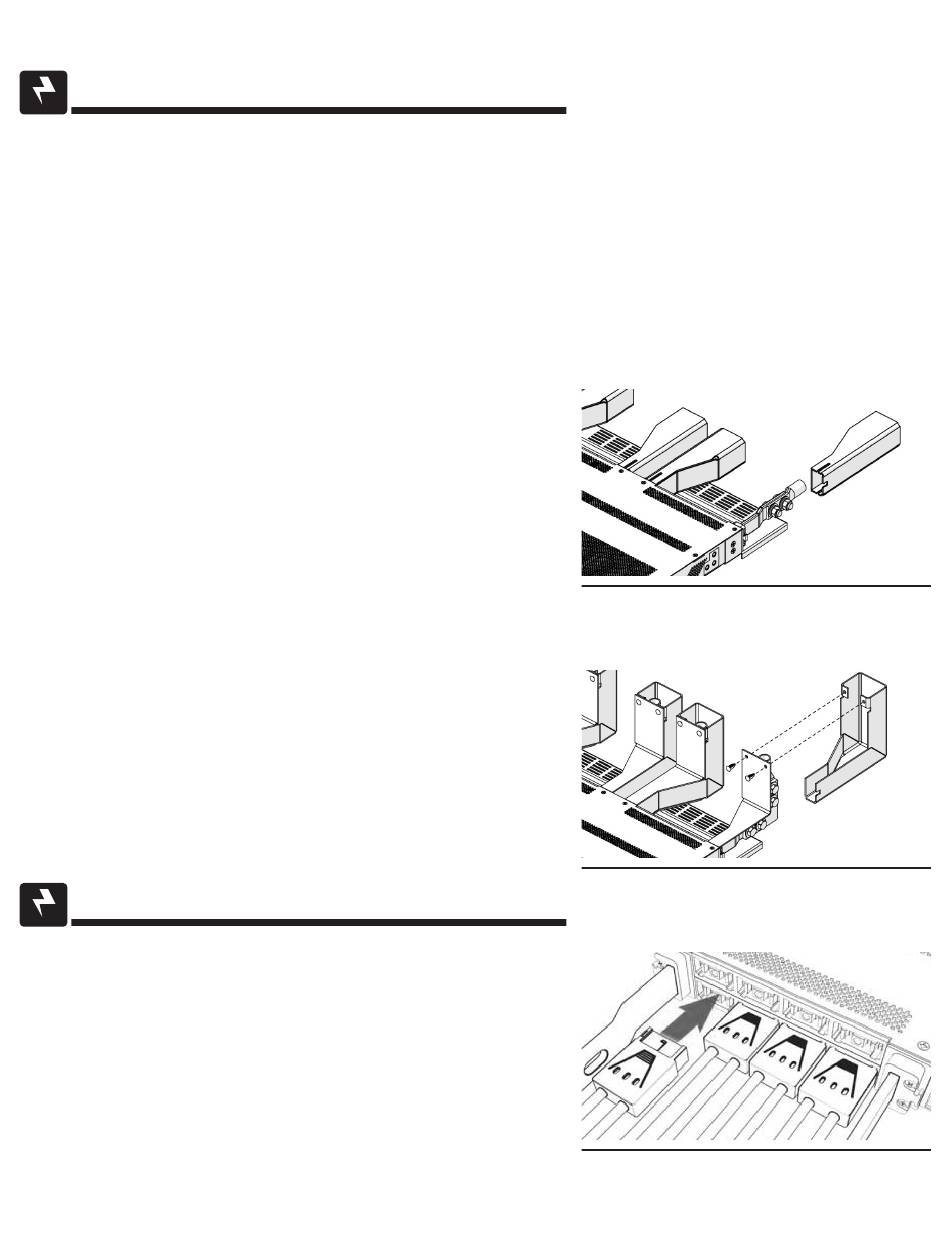

Figure 11. Straight Isolators
Figure 12. 90 Degree Isolators
Figure 13. Output Connections
