Maintenance

The MicroSVR requires no maintenance. You should not take the MicroSVR apart other than opening the
front panel to install/remove disks. Taking the MicroSVR apart will void its warranty.
The following operations can be conducted by the user:

Installing the Hard drives

1. Unscrew the 4 front panel screws and remove it.
2. Slide out the drive handles.

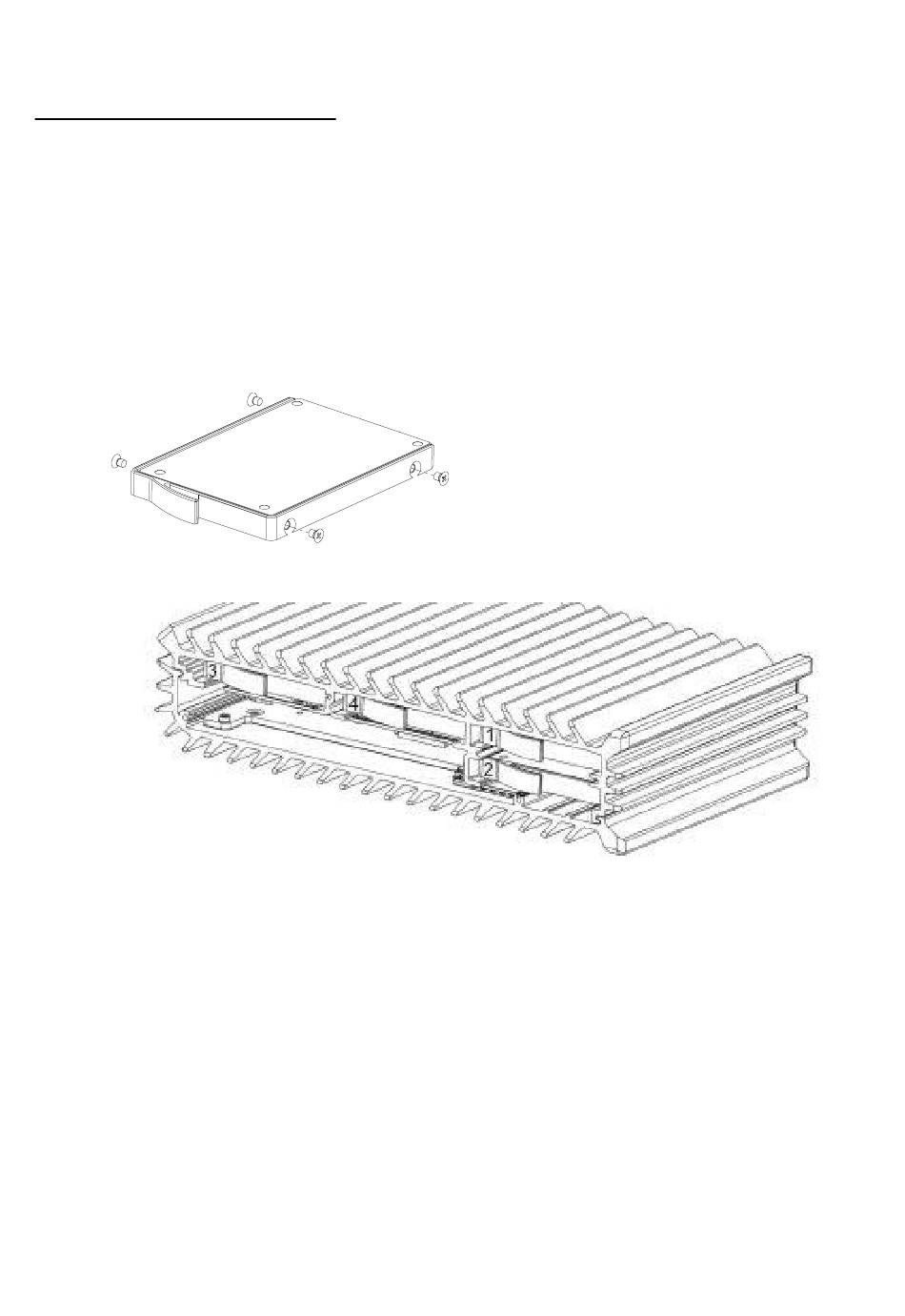

3. Mount each disk to a handle with the supplied mounting screws. Note the drive direction
according to the drawing (metal side up).
4. Slide the disks into their position, note the drive numbering.
5. Re-assemble the front panel.
