MicroSVR features
Front panel

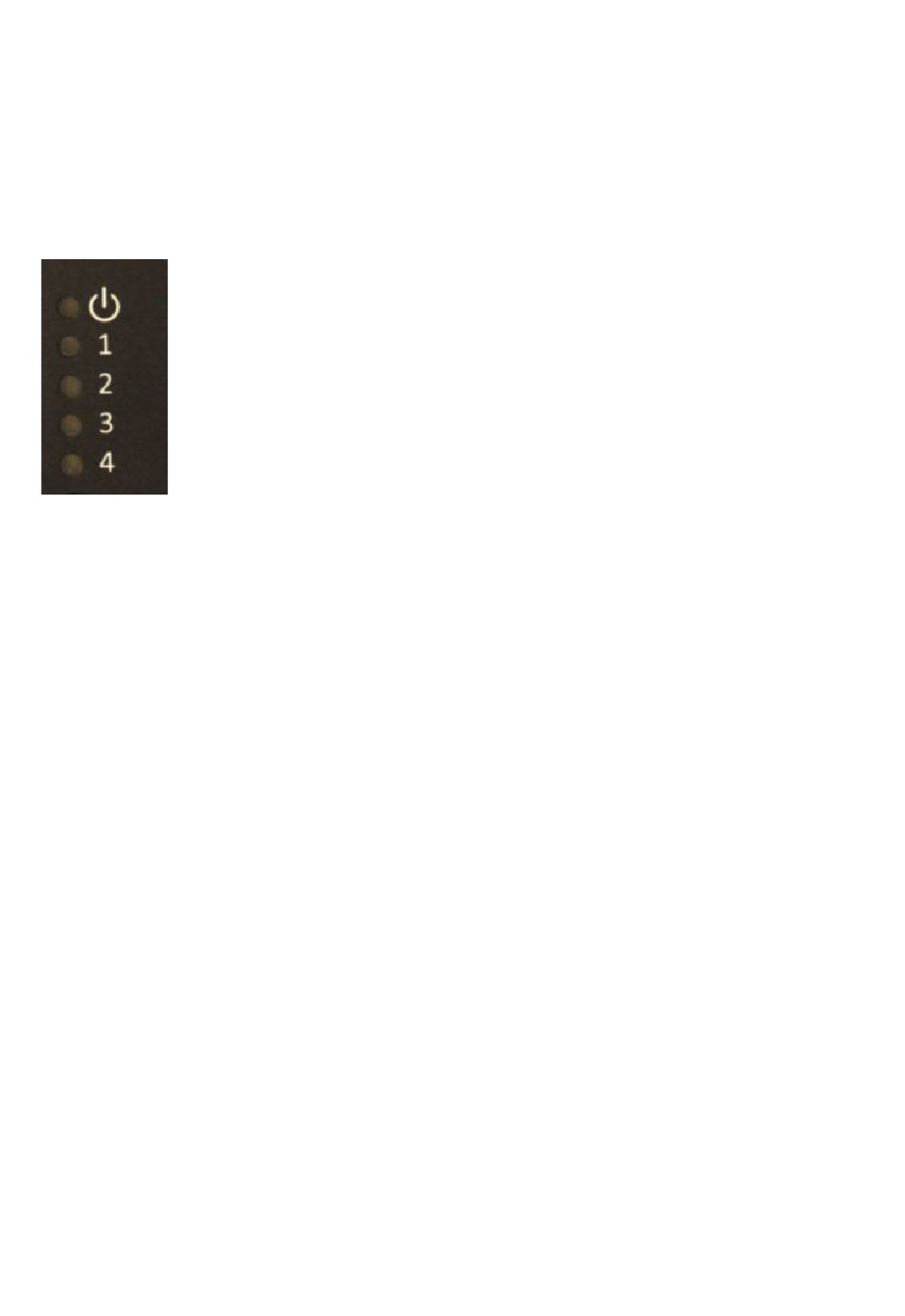

The front panel includes 5 LED's:
Additional features of the front panel depend on the specific FACE Module used and are documented
separately.
Power, a dual function Green/Yellow led.
Green after the MicroSVR was turned on and initial CPU/Chipset
initialization was successfully passed.
Yellow when any hard disk is accessed (internal or external – eSATA).
Drive Activity 1..4 . The Drive Activity LED's work according to SFF8489 IBPI (
International Blinking Pattern Interpretation).
At power-up, the LED controller will lit all Drive Activity LED's as part of
it's wake-up self test.
