Booting Windows 7

Upon first power-up, you will be guided through the Windows Welcome procedure which is self-
explanatory. The Windows 7 serial number is printed on the Windows 7 label on the bottom of your fit-PC3.

Maintenance

fit-PC3 requires no maintenance. You should not take the fit-PC3 apart other than opening the service door.
Taking fit-PC3 apart will void its warranty.
The following operations can be conducted by the user:

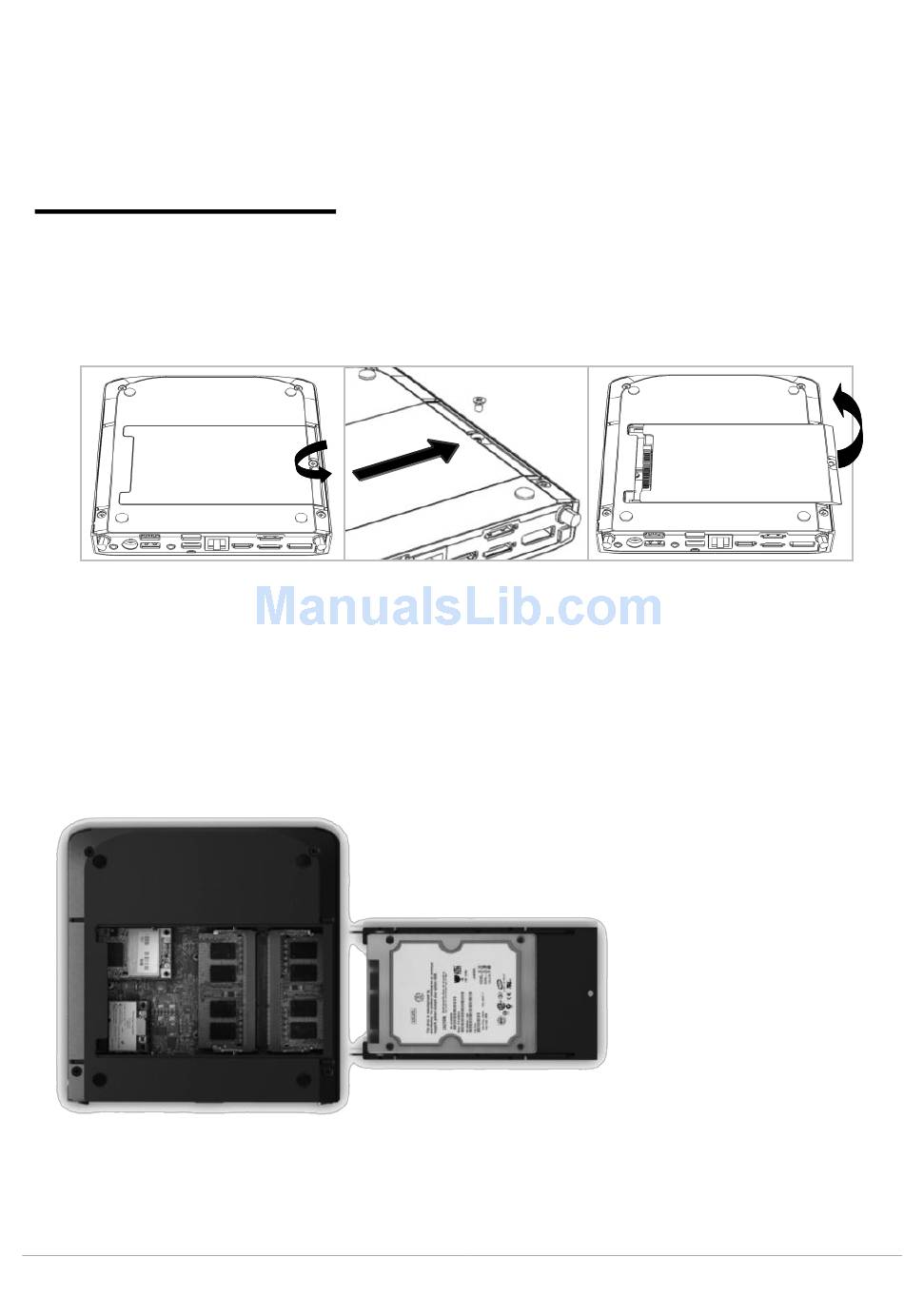

Opening service door

1. Unscrew marked Philips screw at the bottom to release service-door.
2. Slide out service-door until it stops – about 10 mm.
3. Service-door is now detached. Lift edge of service-door to completely remove.
Re-assemble in reverse order. Hard disk connects by sliding-in the service-door.

Service bay

The service-bay provides easy access to hard-disk, RAM, and mini-PCIe sockets incl. WLAN module.
Hard disk is 2.5" 9.5mm SATA. It is screwed to service door by 4 screws, 2 on each side. It is recommended
to use 5400 RPM hard disk or SSD. 7200 RPM or higher is not recommended due to their high power
consumption and risk of overheating.
RAM – use DDR3-1333 SO-DIMM modules. If populating one socket choose the socket at the right.
