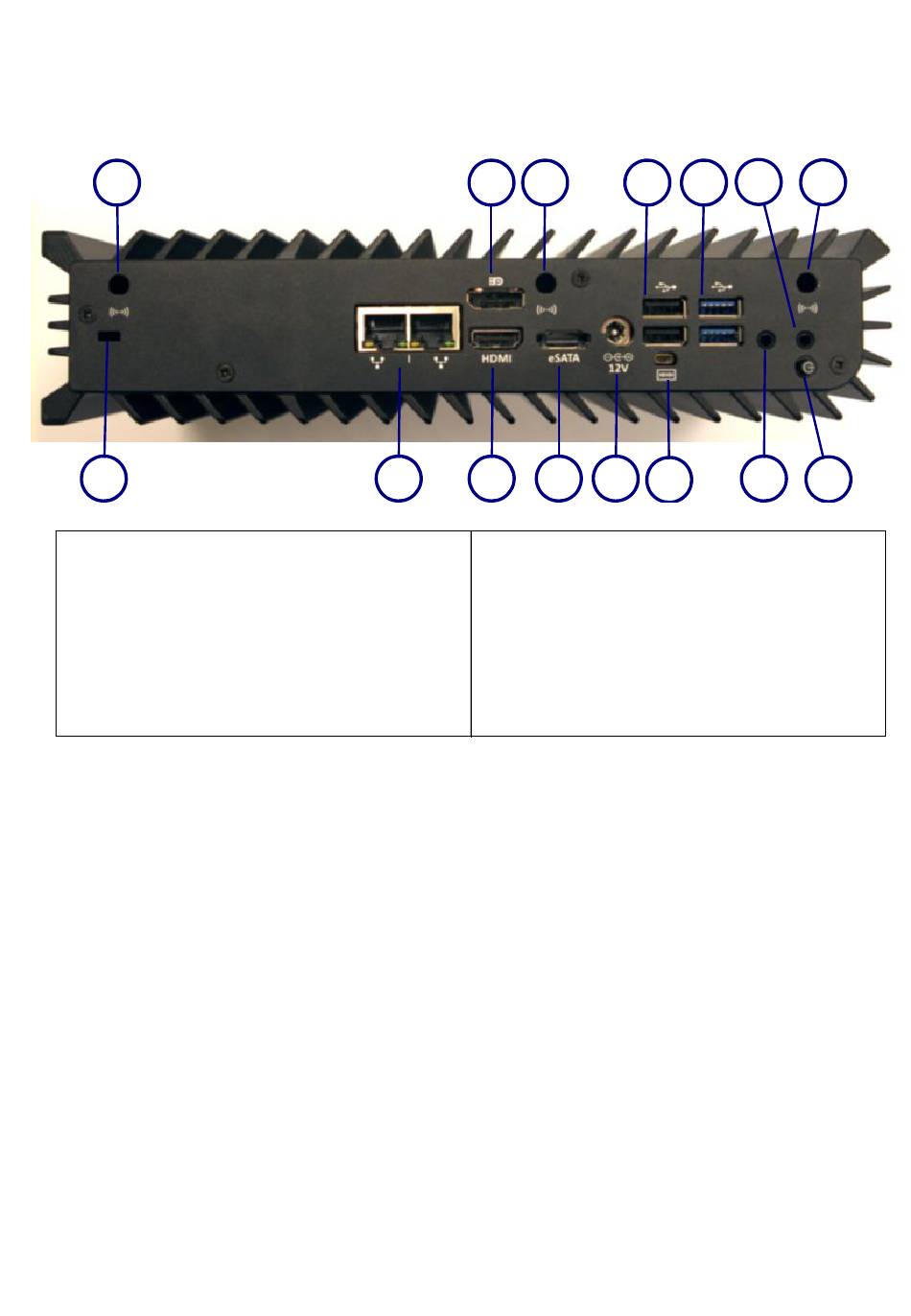

Back panel
1
15
1.
WiFi Antenna connector (RP-SMA)
2.
Display Port (DP)
3.
WiFi Antenna connector (RP-SMA)
4.
Dual port USB 2.0 (1A per port).
5.
Dual port USB 3.0 (1A per port).
6.
Audio / SPDIF 7.1 in
7.
WiFi Antenna connector (RP-SMA)
8.
Power button. On/Off and
standby/resume.
2
3
14
13
12
9.
10. Mini Serial (RS-232)
11. 12VDC Power
12. eSATA port (SATA 2 device)
13. HDMI
14. Dual GbE LAN
15. Kensington-lock hole
5
4
5
11
10
Audio / SPDIF 7.1 Out
6
7
9
8
