Summary of Contents for CompuLab fit-PC3

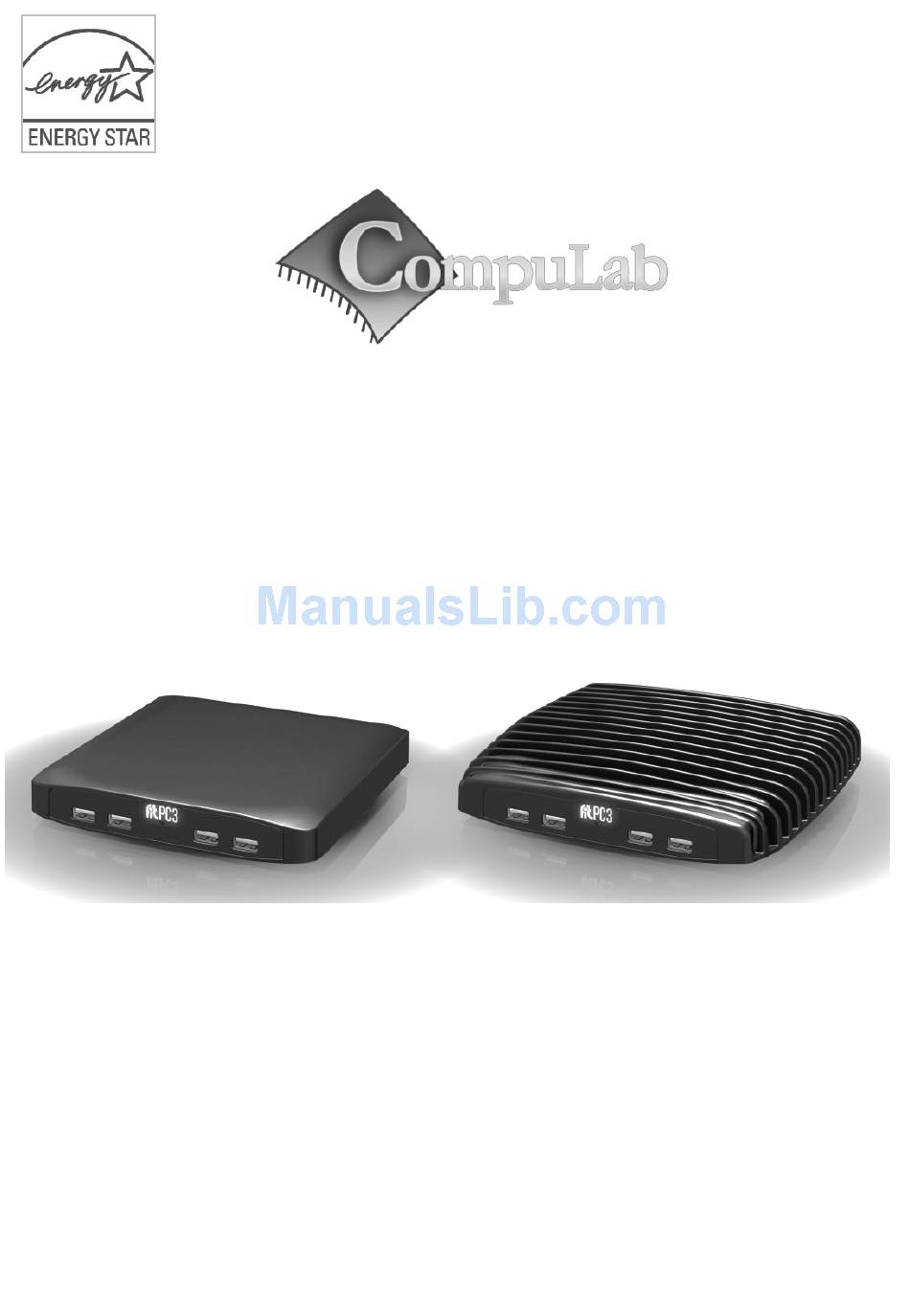

- Page 1 Owner’s Manual...
- Page 2 Owner’s Manual 12-Mar-2012 Introduction Package contents Hardware specifications fit-PC3 features Quick start guide Connecting fit-PC3 Booting Linux Booting Windows 7 Maintenance Opening service door Service bay BIOS Setup Utility Warranty and RMA Warranty Tips for saving power General In Operating System For more information and to obtain the latest revision of this document, please visit www.fit-pc.com...
-
Page 3: Package Contents
12V DC power supply with attachable NA and EU prong-blades. HDMI to DVI adapter 3.5mm to RCA cable for S/PDIF 2 WiFi antennas (in some models) To use fit-PC3, you will need: A display with DVI, HDMI or DisplayPort input + DVI, HDMI or DisplayPort cable ... -
Page 4: Front Panel
Standard HDMI with audio support (HDMI 1.4 in fit-PC3 Pro models, HDMI 1.3 in other models). DisplayPort To connect fit-PC3 to a DVI display, use the provided HDMI to DVI-D adapter. Use a DVI cable to connect the adapter to the display. -
Page 5: Serial Port
Ports are located on the back panel. Quick start guide Connecting fit-PC3 Turn off the display and connect it to the fit-PC3 HDMI connector (use the HDMI to DVI adapter if needed). Connect the USB keyboard and mouse to USB 2 connectors. - Page 6 Booting Windows 7 Upon first power-up, you will be guided through the Windows Welcome procedure which is self- explanatory. The Windows 7 serial number is printed on the Windows 7 label on the bottom of your fit-PC3. Maintenance fit-PC3 requires no maintenance. You should not take the fit-PC3 apart other than opening the service door.
- Page 7 This warranty is void if the product has been altered or damaged by accident, misuse or abuse. Keep the original package for shipping in case of hardware failure. In case of HW failure of a fit-PC3 under warranty, please contact the seller of that fit- PC3. Please provide the following required information: ...
- Page 8 -Increase the separation between the equipment and party responsible for compliance receiver. (CompuLab Ltd.) could void the user’s -Connect the equipment into an outlet on a circuit authority to operate the equipment. different from that to which the receiver is connected.
