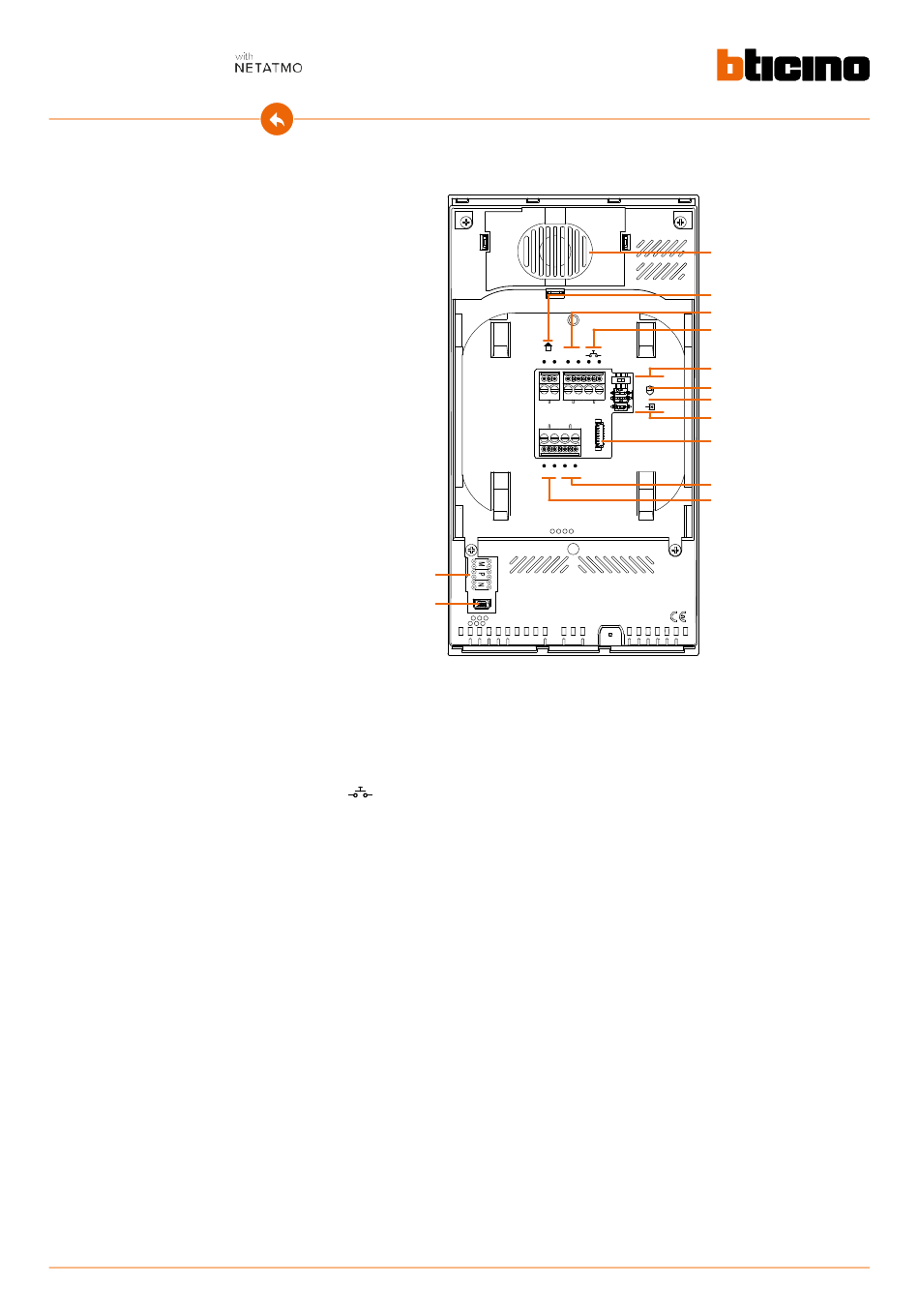

Rear view

13
12
1. Speaker.
2. Clamps for connection to the MH BUS
(MyHOME) - (future application).
3. Additional ringtone connection clamps (5M – 1).
The connection on the clamps of the additional ringtones must be point - point.
4. Clamps for the connection of an external call to the floor pushbutton.
BUS-MH 5M 1
5. Micro-switch to enable the additional power supply *.
(OFF) 2-1
6. Micro-switch for "Safe door lock" function *.
(ON)
(OFF) MASTER (ON)
7. Micro-switch for "Master" function *.
(OFF)
8. Line termination micro-switch *.
9. LAN connector. For connection using RJ45 cable, use accessory 344844 (not supplied).
10. Clamps for connection to the AV BUS (audio video).
LAN
11. Additional power supply clamps (2– 1).
2 1 BUS-AV
12. Service USB interface.
13. Configurator socket.
* ON = enabled.
OFF = disabled.
To activate the function with device not powered.
