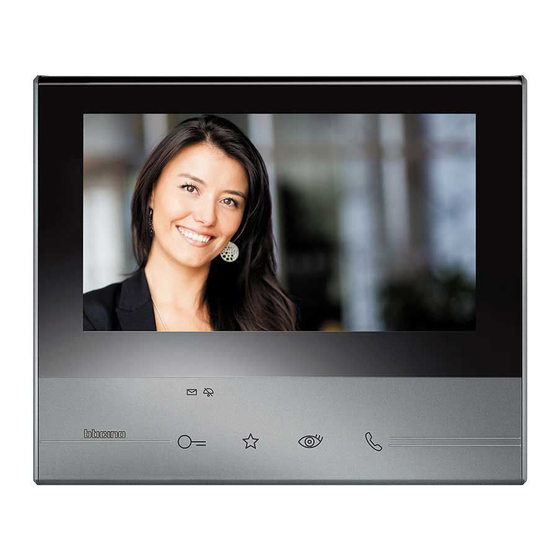

Bticino CLASSE 300V13E Installation Manual

Hide thumbs Also See for CLASSE 300V13E:
Table of Contents

Advertisement

Quick Links

Download this manual
Classe 300
Installation Manual
www.bticino.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLASSE 300V13E and is the answer not in the manual?

Questions and answers

Related Manuals for Bticino CLASSE 300V13E

Summary of Contents for Bticino CLASSE 300V13E

  • Page 1 Classe 300 Installation Manual www.bticino.com...
  • Page 2 Classe 300 Installation Manual...

  • Page 3: Table Of Contents

    Classe 300 Installation Manual Contents General information Warnings and recommendations Front view Rear view Dimensional data and installation heights Wall-mounted installation Installation on the table-top base Physical configuration Configurators Functions of the M units configurator (Favorites key) Functions of the M tenths configurator (Quick actions) First switching on Settings General settings...

  • Page 4: General Information

    The guarantee automatically expires for negligence, misuse, tampering by unauthorized personnel. The Classe 300 Video internal unit must only be installed indoors; it must not be exposed to water drops or splashes; it must be used only on BTicino 2 wire digital systems. Front view 10:36...
  • Page 5 Classe 300 Installation Manual 12. Favorites key: the red LED turns on when the key is pressed (Basic configuration = STAIRCASE LIGHT. For a different configuration refer to the physical configuration table) 13. Door lock release key: the red LED turns on when the key is pressed 14.

  • Page 6: Rear View

    Classe 300 Installation Manual Rear view 1. Configurator socket 2. Configurator J1: remove for additional power supply 3. J2 configurator: Master/Slave, remove for Slave 4. Line termination ON/OFF micro-switch 5. Mini USB socket for device Firmware update using the MyHomeSuite software Note: the device must be powered (1-2 or BUS) 6.

  • Page 7: Dimensional Data And Installation Heights

    Classe 300 Installation Manual Dimensional data and installation heights 194 mm 25 mm 10:36 Tuesday, 22 April Quick Actions Private camera Answering machine Cameras Memo External intercom Pager Intercom Activations Settings Lock Height recommended, unless otherwise required by the law...

  • Page 8: Wall-Mounted Installation

    Classe 300 Installation Manual Wall-mounted installation...

  • Page 9: Installation On The Table-Top Base

    Classe 300 Installation Manual Installation on the table-top base Warning: position the microswitch on ON to terminate the line. 8-way socket: 336982/83/84 Livinglight 349414/15/18 Axolute...

  • Page 10: Physical Configuration

    Classe 300 Installation Manual Physical configuration The device must be configured both physically or in advanced mode, the main differences are shown in the following table: Warning: the connection of the configurators to the N - P - M sockets precludes the possibility of using the advanced configuration.

  • Page 11: Configurators

    Classe 300 Installation Manual Configurators J1 J2 Configurator functions 1. J1 = Remove if the additional power supply is present (clamp 1 – 2) 2. J2 = Master/Slave (remove for slave) 3. NN = Device address 4. PP = Address of the EP of which you can open the Door Lock with IU idle, and to which you can send the auto-on command 5.

  • Page 12: Functions Of The M Units Configurator (Favorites Key)

    Classe 300 Installation Manual Functions of the M units configurator (Favorites key) J1 J2 MOD=9 MOD=9 MOD=9 MOD=9 MOD=9 MOD=9 Staircase Light Control MM = MOD=9 MOD=9 MOD=9 Direct control of P+1 Door lock MM = 346210 346210 346210 P+1 P+1 P+1 P+1 MOD=5 P+1 P+1...

  • Page 13: Functions Of The M Tenths Configurator (Quick Actions)

    Classe 300 Installation Manual Functions of the M tenths configurator (Quick actions) The MM - (tenths) physical configurator decides which are the 4 QUICK ACTIONS icons that appear on the HOME PAGE, and can be activated by touching the display. J1 J2 –+ –+...
  • Page 14 Classe 300 Installation Manual Myself Pager Myself Poste externe 1 Camera 1 Intercom 1 Lock 1 Lock 1 Camera 1 Lock 2 Lock 2 Lock 1 346210 346210 MOD=9 MOD=9 346210 346210 346210 MOD=9 P+1 P+1 P+1 P+1 MOD=5 MOD=5 346210 346210 346210...
  • Page 15 Classe 300 Installation Manual Intercom 2 Intercom 2 Intercom 2 Intercom 3 Intercom 3 Intercom 3 Lock 1 Lock 1 Intercom 4 Lock 2 Lock 2 Intercom 5 346210 346210 P+1 P+1 P+1 P+1 MOD=5 MOD=5 346210 346210 P+2 P+2 P+2 P+2 MOD=5 MOD=5...
  • Page 16 Classe 300 Installation Manual Intercom 2 Camera 1 Lock 1 Intercom 3 Intercom 1 Lock 2 Intercom 4 Lock 1 Lock 3 Intercom 5 Lock 2 Lock 4 346210 346210 MOD=9 P+1 P+1 MOD=5 346210 P+2 P+2 MOD=5 346210 346210 P+1 P+1 P+3 P+3 MOD=5...

  • Page 17: First Switching On

    Classe 300 Installation Manual First switching on After the device has been configured physically and connected, it is mandatory to perform the customisations using the menu. Wait for the LEDS to stop flashing and then touch the display to switch it on. Languages Next English...
  • Page 18 Classe 300 Installation Manual Now it is possible to display information concerning the configuration of the device Back Info Master/Slave Master Power supply Disabled Firmware ver. 1.0.12 Professional studio Enabled Answering machine Enabled Display: A. The configuration parameters. B. If the device has been set as apartment master or slave. C.

  • Page 19: Settings

    Classe 300 Installation Manual Settings Time and date/Language/Information/Key tone Generals Volume/Intercom ringtone/Entrance Panel Ringtone/Other ringtones... Ringtones Display Clean monitor/Background/Calibration Recording Mode/Welcome Message/Record Message... Answering machine Quick Actions Add quick action Activation of Answering machine/ Professional Studio (Office) Configuration General settings This section contains the general settings and device information.
  • Page 20 Classe 300 Installation Manual Time and date Set the current time and date. Back Time and date 2013 1. Touch the icon for the parameter to set; the icons to increase or decrease the value appear. 2. Touch to set it. Language Set the device language.
  • Page 21 Classe 300 Installation Manual Information It displays information concerning the configuration of the device. Info Back Master/Slave Master Power supply Disabled Firmware ver. 1.0.12 Professional studio Enabled Answering machine Enabled Display: A. The configuration parameters. B. If the device has been set as apartment master or slave. C.

  • Page 22: Ringtones

    Classe 300 Installation Manual Ringtones This section can be used to associate specific ringtones to certain events, and to adjust their volume. Back Settings Volume Generals Ringtones Main entrance panel Display Answering machine Internal intercom Quick Actions Configuration More ringtones... A.

  • Page 23: Display

    Classe 300 Installation Manual Display This section is used to calibrate, clean the monitor, and to change the background image. Settings Back Generals Ringtones Clean monitor Display Background Answering machine Quick Actions Calibration Configuration Clean monitor It’s used to disable the display and the keys for cleaning purposes, without the risk of sending unwanted commands.
  • Page 24 Classe 300 Installation Manual Background It gives the possibility to change the background image of the device. Back Background home 1. Scroll through the available images to get a background preview. 2. Touch to go back and save the settings. Calibration It can be used to adjust the touch pressure for the display.

  • Page 25: Answering Machine (Only For Item 344622)

    Classe 300 Installation Manual Answering machine (only for item 344622) This page can be used to set the quality of the videos recorded by the answering machine, or to record, enable, disable the welcome message. Back Settings Generals Video recording resolution Ringtones High Display...
  • Page 26 Classe 300 Installation Manual Record message Back Press to record 4. Touch to start recording, and then record the message. Back Record message 0:20 Press to stop recording 5. Touch to end the recording. Record message Cancel Save 0:20 Press to listen recording 6.

  • Page 27: Quick Actions

    Classe 300 Installation Manual Quick actions In this section it is possible to decide which actions to display in home page, selecting them among the ones available based on the configuration of socket M, tenths (See “Functions of the M tenths configurator (Quick Actions)”).
  • Page 28 Classe 300 Installation Manual Back Add quick action Cameras Lock 2 Intercom Pager Activations 4. Touch to return to the quick action screen and save the settings. Back Settings Generals Pager Ringtones Camera 1 Display Answering machine Lock 1 Quick Actions Lock 2 Configuration 5.

  • Page 29: Configuration

    Classe 300 Installation Manual Settings Back Generals Pager Ringtones Camera 1 Display Answering machine Lock 1 Quick Actions Lock 2A Configuration Configuration Settings Back Generals Pager Ringtones Camera 1 Display Answering machine Lock 1 Quick Actions Lock 2A Configuration 1. Touch to enter the configuration.
  • Page 30 Classe 300 Installation Manual This password protected section can be used to make the answering machine and office functions available in the home page, therefore giving the user the possibility of enabling or disabling them. Configuration Back Confirm Insert installer password ?123 1.

  • Page 31: Advanced Configuration

    Classe 300 Installation Manual Advanced Configuration The advanced configuration gives the possibility of configuring all the basic settings, the quick actions and the camera, intercom, and activation functions, without being bound to a predefined set. First switching on After connecting the device, perform the customisations. Wait for the LEDS to stop flashing and then touch the display to switch it on.
  • Page 32 Classe 300 Installation Manual Now it is possible to display some information concerning the configuration of the device Info Back Master/Slave Master Power supply Disabled Firmware ver. 1.0.12 Professional studio Enabled Answering machine Enabled Configuration Display: A. The configuration parameters. B.
  • Page 33 Classe 300 Installation Manual 10:36 Tuesday, 22 April Azioni rapide Private camera External intercom Pager Memo Settings Answering machine Lock 11. Touch to proceed with the device customisation in the Settings section.

  • Page 34: Configuration

    Classe 300 Installation Manual Settings Time and date/Language/Information/Key tone Generals Volume/Intercom ringtone/Entrance Panel Ringtone/Other ringtones... Ringtones Display Clean monitor/Background/Calibration Recording Mode/Welcome Message/Record Message... Answering machine For the above mentioned settings, refer to the Settings section of the physical configuration. Configuration General/Intercom/Camera/Activation/Change password Quick Actions Add quick action...

  • Page 35: General Settings

    Classe 300 Installation Manual General settings Back Generals Intercom Camera Actuation Change password Answering machine Professional studio 1. Enter the N configurator values to set the address device and enter the P configurator values to set the address of the EP of which you can open the Door Lock with IU idle, and to which you can send the auto-on command.
  • Page 36 Classe 300 Installation Manual Back Add intercom Generals Intercom Camera Actuation Change password 2. Touch to add an intercom. Add intercom Back Save Type Internal intercom Description Internal intercom 0 Address 3. Select the type of intercom among: Internal: it provides communication among rooms of the same apartment (or among devices of different apartments but only if there are no apartment interfaces) External: it provides communication among rooms of different apartments (if there are apartment interfaces)

  • Page 37: Camera

    Classe 300 Installation Manual Back Add intercom Generals Intercom Internal intercom 0 Camera External intercom 0 Actuation Pager 0 Change password General intercom 0 A. Change the name of the intercom. B. Delete intercom. Camera This section can be used to configure the cameras that will give users the possibility of displaying the images from their own apartments, the apartment block area, or a CCTV surveillance system.
  • Page 38 Classe 300 Installation Manual Back Add camera Generals Intercom Camera Actuation Change password 2. Touch to add a camera/entrance panel. Back Add camera Save Type Private camera Description Private camera 0 Address 3. Select the type of camera/entrance panel among: Private: it gives the possibility of displaying the images from a camera/entrance panel installed in the own apartment (if an apartment interface has been installed) Public: it gives the possibility of displaying the images from a camera/entrance panel installed...

  • Page 39: Activation

    Classe 300 Installation Manual 4. Change name. 5. Enter the address of the camera/entrance panel 6. Touch to save. Back Add camera Generals Intercom Private camera 0 Camera Public camera 0 Actuation TVCC 0 Change password A. Change the name of the camera/entrance panel. B.
  • Page 40 Classe 300 Installation Manual Back Add actuation Generals Intercom Canera Actuation Change password 2. Touch to add an activation. Back Add actuation Save Type Lock Description Lock 0 Address 3. Select the type of activation among: Lock: it is possible to activate a door lock actuator Generic actuator: it is possible to activate a generic actuator 4.

  • Page 41: Change Password

    Classe 300 Installation Manual Back Add actuation Generals Intercom Lock 0 Canera Lock 1 Actuation Generic actuator Change password A. Change the name of the activation. B. Delete activation. Change password In this section it is possible to modify the password used to enter the configuration section. Back Generals Intercom...

  • Page 42: Quick Actions

    Classe 300 Installation Manual Cambia password Cancel Confirm New password Repeat password ?123 1. Enter the new password using the keypad. 2. Repeat the new password. 3. Touch to save it. Once the system functions have been configured, some can me made available to the users, giving them the possibility of selecting the 4 Quick Actions to display in their home page.
  • Page 43 Classe 300 Installation Manual Back Add quick action Cameras Private camera 0 Public camera Intercom Activations TVCC A. Available Functions. B. Function already used as quick action. 2. Touch to select the function to be used as quick action. Settings Back Generals Private camera 0...

  • Page 44: Factory Configuration

    Classe 300 Installation Manual 10:36 Tuesday, 22 April Quick Actions Private camera Answering machine Cameras Public camera Memo Internal intercom Intercom Activations Settings External intercom Now the quick actions appear in the home page. Factory configuration – Beep: OFF – Professional Studio (Office): OFF –...
  • Page 45 Classe 300 Installation Manual...
  • Page 46 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
