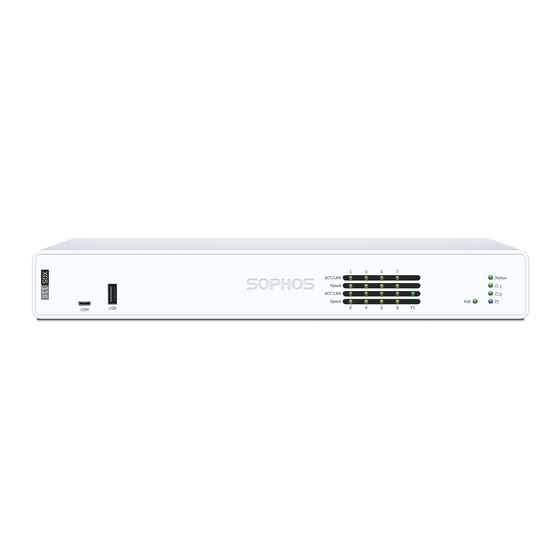

Sophos XGS 116 Instructions

Wallmount Instructions
There are various options availbale allowing you to hang your XGS appliance on the wall or mount it to a DIN Rail or into a
rack. The following sections provide detailed instructions for the Wall mount option.
Wall mount
You can either hang the unit on the wall by using the wall
mount keyholes on the rear of the unit or by using the
rackmount kit which is available as an optional accessory.
The following procedure explains how to use the keyholes.
XGS 116(w)/126(w)/136(w)
Mounting instructions
Please note: To avoid potential injury the appliance should
not be mounted higher than 2m above the ground.

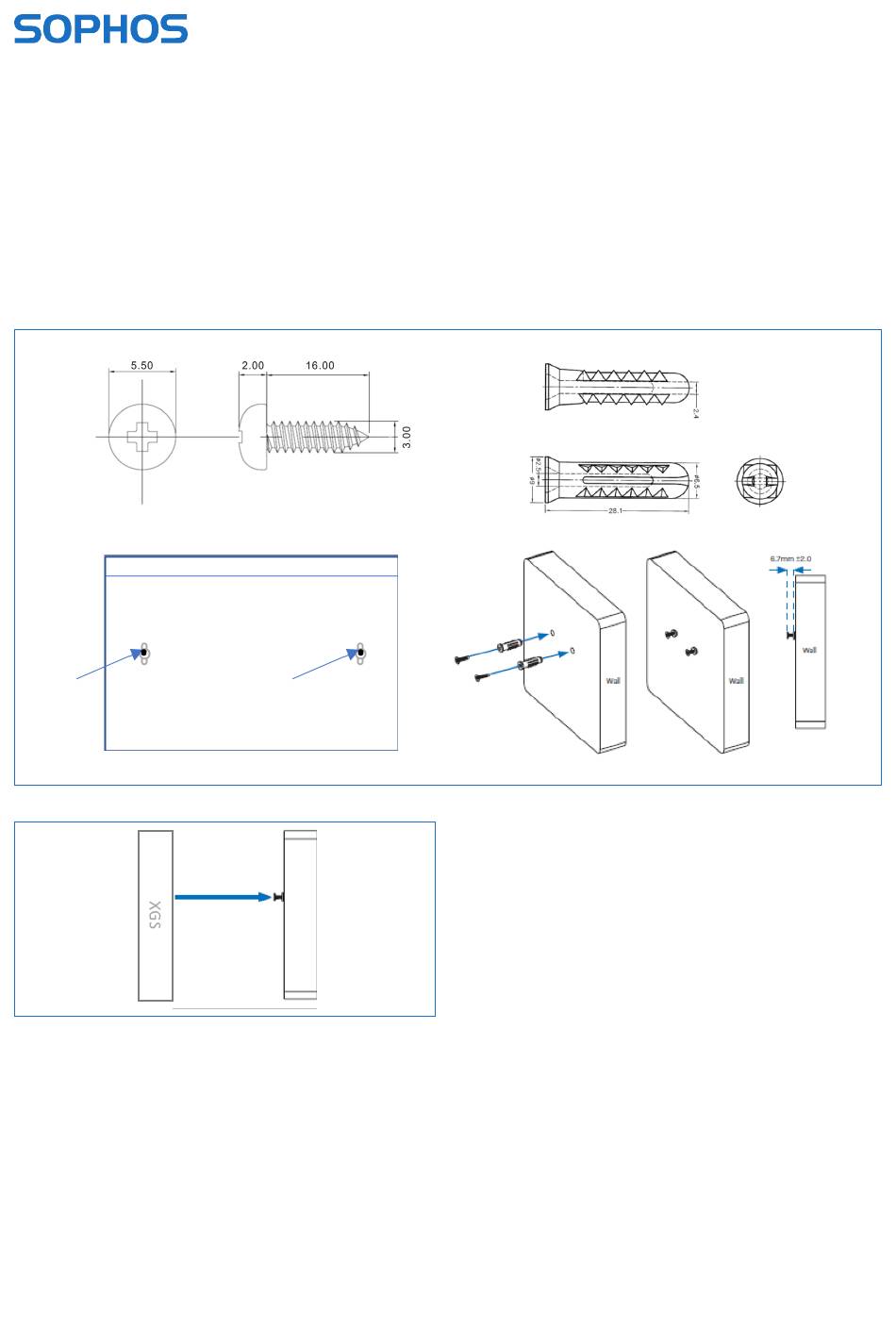

For wall mounting we recommend using wall plugs and
screws with dimensions shown below:
1. Use the wall mount template (next page) to mark
the screw mounting positions on the wall.
2. Drill 2 wall anchors into the wall at the marked
positions and screw 2 screws into them.
Make sure they stand out 4~8mm.
3. Hang the XGS unit on the wall by aligning
the key holes with the mounted screws.
