Sophos XGS 88 Mounting Instructions

Rackmount Kit Mounting Instructions
Please note
This rackmount kit can only be used with XGS 88(w)/108(w) models.

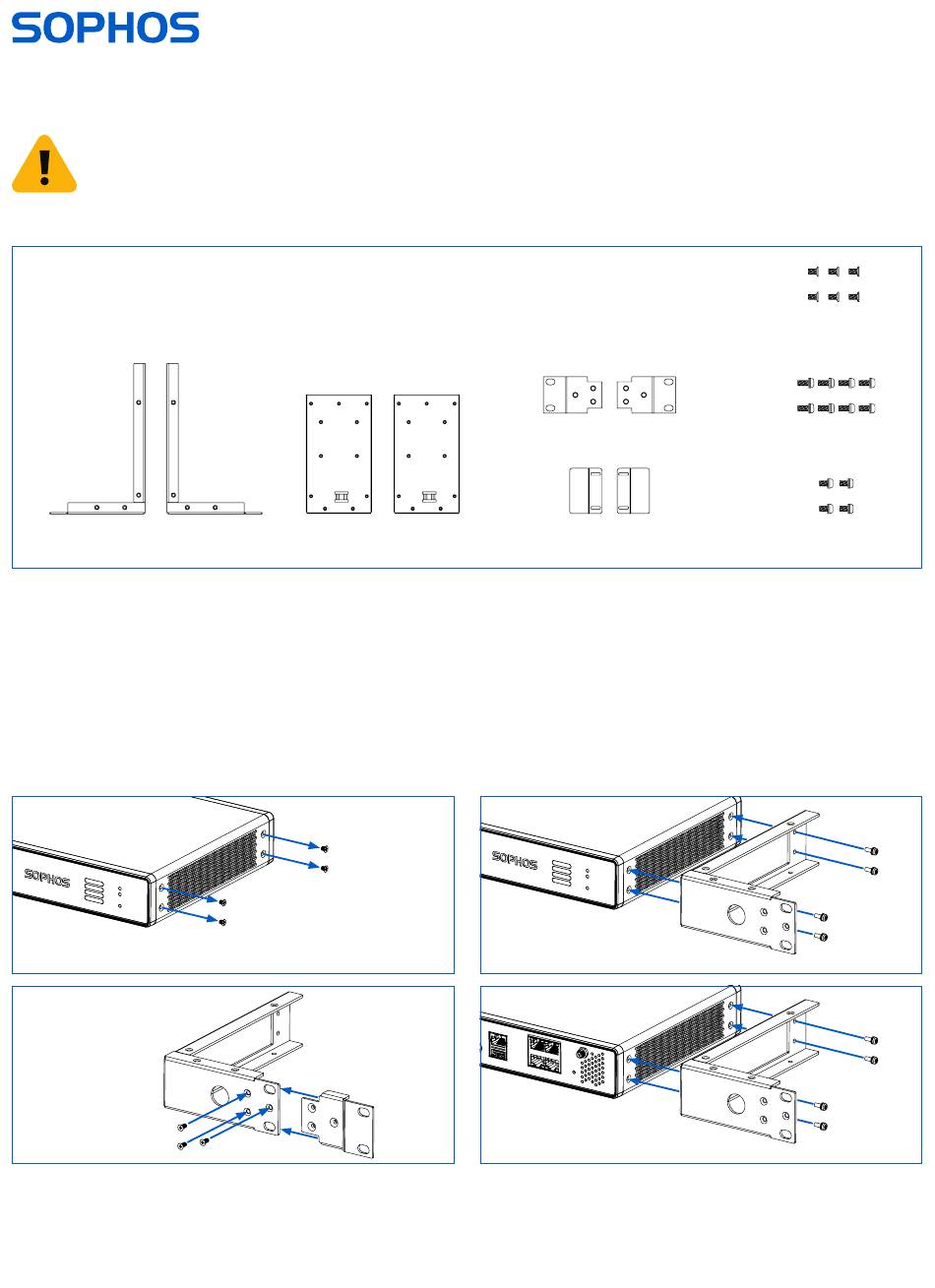

What is included in the box
2 mounting brackets (left, right)
Please note: In addition to the rack mounting kit contents, you will need a long-handled Phillips-head screwdriver.
1. Remove existing screws from the chassis
Remove the four screws from each side of the chassis
and keep them in a safe place.
2. (Applicable for XGS 88(w) only)
Fix the extension bracket on the main bracket using the
flat headed scews with white paint.
LEDs
1.
2. Applicable for XGS 88(w) only
2 power adapter trays
3. Attach the mounting brackets to the chassis
3a.
3b.
XGS 88(w)/108(w)
2 extension brackets
2 adapter brackets
Please note: You can mount the unit into a rack with
either the front (3a) or with the back (3b) facing forwards
(see below). Secure one mounting bracket to each side of
the appliance using four of the longer round head screws
supplied.
LEDs
Front-facing installation
Ports
Back-facing installation
6 flat headed
F3x6 Screws
with white paint
8 round headed
M3x8 Screws
4 round headed
M3x6 Screws
