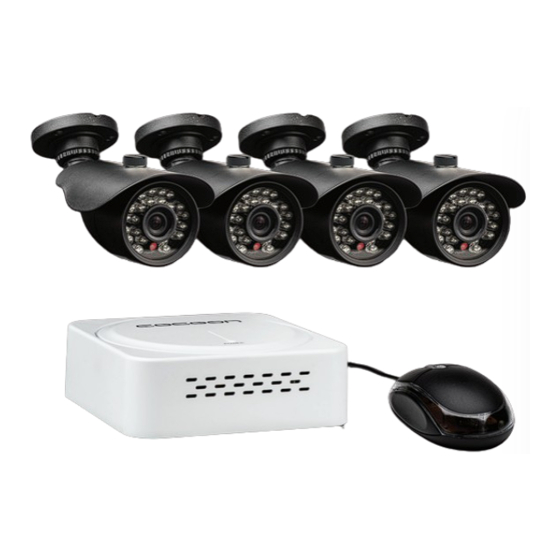

Cocoon HE150242 Setup Manual

HOME SECURITY SYSTEM
Follow these steps to connect your DVR to the internet and view on your smartphone.
Note: a broadband internet connection is required.
A tutorial video of these steps can be found on the Winplus Website www.winplus.com.au

Connect your DVR to the Internet

1.
a.
Connect all cameras to your DVR as per instructions in user
manual
b.
Connect your DVR to your TV or Monitor using an HDMI or
VGA Cable
c.
Connect your DVR to your Modem Router using the
Ethernet Cable
d. Turn on your DVR

Accessing Main Menu

2.
a.
Right click on the Screen to access the Main Menu.
NOTE: The default Login is 'admin' and the default password is left blank. You can change the default
settings under Main Menu - Set Up - Users
b.
In the Main Menu, go to Set Up and select Network
c.
Ensure that 'Obtain an IP Address Automatically' is ticked.
d.
Click on the 'Test' button on the bottom of the screen to check if your DVR is connected to the internet.
e.
A message 'Please Wait' and 'OK' will appear on the screen indicating successful connection.
Install and Register the
3.
Cocoon DVR App
a. Download the Cocoon DVR APP from the Apple or Google Play Store
and install on your smartphone
b.
Enter a User ID and Password to register in the APP and re-enter the
password providing a valid email address.
NOTE: For User ID and Password, use any letters and numbers to create a
unique 6-digit (or above) combination
NOTE: The User ID and Password for the Cocoon DVR App is different to the
Login and Password for your DVR
c.
Once you are registered, log into the Cocoon DVR APP
4 CAMERA
WITH DVR
Network Setup Guide
HE150242
12/2017
