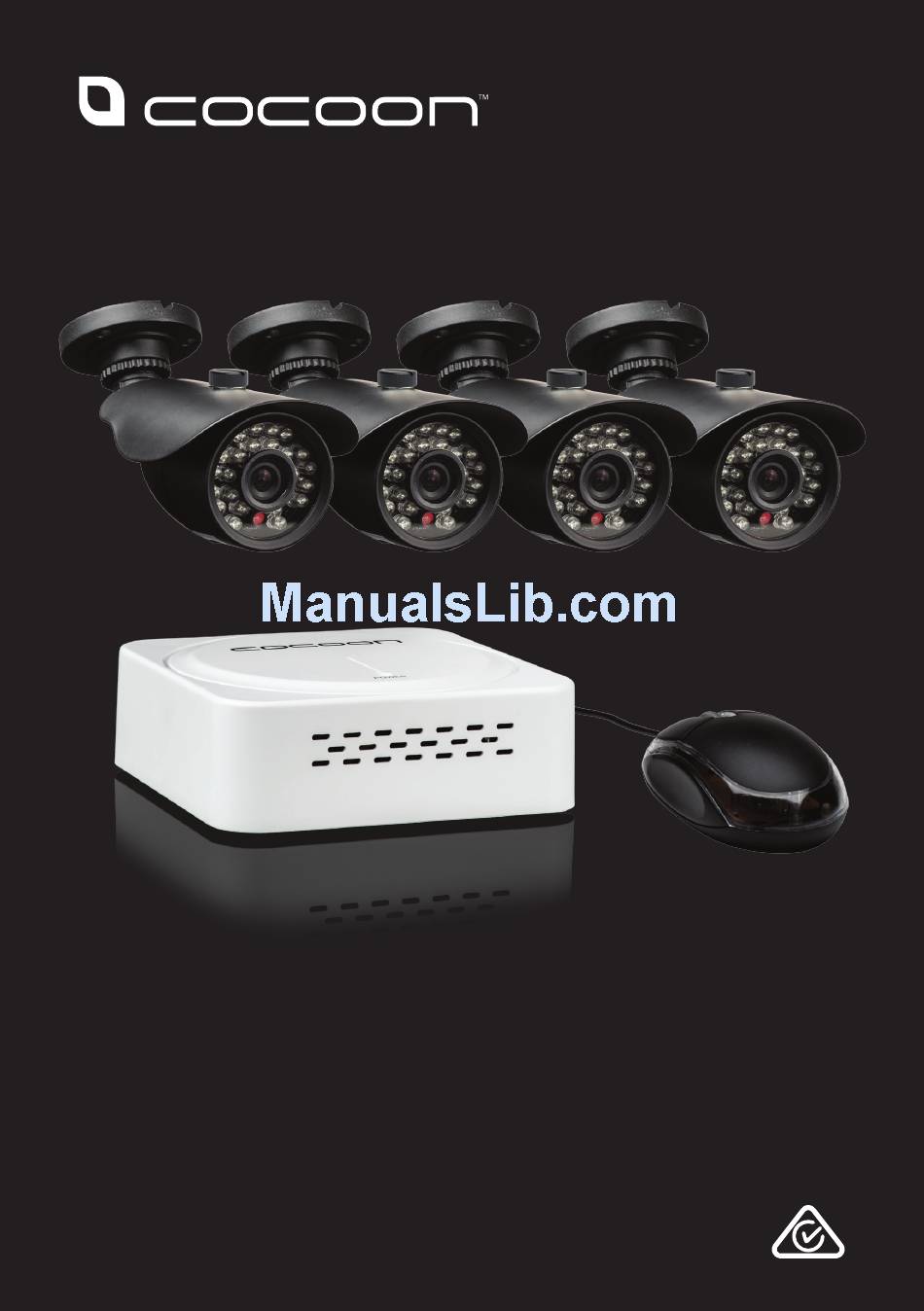

- Page 1 4 CAMERA HOME SECURITY SYSTEM WITH DVR Model Number: HE150242 INSTRUCTION MANUAL...
- Page 3 Important Getting the most out of your 4 Camera Home Security System with DVR: Read the manual It will help you get set up with ease Visit www.winplus.com.au We’ve got additional support videos and guides Call After Sales Support - 1300 663 907 Or email customercare@winplus.com.au - we’re always happy to help Warranty Note If you experience any issues with this product, or it’s...
-
Page 4: Warranty Details
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. AFTER SALES SUPPORT 1300 663 907 customercare@winplus.com.au YEAR WARRANTY MODEL: HE150242 PRODUCT CODE: 51857 12/2015... -
Page 5: Safety Instructions
DVR unit. Do not open DVR Unit Case There are no user serviceable parts inside the DVR unit. Modifying any parts may void your warranty. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 6: Table Of Contents
3.8 Setting the Date and Time DVR Menu 4.1 Main Menu 4.2 Setup 4.2.1 Basic 4.2.2 Live Live: 4.2.3 Record 4.2.4 Schedule 4.2.5 Alarm 4.2.6 Network 4.2.7 Users 4.2.8 PTZ 4.2.9 Advanced After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... - Page 7 7.1 Internet Explorer – ActiveX Settings 7.2 Additional Windows Settings 7.3 Logging into the DVR unit over Internet Explorer or Chrome FAQs Glossary of Terms Repair and Refurbished Goods or Parts Notice After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au...
-
Page 8: Parts List
Max 24m Scan Frequency: 50Hz Minimum Illumination: 0 Lux (IR On) Backlight Compensation: Auto Electronic Shutter: 1/50~10,000 AUTO Gain Control: Auto Lens: F=3.6 ~ 60 degrees Operating Temperature: -10 – 50C After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 9: Dvr Specifications
Multiplex Operation: Live display, Record, Playback, Backup and Network USB: 2 x USB (for mouse and backup) PTZ Control: Built-in RS485 Mobile Surveillance: Supports iOS & Android Power Supply: DC 12V/2A After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 10: Product Overview
3. USB Ports x2 – For mouse and flash drive backup / firmware updates 4. RS485 – For use with PTZ cameras (Cable and PTZ camera not included) 5. 5V Socket – Connect 5V Power Adaptor After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 11: Installation
NOTE: You must switch your TV or monitor to the correct INPUT once the DVR unit has been powered on FOR EXAMPLE: HDMI1 NOTE: Connecting the DVR to your laptop will not work unless it has HDMI input After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... - Page 12 Test all connections are working before permanently installing DVR unit and cameras. Position the DVR unit in a central location where all 4 cameras will reach. If using the optional networking features, make sure the modem is near the DVR unit After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au...
-
Page 13: Using The Dvr
DVR unit, it will proceed through the boot sequence 3.3 Setup Wizard On the start-up screen, the Cocoon DVR System will run a setup wizard to assist in setting up some key features of the unit. This includes: • Time & Date •... -
Page 14: Logging In And Setting 'Admin' Password
NOTE: This manual assumes the user has connected the mouse to control the DVR unit. Any standard wired USB mouse will work with the DVR unit After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 15: Quick Popup Menu
IMPORTANT NOTE: Always click ‘Apply’ after making any changes in the menu. If you do not click ‘Apply’ , your changes will not be saved. Changing some settings will also require a system reboot. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 16: Dvr Menu
In the Main Menu, you can manage all DVR unit settings such as Display, Recording, Networking, etc. Main Menu Sub Menu Setup Basic Live Record Schedule Alarm Network Users Advanced Search Backup Information System Event Network Online Users Disk Management Logoff Shutdown After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 17: Setup
DST: Change the daylight saving’s time settings by selecting enable, then clicking the settings boxes and following the on screen prompts. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 18: Live
Exit - If you want to cancel after making any changes, click ‘Exit’ to exit the menu without changes IMPORTANT NOTE: Always click ‘Apply’ after making any changes within the menu system. If you do not click ‘Apply’ , your changes will not be saved After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 19: Record
If unticked: When the hard drive is full, a warning message ‘The remaining space is insufficient’ will display and the DVR will stop recording Snap: Adjust the snapshot settings used when pressing the ‘Snap’ button on the camera viewing screen After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 20: Schedule
To save settings, press ‘Apply’ NOTE: Time selected will be highlighted in blue blocks Tip - You can select time blocks using the icons located on the top right hand corner After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 21: Alarm
• Schedule: Linked to ‘Motion Record’ from the Schedule submenu. See 4.2.4 for details about configuring the motion record schedule Video Loss: Configure how video loss is handled by the DVR Other Alarm: Configure how other events are handled by the DVR After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 22: Network
• Username: For PPPOE mode, enter the ISP (Internet Service Provider) • Password: For PPPOE mode, set password • Test: Check whether the entered IP address and PPPOE information are valid or not After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... - Page 23 • Max Bitrate: Set the maximum bitrate that each channel will transmit Email: The Cocoon Home Security System can email you motion alerts if settings are enabled. Contact your network administrator if you do not have this information. • SMTP Server: Enter your server details. eg.: smtp.gmail.com •...
-
Page 24: Users
DVR Menu 4.2.7 Users Configure all user settings using the following steps. Your Cocoon Home Security System is able to limit specific MAC addresses for additional security. Adding a new user: Press the ‘Add’ button at the bottom of the User Management submenu... -
Page 25: Ptz
NOTE: A maximum of 128 orientations can be pre-set Cruise: Press the ‘Add’ button to add cruise lines to a camera. NOTE: A maximum of 8 cruise lines can be added After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 26: Advanced
On the right hand side, enter the start and end times to search, then press ‘Search’ A list of image files will be shown. Double-click on a file to view After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 27: Backup
A list of log files will be shown. Double-click on an entry for more information NOTE: A log file can be exported to a USB flash drive using the ‘Export’ button After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 28: Network
In order to change between users, select the ‘Logoff’ button, then press ‘OK’ to confirm. 4.8 Shutdown In order to safely shut down the DVR, select the ‘Shut down’ button, then press ‘OK’ to confirm. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 29: Networking
Networking The powerful Cocoon Home Security System features advanced settings for viewing footage over the internet and on supported 3G/4G enabled mobiles and tablets. Network setup is the most technically involved feature of the DVR unit and requires some working knowledge of networking and modifying modem / router settings. -
Page 30: Downloading The '365Secu' App
Input a valid User ID and Password. This must be the same as a user account that is present on the DVR Select ‘4’ channels, and ‘Main’ , then press the ‘Save’ icon on the top right corner of your screen to add your DVR After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 31: Viewing Your Compact Dvr
Select the alias that you have chosen for the DVR you wish to view Select ‘All camera’ to view all four cameras Tip: Double tap on the desired camera for full screen view For advanced guides and video walkthroughs, please visit www.winplus.com.au After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 32: Installing The Ivss Software
NOTE: If you are having trouble opening the software, try right-clicking the iVSS icon, then selecting ‘Properties’ . Within the Compatibility tab tick ‘Run this program as an administrator’ Login using username ‘admin’ , leaving the password blank After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 33: Viewing Your Compact Dvr
NOTE: You can also record single channels by right clicking the channel and selecting ‘Start Record’ from the popup menu 6.4.3 Local Config Use these settings to configure where your local iVSS files are stored. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 34: Remote Config
When asked to confirm changes, click ‘Yes’ Enter your DVR unit’s IP address again and press Enter Click the ActiveX installation box and choose install. The software will automatically download and install After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 35: Additional Windows Settings
See the section 4 – DVR unit Menu for help operating the DVR unit Visit www.winplus.com.au for additional tips and help with networking. There will be an instruction guide and a setup tutorial video to assist in networking setup. After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 36: Faqs
Can I add more cameras? The Cocoon DVR Unit accepts up to 4 cameras. You can replace any of the cameras with other cameras, however there is no way to add additional channels to... - Page 37 Can I add a bigger hard drive? Yes, the Cocoon DVR Unit accepts HDD’s up to 2TB in size. If you are unfamiliar with hard drives and changing computer components, we strongly suggest you consult a professional.
-
Page 38: Glossary Of Terms
DVR, the DVR can be used to control the camera Motion Recording The DVR is equipped with motion detection technology. When enabled, if motion occurs in the vision of the camera, the DVR will begin recording After Sales Support 1300 663 907 Model Number HE150242 customercare@winplus.com.au... -
Page 39: Repair And Refurbished Goods Or Parts Notice
Winplus Australasia PO BOX 537 Bayswater Business Centre Bayswater, VIC 3153 Winplus Help Desk 1300 663 907 (Operating Hours: Mon-Fri 08:30AM to 6:00PM) customercare@winplus.com.au www.winplus.com.au AFTER SALES SUPPORT 1300 663 907 customercare@winplus.com.au YEAR WARRANTY MODEL: HE150242 PRODUCT CODE: 51857 12/2015...
