Summary of Contents for Grundig GNF11510W

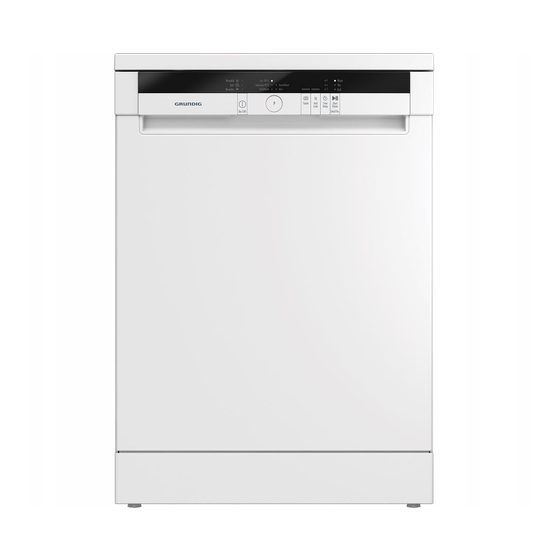

- Page 1 DISHWASHER USER INSTRUCTIONS GNF11510W www.grundig.com...
- Page 2 DISHWASHER USER INSTRUCTIONS GNF11510W...
- Page 3 Please read this user manual first! Dear Customer, Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 4: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY Collapsible lower basket tines ....22 AND ENVIRONMENT 5 MAINTENANCE AND General safety ..........4 CLEANING Intended use ........... 4 Cleaning the outer surface of the product 23 Children’s safety ..........5 Cleaning the interior of the machine..23 Disposing of packaging material .... -
Page 5: Instructions For Safety And Environment
INSTRUCTIONS FOR SAFETY AND ENVIRONMENT This section contains safety • Never touch the plug with wet hands! Never unplug by instructions that will help to give pulling on the cable, always protection from risk of personal pull out by grabbing the plug. injury or property damage. -
Page 6: Children's Safety
Instructions for safety and envIronment - Staff kitchen areas in shops, Disposing of packaging offices and other working material environments. Packaging materials are • Only dishwasher safe dangerous to children. Keep detergents, rinse aids and packaging materials in a safe additives must be used. -
Page 7: Compliance With Weee Directive And Disposing Of The Waste Product
Instructions for safety and envIronment Compliance with WEEE Directive and Disposing of the Waste Product This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. -
Page 8: Dishwasher
DISHWASHER Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket (depends on model) 14. -
Page 9: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 10: Installation
INSTALLATION • To make the product ready for use, make Place the product on a rigid floor. Do not place it on a long pile rug or similar sure that the electricity, tap water supply and surfaces. water drainage systems are appropriate before calling the Authorised Service Agent. -
Page 11: Waterprotect
Installation to the drainpipe without bending it. Tightly WaterProtect+ fix the water discharge hose to the drainpipe The WaterProtect+ system protects against in order to prevent any dislocation of the water leaks that may occur at the hose inlet. water discharge hose during operation of Water contact with the valve box of the the product. -
Page 12: This Appliance Must Be Earthed
Installation Connect the brown (live) wire to the This appliance must be terminal in the plug marked ‘L’ or earthed coloured red. If the fitted moulded plug is not Green and yellow suitable for your socket, then the or green plug should be cut off and an appropriate plug fitted. -
Page 13: Preparation
PREPARATION Tips for energy saving Following information will help you use the product in an ecological and energy-efficient manner. Wipe away any coarse food remnants on the dishes before putting them in the product. Operate the product after filling it completely. - Page 14 Preparation Water Hardness & Regeneration Settings Softening the water Dishwashers require fairly soft water. If the hardness exceeds 6°dH lime scale will form on crockery. To avoid this an automatic system adds a special salt to soften the water so that you obtain the best possible cleaning and drying performance.
-
Page 15: Adding Salt
Preparation Adding salt 3. Add 1 litre of water to salt reservoir of your machine only in initial use. Water softening system needs to be 4. Fill the salt reservoir with salt by regenerated in order for the product using the salt funnel (D). To speed up operates with the same performance dissolution rate of salt in water, stir it with continuously. -
Page 16: Detergent
Preparation Detergent Inside the detergent dispenser there are level markings that help You can use powder, liquid/gel or tablet you use appropriate amount detergents in the machine. of powder detergent. When Only use in the machine the brimful, detergent dispenser will detergents produced particularly contain 45 cm³... -
Page 17: Tablet Detergents
Preparation 3. Push the lid of the detergent dispenser to rinse aid must also be used together with the close it. A "click" will be heard when the detergent if the water hardness level is above lid is closed. the mentioned level. The best washing performance in dishwashers is obtained by using detergent, rinse aid and water... -
Page 18: Rinse Aid
Preparation Rinse aid 4. If there are stains on tableware items after washing, level must be increased The rinse aid used in dishwashers and if there is a blue trace after wiping is a special combination them by hand, it must be decreased. This that aims to increase drying is set to position 3 as factory default. -
Page 19: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. • Wipe away any coarse food remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher. - Page 20 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket Improper Loading Of Dishware DISHWASHER / USER INSTRUCTIONS 19 / 35 EN...
-
Page 21: Adjusting The Height Of The Upper Basket
Preparation Adjusting the height of the 3. Release the basket after it has reached one level down. upper basket Repeat the process if the height is not The upper basket height adjustment sufficient. mechanism has been designed for you to create large spaces in the lower or upper sections of your machine depending on your needs by adjusting the height in the upper or... -
Page 22: Collapsible Upper Basket Wires
Preparation Collapsible upper basket wires Cutlery basket You can use collapsible wires when you Cutlery basket is designed to wash your need a larger space for your dishes in the dishes such as knife, fork, spoon, etc. in an upper basket of your machine. efficient manner. -
Page 23: Collapsible Lower Basket Tines
Preparation Collapsible lower basket tines There are foldable tines (A) located at the lower basket of the machine are designed for an easier placement of large pieces such as pans, bowls, etc. You can create larger spaces by folding each tines individually or all of them at once. -
Page 24: Maintenance And Cleaning
MAINTENANCE AND CLEANING Service life of the product extends and Cleaning the filters frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 25: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 26: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 27: Troubleshooting
TROUBLESHOOTING Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 28 Troubleshooting Dishes are not dry at the end of cycle • Dishes are not placed orderly in the machine. >>> Place your dishes in a way that no water will accumulate in them. • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary.
- Page 29 Troubleshooting • Salt leakage exists. >>> Pay attention not to spill salt around the salt filling hole while adding salt. Make sure that the salt reservoir lid is tightly closed after finishing the filling process. Run the prewash programme to remove the salt that spilled inside the machine. Since the salt granules that will remain under the lid will dissolve during prewash, causing the lid loosen, check the lid once again at the end of the programme.
- Page 30 Troubleshooting • Kitchen utensils that are already corroded are washed in dishwasher. >>> Rust on a corroded item can migrate to other stainless steel surfaces and cause corrosion on those surfaces as well. Such items should not be washed in dishwashers. Detergent remains in detergent dispenser.
- Page 31 Troubleshooting A smear remains on glasses that resembles milk stain which can not be removed when wiped by hand. A bluish / rainbow appearance occurs when the glass is pointed to light. • Excessive rinse aid is used. >>>Lower rinse aid setting. Clean the spilled rinse aid when adding rinse aid.
-
Page 32: Guarantee
• Time taken off work. • Functional replacement parts to repair a product. • Damaged food, clothing or other items. • The costs of a Grundig Approved • Meals taken at restaurants or from Engineer to carry out the repair. takeaways. - Page 33 User Instructions Booklet provided with Does Grundig offer replacements? your product. This is a repair-only guarantee. On occasion, the Manufacturer may at its • Professional installation by a qualified...
- Page 34 Guarantee appointments, this cannot be guaranteed. We will not be liable for delays or if it is unable to carry out a repair because a convenient appointment cannot be arranged. Will there be any charge for the repairs? It is your responsibility to provide evidence to the Engineer that your product is covered by this guarantee with a proof of purchase.
- Page 35 Should you experience any difficulty in obtaining service contact the Grundig Customer Helpline on Tel: 0333 207 9920 or e-mail: customerservice@support.grundig.co.uk …………………………………………………………..................
- Page 36 www.grundig.com...
