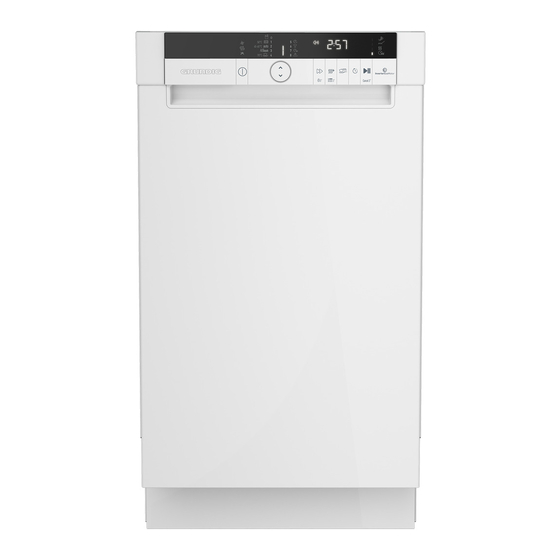

Summary of Contents for Grundig GSU4P820
- Page 1 DISHWASHER USER INSTRUCTIONS GSU4P820 GSU4P820X GSU 4E820 GSU 4E820X www.grundig.com...
- Page 2 DISHWASHER USER INSTRUCTIONS GSU4P820 GSU4P820X GSU 4E820 GSU 4E820X...
- Page 3 Please read this user manual first! Dear Customer, Thank you for preferring a Grundig product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use.
-
Page 4: Table Of Contents
CONTENTS 1 INSTRUCTIONS FOR SAFETY 5 OPERATING THE AND ENVIRONMENT PRODUCT Keys ...............24 General safety ..........4 Intended use ........... 4 Preparing the machine ........24 Children’s safety ..........5 Programme selection ........24 Disposing of packaging material ....5 Auxiliary functions ........26 Transportation of the product ....... -
Page 5: Instructions For Safety And Environment
INSTRUCTIONS FOR SAFETY AND ENVIRONMENT • This section contains safety Never touch the plug with instructions that will help to get wet hands! Never unplug by protected from risk of personal pulling on the cable, always injury or property damage. Failure pull out by grabbing the plug. -
Page 6: Children's Safety
instructions for safety and environment • This appliance is intended Children’s safety to be used in household and • Electrical products are similar applications such as: dangerous for the children. - Staff kitchen areas in shops, Keep children away from the offices and other working product when it is in use. -
Page 7: Compliance With Weee Directive And Disposing Of The Waste Product
instructions for safety and environment 1. Unplug the product before National Environment Regulations. transporting it. Do not dispose of the packaging materials together with the 2. Remove water drainage and domestic or other wastes. Take water supply connections. them to the packaging material 3. -
Page 8: Dishwasher
DISHWASHER Overview 1. Upper basket 2. Upper impeller 3. Lower impeller 4. Silverware basket 5. Door 6. Rating Label 7. Control panel 8. Detergent dispenser 9. Lower basket 10. Filters 11. Salt reservoir lid 12. Upper basket rail 13. Upper cutlery basket (depends on model) 14. -
Page 9: Fan Drying System
Dishwasher Technical specifications Compliance to standards and test data / EC declaration of conformity This product complies with the following EU directives; Development, production and sales stages of this product comply with the safety rules included in all pertaining European Community regulations. 2014/35/EU, 2014/30/EU, 93/68/EC, IEC 60436/DIN 44990, EN 50242 Power input 220-240 V, 50 Hz (see rating label) -
Page 10: Installation
INSTALLATION Appropriate installation Refer to the nearest Authorised Service Agent for installation of your product. To location make the product ready for use, make sure • Place the product on a solid and flat that the electricity, tap water supply and floor that has sufficient load carrying water drainage systems are appropriate capacity! The product must be installed... -
Page 11: Connection To The Drain
Installation Permitted water temperature: up to Attach the water discharge hose to the 25°C drainpipe without bending it. Tightly fix the The dishwasher may not be connected to water discharge hose to the drainpipe in open warm water devices or flow-through order to prevent any dislocation of the water water heaters. -
Page 12: Waterprotect
Installation WaterProtect+ • The voltage and allowed fuse or breaker protection are specified in the “Technical The WaterProtect+ system protects against specifications” section. If the current value water leaks that may occur at the hose inlet. of the fuse or breaker in the house is less Water contact with the valve box of the than 16 Amps, have a qualified electrician system must be avoided to prevent damage... -
Page 13: Preparation
PREPARATION Tips for energy saving Adjusting the water softening system Following information will help you use the product in an ecological and energy-efficient Cleaning, rinsing and drying performance manner. of your dishwasher will increase when water Wipe away any coarse food remnants on softening system is adjusted properly. - Page 14 Preparation Remove the test Turn on the tap and Hold the test strip in Remove the test Wait for 1 minute. The test strip shows strip from the let the water run for the water for about strip from the water you the hardness packet.
-
Page 15: Adding Salt
Preparation If the hardness level of the supply water Salt reservoir will be filled is above 90 °dF or if you are using well with water when you start water, then it is recommended to use water the product. For this reason, purification devices and special filters. -
Page 16: Detergent
Preparation Put the detergent into the detergent dispenser You need to add salt right before just before operating the machine as starting the machine. Thus, the illustrated below. overflowing salty water will be 1. Push the latch to right to open the flushed immediately, preventing detergent dispenser lid (A). -
Page 17: Tablet Detergents
Preparation The best washing performance in dishwashers is obtained by using detergent, rinse aid and water softening salt individually. Observe the instructions of the detergent manufacturer on the package when using tablet detergents. Contact the detergent manufacturer if your dishes Use powder or liquid/gel are wet and/or if you notice detergent in short programmes... -
Page 18: Rinse Aid
Preparation Rinse aid 4. If there are stains on tableware items after washing, level must be increased The rinse aid used in dishwashers and if there is a blue trace after wiping is a special combination them by hand, it must be decreased. This that aims to increase drying is set to position 3 as factory default. -
Page 19: Placing The Dishes Into The Dishwasher
Preparation Placing the dishes into the dishwasher You can use your dishwasher in the optimum way with respect to energy consumption and washing and drying performance only if you place the dishes in an orderly way. • Wipe away any coarse food remnants (bones, seeds, etc.) on the dishes before placing them in the dishwasher. - Page 20 Preparation Suggestions for loading the dishwasher Improper Loading Of Dishware Lower basket Upper basket DISHWASHER / USER INSTRUCTIONS 19 / 40 EN...
-
Page 21: Collapsible Upper Basket Wires
Preparation Collapsible upper basket wires Upper basket rack You can use collapsible wires when you need a larger space for your dishes in the upper basket of your machine. To bring the collapsible wires into horizontal position, grab the wire from the middle position and push them in the direction of arrow in the figure. -
Page 22: Adjusting The Height Of The Upper Basket
Preparation To lower the basket, while it is in the Adjusting the height of the uppermost position; upper basket 1. Hold the upper basket wires with both The upper basket height adjustment hands, slightly lift up the basket and mechanism has been designed for you to simultaneously push and release the create large spaces in the lower or upper latches shown in the figure (B). -
Page 23: Collapsible Lower Basket Tines
Preparation Collapsible lower basket tines Bringing the tines to the horizontal position by holding Foldable tines (A) located at the lower them from the tips may cause basket of the machine are designed for them to bend. Therefore, it will an easier placement of large pieces such be appropriate to bring the tines as pans, bowls, etc. -
Page 24: Operating The Product
OPERATING THE PRODUCT 1. On/Off key 2. Programme Selection keys 3. Function keys a) Child Lock key / Express Function b) Settings key / Steam Shine Function PowerWash Function 4. Time Delay key 5. Start/Pause/Cancel key 6. Display 7. Programme indicator 8. -
Page 25: Keys
OperatIng the product Keys 5. Check if the Salt and Rinse Aid indicators light and add salt and/or On/Off key rinse aid if needed. It is used to switch on or off the machine. 6. Close the door of the dishwasher. Press the On/Off key to switch on the machine. - Page 26 OperatIng the product DISHWASHER / USER INSTRUCTIONS 25 / 40 EN...
-
Page 27: Auxiliary Functions
OperatIng the product Auxiliary functions Auto Tablet Feature Auto Tablet is a feature which detects the use Washing programmes of your dishwasher of combined tablet detergents automatically. are designed to obtain the best cleaning Drying performance of these effect, considering the type of the soiling, type of detergents is improved soiling degree and properties of the dishes by adjusting temperature and... -
Page 28: Programming The Washing Time
OperatIng the product Interior Lighting Changing Warning Sound Volume (Depends on the model) Your machine is equipped with an audio Some models have interior lighting to signal to inform warnings audibly. illuminate the interior when the door is 1. After switching your machine on, press opened. -
Page 29: Starting The Programme
OperatIng the product until the end of the period. Time delay Your machine performs is displayed on the Display Information water softening depending Line. Selected programme will start as on the hardness level of the soon as the countdown is over. mains water. -
Page 30: Programme Step Follow-Up
OperatIng the product Programme step follow-up To activate the child lock: 1. Press and hold the Child (Key) Lock key. You can follow-up the washing step in 2. “3”, “2”, “1” is displayed on the which the current programme is in from the Display Information Line and the key Programme Follow-up indicator. -
Page 31: Adjusting The Amount Of Rinse Aid
OperatIng the product No rinse aid dispensed in P:0 wash position. There might be residues of 1 dose of rinse aid is dispensed in P:1 detergent or rinse aid left in the machine and/or on the pieces position. being washed depending on the 2 doses of rinse aid are dispensed in P:2 step in which the programme has position. -
Page 32: Selfcare
OperatIng the product Leave your dishes in the machine for about 15 minutes after they are washed in order to have them cooled. Your dishes will dry in a shorter time if you leave the door of your machine ajar during this period. -
Page 33: Maintenance And Cleaning
MAINTENANCE AND CLEANING Cleaning the filters Service life of the product extends and frequently faced problems decrease if it is Clean the filters at least once a week in cleaned at regular intervals. order for the machine operates efficiently. Unplug the product and turn off Check if food residues are left on the filters. -
Page 34: Cleaning The Hose Filter
Maintenance and cleaning Cleaning the hose filter Damages on the machine that may be caused by impurities coming from the urban supply water or your own water installation (such as sand, dirt, rust, etc.) can be prevented by means of the filter attached to the water inlet hose. -
Page 35: Cleaning The Impellers
Maintenance and cleaning Cleaning the impellers Upper impeller Clean the impellers at least once a week in Check if the holes on the upper impeller (1) order for the machine operates efficiently. are clogged. If they are clogged, remove and clean the impeller. Turn its nut to left to Lower impeller remove the upper impeller. -
Page 36: Troubleshooting
TROUBLESHOOTING Machine does not start. • Power cable is unplugged. >>> Check if the power cable is plugged in. • Fuse is blown. >>> Check the fuses in your house. • Water is cut. >>> Make sure that the water inlet tap is open. •... - Page 37 Troubleshooting • Rinse aid is not sufficient. >>> Check the rinse aid indicator and add rinse aid if necessary. Increase the rinse aid setting if there is enough amount of rinse aid in the machine. • Machine is unloaded right after the programme is over. >>> Do not unload your machine right after washing process is completed.
- Page 38 Troubleshooting There is a different odour in the machine A new machine has a peculiar odour. It will fade out after a couple of washes. • Filters are clogged. >>> Check if the filter system is clean. Clean the filter system regularly as illustrated in section “Cleaning and Care”.
- Page 39 Troubleshooting • Detergent is added long before the washing process. >>> Pay attention to add detergent shortly before start-up of the washing. • Opening of the detergent dispenser lid is prevented during washing. >>> Place the dishes in a way that will not prevent the detergent dispenser lid from opening and the water going into the machine from impellers.
- Page 40 Troubleshooting soft (<5 dH), do not use salt. Choose programmes that wash in higher temperatures (e.g. 60-65°C). You can also use glass protective detergents that are commercially available. Foam forms in the machine. • Dishes are washed with hand-wash detergent by hand but not rinsed before placing them into the machine.
- Page 41 www.grundig.com...
