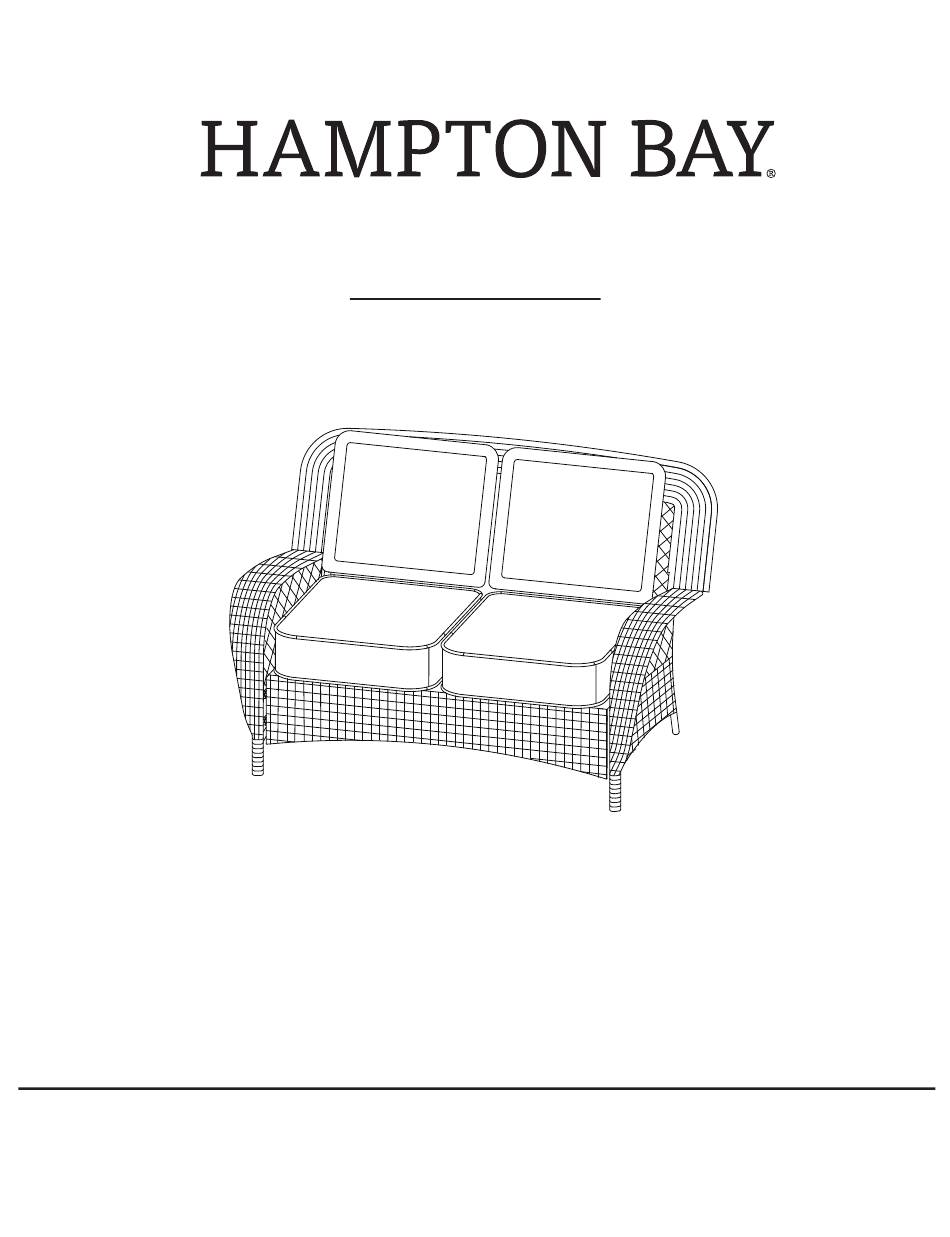

USE AND CARE GUIDE
BEACON PARK LOVESEAT
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this loveseat. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY FRS80812CL-G
Summary of Contents for HAMPTON BAY FRS80812CL-G
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this loveseat. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................ -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Right arm Left arm Seat Backrest Back cushion Seat cushion... -
Page 5: Assembly
Assembly CONNECTING THE RIGHT ARM TO THE SEAT Place the right arm (A) on a soft surface. Align the holes on the right panel of the seat (C) to the holes on the front of the right arm (A), and secure by M6x20 combination bolts (AA) using the hex wrench (CC). - Page 6 Assembly (continued) ATTACHING THE BACKREST TO THE SEAT AND THE RIGHT ARM Attach the backrest (D) to the seat and the right arm using an M6x20 combination bolt (AA) and M6x50 combination bolts (BB). Do not fully tighten all bolts at this step.
- Page 7 Assembly (continued) CONNECTING THE LEFT ARM TO THE SEAT AND THE BACKREST Connect the left arm (B) to the seat (C) and the backrest (D) using M6x20 combination bolts (AA). Do not fully tighten all bolts at this step. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance...
- Page 8 Assembly (continued) CONNECTING THE ARMS TO THE BACKREST Turn the chair right side up. Connect the back of the right and the left arm (A & B) to the backrest (D) by using M6x50 combination bolts (BB). Do not tighten all the bolts at this step.
-
Page 9: Care And Cleaning
Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Place the back and the seat cushions (E & F) to finish the assembly of the loveseat. Ensure all connections are secure before use. Care and Cleaning For best results, clean the loveseat with a damp cloth and dry thoroughly. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FRS80812CL...
