Harness and Lamp installation for
Upgrading to LED Plow Lamps
1. Replace the upper light bar on the unit with the new
one supplied with the kit.
2. Place Drivers Side headlamp on top of light bar with
the headlamp tabs inside of the light bar tabs. Insert (2)
5/16" x 1-1/2" screws, and (4) 5/16" washers. Screws
must be inserted from the outside of the plow to the
center. Place (2) 5/16" serrated tooth washers between
the headlamp and light bar tabs. Secure with (2) 5/16"
lock nuts. Do not tighten. (See Figure 1-12)
3. Repeat step 3 with Passengers Side headlamp
making sure screws are inserted from the outside of the
plow to the center.
5/16" x 1-1/2"
5/16" SERRATED
SCREW
TOOTH WASHER
5/16" x 1-1/2"
5/16"
SCREW
LOCKNUT
5/16" FLAT
WASHERS

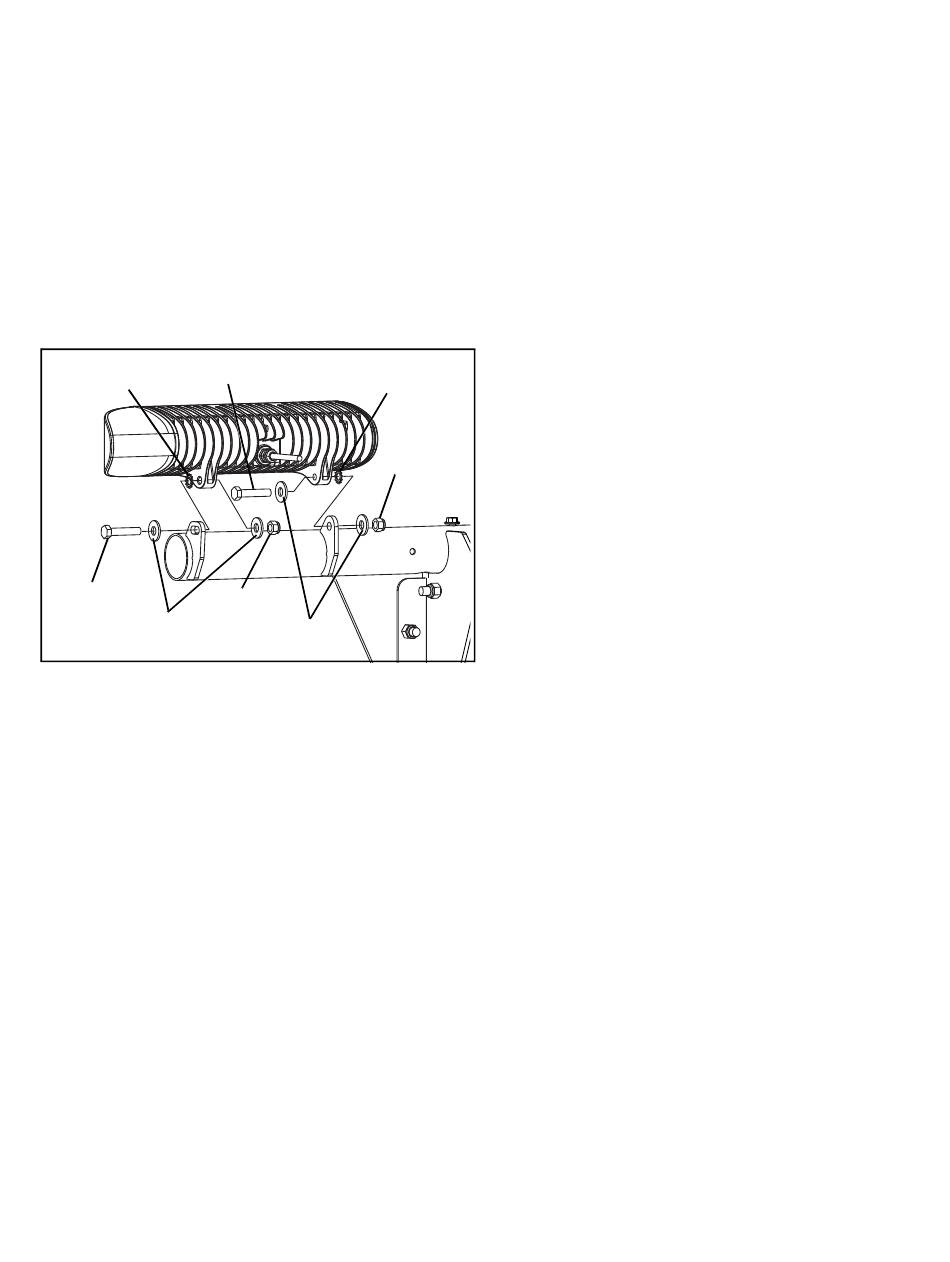

Figure 1-12
4. Follow this step If installing on a 26V or 29VHD,
otherwise, skip. Attach the 6 pin connector with a yellow
wire coming from the ProControl 2 Plus plow receiver to
the 6 pin connector on the driver side lamp. Attach the 6
pin connector with a gray wire coming from the
ProControl 2 Plus plow receiver to the 6 pin connector on
the passenger side lamp. Then, skip steps 5 - 9.
5. Pull out the two lamp harnesses that connect the
plow lamps to the ProControl 2 Plus Receiver.
6. Attach the shorter of the two harnesses with a yellow
wire to the 6 pin connector with a yellow wire coming the
plow receiver.
7. Run the harness up the side of the a-frame and
connect to the 6 pin connector coming from the Driver
Side plow lamp harness.
8. Attach the longer of the two harnesses with a gray
wire to the 6 pin connector with a gray wire coming the
plow receiver.
9. Run the harness up the side of the a-frame and
across the lower light bar. Connect to the 6 pin connector
coming from the Passenger Side plow lamp harness.
5/16" SERRATED
TOOTH WASHER
5/16"
LOCKNUT
5/16" FLAT
WASHERS
10. Use the supplied cable ties to secure the harness
from interfering with moving components. Be sure to
leave enough slack in the harness between the a-frame a
lower light bar so the harness is not strained when the
plow is lowered.
11. Attach the pump cover and refer to the ProControl 2
Plus Owner's Manual for transmitter installation and
operation.
12. If your plow light bar had the yellow Sno-Way Facia
plate on top of the light bar, remove it and attach it to the
new upper light bar supplied with the kit.
