Visual Headlamp Aiming Procedure:
1. Activate the snow plow lamp HIGH beams so that
they illuminate toward the wall. (See Figure 1-14)
2. Focus the left snow plow lamp hot spot beam directly
at the cross hair target that is developed by Line 5 and
Line 3.
3. There are two bolts that provide vertical aiming of the
headlamp. Adjust the lamps accordingly and tighten the
bolts.

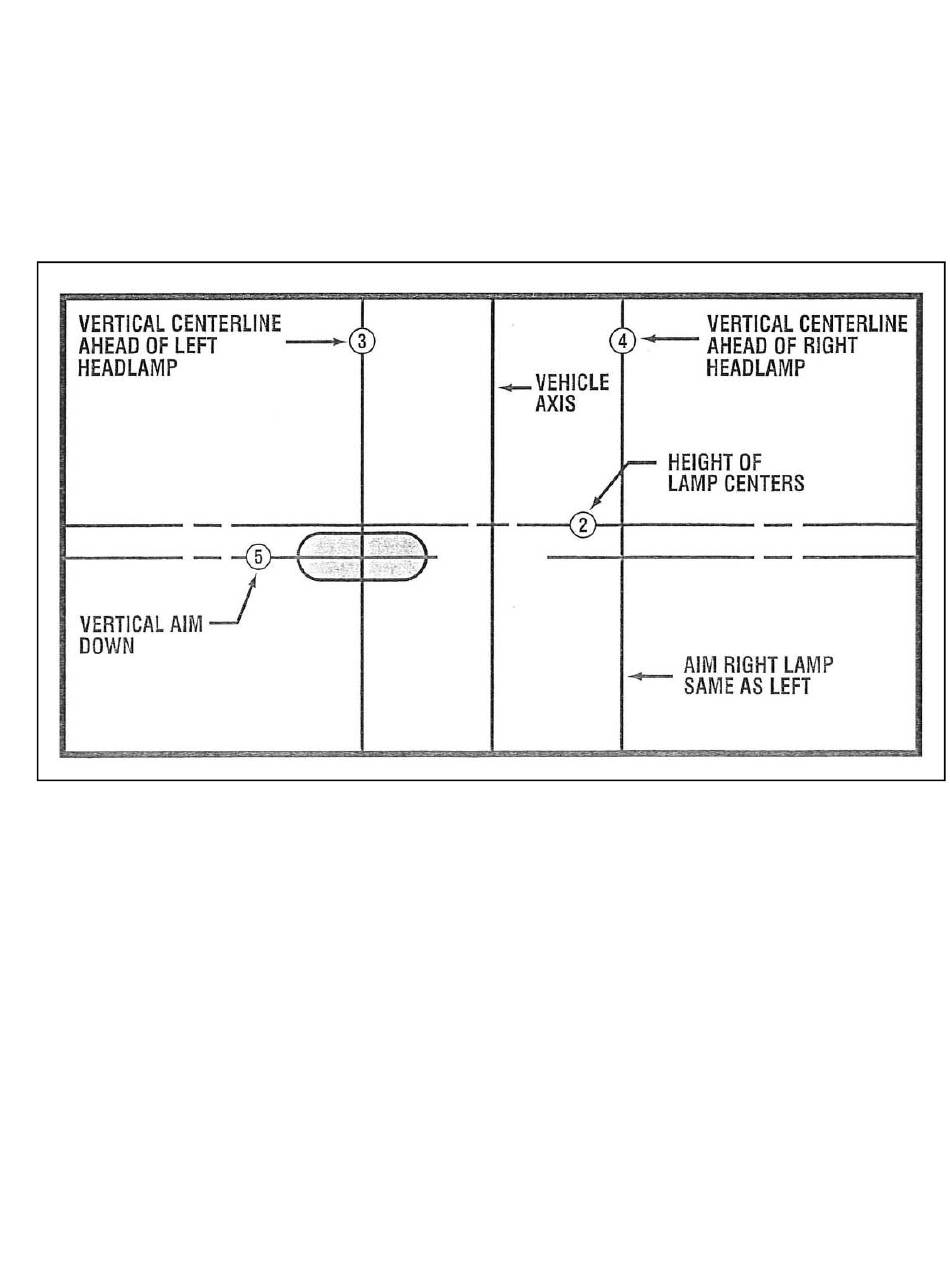

High-Intensity Zone (Shaded Area of a Properly Aimed Upper Beam
Figure 1-14
on the Aiming Screen 25 ft (7.6 m) in Front of Vehicle)
4. Repeat the same procedure for the right snow plow
lamp. Use the hot spot beam cross hair target that is
developed by Line 5 and Line 4.
5. Confirm that each lamp has maintained the correct
aiming location. Secure the mounting bolts.
Verify Completion:
This completes the headlamp aiming process. Confirm
that the headlamps are switched back to the low beam
position before operating vehicle.
