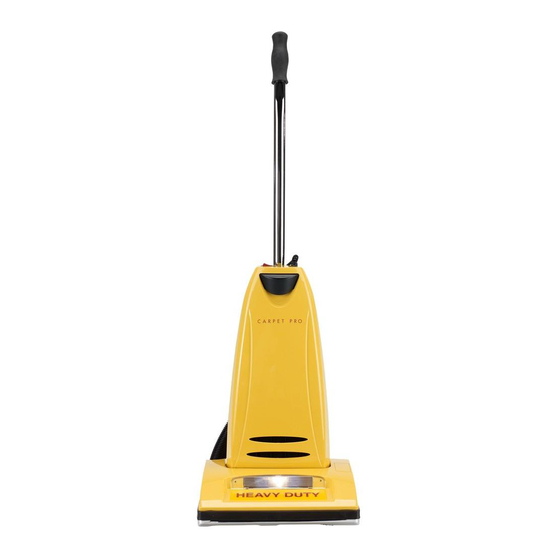

- Page 1 OPERATING INSTRUCTIONS FOR CARPET PRO HEAVY DUTY UPRIGHT VACUUMS MODELS : CPU-1 CPU-2 CPU-1T CPU-2T Before operating the vacuum, please read these instructions completely.
-
Page 2: Table Of Contents
Serial Number: ____________________________________________________________________________________ Date Purchased: ____________________________________________________________________________________ Your Carpet Pro vacuum cleaner is a product of high quality materials and superior workmanship. We urge you to read these operating instructions carefully before you use this vacuum cleaner, in order to obtain the full performance and satisfaction it can offer you. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. This machine is not intended for use by persons (including children) with reduced physical, sensory or When using an electrical appliance, basic precautions should always be followed, including the following: mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the machine by a person responsible for their safety. -
Page 4: Two-Wire Polarization
Two-Wire Polarized Cord MODELS CPU-1 and CPU-1T This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. -
Page 5: Parts Identification
Self-adjusting nozzle Thermal reset instructions Thermal reset button Replacement Bags/Filters • Genuine Carpet Pro Vacuum Bags • Genuine Carpet Pro Electrostatic Filter (CPU-1 model only) Part # 06.153 Part # 06.317 3 pk. 1 pk. • Genuine Carpet Pro Post Filter •... -
Page 6: How To Assemble And Operate The Vacuum
How to Assemble and Operate the Vacuum How to Attach the Handle to the Vacuum Cleaner The vacuum cleaner and the handle are packed separately. 1. After first removing the handle screw, insert handle into the hole on top of the vacuum cleaner. Make sure that the cord hooks on the handle are positioned to the back of the vacuum cleaner (Fig. -
Page 7: Handle Adjustments
Fig. 2 Filters Your Carpet Pro vacuum cleaner is equipped with a secondary filter and a post filter. These filters capture fine dust particles and protect the motor from dirt. It is important to change the filters regularly — approximately once a year, or as needed. -
Page 8: Automatic Self-Adjusting Nozzle
Automatic Self-Adjusting Nozzle Your Carpet Pro upright vacuum cleaner is designed with an Automatic Self-Adjusting Nozzle. No manual adjustments are required. The height of the nozzle is instantly and automatically adjusted to carpet pile height. This self-adjusting feature allows the nozzle to float evenly over all carpet pile surfaces. -
Page 9: How To Replace The Vacuum Belt And Headlight Bulb
Replace the belt if it is stretched, cracked or if excessive slipping is occurring. How to Replace the Bulb (CPU-1 and CPU-1T models only) (Fig. 5) 1. Turn the unit over and remove the bottom plate as described in the above section. -
Page 10: How To Clean The Nozzle Hose
How to Clean the Nozzle Hose CAUTION: Unplug the vacuum cleaner. The nozzle hose, located on the back of the vacuum cleaner, carries the dirt from the nozzle to the vacuum bag. The hose also functions as the attachment cleaning hose (on CPU-1T and CPU-2T models only). If the hose should become clogged 1. -
Page 11: Thermal Fuse Protection
Thermal Fuse Protection Your Carpet Pro vacuum cleaner comes equipped with a Manual Reset Thermal Fuse Protector. This thermal protector is designed to protect your vacuum cleaner from overheating due to a cutoff in airflow (i.e. clogged hose, operating the vacuum without a bag). Should this situation occur, the thermal fuse protector will safely shut off your vacuum cleaner to avoid any potential damage. - Page 12 Carpet Pro Vacuum Cleaners PO Box 730 Fenton, MO 63026 Should your vacuum ever need service, simply contact the retailer where original purchase was made. 2010 ©2006 Carpet Pro Vacuum Cleaners.
