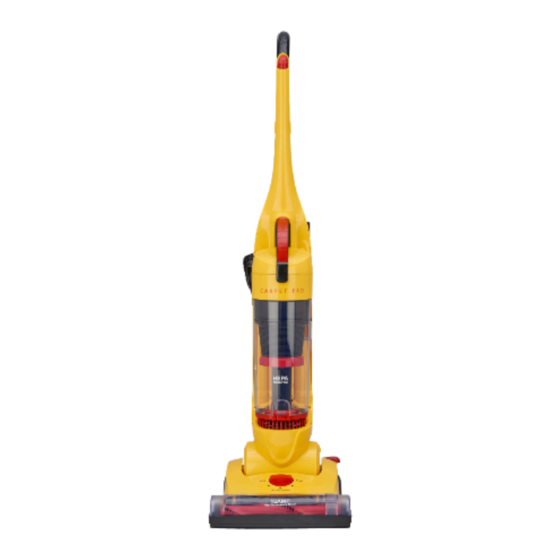

Carpet Pro CPBU-1 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's
Manual
Bagless
Model SCBP-1
Upright
Backpack Vacuum
Vacuum
CPBU-1
OPERATING INSTRUCTIONS
COMMERCIAL
BACKPACK VACUUM CLEANERS
CONGRATULATIONS
YOU HAVE JUST ACQUIRED A HIGH QUALITY VACUUM
CLEANER. PLEASE READ THIS MANUAL CAREFULLY,
BEFORE OPERATING YOUR NEW VACUUM CLEANER.
KEEP MANUAL ON HAND FOR FUTURE REFERENCE.
Save These Instructions

Advertisement

Table of Contents
loading

Related Manuals for Carpet Pro CPBU-1

Summary of Contents for Carpet Pro CPBU-1

  • Page 1 Owner’s Manual Bagless Model SCBP-1 Upright Backpack Vacuum Vacuum CPBU-1 OPERATING INSTRUCTIONS COMMERCIAL BACKPACK VACUUM CLEANERS CONGRATULATIONS YOU HAVE JUST ACQUIRED A HIGH QUALITY VACUUM CLEANER. PLEASE READ THIS MANUAL CAREFULLY, BEFORE OPERATING YOUR NEW VACUUM CLEANER. KEEP MANUAL ON HAND FOR FUTURE REFERENCE.

  • Page 3: Table Of Contents

    Customer’s Record The model and serial number of this product may be found on the back of the unit. Register your Carpet Pro vacuum as soon as possible for your protection. Also, note the model and serial numbers of your unit in the spaces provided below, and retain this book as a permanent record of your purchase.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE. When using an electrical appliance, basic precautions should always be followed, including the following: SAVE THESE INSTRUCTIONS. WARNING: To reduce the risk of fire, electric shock or injury: Do not leave appliance unattended when plugged in. Unplug from outlet when not in use and before servicing. WARNING: ELECTRIC SHOCK COULD OCCUR IF USED OUTDOORS OR ON WET SURFACES.

  • Page 5: Two-Wire Polarized Cord

    Two-Wire Polarized Cord This product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug fits into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact an electrician to replace the obsolete outlet.

  • Page 6: Parts Identification And Replacement Filters And Belt

    Cord Hook Tool Activation Nozzle Dial Drive Model Number/ Belt Serial Number Handheld Turbo Brush Replacement Filters and Belt • Genuine Carpet Pro HEPA Media and • Genuine Carpet Pro Belt. Secondary Filter Set. Part #CPBU-F Package of 2 Part #CPBU-B2...

  • Page 7: How To Assemble And Operate The Vacuum

    How to Assemble and Operate the Vacuum Note: Do not plug in the vacuum until it is completely assembled. Handle Assembly Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such hazards as fire, electric shock, burns and personal injury.
  • Page 8 How to Assemble and Operate the Vacuum Stretch Hose Assembly NSION HOSE ASSEMBLY 1. Align the tabs on the hose assembly to 2. Rotate hose assembly as shown until it locks EXTENSION HOSE ASSEMBLY corresponding slots in lower hose port, insert into place (Fig.
  • Page 9 Use caution when operating near children. Extension Hose How to Assemble and Operate the Vacuum Assembly POWER CORD Assembling and Storing the 1.Turn the quick release upper cord hook Power Cord o either side and down to release the power cord. 1.

  • Page 10: How To Assemble And Operate The Vacuum

    SUGGESTED HEIGHT SETTINGS: To select carpet height setting: Select a height setting by turning the Select a height setting by turning the There are five (5) height settings on HEIGHT ADJUST knob located on the CARPET HEIGHT SELECTION AND SETTINGS How to Assemble and Operate the Vacuum HEIGHT ADJUST knob located on the the vacuum cleaner.

  • Page 11: Tools Cleaning

    ATTACHMENT STORAGE Tools Cleaning Tool Activation Dial - Tools Position Extension Tool Activation Wand Dial When cleaning with attachments, turn the Tool Activation Dial tool activation dial to the TOOLS position as FLOOR shown in (Fig. 1). FLOOR TOOLS TOOLS Wand Dusting Brush...
  • Page 12 Tools Cleaning HOW TO USE HOSE AND EXTENSION WAND Using the Stretch Hose and Wand 1. Turn tool activation 3. Attach the wand to the hose handle (Fig. 3). dial to the TOOLS position when using tools (Fig. 1). Return Wand Dusting dial to FLOOR...
  • Page 13 Extension Wand Tools Cleaning ATTACHMENT STORAGE Attachment Storage Wand 1. Replace the wand into the holder on the side 4. Attachments should be returned to their Dusting Brush of the vacuum. appropriate locations on the vacuum Extension Hose cleaner. Extension Wand Crevice Stretch...

  • Page 14: How To Empty The Dustbin

    WARNING de polvo Always unplug power cord from How to Empty the Dustbin electrical outlet before performing any service on vacuum cleaner. Note: Always unplug power cord from electrical outlet before performing any service on vacuum cleaner. How to Remove the Dustbin Upper 1.

  • Page 15: How To Replace The Filters

    How to Replace the Filters Filter Identification This vacuum cleaner has 3 filters that need to be cleaned and/or replaced on a regular basis. FILTER IDENTIFICATION Pre-Filter Secondary Filter HEPA Media Filter...
  • Page 16 How to Replace the Vacuum Filters When to Change the Filters HEPA MEDIA EXHAUST FILTER REPLACEMENT At a minimum, it’s recommended to replace the HEPA Media and secondary filters after 6 months of use. If someone in your household is sensitive to airborne allergens, it is recommended to change the filters after every three months.
  • Page 17 How to Replace the Vacuum Filters Frame It is recommended to wash the filter with cold water at least every three (3) months. PRIMARY FILTER CLEANING How to Clean/Replace the Secondary Filter 5. Remove the filter from the frame (Fig. 3). 1.
  • Page 18 PRE-FILTER CLEANING How to Replace the Vacuum Filters How to Clean the Pre-Filter The pre-filter is located inside the dustbin. Check To Replace the Pre-Filter the pre-filter frequently and clean when dirty. 1. Slide the pre-filter 1. Remove the dustbin from upward onto the the vacuum cleaner.

  • Page 19: How To Replace The Belt And Brushroll

    BELT AND AGITATOR CHANGING How to Replace the Belt and Brushroll BELT AND AGITATOR CHANGING WARNING Note: Always unplug the power cord from the Always unplug power cord from 7 . Reinstall the WARNING electrical outlet before performing any service electrical outlet before performing any brushroll into on the vacuum cleaner.

  • Page 20: How To Clean The Brushroll

    WARNING How to Clean the Brushroll Always unplug power cord from BRUSHROLL CLEANING electrical outlet before performing any service on vacuum cleaner. Note: Always unplug the power cord from the electrical outlet before performing any service WARNING on the vacuum cleaner. To maintain efficient cleaning, the brushroll must be kept free of carpet Always unplug power cord from...

  • Page 21: How To Remove A Clog

    Electrical Shock and Personal Injury Hazard Disconnect electrical supply before performing maintenance to the vacuum cleaner. WARNING Failure to do so could result in electrical shock or personal injury from vacuum cleaner How to Remove a Clog suddenly starting. Electrical Shock and Personal Injury Hazard Disconnect electrical supply before performing maintenance to the vacuum cleaner.

  • Page 22: Motor Protection

    PERFORMANCE FEATURES Motor Protection DUAL MOTOR PROTECTION SYSTEM Dual Motor Protection System Thermal Motor Protector Motor Protector - Bypass Valve This vacuum cleaner has a motor protector This vacuum thermal valve that prevents the motor from cleaner also overheating. If a clog prevents the normal flow has a motor Motor of air to the motor, the thermal protector turns off...

  • Page 23: Troubleshooting

    Troubleshooting Please check each item below if you have trouble with your vacuum. Unplug the vacuum from the power supply before servicing. PROBLEM CHECK POINT POSSIBLE SOLUTION Vacuum cleaner 1. Unplugged at wall outlet. 1. Plug in firmly and push ON/OFF does not work.

  • Page 24: For Best Performance

    • Replace filters frequently. • Always use genuine filters and parts, as use of other products may result in poor cleaning or filtration performance. Carpet Pro filtration products are designed for maximum performance. • Store machine carefully in a dry area.

  • Page 25: Warranty

    How to Get Service: Warranty service can only be obtained by presenting the vacuum to the Carpet Pro Service Center. A proof-of-purchase and product serial number will be required before service is rendered. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE).

  • Page 26: Owner's Warranty Information

    The model and serial number of this product can be found on the back of the unit. Register your Carpet Pro vacuum as soon as possible for your protection. Also, note the model and serial numbers of your unit in the spaces provided below, and retain this book as a permanent record of your purchase.
  • Page 28 Carpet Pro Vacuum Cleaners PO Box 730 Fenton, MO 63026 ©2015 Carpet Pro Vacuum Cleaners Item CPOM-CPBU...
