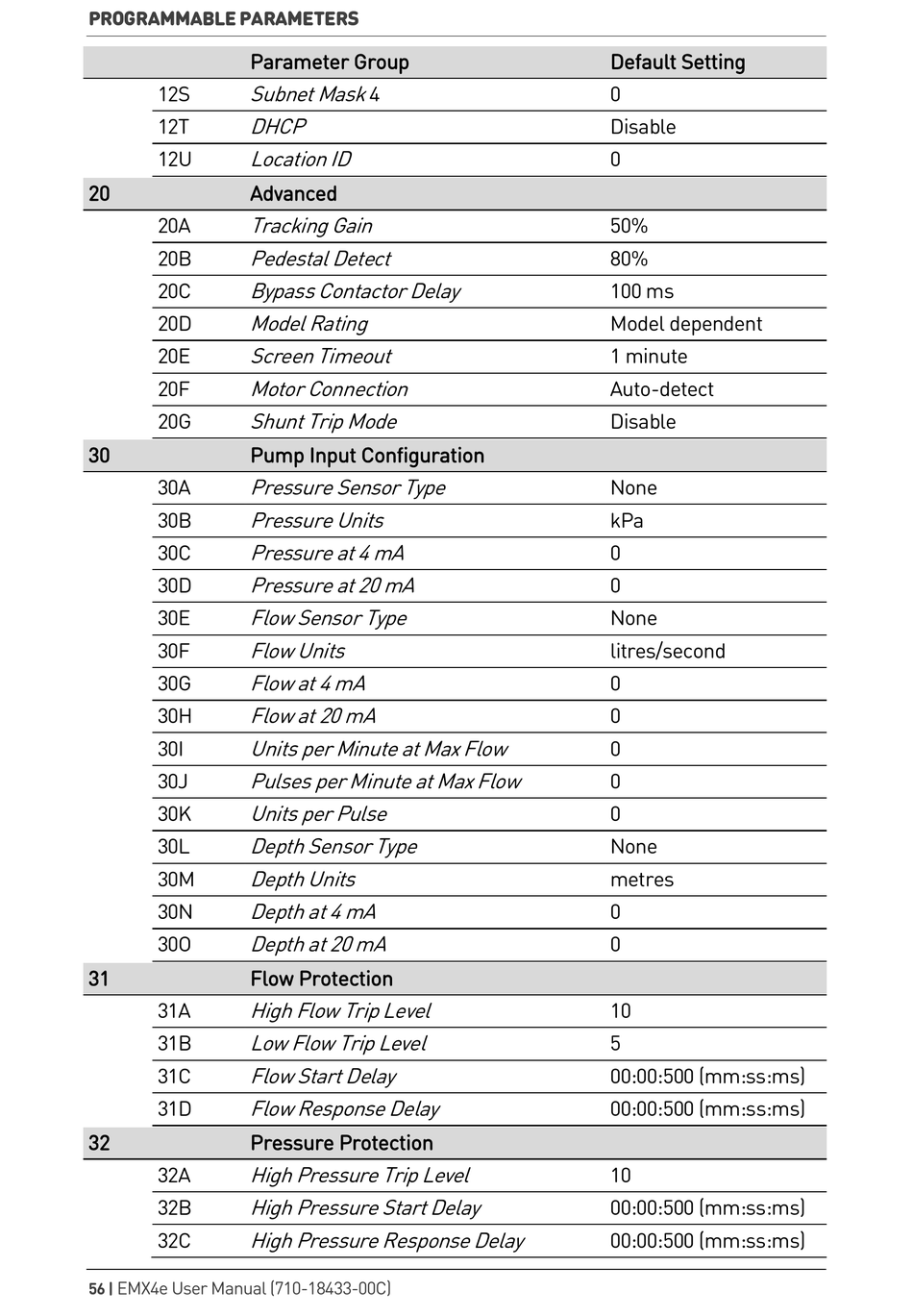

PROGRAMMABLE PARAMETERS
Parameter Group
Subnet Mask
12S
DHCP
12T
Location ID
12U
20 Advanced
Tracking Gain
20A
Pedestal Detect
20B
Bypass Contactor Delay
20C
Model Rating
20D
Screen Timeout
20E
Motor Connection
20F
Shunt Trip Mode
20G
30 Pump Input Configuration
Pressure Sensor Type
30A
Pressure Units
30B
Pressure at 4 mA
30C
Pressure at 20 mA
30D
Flow Sensor Type
30E
Flow Units
30F
Flow at 4 mA
30G
Flow at 20 mA
30H
Units per Minute at Max Flow
30I
Pulses per Minute at Max Flow
30J
Units per Pulse
30K
Depth Sensor Type
30L
Depth Units
30M
Depth at 4 mA
30N
Depth at 20 mA
30O
31 Flow Protection
High Flow Trip Level
31A
Low Flow Trip Level
31B
Flow Start Delay
31C
Flow Response Delay
31D
32 Pressure Protection
High Pressure Trip Level
32A
High Pressure Start Delay
32B
High Pressure Response Delay
32C
EMX4e User Manual (710-18433-00C)
56 |
4
Default Setting
0
Disable
0
50%
80%
100 ms
Model dependent
1 minute
Auto-detect
Disable
None
kPa
0
0
None
litres/second
0
0
0
0
0
None
metres
0
0
10
5
00:00:500 (mm:ss:ms)
00:00:500 (mm:ss:ms)
10
00:00:500 (mm:ss:ms)
00:00:500 (mm:ss:ms)
