- Page 1 RST410 Gateway configuration guide...
-
Page 2: Table Of Contents
Contents Overview Configuration Serial Port I/O PIN Manual acknowledgement of duress Configuration command Wiring diagram ACK line handling RST410 Gateway configuration guide... -
Page 3: Overview

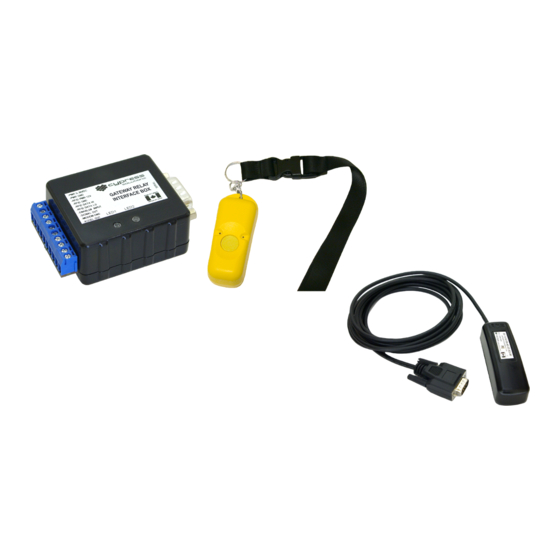

Overview This document is designed to explain the configuration and implementation of the manual acknowledgment of the duress alarm. In normal condition, RST410 uses the auto acknowledgment method for duress. When the duress is triggered from the Pendent, the gateway will send an auto response to the Pendent to give user acknowledgment of the duress. However it is possible to configure the gateway to provide acknowledgment to Pendent only upon external input. This document explains the commands and wiring to use the manual acknowledgment method. www.beamcommunications.com... -
Page 4: Configuration
Configuration The Gateway supports AT style commands (AT^) for configuration. These commands can be entered using a windows terminal program such as HyperTerminal®. A “null-modem” cable is required to enable communications between a PC/laptop and the Gateway. In order to save the configuration, AT&W command must be used. Configuration will be lost after a power cycle if the configuration is not saved Serial Port I/O PIN Null modem I/O PIN configuration DB9 Pin Signal Name Direction Data Carrier Detect Serial Modem Gateway Received Data (by DTE) Serial Modem Gateway Transmitted Data (by DTE) Gateway Serial Modem Data Terminal Ready Gateway Serial Modem Signal Ground Data Set Ready Serial Modem Gateway Request To Send Gateway Serial Modem Clear To Send Serial Modem Gateway + 3.9 V Serial Modem Gateway RST410 Gateway configuration guide... -
Page 5: Manual Acknowledgement Of Duress
Manual acknowledgement of duress When using manual acknowledgment, ACK line on gateway relay interface is used to detect and provide acknowledgement back to pendent. Configuration commands Step # Command Description AT^DTRAUTOACK=n When PANIC is received, ACK line 102 is used to detect acknowledgement AT^DTRPANICTIMEOUT=n If this timeout is set, panic Where n is the number of seconds indicating state of the Gateway (0-65535) n=0 disables the timeout will be reset automatically if default value is 60 no communication is detected from the panic state triggering Man Down Pendant. AT&W Save settings Wiring diagram for Gateway Relay Interface DB9 Pin Signal Name Direction Power supply Input 5-26V Power Ground Panic Acknowledgement input PANIC IN Common contact for PANIC state controlled relay PANIC OUT NC Normally closed contact for PANIC state controlled relay #Sleep Sleep Input. Pull to VIN to keep avoid unit going to low power mode... -
Page 6: Ack Line Handling
Power Connector Communication Man-down Pendant Device Gateway Connector Loop OUT Panic IN Not in use Loop IN Panic Out Not in use Not in use Not in use # Sleep ACK line handling ACK line must be supplied with +3V in normal operation. In order to acknowledge the PANIC, the ACK input needs to be pulled negative to below -3V. Operation mode ACK line Normal mode Panic acknowledgement RST410 Gateway configuration guide... - Page 7 Panic Generation Sequence Diagram User initiates a “PANIC” alert by pressing and holding (for >3 seconds) the panic button until both LED’s blink green and orange Pendant sends “Panic alert” to the Gateway Gateway receives the “Panic alert” from the Pendant Gateway Relay Interface breaks the loop The outputs of the Relay External Interface’s relay change Equipment states www.beamcommunications.com...
- Page 8 Panic Acknowledgement Sequence Diagram User initiates a “PANIC” alert by pressing and holding Pendant receives “ACK” (for >3 seconds) the panic message, and clears its button until both LED’s panic state blink green and orange Pendant sends “Panic alert” to the Gateway “ACK” message Gateway receives the “Panic Gateway communicates alert” from the Pendant with the pendant The signal is forwarded to Gateway Relay Interface the Gateway breaks the loop The outputs of the Relay External External equipment drives Interface’s relay change Equipment “ACK” line (102) to low states (negetive - 3V) RST410 Gateway configuration guide...
- Page 9 This page has been left blank intentionally www.beamcommunications.com...
- Page 10 This page has been left blank intentionally RST410 Gateway configuration guide...
- Page 11 This page has been left blank intentionally www.beamcommunications.com...
- Page 12 GLOBAL HEAD OFFICE 8 Anzed Court Mulgrave, Victoria, Australia, 3170 Tel: +61 3 8588 4500 | Fax: +61 3 9560 9055 AMERICAS Tel: +1 954 376 5062 EUROPE Tel: +44 208 144 1405 | Fax: +44 208 289 3542 Sales | sales@beamcommunications.com General | info@beamcommunications.com Support | support@beamcommunications.com www.beamcommunications.com...
