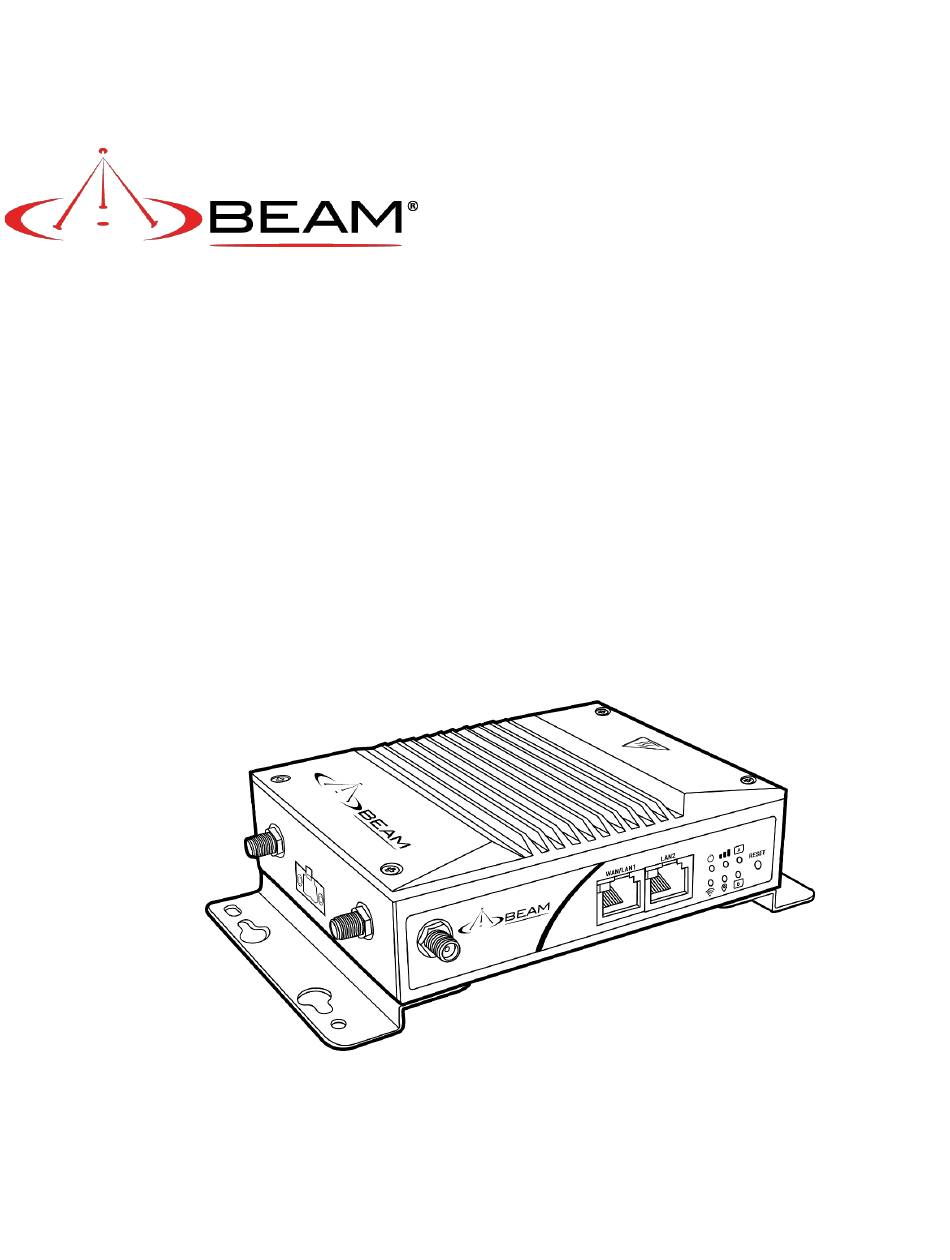

Page 1 MG200 LTE Gateway User Manual...
Page 2 In such areas, the MG200 needs to be powered off. For vehicle capplications, do not place or install the MG200 in the area near or over an air bag or in the air bag deployment area. Mount the MG200 safely before driving your vehicle. Connection to the vehicle electrical system should be carried out by trained professional only.
Page 4 MG200 USER MANUAL Document history This manual covers the following product: Beam MG200 LTE Gateway REVISION CHANGE DESCRIPTION DATE MG200 User Manual SEP 2019 Specifications are subject to change without notice. Images shown may vary slightly from the actual product.
Page 5: Table Of Contents
1.3.2.3 Inserting the SIM cards ..........................19 1.3.2.4 Connecting terminal block ........................19 1.3.2.5 Connecting Ethernet ports ........................19 1.4 Connecting PC to MG200 ..............................19 1.4.1 Connecting via Wi-Fi ............................19 1.4.2 Connecting via Ethernet cable ........................19 1.4.3 Accessing the web GUI........................... 19...
Page 6 MG200 USER MANUAL 2. Status ........................................25 2.1 Dashboard ....................................25 2.2 Network......................................27 2.2.1 WAN & Uplink ..............................27 2.2.2 LAN & VLAN ............................... 33 2.2.3 Wi-Fi ..................................33 2.2.4 DDNS ..................................36 2.3 Security ......................................37 2.3.1 VPN..................................37 2.3.2 Firewall ...................................
Page 7 MG200 USER MANUAL 3. Network ......................................52 3.1 WAN & Uplink ................................... 52 3.1.1 Physical Interface .............................. 52 3.1.2 Connection Setup ............................. 53 3.1.2.1 3G/4G WAN Connection Setup ......................53 3.1.2.2 Ethernet WAN Connection Setup ......................65 3.1.2.2.1 Static IP ................................66 3.1.2.2.2 Dynamic IP ..............................
Page 8 MG200 USER MANUAL 3.6 Routing ....................................... 123 3.6.1 Static Routing ..............................123 3.6.2 Dynamic Routing............................. 125 3.6.3 Routing Information ............................130 3.7 DNS & DDNS ................................... 133 4. User Rule ...................................... 136 4.1 Scheduling ....................................136 4.2 Grouping ....................................138 4.3 External Servers ..................................
Page 9 MG200 USER MANUAL 5.2 Firewall ......................................190 5.2.1 Packet Filters ..............................190 5.2.2 URL Blocking ..............................194 5.2.3 MAC Control ..............................197 5.2.4 IPS ..................................199 5.2.5 Options ................................202 5.3 Authentication ..................................204 5.3.1 Hotspot Services ............................. 204 6. Service ......................................207 6.1 Cellular Toolkit..................................
Page 10 7.4.2 Diagnostic Tools .............................. 278 Appendix ......................................280 Appendix A – GPL Written Offer ......................... 280 Appendix B – Product handling .......................... 288 Appendix C – BEAM Warranty Terms and Conditions ................290 Appendix D – Compliance ............................. 291 10 of 269 2019 BEAM...
Page 11: Overview
MG200 USER MANUAL Overview This manual provides the information users need to set up, configure, and operate the MG200. Target readers This document is intended for system integrators and experienced hardware installers who understand telecommunications and networking terminology. 11 of 269 2019 BEAM ©...
Page 12: Introduction
1 x fused DC power cable 2 x Mounting bracket 4 x Bracket screw 4 x Rubber feet 1 x Din Rail bracket with screws 1 x Quick Start Guide 1 x Spare MG200 label 12 of 269 2019 BEAM ©...
Page 13: Mg200 Overview
Connect RJ45 cable for LAN connection. Status LED Indicates MG200 status. RESET button Rest the MG200 to factory default settings by holding the reset button down for 6 seconds then release. Power OFF: MG200 is powered off. ON: MG200 is powered on by power source.
Page 15: Side Panel
MG200 USER MANUAL 1.2.2 Side panel Right Description Notes LTE antenna Connect LTE antenna. (AUX) port DC power Connect 2PIN Terminal block. source LTE antenna Connect LTE antenna. If only one antenna being used, ensure it is connected to (Main) port this port.
Page 16: Bottom Panel
MG200 USER MANUAL 1.2.3 Bottom panel Description Notes Positions for Stick rubber feets, or screw mounting brackets. rubber feet or screws Cover for SIM Protect 2x SIM card slots and 1x SD card slot. card slots and SD card slot.
Page 17: Installation
- The MG200 can be powered by the AC power adapter shipped with the MG200, or 12Vdc / 24Vdc vehicle power. - The top cover / heatsink of the MG200 can be hot in operation. Before servicing, power OFF the MG200, and leave it for a while to cool down.
Page 19: Inserting The Sim Cards
Step 3: Screw the SIM cover back to its original position. 1.3.2.4 Connecting terminal block The MG200 accepts DC input power in the range of 9V to 36V. Follow the image below for the correct polarity. Following table showing the PIN definitions and specifications...
Page 20 Enter the: Default Username: admin Default Password: admin To log out the MG200, click top right Upon your first login, the 1 page is the Setup Wizard page. You can use the Setup Wizard to configure the Administrator password, Time Zone, Wi-Fi SSID & password, APN settings. Click Next for the next page.
Page 21 MG200 USER MANUAL On the Administrator Password page, type in a new password for MG200 login. Then click Next for the next page. 21 of 269 2019 BEAM ©...
Page 22 MG200 USER MANUAL The Time Zone page have the option to select Time Zone. Manual time zone setting is available down the bottom of drop-down list. Click Next for the next page. The Wi-Fi Module One page is for the 2.4HGz Wi-Fi Module 1. Click Next for the next page.
Page 23 MG200 USER MANUAL On the APN Setting page, for each SIM card there are 2x options. One option is Telstra with APN automatically filled. The other option is Manual, where the APN needs to be manually typed in. Click Next for the next page.
Page 24 MG200 USER MANUAL Check the settings in the Setup Summary page. Click Apply to confirm settings. The MG200 will then reboot. After the reboot is complete, the Dashborad page will be shown after login. 24 of 269 2019 BEAM ©...
Page 25: Status
Navigate to the Status -> Dashboard tab. The Dashboard page shows system information & history, and the Network Interface status. The System Information window shows the MG200 Up-time and the resource utilization for the CPU, Memory, and Connection Sessions. The Network Interface Status window shows statistic information for each network interface of the MG200. The statistic information includes the Interface Type, Upload Traffic, Download Traffic, and Current Upload / Download Traffic.
Page 27: Network
Displays the Subnet Mask for public IP address obtained from System generated. your ISP for Internet connection. Default setting is 0.0.0.0 if left Subnet Mask unconfigured. Displays the MG200 IP address obtained from your ISP for System generated. Internet connection. Default setting is 0.0.0.0 if left MG200 unconfigured.
Page 28 MG200 USER MANUAL This area provides functional buttons. Renew button allows you to force the MG200 to request an IP address from the DHCP server. Note: Renew button is available when DHCP WAN Type is used and WAN connection is disconnected.
Page 29 LAN Interface Network Status window shows IPv4 and IPv6 information of LAN network. LAN Interface Network Status Item Value setting Description Displays the current IPv4 IP Address of the MG200. System data. This is also the IP Address you use to access Router’s Web-based IPv4 Address Utility.
Page 30 MG200 USER MANUAL The 3G/4G Modem Status List show the interface, card information, link status, signal strength and network name. Click the Detail button for more information. 3G/4G Modem Status List Item Value setting Description Physical System data. Displays the type of WAN physical interface.
Page 32 Displays the downstream packets (Mb). It is reset when the System data. MG200 is rebooted. Packets (Mb) Transmitted Displays the upstream packets (Mb). It is reset when the MG200 is System data. rebooted. Packets (Mb) Click the Reset button to clear the entire statistic and reset Action Buttons.
Page 33: Lan & Vlan
Navigate to the Status > Network > LAN & VLAN tab. The Client List shows the LAN Interface, IP address, Host Name, MAC Address, and Remaining Lease Time of each MG200 that is connected to the MG200. LAN Client List...
Page 34 MG200 USER MANUAL Displays the Wi-Fi Operation Band (2.4G) of VAP. Op. Band System data. Displays the ID of VAP. System data. System data. Displays whether the VAP wireless signal is enabled or disabled. Wi-Fi Enable The Wi-Fi Operation Mode of VAP. It can be AP Router, WDS Only Op.
Page 35 MG200 USER MANUAL Click the Reset button to clear the entire statistic and reset counter Button. Action to 0. 35 of 269 2019 BEAM ©...
Page 36: Ddns
Effective IP System data. Displays the public IP address of the MG200. Last Update Displays whether the last update of the MG200 public IP address to System data. the DDNS server has been successful (Ok) or failed (Fail). Status Last Update Displays time stamp of the last update of public IP address to the System data.
Page 37: Security
MG200 USER MANUAL 2.3 Security 2.3.1 VPN Navigate to the Status > Security > VPN tab. The VPN page shows status of all the VPN technologies, including IPSec Tunnel, OpenVPN Server, OpenVPN Client, L2TP Server, L2YP Client, PPTP Server and PPTP Client.
Page 38 MG200 USER MANUAL Conn. Time System data. Displays the connection time for the corresponding OpenVPN tunnel. Status System data. Displays the connection status of the corresponding OpenVPN tunnel. The status can be Connected or Disconnected. OpenVPN Client Status Item Value setting...
Page 39 Default connect to the L2TP server –the default MG200. Or another MG200/Remote System data. specified subnet if the MG200 is not used to connect to the Subnet L2TP server –the remote subnet. System data. Displays the connection time for the L2TP tunnel.
Page 40 MG200 USER MANUAL Displays the public IP address (the WAN IP address) of the System data. Remote IP connected PPTP client. Remote Virtual IP System data. Displays the IP address assigned to the connected PPTP client. Remote Call ID System data.
Page 41 Description System data. Displays Name for the PPTP Client. Client Name Displays the WAN interface with which the MG200 will use to Interface System data. request PPTP tunneling connection to the PPTP server. Displays the IP address assigned by Virtual IP server of PPTP Virtual IP System data.
Page 42: Firewall
The Firewall page shows firewall status, including Packet Filters, URL Blocking, Web Content Filters, MAC Control, Application Filters, IPS and Options. The display will refresh automatically on every five seconds. The Packet Filters window shows the packet filter applied to the MG200, including the filter rule, IP addresses, date and time information.
Page 44 MG200 USER MANUAL The Web Content Filter Status window shows the filters rules based on web content. Web Content Filter Status Item Value setting Description Activated System data. Logged packet of the rule name. String format. Filter Rule Detected System data.
Page 45 MG200 USER MANUAL Application Filters shows the application filter status. Application Filters Status Item Value setting Description Filtered Application System data. The name of the Application Category being blocked. Category Filtered System data. The name of the Application being blocked.
Page 46 MG200 USER MANUAL Options window shows the Firewall Options that are applied to the MG200. Firewall Options Status Item Value setting Description Enable or Disable setting status of Stealth Mode on Firewall System data. Options. Stealth Mode String Format: Disable or Enable Enable or Disable setting status of SPI on Firewall Options.
Page 47: Administration
MG200 USER MANUAL 2.4 Administration 2.4.1 Remote Management Navigate to the Status > Administration > Remote Management tab. The Remote Management page shows the status for managing remote network MG200s. The type of management available are SNMP and TR-069. The display will refresh automatically every five seconds.
Page 48: Log Storage
TR-068 server or Off when disconnected. 2.4.2 Log Storage Navigate to the Status > Administration > Log Storage tab. Log Storage Status window shows the status of current the selected MG200 storage. The status includes MG200 Description, Usage, File System, Speed, and status. 2.4.3 GNSS Navigate to the Status >...
Page 49: Usage
MG200 USER MANUAL 2.5 Usage 2.5.1 Connection Records Navigate to the Status > Usage > Connection Records tab. The Connection Records window shows the connections records to from LAN IP to WAN IP. Internet Surfing Statistic Item Value setting Description Click the Previous button;...
Page 50: Login Info
MG200 USER MANUAL 2.5.2 Login Info Navigate to the Status > Usage > Login Info tab. The Login Info page shows the administrator login records. MG200 Manager Login Statistic Item Value setting Description Click the Previous button; you will see the previous page of login...
Page 51: Cellular Signal
MG200 USER MANUAL 2.5.4 Cellular Signal Navigate to the Status > Statistics & Reports > Cellular Signal tab. The Cellular Signal window shows the records of the cellular signal during a period of time. 51 of 269 2019 BEAM ©...
Page 52: Network
MG200 USER MANUAL 3. Network 3.1 WAN & Uplink 3.1.1 Physical Interface Navigate to the Network > WAN & Uplink > Physical Interface tab. The Physical Interface List window shows the configuration on the physical interface and provides the Edit button.
Page 53: Connection Setup
MG200 USER MANUAL Select Failover to make this WAN a Failover WAN when the primary or the secondary WAN link failed. Then select the first or second WAN interface to failover from. Note: for WAN-1, only Always on option is available.
Page 54 It can get data connection instantly and receive managing SMS all the time on required. If you enable the Auto Flight Mode, the MG200 will pop up a message “Flight mode will cause cellular function to be Auto Flight Mode Disabled by default.
Page 55 MG200 USER MANUAL Note: Keep it unchecked unless your cellular ISP asks the connected MG200 to enable the Auto Flight Mode. The Policy Setting pop up window provides the settings on Failed connection times, RSSI Monitor, Network Service signal loss time and Roaming Service timeout.
Page 56 MG200 USER MANUAL Connection with SIM-A/-B Card Item Value setting Description Select Auto to register a network automatically, regardless of Mandatory field. the network type. Network Type Default Select 3G only to register the 3G network only. setting: Auto. Select LTE only to register the LTE network only.
Page 57 When Auto is selected, it means it will authenticate with the server either PAP or CHAP. When Dynamic IP is selected, it means it will get all IP configurations from the carrier’s server and set to the MG200 directly. If you have specific application provided by the carrier, and Mandatory field.
Page 58 MG200 USER MANUAL may get issues. Optional field. Enter the IP address to change the primary DNS (Domain Primary DNS String format: IP Name Server) setting. If it is not filled-in, the server address is address (IPv4 type). given by the carrier while dialing-up.
Page 59 Password text. configuration is selected. When Dynamic IP is selected, it means it will get all IP configurations from the carrier’s server and set to the MG200 directly. If you have specific application provided by the carrier, and Mandatory field.
Page 60 Roaming Disabled by default. Note: It may cost additional charges if the connection is under roaming. The SIM-A APN Profile List shows the APN Profiles that have been applied to the MG200. SIM-A/-B APN Profile Configuration Item Value setting Description Default setting: Enter the profile name you want to describe for this profile.
Page 61 MG200 USER MANUAL Mandatory field. Enter the IP type of the network service provided by your IP Type Default setting: IPv4. 3G/4G network. It can be IPv4, IPv6, or IPv4/6. String format: any Enter the Account you want to use for the authentication.
Page 62 MTU refers to Maximum Transmission Unit. It specifies the largest packet size permitted for Internet transmission. Value Range: 1200 - 1500. When Enable box is checked, it means the MG200 will directly assign the WAN IP to the first connected local LAN client. Disabled by default.
Page 63 DNS Query or ICMP checking packets. Check the Enable box to activate the loading check function. Optional field. Enable Loading Check allows the MG200 to ignore Loading Check Box is checked by unreturned DNS queries or ICMP requests when WAN default.
Page 64 Default setting: DNS2: set the secondary DNS to be the target. DNS1. MG200: set the Current MG200 to be the target. Other Host: enter an IP address to be the target. Target1 specifies the second target of sending DNS query/ICMP request.
Page 65: Ethernet Wan Connection Setup
MG200 USER MANUAL 3.1.2.2 Ethernet WAN Connection Setup To select WAN/LAN1 RJ45 port as the Ethernet WAN connection port, in Physical Interface configuration window, select Ethernet. Interface Configuration Item Value setting Description WAN-1 is the Select one expected interface from the available interface primary interface dropdown list.
Page 66: Static Ip
MG200 USER MANUAL The WAN Type drop-down list provides 5 WAN types: Static IP, Dynamic IP, PPPoE, PPTP and L2TP. Following the descriptions for those 5 WAN types: • Static IP: Select this option if ISP provides a fixed IP to you when you subscribe the service.
Page 67 WAN Subnet Enter the WAN subnet mask given by your Service Provider. Mandatory field. Mask Enter the WAN MG200 IP address given by your Service WAN MG200 Mandatory field. Provider. Enter the primary WAN DNS IP address given by your Service Primary DNS Mandatory field.
Page 68: Dynamic Ip
MG200 USER MANUAL 3.1.2.2.2 Dynamic IP Following the example of setting the Ethernet WAN type to Dynamic IP. Dynamic IP WAN Type Configuration Item Value setting Description Host Name Optional field Enter the host name provided by your Service Provider.
Page 69: Pppoe
MG200 USER MANUAL 3.1.2.2.3 PPPoE Following the example of setting the Ethernet WAN type to PPPoE. PPPoE WAN Type Configuration Item Value setting Description Enter the PPPoE User Name provided by your Service PPPoE Account Mandatory field. Provider. PPPoE Password Mandatory field.
Page 70: Pptp
IP address given by your Service Provider. WAN Subnet Mask (Mandatory field.): Enter the ◼ WAN subnet mask given by your Service Provider. WAN MG200 (Mandatory field.): Enter the WAN ◼ MG200 IP address given by your Service Provider. 70 of 269 2019 BEAM ©...
Page 71: L2Tp
MG200 USER MANUAL When Dynamic IP is selected, there are no above ⚫ settings required. Server IP Enter the PPTP server name or IP Address. Mandatory field. Address/Name PPTP Account Mandatory field. Enter the PPTP username provided by your Service Provider.
Page 72 WAN Subnet Mask (Mandatory field.): Enter the ◼ WAN subnet mask given by your Service Provider. WAN MG200 (Mandatory field.): Enter the WAN ◼ MG200 IP address given by your Service Provider. When Dynamic IP is selected, there are no above ⚫ settings required. Server IP Enter the L2TP server name or IP Address.
Page 73: Load Balance
MG200 USER MANUAL 2. Connect-on-demand. When data transfers between LAN and WAN, connection establishes. When traffic idle time reaches the value of preset maximum idle time, connection disconnect. 3. Manually. Connection and disconnection by manual control. Enter the service port that the Internet service.
Page 74 By Smart Weight With the By Smart Weight strategy, the MG200 will take the line speed settings of all WAN interfaces specified in Physical Interface configuration page as default ratio for data transfer. Based on the ratio of packet bytes passing different WAN interfaces in 5 minutes, the system will decide how many sessions will be transferred via each WAN interface for next period.
Page 75 MG200 USER MANUAL Click the Undo button to restore what you just configure back to Button. Undo the previous setting. 75 of 269 2019 BEAM ©...
Page 76 MG200 USER MANUAL By User Policy When the By User Policy strategy is selected, it allows you to mapping Source IP, Destination IP, or Destination Port to assigned WAN interface. The IP address can be a single IP, or a subnet or IP range. Destination port can be a single port or port range.
Page 77 MG200 USER MANUAL Input format is: xxx.xxx.xxx.xxx/xx e.g. 192.168.123.0/24. IP Range: Enter the IP Range for the traffics come from the IPs Single IP: Enter a unique IP Address for the traffics come from the IP. Input format is: xxx.xxx.xxx.xxx e.g. 192.168.123.101.
Page 78: Lan & Vlan
Value Range: 255.0.0.0 (/8) - 255.255.255.252 (/30). The MG200 provides the LAN IP alias function for some special management consideration. You can add additional LAN IP for the MG200, and access to the MG200 with the additional IP. 78 of 269 2019 BEAM ©...
Page 79 Default setting: Enter the addition IP address for the MG200. 192.168.123.254. Select the subnet mask for the MG200 from the dropdown list. Subnet mask defines how many clients are allowed in one network or subnet. The default subnet mask is 255.255.255.0 Mandatory field.
Page 80: Vlan
Navigate to the Network > LAN & VLAN > VLAN tab. The VLAN window provides the settings on VLAN. Two VLAN types can be set up in the MG200: Port-based VLAN and Tag-based VLAN. See following for the Port-based VLAN setting.
Page 81 MG200 USER MANUAL By clicking Add, you can add a Port-based VLAN rule. By clicking Edit, you can edit an existed rule. 81 of 269 2019 BEAM ©...
Page 82 MG200 USER MANUAL Port-based VLAN Configuration (part-I) Item Value setting Description Define the Name of this rule. It has a default text and cannot be Name Cannot be modified. modified. VLAN ID Mandatory field. Define the VLAN ID number, range is 1-4094.
Page 83 Disable: Select Disable to disable the DHCP Server function for the VLAN group. DHCP If you select Relay type of DHCP Server, assign a DHCP Server IP Server IP Address that the MG200 will relay the DHCP requests to the Address Mandatory field. assigned DHCP server. (for DHCP...
Page 84 Disable: Select Disable to disable the DHCP Server function for the VLAN group. DHCP If you select Relay type of DHCP Server, assign a DHCP Server IP Server IP Address that the MG200 will relay the DHCP requests to the Address Mandatory field. assigned DHCP server. (for DHCP...
Page 85 Define a period for an IP Address that the DHCP Server leases to Lease Time Mandatory field. a new MG200. By default, the lease time is 86400 seconds. Domain String format can be The Domain Name of this DHCP Server.
Page 86 By default, members in different VLAN IDs can’t access each Group Disabled by default. other. The MG200 supports up to 4 rules for Inter VLAN Group Routing Routing. For example, if ID_1 and ID_2 are checked, it means members in VLAN ID_1 can access members of VLAN ID_2, and vice versa.
Page 87 The Tag-based VLAN allows you to customize each LAN port according to VLAN ID. There is a default rule shows the configuration of all LAN ports and all VAPs. Also, if the MG200 has a DMZ port, you will see DMZ configuration, too.
Page 88 Item Value setting Description Assign an IP Address for the DHCP Server that the rule used, this IP Address Mandatory field. IP address is a MG200 IP. Subnet Default setting: Select a Subnet Mask for the DHCP Server. Mask 255.255.255.0(/24).
Page 90: Dhcp Server
MG200 on the local area network (LAN). The MG200 allows you to customize your DHCP Server Policy. If multiple LAN ports are available, you can define one policy for each LAN (or VLAN group), and it supports up to a maximum of 4 policy sets.
Page 91 MG200 USER MANUAL DHCP Server Configuration Item Value setting Description DHCP Enter text string. Enter the DHCP Server name. Enter a name that is easy for you to Server Mandatory field. understand. Name LAN IP IPv4 format. The LAN IP Address of this DHCP Server.
Page 92 Application Filter Configuration page. The MG200 allows you to create / edit mapping rule, customize your Mapping Rule List on DHCP Server. It supports up to a maximum of 64 rule sets. When Fix Mapping button is applied, the Mapping Rule List window will appear.
Page 93 [RFC 2132] Default World Wide Web Server [RFC 2132] [RFC 3679] The MG200 supports up to a maximum of 99 option settings. When Add/Edit button is applied, DHCP Server Option Configuration pop up window will appear. 93 of 269 2019 BEAM...
Page 94 MG200 USER MANUAL DHCP Server Option Configuration Item Value setting Description Option Enter text string. Enter the DHCP Server Option name. Enter a name that is easy for Name Mandatory field. you to understand. DHCP Dropdown list of all Server Choose the DHCP server this option should apply to.
Page 95 When the X button is clicked, the window will return to the Back Button. Application Filter Configuration page. The MG200 supports up to a maximum of 6 DHCP Relay configurations. When the Add/Edit button is clicked, the DHCP Relay Configuration pop up window will appear. 95 of 269 2019 BEAM...
Page 96 DHCP Relay function. It can be the available WAN interface(s), and Interface default. L2TP connection. Assign a DHCP Server IP Address that the MG200 will relay the Mandatory field. Server IP DHCP requests to the assigned DHCP server via specified WAN Default setting: null.
Page 97: Wi-Fi
MG200 USER MANUAL 3.3 Wi-Fi 3.3.1 Wi-Fi Module One Navigate to the Network > Wi-Fi > Wi-Fi Module One tab. For Wi-Fi module One, it is using 2.4GHz frequency for the Wi-Fi connection. Configuring Wi-Fi Settings Item Value setting Description Wi-Fi Module Enabled by default.
Page 98 If the dropdown list is empty, ensure Time Schedule is pre- configured. Refer to User Rule > Scheduling > Configuration tab. By default, VAP 1 is enabled and security key is required to connect to the MG200 wirelessly to enhance the security level and prevent unexpected access of un-authorized MG200s.
Page 99 MG200 USER MANUAL VAP Configuration Item Value setting Description Enter the SSID for the VAP, decide whether to broadcast the SSID or String format: Any not. SSID text The SSID is used for identifying from another AP, and client stations will associate with AP according to SSID.
Page 100 When Shared is selected The pre-shared WEP key should be set for authenticating. When Auto is selected The MG200 will select Open or Shared by requesting of client automatically. The check box named 802.1x shows up next to the dropdown list.
Page 101 TKIP / AES TKIP / AES mixed mode. It means that the client stations can associate with the MG200 via TKIP or AES. Enter a Pre-shared Key for it. The length of key is from 8 to 63 characters. VAP1: Enabled by Check the Enable box to activate this function.
Page 102 For the WDS Only mode, the MG200 only bridges the connected wired clients to another WDS-enabled Wi-Fi MG200 which the MG200 has associates with. It means no wireless clients can connect to the MG200 while WDS Only Mode is selected and enabled.
Page 103 MG200 USER MANUAL VAP Configuration Item Value setting Description Enter the SSID for the VAP, decide whether to broadcast the SSID or String format: Any not. SSID text. The SSID is used for identifying from another AP, and client stations will associate with AP according to SSID.
Page 104 MG200 USER MANUAL When Auto is selected The MG200 will select Open or Shared by requesting of client automatically. The check box named 802.1x shows up next to the dropdown list. ⚫ 802.1x (Disabled by default) When 802.1x is enabled, it means the client stations will be authenticated by RADIUS server.
Page 105 TKIP / AES TKIP / AES mixed mode. It means that the client stations can associate with the MG200 via TKIP or AES. Enter a Pre-shared Key for it. The length of key is from 8 to 63 characters. VAP1: Enabled by Check the Enable box to activate this function.
Page 106 MG200 USER MANUAL For the WDS Hybrid mode, the MG200 bridges all the wired LAN and WLAN clients to another WDS or WDS hybrid enabled Wi-Fi MG200s which the MG200 associates with. WDS Hybrid Mode Item Value setting Description Check the Enable box to activate this function.
Page 107 MG200 USER MANUAL VAP Configuration Item Value setting Description Enter the SSID for the VAP. Decide whether to broadcast the SSID or String format: Any not. SSID text. The SSID is used for identifying from another AP, and client stations will associate with AP according to SSID.
Page 108 MG200 USER MANUAL The pre-shared WEP key should be set for authenticating. When Auto is selected. The MG200 will select Open or Shared by requesting of client automatically. The check box named 802.1x shows up next to the dropdown list.
Page 109 TKIP / AES TKIP / AES mixed mode. It means that the client stations can associate with the MG200 via TKIP or AES. Enter a Pre-shared Key for it. The length of key is from 8 to 63 characters. VAP1: Enabled by Check the Enable box to activate this function.
Page 110: Wireless Client List
3.3.2 Wireless Client List Navigate to the Network > Wi-Fi > Wireless Client List tab. The Wireless Client List page shows the information of wireless clients which are associates with the MG200. Select Module One or Two from the following Target Wi-Fi window.
Page 111 It shows what kind of Wi-Fi system the client used to associate Mode System data. with the MG200. Rate System data. It shows the data rate between client and the MG200. RSSI0, RSSI1 System data. It shows the RX sensitivity (RSSI) value for each radio path. Signal System data.
Page 112: Advanced Configuration
Item Value setting Description This value is Regulatory It limits the available radio channel of the MG200. determined by the Domain The permissible channels depend on the Regulatory Domain. region of sale. It shows the time interval between each beacon packet Default setting: broadcasted.
Page 113: Ipv6
Button. setting before saving. 3.4 IPv6 The IPv6 page allows you to set the IPv6 connection type to access the IPv6 network. The MG200 supports various types of IPv6 connection on WAN-1, including DHCPv6. DHCPv6 DHCP in IPv6 does the same function as DHCP in IPv4. The DHCP server sends IP address, DNS server addresses and other possible data to the DHCP client to configure automatically.
Page 114 MG200 USER MANUAL IPv6 Configuration Item Value setting Description Disabled by IPv6 Check the Enable box to activate the IPv6 function. default. Define the selected IPv6 WAN Connection Type to establish the IPv6 connectivity via WAN-1 Interface. Mandatory field. Default setting:...
Page 115 MG200 USER MANUAL For the HCPv6 WAN Type Configuration, configuration can be set up via following window. DHCPv6 WAN Type Configuration Item Value setting Description Default setting: Select the [Specific DNS] option to active Primary DNS and From Server. Secondary DNS. Then fill the DNS information.
Page 116: Port Forwarding
MG200 USER MANUAL Then Navigate to Address Auto-configuration for setting LAN environment. If above setting is configured, click the Save button to save the configuration, and click the Reboot button to reboot the router. 3.5 Port Forwarding 3.5.1 Configuration Navigate to the Network > Port Forwarding > Configuration tab.
Page 117: Virtual Server & Virtual Pc
MG200 USER MANUAL 3.5.2 Virtual Server & Virtual PC Navigate to the Network > Port Forwarding > Virtual Server & Virtual PC tab. Enable Virtual Server / Virtual Computer in the following window. Configuration Item Value setting Description Check the Enable box to activate this port forwarding Virtual Server Disabled by default.
Page 118 MG200. If the packets to be filtered are coming from WAN-x, then select WAN-x for this field. Mandatory field. Select ALL for packets coming into the MG200 from any Default setting is ALL. Interface interface. It can be selected WAN-x box when WAN-x enabled.
Page 119 MG200 USER MANUAL & UDP. Apply Time Schedule to this rule, otherwise leave it as Always. (refer to Scheduling setting under User Rule) Then check Enable box to enable this rule. When “TCP” is selected. It means the option “Protocol” of packet filter rule is TCP.
Page 120 Back Button. Application Filter Configuration page. The MG200 allows you to customize your Virtual Computer rules. It supports up to a maximum of 20 rule-based Virtual Computer sets. When Add button is applied, Virtual Computer Rule Configuration window will appear.
Page 122: Dmz & Pass Through
NAT mechanism, you can indicate that LAN computer as a DMZ host to solve this problem. The DMZ function allows you to ask the MG200 pass through all normal packets to the DMZ host behind the NAT MG200 only when these packets are not expected to receive by applications in the MG200 or by other client hosts in the Intranet.
Page 123: Routing
IP address of peer MG200, the metric and the rule activation. The MG200 allows you to customize your static routing rules. It supports up to a maximum of 64 rule sets. When Add button is applied, Static Routing Rule Configuration window will appear, while the Edit button at the end of each static routing rule can allow you modify the rule.
Page 124 Enter the Subnet Mask of this static routing rule. 255.255.255.0 (/24). Mask IPv4 Format Enter the MG200 IP of this static routing rule. MG200 IP Mandatory field. Select the Interface of this static routing rule. It can be Auto, or Default setting: Auto.
Page 125: Dynamic Routing
Enter the WAN Subnet Prefix Length for the router. Length IPv6 Format. MG200 IP Enter the MG200 IP of this static routing rule. Mandatory field. Select the Interface of this static routing rule. It can be Auto, or Default setting: Auto.
Page 126 Open Shortest Path First (OSPF) is a routing protocol that uses link state routing algorithm. It is the most widely used interior MG200 protocol (IGP) in large enterprise networks. It gathers link state information from available routers and constructs a topology map of the network. The topology is presented as a routing table which routes datagrams based solely on the destination IP address.
Page 127 MG200 USER MANUAL RIPng Configuration Item Value setting Description RIPng Disabled by default. Check Enable to activate RIPng protocol. Enable OSPF Configuration The OSPF configuration setting allows you to enable OSPF protocol. OSPF Configuration Item Value setting Description OSPF Disabled by default.
Page 128 MG200 USER MANUAL When Add button is applied, OSPF Area Rule Configuration window will appear. OSPF Area Configuration Item Value setting Description Classless Inter Domain Routing (CIDR) Subnet Mask Area Subnet The Area Subnet of this router on OSPF Area List.
Page 129 MG200 USER MANUAL The BGP configuration setting allows you to enable BGP protocol. BGP Network Configuration Item Value setting Description Disabled by default. Check the Enable box to activate the BGP protocol. Numberic String The ASN Number of this router on BGP protocol.
Page 130: Routing Information
MG200 USER MANUAL The BGP Neighbour List allows you to add BGP Neighbour rules. It supports up to a maximum of 32 rule sets. When Add button is applied, BGP Neighbour Configuration window will appear. BGP Neighbour Configuration Item Value setting Description IPv4 Format.
Page 131 Routing record of Destination IP. IPv4 Format. Destination IP System data. Routing record of Subnet Mask. IPv4 Format. Subnet Mask System data. Routing record of MG200 IP. IPv4 Format. MG200 IP System data. Routing record of Metric. Numeric String Format. Metric Interface System data.
Page 132 MG200 USER MANUAL Policy Routing Information Item Value setting Description Policy Routing System data. Policy Routing of Source. String Format. Source System data. Policy Routing of Source IP. IPv4 or IPv6 Format. Source IP System data. Policy Routing of Destination IP. IPv4 or IPv6 Format.
Page 133: Dns & Ddns
DDNS Disabled by default. Check the Enable box to activate this function. Default setting: WAN Select the WAN Interface IP Address of the MG200. Interface DynDNS.org Select your DDNS provider of Dynamic DNS. It can be (Dynamic) is set by Provider DynDNS.org (Dynamic), DynDNS.org, NO-IP.com, etc.
Page 134 Check the Enable box to activate this function. Redirect If you enable the DNS Redirect function, you need to enter the redirect rules. According to the rules, the MG200 can redirect the traffic that matched the DNS to corresponding pre-defined IP address.
Page 135 MG200 USER MANUAL Always: The DNS redirect function can be applied to matched Always. DNS all the time. WAN Block: The DNS redirect function can be applied to matched DNS only when the WAN connection is disconnected, or un-reachable. Enter text string.
Page 136: User Rule
MG200 USER MANUAL 4. User Rule 4.1 Scheduling Navigate to the User Rule > Scheduling > Configuration tab. Button description Item Value setting Description Button. Click the Add button to configure time schedule rule. Button. Click the Delete button to delete selected rule(s).
Page 137 MG200 USER MANUAL Time Schedule Configuration Item Value Setting Description String: any text. Set rule name. Rule Name Inactivate/activate the function been applied to in the time period Rule Policy Default Inactivate. below. Time Period Definition Item Value Setting Description Select from menu.
Page 138: Grouping
MG200 USER MANUAL 4.2 Grouping Navigate to the User Rule > Grouping > Host Grouping tab. The Grouping function allows you to make group for some services, such as Firewall, and Communication Bus. When Add button is applied, Host Group Configuration window will pop up.
Page 139 MG200 USER MANUAL When Host Name-based is selected, only host name can be added in Member to Join. Add the members to the group in this field. You can enter the member information as specified in the Member System data.
Page 140: External Servers
MG200 USER MANUAL 4.3 External Servers Navigate to the User Rule > External Servers tab. The External Server page allows you to add external servers. When Add button is applied, External Server Configuration window will appear. External Server Configuration Item...
Page 141 When UAM Server is selected, the following settings are also required. Login URL (String format: any text) Shared Secret (String format: any text) NAS/MG200 ID (String format: any text) Location ID (String format: any text) Location Name (String format: any text) TACACS+ Server (Mandatory field.): When TACACS+ Server is selected, the following settings are also required.
Page 142 MG200 USER MANUAL Application (String format: any text, default setting: pkiclient.exe is filled.) FTP(SFTP) Server (Mandatory field.): When FTP(SFTP) Server is selected, the following settings are also required. Username (String format: any text) Password (String format: any text) Protocol (Select FTP or SFTP)
Page 143: Certificate
MG200 USER MANUAL 4.4 Certificate 4.4.1 Configuration Navigate to the User Rule > Certificate > Configuration tab. configuration setting allows create Root Certificate Authority (CA) enable Simple Certificate Enrolment Protocol (SCEP). The Root CA can be generated in the Root CA window.
Page 144: My Certificate
MG200 USER MANUAL Digest Algorithm to set identifier in the signature algorithm identifier of certificates This field is to enter the information of certificate. Country (C) is the two-letter ISO code for the country where your organization is located. State (ST) is the state where your organization is located.
Page 145 MG200 USER MANUAL The Local Certificate List shows all generated certificates by the root CA for the MG200. And it also stores the generated Certificate Signing Requests (CSR) which will be signed by other external CAs. The signed certificates can be imported as the local ones of the MG200.
Page 146 MG200 USER MANUAL Subject Mandatory field. This field is to enter the information of certificate. Name Country (C) is the two-letter ISO code for the country where your organization is located. State (ST) is the state where your organization is located.
Page 147: Trusted Certificate
Description Import Mandatory field. Select a certificate file from your computer and click the Apply button to import the specified certificate file to the MG200. Enter text string. This is an alternative approach to import a certificate. Encoded Mandatory field.
Page 148 Mandatory field. You can directly fill in (Copy and Paste) the PEM encoded CA certificate string, and click the Apply button to import the specified CA certificate to the MG200. Apply Button. Click the Apply button to import the certificate.
Page 149 MG200 USER MANUAL Get CA Configuration Item Value setting Description SCEP Server Mandatory field. Select a SCEP Server to identify the SCEP server for use. The server detailed information could be specified in External Servers. Refer to User Rule > External Server > External Server. You may click Add Object button to generate.
Page 150 Import from Mandatory field. Select a certificate file from your computer and click the Apply a File button to import the specified certificate file to the MG200. Import from Enter text string. This is an alternative approach to import a certificate.
Page 151: Issued Certificate
Navigate to the User Rule > Certificate > Issued Certificate tab. When you have a Certificate Signing Request (CSR) that needs to be certificated by the root CA of the MG200, you can issue the request via Issued Certificate page and allow Root CA sign it. There are two approaches to issue a certificate.
Page 152 MG200 USER MANUAL If the MG200 signs a CSR successfully, the "Signed Certificate View" window will show the resulted certificate contents. In addition, a "Download" button is available for you to download the certificate to a file in the managing PC.
Page 153: Security
There are four scenarios: Site to Site: You need to setup remote MG200 IP and subnet of MG200 at each site. After the IPSec tunnel established, hosts which connect to both MG200s can communicate with each other through the tunnel.
Page 154 MG200 USER MANUAL Tunnel Configuration Window Item Value setting Description Disabled by Tunnel Check the Enable box to activate the Dynamic IPSec VPN tunnel. default. Mandatory field. Enter a tunnel name. Enter a name that is easy for you to identify.
Page 155 MG200 USER MANUAL When the X button is clicked, the window will return to the Button. Back Application Filter Configuration page. Local & Remote Configuration Window Item Value setting Description Mandatory field. Enter the Local Subnet IP address. Local Subnet Mandatory field.
Page 156 Enter the X-Auth role for this IPSec tunnel. Select Server, Client, or None. Selected None no X-Auth authentication is required. Selected Server the MG200 will be an X-Auth server. Click on the Default setting: X-Auth Account button to create remote X-Auth client account.
Page 157 MG200 USER MANUAL Check Enable box to enable this setting When the X button is clicked, the window will return to the Button. Back Application Filter Configuration page. IPSec tunnel can be added via the IPSec Tunnel List window. When Add/Edit button is applied, a series of configuration windows will appear. They are Tunnel Configuration, Local &...
Page 158 MG200 USER MANUAL Mandatory field. Select the interface on which IPSec tunnel is to be established. It Default setting: Interface can be the available WAN and LAN interfaces. WAN 1. Select an IPSec tunneling scenario from the dropdown box for your application.
Page 159 Click the Add or Delete button to add or delete Remote Subnet List setting. Mandatory field. Format can be a Enter the Remote MG200. Remote MG200 ipv4 address or FQDN. When the X button is clicked, the window will return to the Button.
Page 160 MG200 USER MANUAL Enter the Local ID for this IPSec tunnel to authenticate. Select Username for Local ID and enter the username. The username may include but can’t be all numbers. Optional field Select FQDN for Local ID and enter the FQDN.
Page 161: Openvpn
MG200 USER MANUAL IPSec Proposal Definition Window Item Value setting Description Enter the Encryption method. It can be DES / 3DES / AES-128 / AES-192 / AES-256. Note: None is available when Encapsulation Protocol is set as AH. Enter the Authentication method. It can be None / MD5 / SHA1 / SHA2-256.
Page 162 IP tunnel (TUN), or a layer-2 based Ethernet TAP that can carry any type of Ethernet traffic. In addition to configuring the MG200 as a Server or Client, you need to enter which type of OpenVPN connection scenario is to be adopted.
Page 163 MG200 USER MANUAL Configuration Item Value setting Description OpenVPN Disabled by default. Check the Enable box to activate the OpenVPN function. Server/ Default setting: When Server is selected, as the name indicated, server Client Server Configuration. configuration will be displayed below for further setup.
Page 164 MG200 USER MANUAL OpenVPN Server Configuration Item Value setting Description OpenVPN Disabled by default. Click the Enable to activate OpenVPN Server functions. Server 164 of 269 2019 BEAM ©...
Page 165 MG200 USER MANUAL Protocol Mandatory field. Define the selected Protocol for connecting to the OpenVPN Default setting: TCP. Server. • Select TCP, or UDP -> The TCP protocol will be used to access the OpenVPN Server, and Port will be set as 4430 automatically.
Page 166 Mandatory field. Enter the MG200 setting for the OpenVPN server. It will be assigned to the connected OpenVPN clients. Note: MG200 will be available only when TAP is chosen in Tunnel MG200, and DHCP-Proxy Mode is unchecked (disabled). Netmask Default setting: Enter the Netmask setting for the OpenVPN server.
Page 167 MG200 USER MANUAL When the Edit button in Advanced Configuration is clicked, an OpenVPN Server Advanced Configuration window will appear. OpenVPN Server Advanced Configuration Item Value setting Description TLS Cipher Mandatory field. Enter the TLS Cipher from the dropdown list.
Page 168 MG200 USER MANUAL Duplicate CN Enabled by default. Check the Enable box to activate the Duplicate CN function. Note: Duplicate CN will be available only when TLS is chosen in Authorization Mode Tunnel MTU Mandatory field. Enter the Tunnel MTU.
Page 169 MG200 USER MANUAL If you enabled this function, you can’t add any OpenVPN clients manually. When Add button is clicked, OpenVPN Client Configuration window will pop up. It allows you to enter the required parameters for setting up an OpenVPN VPN client.
Page 170 MG200 USER MANUAL OpenVPN Client Mandatory field. The OpenVPN Client Name will be used to identify the client in Name the tunnel list. Value Range: 1 - 32 characters. Interface Mandatory field. Define the physical interface to be used for this OpenVPN Client Default setting: tunnel.
Page 171 MG200 USER MANUAL • Static Key ->The OpenVPN will use static key authorization mode, and the following items Local Endpoint IP Address, Remote Endpoint IP Address and Static Key will be displayed. Local Endpoint Mandatory field. Enter the virtual Local Endpoint IP Address of this OpenVPN IP Address MG200.
Page 172 MG200 USER MANUAL OpenVPN Advanced Client Configuration Item Value setting Description TLS Cipher Mandatory field. Enter the TLS Cipher from the dropdown list. TLS-RSA-WITH- It can be None / TLS-RSA-WITH-RC4-MD5 / TLS-RSA-WITH- AES128-SHA is AES128-SHA / TLS-RSA-WITH-AES256-SHA / TLS-DHE-DSS- selected by default.
Page 173 MG200 USER MANUAL Authorization Mode. Password Optional field. Enter the Password for connecting to an OpenVPN server, if the server required it. Note: Username will be available only when TLS is chosen in Authorization Mode. Bridge TAP to Default setting: Enter the setting of “Bridge TAP to”...
Page 175: L2Tp
Layer 2 Tunneling Protocol (L2TP) is a tunnelling protocol used to support virtual private networks (VPNs) or as part of the delivery of services by ISPs. The MG200 can behave as a L2TP server and a L2TP client both at the same time.
Page 177 MG200 USER MANUAL L2TP Server Configuration Item Value setting Description Disabled by When click the Enable box. L2TP Server default. It will active L2TP server. Mandatory field. Select the interface on which L2TP tunnel is to be established. It Interface Default setting: All can be the available WAN interfaces.
Page 178 When Client is selected, L2TP Client Configuration window will appear. L2TP Client Configuration Item Setting Value setting Description Disabled by Check the Enable box to enable L2TP client role of the MG200. L2TP Client 178 of 269 2019 BEAM ©...
Page 179 MG200 USER MANUAL default. L2TP Client can be added via following L2TP Client List & Status window. When Add/Edit button is applied, a series of configuration windows will appear. You can add up to 8 Clients. L2TP Client Configuration Item Setting...
Page 180 Remote Subnet If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default MG200 setting for the L2TP client peer, all packets, including the Internet accessing of L2TP Client peer, will go through the established L2TP VPN tunnel. That means the remote L2TP VPN server controls the flow of any packets from the L2TP client peer.
Page 181: Pptp
There are various levels of authentication and encryption for PPTP tunnelling, usually natively as standard features of the Windows PPTP stack. The security MG200 can play either "PPTP Server" role or "PPTP Client" role in a PPTP VPN tunnel, or both at the same time for different tunnels.
Page 182 Disabled by PPTP Click the Enable box to activate PPTP function. default. Enter the role of PPTP. Select Server or Client role your MG200 Mandatory field. will take. Below are the configuration windows for PPTP Server Client/Server and for Client.
Page 183 Description This is the PPTP authentication user account entry. You can create and add accounts for remote clients to establish PPTP VPN connection to the MG200. Click Add button to add your account. Enter Username and User Account Maximum of 10 password.
Page 184 Description Disabled by PPTP Client Check the Enable box to enable PPTP client role of the MG200. default. PPTP Client can be added in PPTP Client List & Status window. When Add/Edit button is applied, a series PPTP Client Configuration will appear.
Page 185 MG200 USER MANUAL PPTP Client Configuration Window Item Value setting Description Mandatory field. Enter the tunnel name. Enter a name that is easy for you to identify. Tunnel Name Value Range: 1 - 32 characters. Mandatory field. Define the selected interface to be the used for this PPTP tunnel...
Page 186: Gre
Remote Subnet If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default MG200 setting for the PPTP client peer, all packets, including the Internet accessing of PPTP Client peer, will go through the established PPTP VPN tunnel. That means the remote PPTP VPN server controls the flow of any packets from the PPTP client peer.
Page 187 MG200 USER MANUAL Generic Routing Encapsulation (GRE) is a tunnelling protocol that encapsulates a wide variety of network layer protocols inside virtual point-to-point links over an Internet Protocol internetwork. To setup a GRE tunnel, each peer needs to setup its global IP as tunnel IP and fill in the other's global IP as remote IP.
Page 188 Enter the Remote IP address of remote GRE tunnel MG200. Remote IP Mandatory field. Normally this is the public IP address of the remote GRE MG200. MTU refers to Maximum Transmission Unit. It specifies the largest Mandatory field. packet size permitted for Internet transmission.
Page 189 If you entered 0.0.0.0/0 in the Remote Subnet field, it will be treated as a default MG200 setting for the GRE client peer, all packets, including the Internet accessing of GRE client peer, will go through the established GRE tunnel. That means the remote GRE server peer controls the flow of any packets from the GRE client peer.
Page 190: Firewall
Check the Enable box to activate Event Log. Log Alert Packet Filter Rules can be added in Packet Filter List window. The MG200 supports up to a maximum of 20 filter rule sets. When Add button is applied, Packet Filter Rule Configuration window will pop up.
Page 191 MG200 USER MANUAL Packet Filter Rule Configuration Item Name Value setting Description Enter a packet filter rule name. Enter a name that is easy for you Enter text string. Rule Name to remember. Mandatory field. Value Range: 1 - 30 characters.
Page 192 MG200 USER MANUAL Define the selected interface to be the packet-leaving interface of the router. If the packets to be filtered are entering from LAN to WAN, then select WAN for this field. Or VLAN-1 to WAN then Mandatory field.
Page 193 MG200 USER MANUAL Then for Destination Port, select a predefined port dropdown box when Well-known Service is selected, otherwise select User-defined Service and enter a port range. Value Range: 1 - 65535 for Source Port, Destination Port. For Protocol, select ICMPv4 to filter ICMPv4 packets...
Page 194: Url Blocking
Navigate to the Security > Firewall > URL Blocking tab. "URL Blocking" function allows you to define blocking or allowing rules for incoming and outgoing Web request packets. With defined rules, MG200 can control the Web requests containing the complete URL, partial domain name, or pre-defined keywords.
Page 195 Log Alert default. URL Blocking Rule can be added in following URL Blocking Rule List page. The MG200 supports up to a maximum of 20 URL blocking rule sets. When Add button is applied, the URL Blocking Rule Configuration window will pop up.
Page 196 MG200 USER MANUAL URL Blocking Rules Configuration Item Value setting Description Enter text string. Enter an URL Blocking rule name. Enter a name that is easy for you to Rule Name Mandatory field. understand. This field is to enter the Source IP address.
Page 197: Mac Control
Navigate to the Security > Firewall > MAC Control tab. "MAC Control" function allows you to assign the MG200 accessibility based on client MG200s MAC addresses. When the you want to reject the traffic from some client MG200s with specific MAC addresses, he can make use of the Blacklist configuration.
Page 198 MAC Address to the filter rule. List MAC Control Rules can be added in MAC Control Rule List. The MG200 supports up to a maximum of 20 filter rule sets. When Add button is applied, Filter Rule Configuration window will appear.
Page 199: Ips
MG200 USER MANUAL MAC Control Rule Configuration Item Value setting Description Enter text string. Enter a MAC Control rule name. Enter a name that is easy for you Rule Name Mandatory field. to remember. MAC Address string Address Format. Enter the Source MAC Address to filter rule.
Page 200 MG200 USER MANUAL Configuration Window Item Value setting Description Disabled by default. Check the Enable box to activate IPS function. Disabled by default. Check the Enable box to activate to activate Event Log. Log Alert The Intrusion Prevention window allows you to enable intrusion prevention rules.
Page 201 MG200 USER MANUAL Setup Intrusion Prevention Rules Item Name Value setting Description SYN Flood Click Enable box to activate this intrusion prevention rule and enter the traffic threshold in this field. Defense Mandatory field. Disabled by default. UDP Flood Click Enable box to activate this intrusion prevention Traffic threshold, default setting: rule and enter the traffic threshold in this field.
Page 202: Options
MG200 USER MANUAL 200. Block Land Attack Block Ping of Death Block IP Spoof Block TCP Click Enable box to activate this intrusion prevention Disabled by default. Flag Scan rule. Block Smurf Block Traceroute Block Fraggle Attack Mandatory field. Click Enable box to activate this intrusion prevention Disabled by default.
Page 203 MG200 USER MANUAL Enabled by default. Check the Enable box to activate the SPI function Discard Ping Check the Enable box to activate the Discard Ping from WAN Disabled by default. function from WAN Specific IP addresses can be assigned in the Remote Administrator Host Definition window.
Page 204: Authentication
Navigate to the Security > Authentication > Hotspot Services tab. The Hotspot Services function provides the Web Portal which asks guests or passengers to pass the authentication process before they can access the Internet via the MG200. Two options on the External Web Portal For external Web Portal, you need to enter external RADIUS (Remote Authentication Dial in User Service) server and external UAM (Universal Access Method) server.
Page 205 MG200 USER MANUAL Hotspot Services Configuration Item Value setting Description Hotspot Disabled by default. Check the Enable box to activate the Hotspot Services function. Services WAN Interface Mandatory field. Enter a WAN Interface for the authenticated clients or hosts. Default setting: All the traffics coming from the hosts will be directed to the WAN-1.
Page 206 The MAC(s) filled in this field can access Internet directly, instead of been re-direct to the login page. Walled- Optional setting. Enter the host IP(s) for the MG200 that will not be subjected to Garden Hosts the Hotspot Services authentication function. (Separated The IP(s) filled in this field can access Internet directly, instead of by ;)
Page 207: Service
Navigate to the Service > Cellular Toolkit > Data Limit tab. The MG200 can be configured to monitor cellular data usage and take actions if required. When data limit is configured, if data usage reaches limited quota, the MG200 can be set to drop the cellular data connection.
Page 208 MG200 USER MANUAL 3G/4G Data Limit Profile Configuration Item Setting Value setting Description SIM Select Default setting: Choose a cellular interface (3G/4G-1 or 3G/4G-2), and a SIM card 3G/4G-1 and SIM bound to the selected cellular interface to configure its data limit profile.
Page 209: Sms
MG200 USER MANUAL disconnect. Enable Disabled by Check the Enable box to activate the data limit profile. default. Save Button. Click the Save button to save changes. 6.1.2 SMS Navigate to the Service > Cellular Toolkit > SMS tab. You can send SMS text messages or browse received SMS messages.
Page 210 MG200 USER MANUAL SMS Summary window Shows the numbers of Unread SMS, Received SMS, Sent SMS, Remaining SMS, and provide the access to create new SMS, SMS Inbox and SMS Sent Folder. SMS Summary Item Value setting Description If SIM card insert to router first time, unread SMS value is zero. When System data.
Page 211 MG200 USER MANUAL This value record the number of outgoing SMS, when sent one SMS, System data. Sent SMS this value plus one. Remaining This value is SMS capacity minus received SMS, when received the System data. new SMS, this value minus one.
Page 212: Sim Pin
MG200 USER MANUAL SMS Inbox List Item Value setting Description System data. The number of SMS. From Phone System data. Sender List (Phone Number) for the received SMS. Number System data. What time the SMS is received. Timestamp SMS Text Preview the SMS text.
Page 213 MG200 USER MANUAL The MG200 allows you to activate and manage PIN code on a SIM card through its web GUI. 213 of 269 2019 BEAM ©...
Page 214 MG200 USER MANUAL With the Configuration window, it allows you to enable or disable SIM lock (which means protected by PIN code) or change PIN code. Configuration Window Item Value setting Description Physical Default setting: Choose a cellular interface (3G/4G-1 or 3G/4G-2) to change the Interface 3G/4G-1.
Page 215 MG200 USER MANUAL PUK Function Window Item Value setting Description PUK status PUK Unlock Indication for the PUK status. / PUK Lock. The status could be PUK Lock or PUK Unlock. As mentioned earlier, the SIM card will be locked by PUK code after too many trials of failure PIN code.
Page 216 MG200 USER MANUAL Item Setting Value setting Description SIM lock Depend on SIM card. Click the Enable button to activate the SIM lock function. For the first time you want to enable the SIM lock function, you need to fill in the PIN code as well, and then click Save button to apply the setting.
Page 217 MG200 USER MANUAL Connection with SIM-A / SIM-B. Otherwise, it may result in wrong SIM PIN trials with invalid (old) PIN code. 217 of 269 2019 BEAM ©...
Page 218: Ussd
MG200 USER MANUAL 6.1.4 USSD Navigate to the Service > Cellular Toolkit > USSD tab. Unstructured Supplementary Service Data (USSD) is a protocol used by GSM cellular telephones to communicate with the service provider's computers. USSD can be used for WAP browsing, prepaid call-back service, mobile- money services, location-based content services, menu-based information services, and as part of configuring the phone on the network.
Page 219 MG200 USER MANUAL USSD Profile Configuration Item Value setting Description Mandatory field. Enter a name for the USSD profile. Profile Name Enter the USSD command defined for the profile. Normally, it is a command string composed with numeric USSD Mandatory field.
Page 220: Network Scan
MG200 USER MANUAL 6.1.5 Network Scan Navigate to the Service > Cellular Toolkit > Network Scan tab. Configuration Item Value setting Description Physical Default setting: Choose a cellular interface (3G/4G-1 or 3G/4G-2) for the network 3G/4G-1. scan function. Interface Show the connected cellular service (identified with SIM_A or System information.
Page 221: Event Handling
The supported events are categorized into two groups: the managing events and notifying events. The managing events are the events that are used to manage the MG200 or change the setting / status of the specific functionality of the MG200. On receiving the managing event, the MG200 will act to change the functionality, collect the required status for administration, and change the status of a certain connected field bus MG200 simultaneously.
Page 222 SMS after Processing Setup the SMS Account for managing the MG200 through the SMS. It supports up to a maximum of 5 accounts. You can click the Add / Edit button to configure the SMS account. SMS Account Configuration...
Page 223 Click Enable box to active the SMS response function. confirmed Disabled by default. The MG200 will send a confirmed message back to the sender whenever it received a SMS managing event. The confirmed message is like following format: “MG200 received a SMS with command xxxxx.”...
Page 224 MG200 USER MANUAL Addresses format Mandatory field. Enable Disabled by default. Click Enable box to activate this account. Save Button. Click the Save button to save the configuration 224 of 269 2019 BEAM ©...
Page 225 MG200 USER MANUAL Setup the Remote Host Profile. It supports up to 10 profiles. You can click the Add / Edit button to configure the profile. Remote Host Configuration Item Value setting Description Host Name String format. Enter the Remote Host profile name.
Page 226: Managing Events
MG200 USER MANUAL Message Optional Setting. accessing the remote host, if required. Value Range: -1 - 64 characters. Enable Disabled by default. Click Enable box to activate this profile setting. Save Button. Click the Save button to save the configuration.
Page 227 MG200 USER MANUAL Managing Event Configuration Item Value setting Description Event Default setting: None. Enter the Event type (SMS, or SNMP Trap) and an event identifier / profile. Up to 3 event conditions can be specified for defining an event, and the event will be triggered when all the conditions hold simutaneously (AND relation).
Page 228 System Manage: Select System Manage Checkbox and the interested sub-items (WAN SSH Service On/Off, TR-069 On/Off), the MG200 will change the settings as the action for the event; Administration: Select Administration Checkbox and the interested sub-items (Backup Config, Restore Config, Reboot, Save Current Setting as Default), the MG200 will change the settings as the action for the event;...
Page 229: Notifying Events
MG200 USER MANUAL Managing Disabled by default. Click Enable box to activate this Managing Event setting. Event Save Button. Click the Save button to save the configuration. Undo Button. Click the Undo button to restore what you just configure back to the previous setting.
Page 230 MG200 USER MANUAL Notifying Event Configuration Item Value setting Description Event Default setting: None. Enter the Event type and corresponding event configuration. Up to 3 event conditions can be specified for defining an event, and the event will be triggered when all the conditions hold simutaneously (AND relation).
Page 231 Enter at least one action to take when the expected event is default. triggered. SMS: Select SMS, and the MG200 will send out a SMS to all the defined SMS accounts as the action for the event; Syslog: Select Syslog and select/unselect the Enable Checkbox to as the action for the event;...
Page 232: Location Tracking
Data to Storage Disabled by Enable (Disabled by default) ⚫ default. Check Enable box to activate data to storage function. Select MG200 (Mandatory field.) ⚫ Select Internal or External (SD card) to store log data. 232 of 269 2019 BEAM ©...
Page 233 MG200 USER MANUAL Interval (Mandatory field.) ⚫ Enter the time interval between two continuous data logs. By default, 5 second is set. Value Range:5 - 60 seconds. Data Format (Mandatory field.) ⚫ Select data format (RAW, or GPX) to store.
Page 234 Enter optional prefix string with specific information if your text. backend server can recognize. For example, you can input the IMEI code of the MG200 here, and then your backend server can recognize this GPS data is sent from the MG200. You can also leave this field blank.
Page 235: Track Viewer
MG200 USER MANUAL Suffix Message String format: any Enter optional suffix string with specific information if your text. backend server can recognize. Enable Disabled by Check Enable box to activate this remote host rule. default. Save Button. Click the Save button to save the configuration.
Page 236 When Current Track button is clicked, then the following window will appear. The bus icon indicates the current position of the MG200 (or the vehicle that equipped with the MG200). Current track is drawn from the time page was loaded to current time.
Page 237 MG200 USER MANUAL Show from GPX file Item Value setting Description From Mandatory field. Enter the storage where the GPX file located. It can be Internal or Internal is selected External, it depends on the storage setting in GNSS page.
Page 238 MG200 USER MANUAL Default setting: 5. Minimum Mandatory field. Set the minimum distance between two continuous points. Range Distance Default setting: 10. is from 0 to 100. When the number is larger, the redundant points are eliminated and the number of points on the map becomes less.
Page 239 MG200 USER MANUAL map. When you click the mouse on the point of curve in time-speed graph, it will set the centre point of the map to that position. 239 of 269 2019 BEAM ©...
Page 240: Administration
MG200 USER MANUAL 7. Administration 7.1 Remote Management 7.1.1 Command Script Navigate to the Administration > Command Script > Configuration tab. Command script configuration is the application that allows you to setup the pre-defined configuration in plain text style and apply configuration on start-up.
Page 241 MG200 USER MANUAL Any string. Value Range: 0 - 32 characters. Optional field. Enter a short description for the applied Command script. Description Any string. System data. It records the upload time for last command script upload. Update time You can edit the plain text configuration settings in the configuration window as above.
Page 242 MG200 USER MANUAL • Select TCP or TCP /UDP ->The OpenVPN will use TCP protocol, and Port will be set as 443 automatically. • Select UDP -> The OpenVPN will use UDP protocol, and Port will be set as 1194 automatically.
Page 243: 243
For example, STARTUP=#!/bin/sh STARTUP=echo “startup done” > /tmp/demo The MG200 accepts Telnet CLI commands. You can use the proprietary telnet command “txtConfig” and related action items to perform the plain system configuration. The command format is: txtConfig (action) [option] Action...
Page 244 MG200 USER MANUAL TR-069 Item Value setting Description Disabled by Check the Enable box to activate TR-069 function. TR-069 default. When you finish set network WAN-1 - WAN-n, you can choose WAN-1 - WAN-n Default setting: When you finish set Security > VPN >...
Page 245 You can ask ACS manager provide ACS ConnectionRequest Mandatory field. Password Password and manually set Enabled by When the Enable box is checked, the MG200 (CPE) will default. periodically send inform message to ACS Server according to Inform Default setting: the Interval setting.
Page 246: Snmp
The MG200 supports several public MIBs and one private MIB for the SNMP agent. The supported MIBs are as follow: MIB-II (RFC 1213, Include IPv6), IF-MIB, IP-MIB, TCP-MIB, UDP-MIB, SMIv1 and SMIv2, SNMPv2-TM and...
Page 247 MG200 USER MANUAL SNMPv2-MIB, and AMIB (a Proprietary MIB) SNMP Item Value setting Description Select the interface for the SNMP and enable SNMP functions. When Check the LAN box, it will activate SNMP functions and Disabled by you can access SNMP from LAN side;...
Page 248 MG200 USER MANUAL port is 161. Value Range: 1 - 65535. Mandatory field. Enter the Remote Access IP for WAN and check the box to enable it as well. Select Specific IP Address, and fill in a certain IP address. It...
Page 249 MG200 USER MANUAL page. It will show “Click on save button to apply your changes” to remind you to click main page Save button. Button. Click the X button to return to last page. Back The User Privacy List window allows you to customize your access control. The router supports up to 128 user Privacy sets.
Page 250 MG200 USER MANUAL User Privacy Rule Configuration Item Value setting Description Mandatory field. Enter the User Name. User Name String format: any Value Range: 1 - 32 characters. text. String format: any When your Privacy Mode is authNoPriv or authPriv, you need Password text.
Page 251 MG200 USER MANUAL The Trap Event Receiver List window allows you to customize your trap event receiver. The router supports up to 4 Trap Event Receiver sets. When Add button is applied, Trap Event Receiver Rule Configuration window will appear.
Page 252 MG200 USER MANUAL Mandatory field for SNMP Version Enter the Community Name for this version 1 or version v2c Community trap. v1 and v2c. Name Value Range: 1 - 32 characters. String format: any text. Mandatory field for SNMP Version Enter the User Name for this version 3 trap.
Page 253 MG200 USER MANUAL When you select v2c, the configuration window is the same as for v1. When you select v3, the configuration window will provide more setting items for the version 3 Trap. SNMP MIB-2 System Configuration Item Value setting Description Optional Setting.
Page 254 MG200 USER MANUAL If you use some private MIB, you need to fill the enterprise name, number and OID in the following Options window. Options Item Value setting Description The default value is Enter the Enterprise Name for the private MIB.
Page 255: Telnet & Ssh
Navigate to the Administration > Remote Management > Telnet & SSH tab. The Telnet & SSH setting allows you to access the MG200 through the traditional Telnet or SSH Telnet program. Before you can telnet (login) to the MG200, please configure the related settings and password. The password management part allows you to set root password for logging telnet and SSH.
Page 256 The default password Note_1: You are highly recommended to change the default for telnet is telnet password with you before the MG200 is deployed. ‘wirelessm2m’. Note_2: If you have trouble for the default password for previous FW version, please check the corresponding User Manual to get the correct one.
Page 257: System Operation
Click Save button to save the settings. Save Button. Click Undo button to cancel the settings. Undo Username window allows you to change the web based MMI login account to access the MG200. Username Configuration Item Value setting Description The default...
Page 258 Click Save button to save the settings. Save Button. Click Undo button to cancel the settings. Undo Password window allows you to change the web based MMI login password for the MG200 access. Password Configuration Item Value setting Description String: any text.
Page 259 MG200 USER MANUAL MMI Configuration Item Value setting Description Enter the login trial counting value. Value Range: 3 - 10. If someone tried to login the web GUI with incorrect Default setting: 3 password for more than the counting value, a warning Login (times).
Page 260: System Information
Select the system boot mode that will be adopted to boot up the MG200. Normal Mode: It takes longer boot up time, with complete firmware image check during the MG200 booting. Fast Mode: It takes shorter boot up time, without checking the firmware image during the MG200 booting.
Page 261: System Time
The System Time Configuration window provides auto-synchronized and manual setup for you to setup the system time for the MG200. The time supported synchronization methods can be Time Server, Manual, PC, Cellular Module, or GPS Signal. Select the method first, and then configure rest settings.
Page 262 It is an optional Check the Enable button to activate the NTP Service function. item. When you enabled this function, the MG200 can provide NTP NTP Service Disabled by default. server service for its local connected MG200s.
Page 264 Time Manually It is an optional Check the Enable button to activate the NTP Service function. item. When you enabled this function, the MG200 can provide NTP NTP Service Disabled by default. server service for its local connected MG200s. Save Button.
Page 265 GMT+00 :00. It is an optional Check the Enable button to activate the NTP Service function. item. When you enabled this function, the MG200 can provide NTP NTP Service Disabled by default. server service for its local connected MG200s. Synchronize Click the Active button to synchronize the system time with Button.
Page 266: System Log
7.2.4 System Log Navigate to the Administration > System Operation > System Log tab. View button is for you to view log history on the MG200. Email Now button enables you to send instant Email with system log. 266 of 269 2019 BEAM ©...
Page 267 MG200 USER MANUAL Web Log List Window Item Value Setting Description System data. Displays event time stamps Time column Log column System data. Displays Log messages Button. Click the Previous button to move to the previous page. Previous Button. Click the Next button to move to the next page.
Page 268 MG200 USER MANUAL Email Alert Setting Window Item Value Setting Description Check Enable box to enable sending event log messages to Disabled by default. destined Email account defined in the E-mail Addresses blank Enable space. Select an email server from the Server dropdown list to send Email.
Page 269 MG200 USER MANUAL storage (SD card). Log to Storage Setting Window Item Value Setting Description Disabled by default. Check to enable sending log to storage. Enable Default setting: Select MG200 Select internal or external storage (SD card). Internal. Log file name Disabled by default.
Page 270: Backup & Restore
“Browse” button, FW Upgrade Web UI. and then click “Upgrade” button to start the FW upgrading process on the MG200. If you want to upgrade a firmware which is from GPL policy, please check “Accept unofficial firmware” Module FW Button Upgrade Cellular module FW via Web UI.
Page 271: Reboot & Reset
Navigate to the Administration > System Operation > Reboot & Reset tab. System Operation Window Item Value Setting Description Chick the Reboot button to reboot the MG200 immediately or on a pre-defined time schedule. Now: Reboot immediately Default setting: Time Schedule: Select a pre-defined auto-reboot time schedule Reboot Now.
Page 272: Ftp
Note: The embedded FTP Server is only for log downloading, so no write permission is implemented for user file upload to the storage. Enter a port number for FTP connection. The MG200 will listen Default setting: Port FTP Port for incoming FTP connections on the specified port.
Page 273 With the SFTP Server enabled, you can retrieve or delete the ⚫ stored log files via secure SFTP connection. SFTP Port Default setting: 22 Enter a port number for SFTP connection. The MG200 will listen for incoming SFTP connections on the specified port. 273 of 269 2019 BEAM ©...
Page 275: User Account
MG200 USER MANUAL 7.3.2 User Account Navigate to the Administration > FTP > User Account tab. This section allows you to setup your accounts for logging to the embedded FTP and SFTP server to retrieve the interested fog files. When Add button is applied, User Account Configuration window will appear.
Page 276: Diagnostic
MG200 USER MANUAL 7.4 Diagnostic 7.4.1 Packet Analyzer Navigate to the Administration > Diagnostic > Packet Analyzer tab. The Packet Analyzer can capture packets per your settings. You can enter interfaces to capture packets and filter by setting rule. Ensure the log storage is available (SD card), otherwise Packet Analyzer cannot be enabled.
Page 277 MG200 USER MANUAL selections are also accepted. The supported interfaces can be: WAN: When the WAN is enabled at Physical ⚫ Interface, it can be selected here. VAP: This means the virtual AP. When Wi-Fi and ⚫ VAP are enabled, it can be selected here.
Page 278: Diagnostic Tools
MG200 USER MANUAL Source MACs Optional setting. Define the filter rule with Source MACs, which means the source MAC address of packets. Packets which match the rule will be captured. Up to 10 MACs are supported, but they need to be separated with “;”,...
Page 279 WAN, LAN, or VLAN), and LAN source (default, LAN, or VLAN) as Optional Setting. well, so system will try to ping the specified MG200 to test Ping Test whether it is alive after clicking on the Ping button. A test result window will appear beneath it.
Page 280: Appendix
MG200 USER MANUAL Appendix Appendix A – GPL Written Offer This product incorporates open source software components covered by the terms of third-party copyright notices and license agreements contained below. GPSBabel Version 1.4.4 Copyright (C) 2002-2005 Robert Lipe<robertlipe@usa.net> GPL License: https://www.gpsbabel.org/ Curl Version 7.19.6...
Page 281 MG200 USER MANUAL Copyright (c) 1996-2014 by Alexander V. Lukyanov (lav@yars.free.net) dnsmasq - A lightweight DHCP and caching DNS server. Simon Kelley <simon@thekelleys.org.uk> version:2.72 dnsmasq is Copyright (c) 2000-2014 Simon Kelley 281 of 269 2019 BEAM ©...
Page 282 MG200 USER MANUAL socat - Multipurpose relay Version: 2.0.0-b8 GPLv2 http://www.dest-unreach.org/socat/ LibModbus Version: 3.0.3 LGPL v2 http://libmodbus.org/news/ LibIEC60870 GPLv2 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111- 1307 USA https://sourceforge.net/projects/mrts/ Openswan Version: v2.6.38 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc.
Page 283 MG200 USER MANUAL PPTP Version: pptp-1.7.1 GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 675 Mass Ave, Cambridge, MA 02139, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
Page 284 MG200 USER MANUAL MiniUPnP: The miniUPnP daemon is an UPnP IGD (internet Gateway MG200) which provide NAT traversal services to any UPnP enabled client on the network. Version: 1.7 Copyright: (c) 2006-2011, Thomas BERNARD 284 of 269 2019 BEAM ©...
Page 285 MG200 USER MANUAL CoovaChilli is an open-source software access controller for Hotspot Services (UAM) and 802.1X access provisioning. Version: 1.3.0 Copyright: (C) 2007-2012 David Bird (Coova Technologies) <support@coova.com> Krb5: Kerberos is a network authentication protocol. It is designed to provide strong authentication for client/server applications by using secret-key cryptography.
Page 286 MG200 USER MANUAL WIDE-DHCPv6 Dynamic Host Configuration Protocol for IPv6 (DHCPv6) clients, servers, and relay agents. Version: 20080615 Copyright (C) 1998-2004 WIDE Project. BSD License: https://sourceforge.net/projects/wide-dhcpv6/ Python version 2.7.12 This Python distribution contains no GNU General Public Licensed (GPLed) code so it may be used in proprietary projects just like prior Python distributions.
Page 288: Appendix B - Product Handling
Installation, configuration and decommissioning should be performed by trained professional only. Do install the MG200 in a dust-free place with ventilation. Humidity range of the MG200 is 10% ~ 95% (non-condensing). Do not operate the MG200 beyond this range or expose to liquid.
Page 290: Appendix C - Beam Warranty Terms And Conditions
MG200 USER MANUAL Appendix C – BEAM Warranty Terms and Conditions Please visit following web page for the latest warranty terms and conditions. https://beamcommunications.com/support/service-warranty/beam-warranty-conditions. 290 of 269 2019 BEAM ©...
Page 291: Appendix D - Compliance
MG200 USER MANUAL Appendix D – Compliance The MG200 complies with the following standards. EMC: EN 55032, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301489-52 Radio: ETSI EN 300 328, AS/ ACIF S042.1& AS/CA S042.4 Safety: AS/NZS 2772.2, IEC62368...

Beam MG200 User Manual

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Beam MG200

Summary of Contents for Beam MG200

Table of Contents
