Temperature controller

Advertisement

Quick Links

PV = Process Value
SV = Set Value

TECHNICAL SPECIFICATION

INPUT SPECIFICATION:

Input
Input Types
J,K,= 1°C
Resolution
±1% of FSD ± 1°C
Indication
Accuracy
(FSD:- Full Scale Deflection)

DISPLAY AND KEYS:

Upper: 3 digit, 7 segment, 0.63"
Display
Lower: 3 digit, 7 segment, 0.30"
Keys
SET, INC, DEC, ENT
DIMENSION:
Size
48 (H) x 48 (W) x 70 (D) mm
Panel Cutout
45 (H) x 45 (W) mm

CONTROL METHOD:

1) PID control with Auto-Tuning
Heating
2) (TP) Time Proportional
3) ON-OFF control
Cooling
ON-OFF control

OUTPUT SPECIFICATION:

Relay Output
Relay
1 Nos
Relay Type
1C/O (NO-C-NC)
Rating
10A, 230V AC / 28V DC
SSR Drive Output
12V DC, 30mA DC
(On-Off condition)
Output Signal
Relay parallel to SSR

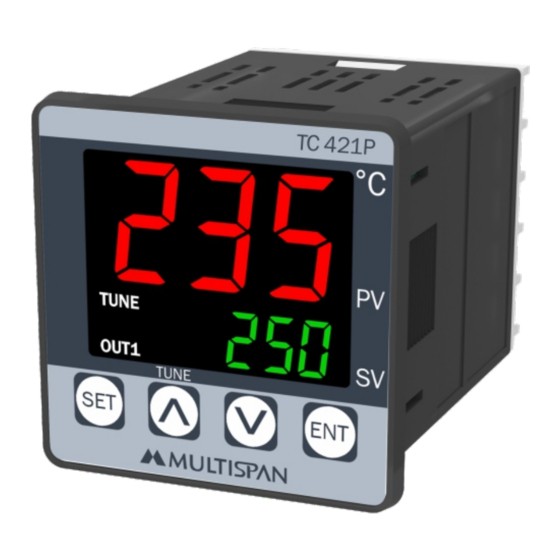

TEMPERATURE CONTROLLER
TC - 421P
Display Color:
Upper : RED/WHITE
Lower: Green
Range
J
0 to 400°C,
K
0 to 500°C,

POWER SUPPLY:

Supply
Voltage
Power
Consuption
(VA Rating)

ENVIRONMENT CONDITION:

Operating Temp.
Relative Humidity
Protection Level
(As per request)

MECHANICAL INSTALLATION

Outline Dimension (mm)
TC 421P
°
PV
48
TUNE
OUT1
TUNE
SET
ENT
48
3

TERMINAL CONNECTION

~
L
100
1
270V AC
50/60 HZ
4VA
N
2
!
3
4
www.multispanindia.com
5
Made in India
Sensor Input
8
9
Thermocouple
100 to 270V AC, 50-60Hz
4VA @ 230V AC MAX
0°C to 55°C
UP to 95% RH
(non-condensing)
IP-65 (Front side) As per IS/IEC
60529 : 2001
Panel Cutout
Dimension (mm)
45
70
7
T/C
+
-
SSR
NC
-
-
C
6
R1
NO
45
8
9
10
11
12

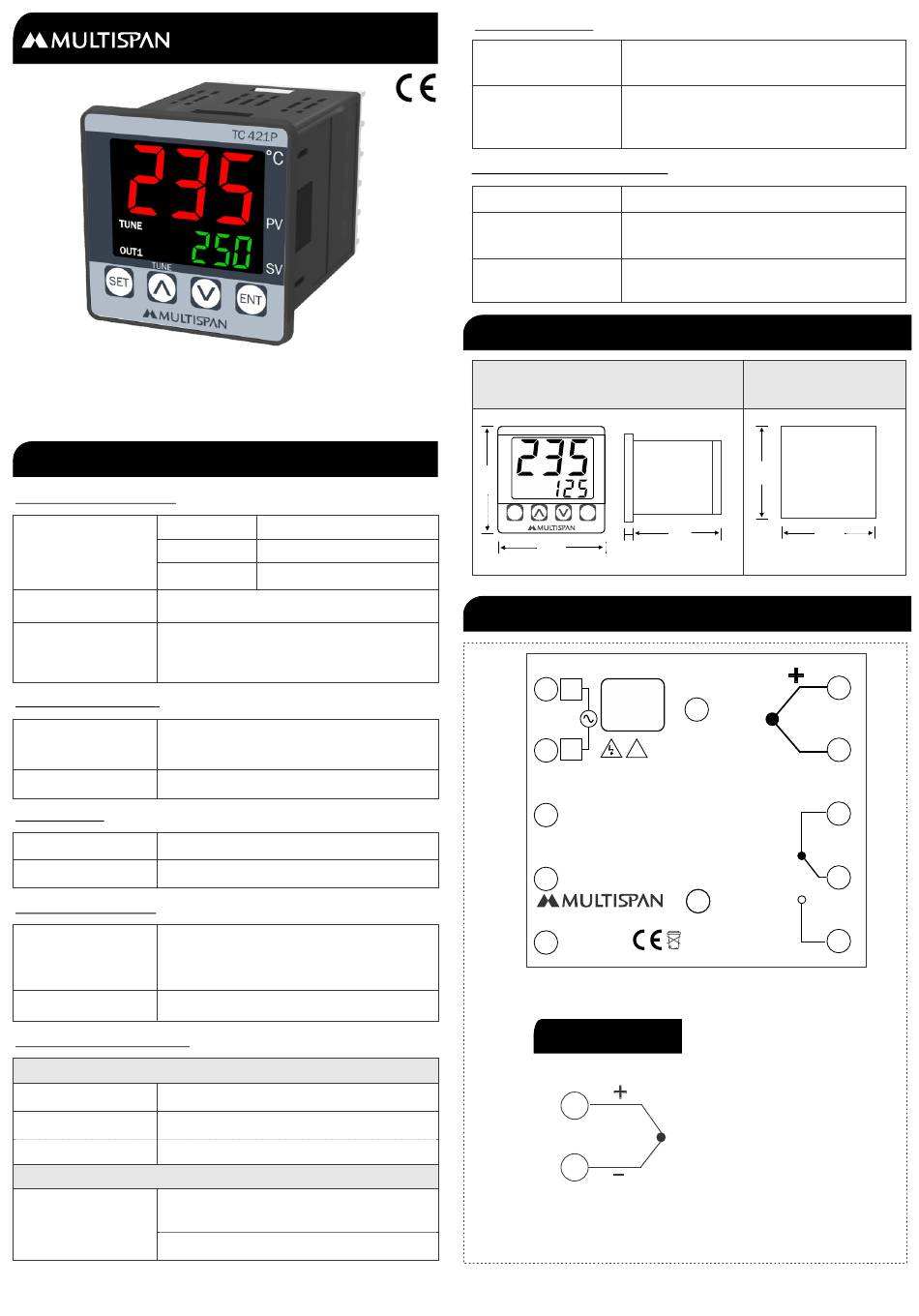

Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC-421P and is the answer not in the manual?

Questions and answers

Summary of Contents for MULTISPAN TC-421P

  • Page 1 POWER SUPPLY: TEMPERATURE CONTROLLER TC - 421P Supply 100 to 270V AC, 50-60Hz Voltage Power Consuption 4VA @ 230V AC MAX (VA Rating) ENVIRONMENT CONDITION: Operating Temp. 0°C to 55°C UP to 95% RH Relative Humidity (non-condensing) Protection Level IP-65 (Front side) As per IS/IEC (As per request) 60529 : 2001 MECHANICAL INSTALLATION...
  • Page 2 STATUS LED DESCRIPTION WARNING GUIDELINES WARNING : Risk of electric shock. 1. To prevent the risk of electric shock, power supply to the equipment must be kept OFF while doing the wiring arrangement. Do not touch the terminals while power is being supplied.
  • Page 3 ERROR DISPLAY PARAMETER SETTING When an error has occurred the display indicates error codes as given below. Set Point Setting ERROR MEANING Process Value Sensor is not connected or Over range condition or Set Value sensor break Sensor connection is reversed Set Point Press key for 3 sec to...
  • Page 4 ON - OFF control (Cooling) PARAMETER SETTING Control Parameter HYST To ENTER CONTROL PARAMETER Password SETTING, ENTER “37” Message RLY-OFF delay delay delay RLY-ON IF PID SELECTED IF TP SELECTED Time Time Time Time Parameters Parameters Auto Tuning:- Proportional Proportional The Auto-tuning function automatically computes Band Band...
