To access the Setup menu:
1. Press the OSD control pad (Enter) to access the Main menu and its
submenus.
2. Push the pad up, down, left and right to move between menu options.
3. Press the OSD control pad to select an option.
4. When in a sub menu, select
5. To exit the Main menu, move the cursor to
and press Enter. All changes are saved.

Select the lens type

In the Setup menu, go to
Auto or Manual. Select
manually, or select
appears.

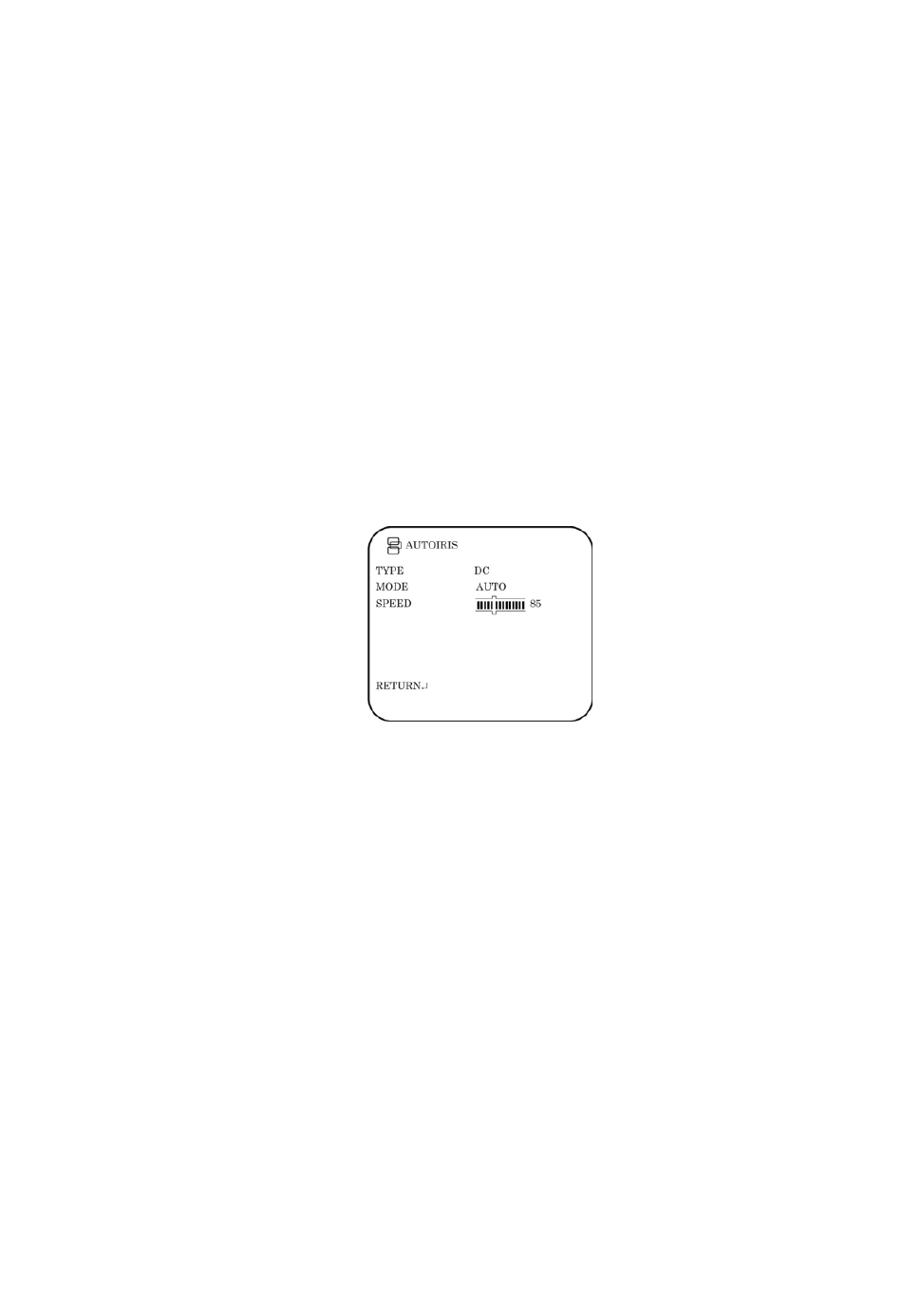

Autoiris menu:
Type: Select the drive mode of the lens. Only DC is available.
Mode: Select the iris control mode. Auto (automatically controlled depending on
the light), Open (always open), or Closed (always closed).
Speed: When the mode is set to Auto, select the convergence speed of the iris
between 0 and 255.

Set shutter/AGC

In the Setup menu, go to
option: Manual, Auto or Traffic. Auto is default. The selected menu appears:
UltraView UVC-6130-1 WDR Box Camera User Manual
Return
Lens and select the type of lens used with the camera,
Manual for a manual lens and adjust the options
Auto to set the lens type to autoiris. The Autoiris menu
Shutter/AGC
to return to the previous menu.
Exit at the bottom of the screen
and select the required light control
9
