Summary of Contents for LawnMaster BL805E 1201

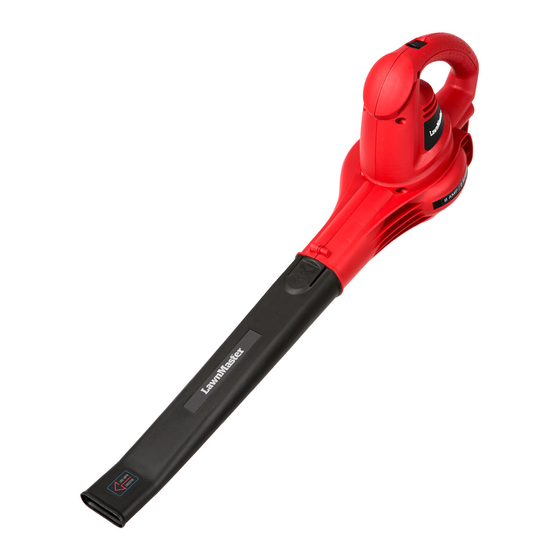

- Page 1 Operator′s Manual EN p. 2 2 Speed - 8 Amp Electric Blower BL805E 1201 CAUTION: To reduce the risk of injury, the user must read and understand the operator's manual before using this product.
-
Page 2: Table Of Contents
TABLE OF CONTENTS /TABLA DE CONTENIDOS ENGLISH ■ Introduction ............................ 2 ■ Important safety instructions ....................... 3-4 ■ Specific safety rules ........................5 ■ Symbols ............................6 ■ Features ............................7 ■ Electrical information ........................8 ■ Assembly ............................9 ■... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING! ■ Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction. READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all ■ Wear eye protection with side shields which instructions listed below may result in electric is marked to comply with ANSI Z87.1 as well shock, fire, and/or serious personal injury. - Page 4 IMPORTANT SAFETY INSTRUCTIONS ■ Turn off all controls before unplugging. ■ Check the work area before each use. Remove all objects such as rocks, broken ■ Do not allow to be used as a toy. Close glass, nails, wire, or string which can be attention is necessary when used by or near thrown or become entangled in the machine.
-
Page 5: Specific Safety Rules
SPECIFIC SAFETY RULES ■ Make sure your extension cord is in good ■ Do not attempt to clear clogs from tool condition. When using an extension cord, be without first unplugging it. sure to use one heavy enough to carry the ■... -
Page 6: Symbols
SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result DANGER: in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result WARNING in death or serious injury. -
Page 7: Features
FEATURES PRODUCT SPECIFICATIONS Voltage..............................120V~ 60Hz Amp ..................................8 A Air Speed ....................Low = 125 MPH / High = 160 MPH Max Air Volume ....................Low = 145 CFM / High = 180 CFM Max Weight .............................. 1.7 kg (3.8 lbs) BLOWER TUBE KNOW YOUR BLOWER This product has many features for making its use... -
Page 8: Electrical Information
ELECTRICAL INFORMATION DOUBLE Do not operate this product on direct current (DC). A substantial voltage drop will cause a loss of power and the motor will overheat. If your product does not INSULATION operate when plugged into an outlet, double-check the power supply. -
Page 9: Assembly
ASSEMBLY UNPACKING WARNING! If any parts are damaged or This product requires assembly. missing do not operate this product until the parts are ■ Carefully remove the product and any accessories replaced. Use of this product with damaged or missing from the box. -
Page 10: Operation
OPERATION WARNING! OPERATING THE BLOWER Do not allow familiarity with products to make you careless. Remember that a See Figure 5. careless fraction of a second is sufficient to inflict ■ To keep from scattering debris, blow around the outer serious injury. -
Page 11: Care And Maintenance
CARE AND MAINTENANCE WARNING! WARNING! When servicing, use only Do not at any time let brake identical replacement parts. Use of any other parts may fluids, gasoline, petroleum-based products, penetrating create a hazard or cause product damage. oils, etc., come in contact with plastic parts. Chemicals can damage, weaken or destroy plastic, which may WARNING! result in serious personal injury. -
Page 12: Warranty
WARRANTY We take pride in producing a high quality, durable product. This Lawnmaster® product carries a limited two (2) year warranty against defects in workmanship and materials from date of purchase under normal household use. If product is to be used for commercial, industrial or rental use, a 30 day limited warranty will apply. -
Page 13: Illustrated Parts List
2 Speed - 8 Amp Blower – MODEL NUMBER BL805E 1201 The model number will be found on a label attached to the motor housing. 13 ― English... - Page 14 2 Speed - 8 Amp Blower – MODEL NUMBER BL805E 1201 The model number will be found on a label attached to the motor housing. ITEM NO. PART NO. DESCRIPTION 131009101 Motor Housing Assembly 131009102 Power Cord Assembly 131009103 Push Button...
- Page 15 See this section for all of the figures referenced in the operator’s manual. Consulte esta sección para ver todas las figuras mencionadas en el manual del usuario. Fig. 1 A - ON/OFF switch(Interruptor de Encendido/Apagado) B - Blower tube(Tubo de la sopladora) C - Cord retainer(Enganche para el cable) D - Plug(Enchufe) Fig.
- Page 16 Fig. 3 A - Cord retainer(Enganche para el cable) B - Loop(Collar) C - Plug(Enchufe) D - Extension cord(Cable alargador) Fig. 4 Fig. 5 Off(Apagado) Low Speed (Velocidad baja) High Speed (Velocidad alta)
