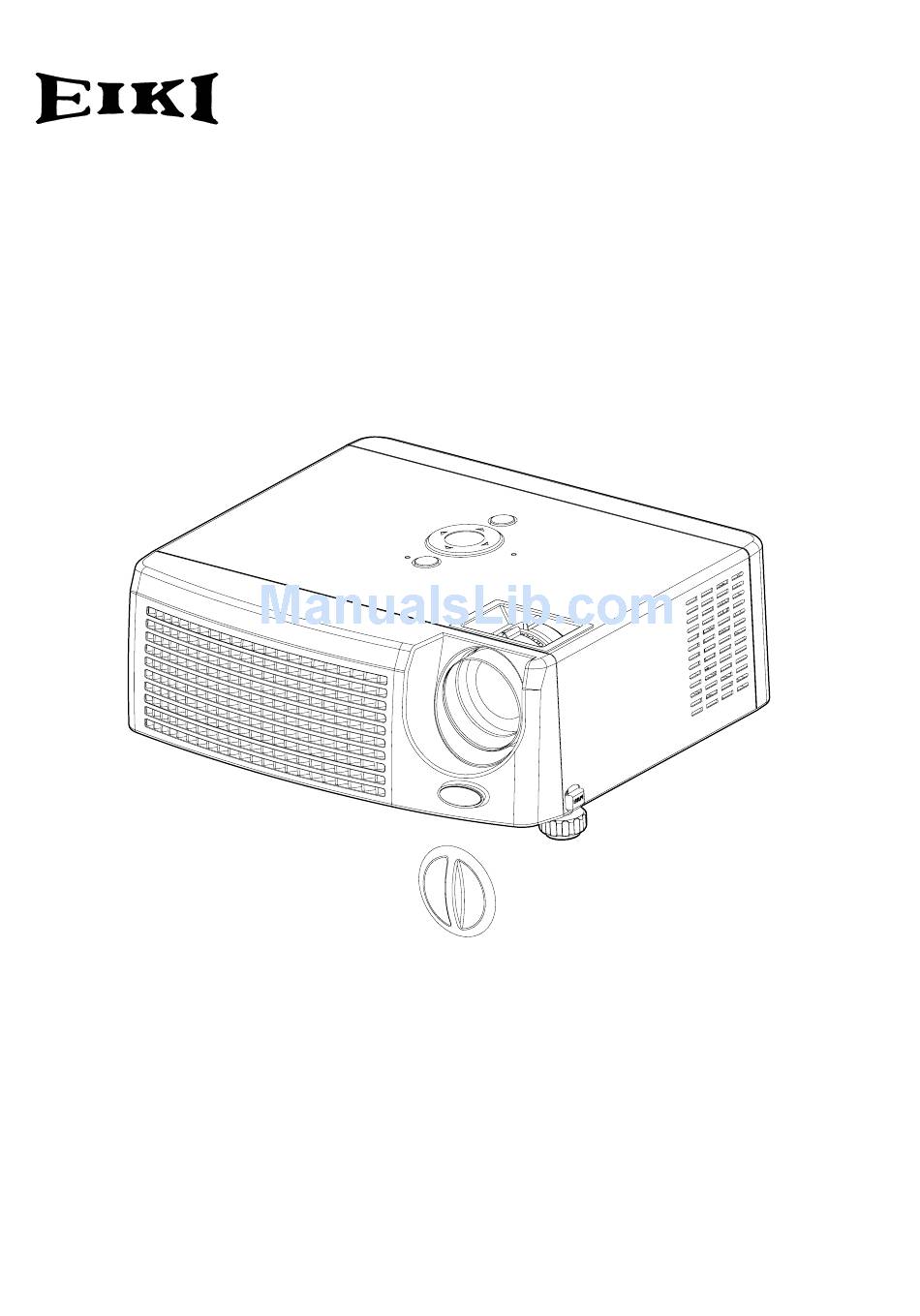

- Page 1 MULTIMEDIA PROJECTOR EIP-S200 MODEL OWNER’S MANUAL...
-
Page 2: Federal Communication Commission Notice
If such changes or modifications should be made, you could be required to stop operation of the equipment. Model Number : EIP-S200 Trade Name : EIKI Responsible party : EIKI International, Inc. Address : 30251 Esperanza Rancho Santa Margarita CA 92688-2132 Telephone No. : 800-242-3454 (949-457-0200) EN-1... -
Page 3: Safety Instructions
Safety Instructions Read all of these instructions before you operate your projector and save for future reference. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE EXCEPT LAMP REPLACEMENT. - Page 4 1. Check that the operating voltage of your unit is identical with the voltage of your local power supply. 2. Should any liquid or solid object fall into the cabinet, unplug the unit and have it checked by the qualified personnel before operating it further. 3.
- Page 5 14. The projector is equipped with ventilation holes (intake) and ventilation holes (exhaust). Do not block or place anything near these slots, or internal heat build-up may occur, causing picture degradation or damage to the projector. 15. When you replace the projector lamp, never touch the new bulb with your bare hands.
-
Page 6: Notes On Ac Power Cord
Notes on AC Power Cord AC Power Cord must meet requirement of country where you use a projector. Confirm an AC plug type with graphics below and proper AC Power Cord must be used. If supplied AC Power Cord does not match your AC outlet, contact your sales dealer. This projector is equipped with a grounding type AC line plug. -
Page 7: Table Of Contents
Introduction ... 7 Projector Features ... 7 Package Contents ... 8 Projector Overview ... 9 Using the Product ... 11 Control Panel ... 11 Terminals ... 12 Remote Control ... 13 Remote Control Operation ... 15 Installation ... 16 Connecting the Projector ... 16 Powering On/Off the Projector ... -
Page 8: Introduction
Introduction Projector Features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features: Single chip 0.55" Texas Instruments DLP SVGA (800 x 600 pixels) true resolution 1.07x manual zoom lens Auto image re-sizing (Auto-Sync.) to 800 x 600 full screen with scaling compression compatibility for VGA, SVGA, XGA* and SXGA*... -
Page 9: Package Contents
Package Contents When you unpack the projector, make sure you have all these components: Projector with Lens Cap Composite Video Cable Remote Control (IR) Owner’s Manual with Lithium battery Save the original shipping carton and packing material; they will come in handy if you ever to ship your unit. -
Page 10: Projector Overview
Projector Overview Front View Ventilation holes Projection lens Front IR remote control sensor Lens cap Elevator foot Elevator button Zoom ring Focus ring Control panel EN-9... -
Page 11: Bottom View
Rear View Rear IR remote control sensor Ventilation holes Terminals Elevator button Elevator foot Speaker AC power socket Kensington lock Bottom View Lamp cover Ceiling mount This projector can be used with a ceiling mount for support. The ceiling mount is not included in the package. EN-10... -
Page 12: Using The Product
Using the Product Control Panel Lamp LED indicator Refer to “LED Indicator Messages”. (p.30) Power LED indicator Refer to “LED Indicator Messages”. (p.30) Button Function Power Refer to “Powering On/Off the Projector”. Keystone Adjusts image distortion caused by tilting the projector. Auto Automatically adjusts frequency, total dots. -
Page 13: Terminals
Terminals SERIAL When operating the projector via a computer, connect this to the controlling computer’s RS-232C port. USB(COMPUTER) This connector is for firmware update. COMPUTER IN Connects image input signal (analog) to this jack. S-VIDEO Connects S-Video output from video equipment to this jack. VIDEO Connects composite video output from video equipment to this jack. -
Page 14: Remote Control
Remote Control Power Refer to “Powering On/Off the Projector”. (p. 17) Four directional buttons Use four directional buttons to select items or make adjustments to your selection. (p. 22) Menu Displays or exits the on-screen display menus. (p. 22) Enter To select the desired setting. -
Page 15: For The First Time Use
For the first time use: Remove the transparent insulation tape by pulling it before use. For battery change: 1. Push the catch to the right and remove the battery holder. 2. Remove the old Lithium coin cell and install new one (CR2025). -
Page 16: Remote Control Operation
Remote Control Operation Point the remote control at the infrared remote sensor and press a button. Operating the projector from the front Operating the projector from the rear The remote control may not operate when there is sunlight or other strong light such as a fluorescent lamp shining on the remote sensor. -
Page 17: Installation
Installation Connecting the Projector RS232 Cable USB Cable VGA Cable (D-Sub to D-Sub) Audio Cable When connecting cable, power cords of both a projector and external equipment should be disconnected from AC outlet. The figure above is a sample connection. This does not mean that all of these devices can or must be connected simultaneously. -
Page 18: Powering On/Off The Projector
Powering On/Off the Projector Powering on the projector: 1. Remove the projector lens cap. 2. Complete the AC power cord and peripheral signal cable(s) connections. 3. The Power LED blinks Green in standby mode. 4. Press button on the control panel or remote control to turn on the projector. The Power LED lights on Amber and Lamp LED lights on Green when the lamp is on. -
Page 19: Adjusting The Projected Image
Adjusting the Projected Image Adjusting the Projector Height The projector is equipped with an elevator foot to adjust the image height. To raise the image: 1. Press the elevator button. 2. Raise the image to the desired height angle, then release the button to lock the elevator foot into position. -
Page 20: Adjusting The Projector Zoom And Focus
Adjusting the Projector Zoom and Focus Zoom ring Focus ring 1. Focus the image by rotating the focus ring. A still image is recommended for focusing. 2. Adjust the image by rotating the zoom ring. Rotate to the right to reduce the image. Rotate to the left to enlarge the image. -
Page 21: Adjusting Projection Image Size
Adjusting Projection Image Size Refer to the graphic and table below to determine the screen size and projection distance. The values shown below are approximate and may vary from actual size. 277.8 259.62 A:B=8.3:1.2 PROJECTION DISTANCE (METER) 4:3 SCREEN Wide 33.34 SIZE- DIAGONAL... -
Page 22: Menu Operation
Menu Operation The projector has multilingual On Screen Display menus that allow you to make image adjustments and change a variety of settings. EN-21... -
Page 23: How To Operate
How to operate 1. Press Menu button to open the OSD menu. 2. When OSD is displayed, use After selecting the desired main menu feature, press for feature setting. 3. Adjust the settings with 4. To return to the main menu, press Menu button. 5. -
Page 24: Image (Computer / Video Mode)
Image (Computer / Video Mode) Contrast The contrast controls the degree of difference between the lightest and darkest parts of the picture. Adjusting the contrast changes the amount of black and white in the image. Press to decrease the contrast. Press to increase the contrast. -
Page 25: Video (Video Mode)
Manually adjusts red. Green Manually adjusts green. Blue Manually adjusts blue. Video (Video Mode) Saturation Adjusts a video image from black and white to fully saturated color. Press to decrease the amount of color in the image. Press to increase the amount of color in the image. Tint Adjusts the color balance of red and green. -
Page 26: Language (Computer / Video Mode)
Language (Computer / Video Mode) Choose the multilingual OSD menu. Use “ / Enter” to finalize the selection. Advanced (Computer / Video Mode) Auto Source Select Automatically scans the input source. Press “ selection. Rear The image is reversed horizontally. Press “ selection. -
Page 27: Maintenance
Maintenance The projector needs proper maintenance. You should keep the lens clean as dust, dirt or spots will project on the screen and diminish image quality. If any other parts need replacing, contact your dealer or qualified service personnel. When cleaning any part of the projector, always switch off and unplug the projector first. -
Page 28: Replacing The Lamp
Replacing the Lamp Projector lamps have a finite life. Replace the lamp when: The image becomes darker and hues become weaker after a lamp has been for a long period of time. The projector lamp LED indicator turns into amber. Refer to section titled “LED Indicator Messages”... - Page 29 Do not use the projector with the lamp cover removed. Replacement lamp can be ordered through your dealer. When ordering a projection lamp, give the following information to the dealer. Model No. of your projector : EIP-S200 Replacement Lamp No. EN-28...
-
Page 30: Specifications
Specifications Display Type Resolution (Pixels) Uniformity Lens Contrast Ratio Aspect Ratio Screen Size Throw Distance Lamp Projection Type Video Compatibility Input Source Scanning Frequency Horizontal Frequency Vertical Frequency Digital Keystone Correction Integrated Speaker Acoustic Noise Storage Temperature Operation Temperature Operation Humidity Power Requirement Power Consumption Dimension (W x D x H) -
Page 31: Appendix
Appendix LED Indicator Messages LED Type Projector Power LED Status Color Status Standby Flashing Green Lamp ignition Solid Amber failure Power on Amber Solid Lamp life Solid Amber warning Solid Power off Amber Over Solid Amber temperature EN-30 Lamp LED Status Color The projector is powered and ready. -
Page 32: Compatibility Modes
Compatibility Modes Computer: Mode Resolution 480P 640 x 480 640 x 480 640 x 480 640 x 480 720 x 400 720 x 400 SVGA 800 x 600 SVGA 800 x 600 SVGA 800 x 600 SVGA 800 x 600 1024 x 768 1024 x 768 1024 x 768... -
Page 33: Troubleshooting
Troubleshooting Refer to the symptoms and measures listed below before sending the projector for repairs. If the problem persists, contact your dealer or service center. Please refer to “LED Indicator Messages” (p.30) as well. Symptom Cause No power. The AC power cord is not plugged in. -
Page 34: Configurations Of Terminals
Symptom Cause The battery could be weak. R e m o t e c o n t r o l The remote control is not being doesn’t work. used within the effective range. There are some obstructions between the remote control and projector. - Page 35 Tel : 86-21-5396-0088 Fax : 86-21-5396-031 E-Mail : info@eikichina.com.cn WorldWide Website http://www.eiki.com Canada EIKI CANADA -Eiki International, Inc. P.O. Box 156, 310 First St. - Unit 2, Midland, ON, L4R 4K8, Canada Tel : 800-563-3454 (705)-527-4084 Fax : 800-567-4069 (705)-527-4087 E-Mail : canada@eiki.com...
